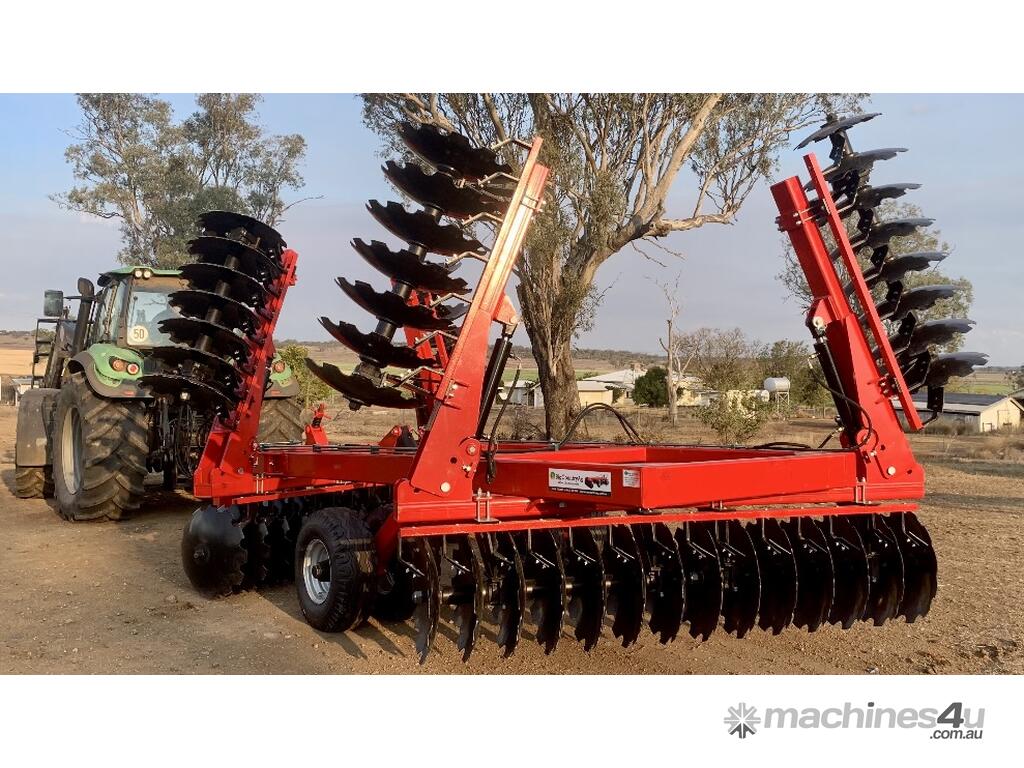

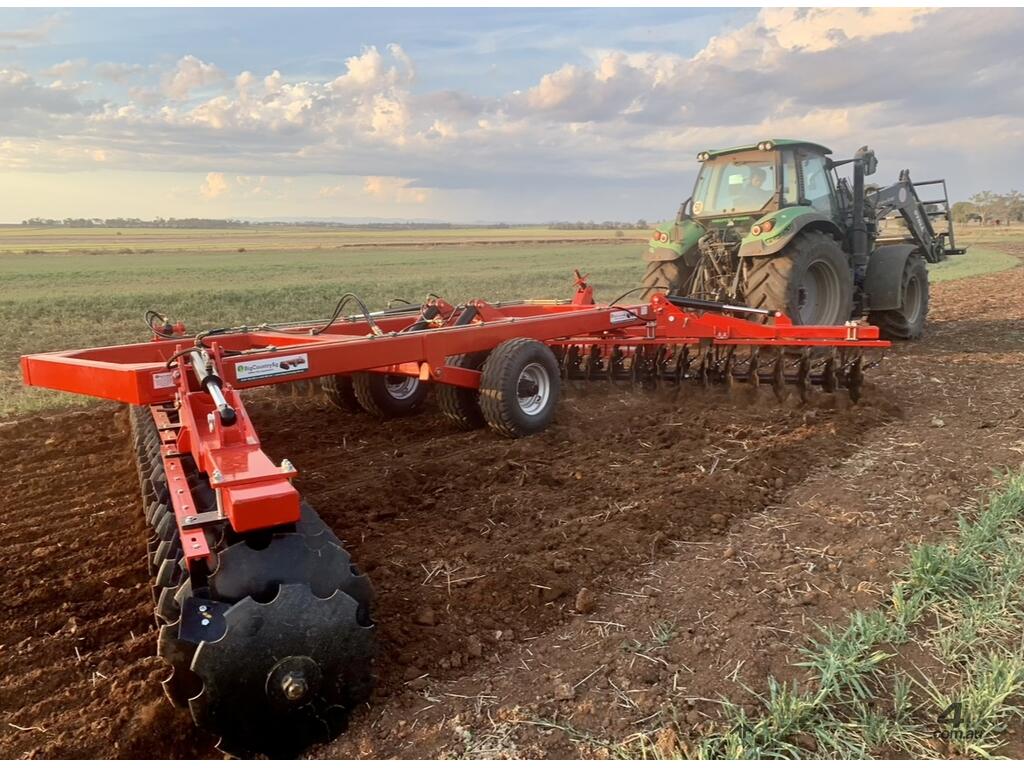

Big Country Ag 56 Plate Folding Wing Offset

Big Country Ag 56 Plate Folding Wing Offset
Our offsets are designed for tough Australian conditions.
- 5.8m cut,
- 220mm cut depth,
- Weight 6,780kg,
- 200 x 100 RHS mainframe,
- 28" x 5/16 spring steel, scalloped discs,
- 230mm spacings,
- Heavy duty scrappers,
- Big 55mm hi-tensile shafts,
- Dual greaseable taper roller bearings,
- Quality hydraulic cylinders with JIC ?ttings,
- 4 big 400/80 - 15.5 16 ply ?oatation tyres ?tted to 15.5 super single wheels Hydraulic controlled front drawbar,
- Strong main frame with heavy duty ?ttings designed for deep soil penetration,
- Easy to transport and assemble,
- 220+ HP tractor required,
- 12-month warranty on all parts, except tyres & hydraulic hoses.

Custom made offsets available on request.
