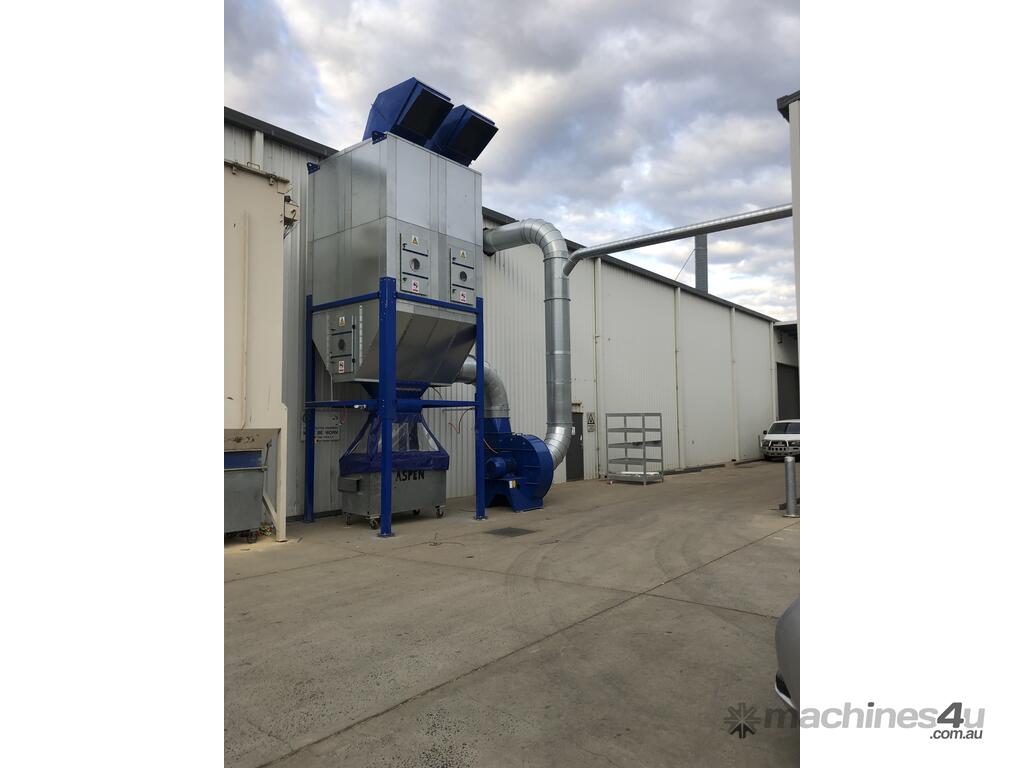

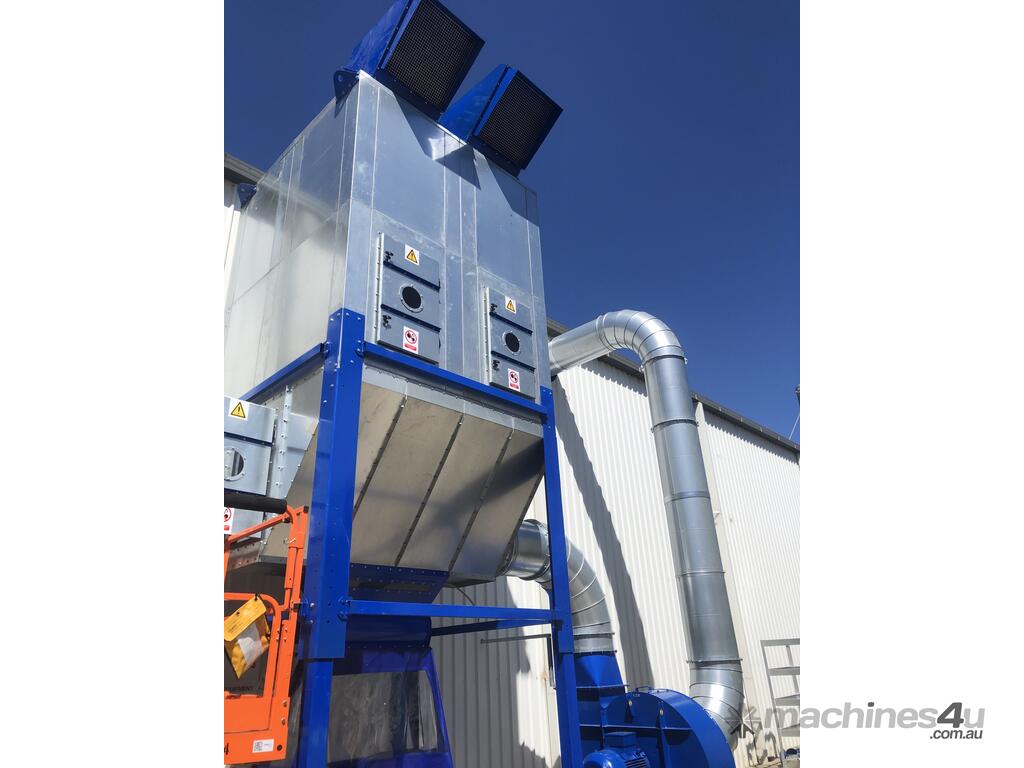

Blue Vent Dust Extraction System

Reverse cycle dust collector.
Inlet through hopper.

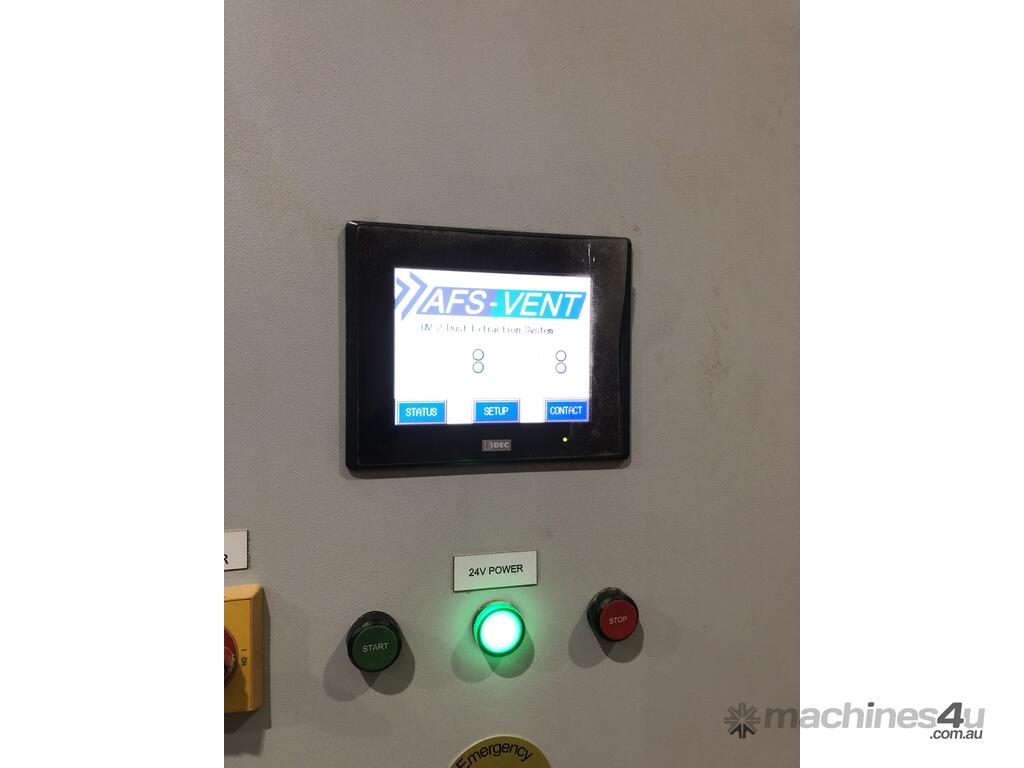

Regeneration fan cleaning system, On-line and Off-line cleaning of filter bags via PLC.
Finished in 2mm galvanised steel.
Robust adjustable height steel frame with powder coat finish.
Inlet non-return flap-To prevent dust entering main fan during offline cleaning.
Dimensions in millimetres: 2400W x 2400D x 7765H.( NOTE-Does not include main fan TBC)
(height variable for each installation)
Ø600 inlet 24,000 m3-h (dependant on dust load).

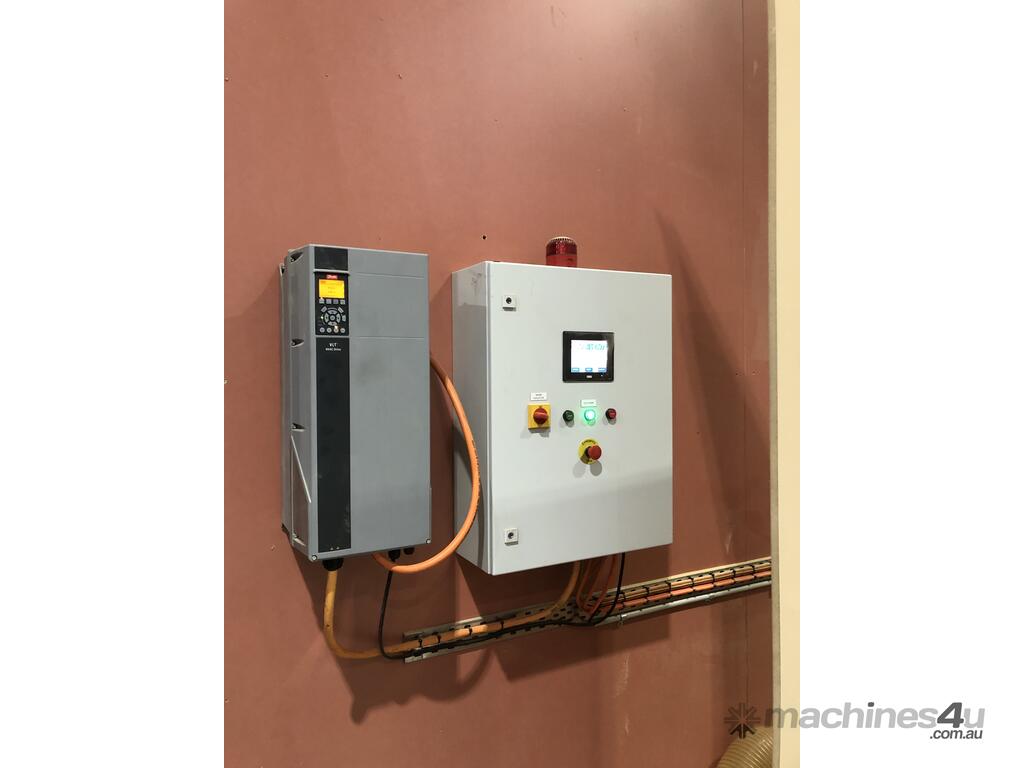

37 KW main fan and VSD.
172 m2 of filtration area.
Waste bin cover to suit up to 3m2 waste bin included.
Ducting to the building included, conditions apply.
Extremely efficient system.
Supply and Installation included EXW Melbourne, some conditions apply, contact Blue vent Australia Pty Ltd for more information.

Blue vent also supply reverse pulse Dust collector systems, ducting components, waste recycling and much more, enquire now.
