Blue Vent Rotary Valve - BRV-75 N

ROTARY VALVE BRV-75 N
PORT SIZE-750x220
The BRV-N rotary valves (air-locks) series are designed as a out feeding unit from filter bag houses, storage units, screw augers, cyclones and others. The rotary valve can handle dry/green dust, chips, powder and granules.


CONSTRUCTION

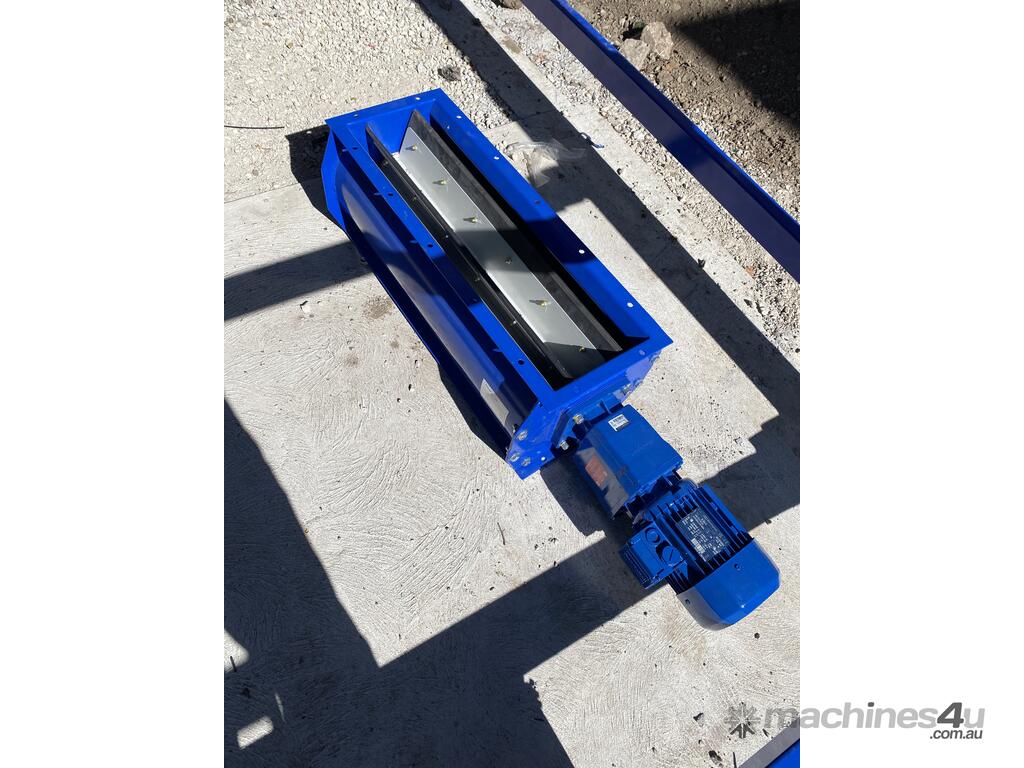

Welded construction in 3 mm steel plate, the rotor house is powder coated as standard RAL 5010. The rotor is separated from the rotor house with rubber gaskets. The shaft is connected to an external bearing on the rotor house and the gear- motor is direct connected into the rotor.
The type BRV-N rotor is equipped with 6 or 8 rubber vanes.
Rubber blade vanes in neoprene rubber.

FUNCTION

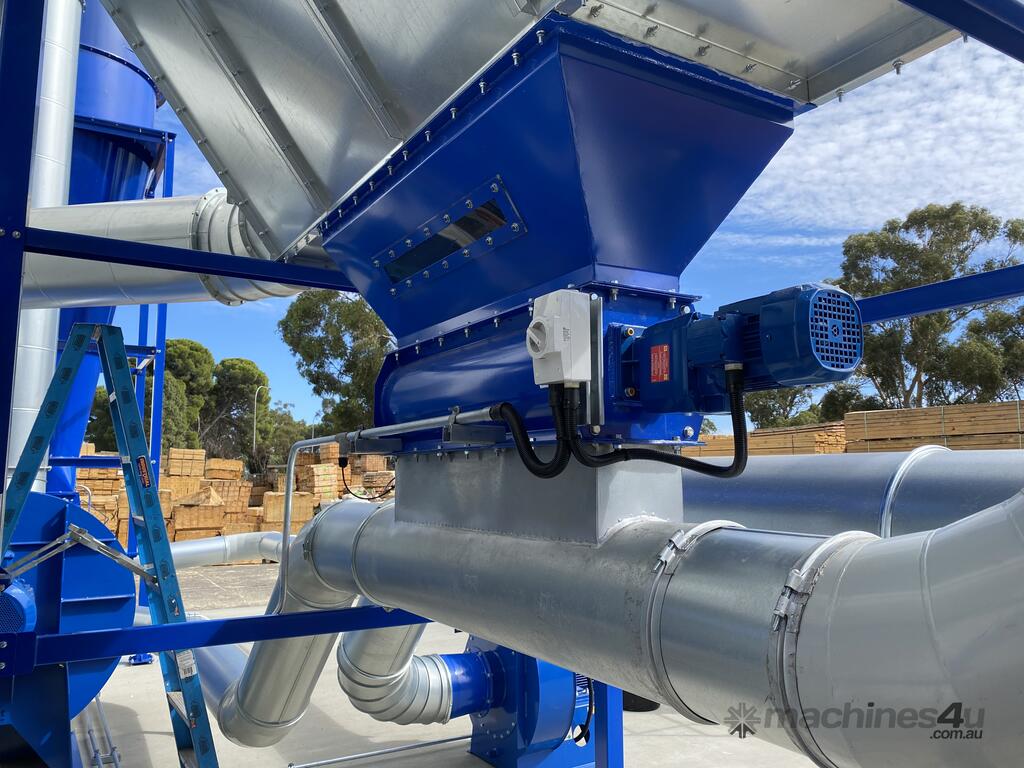

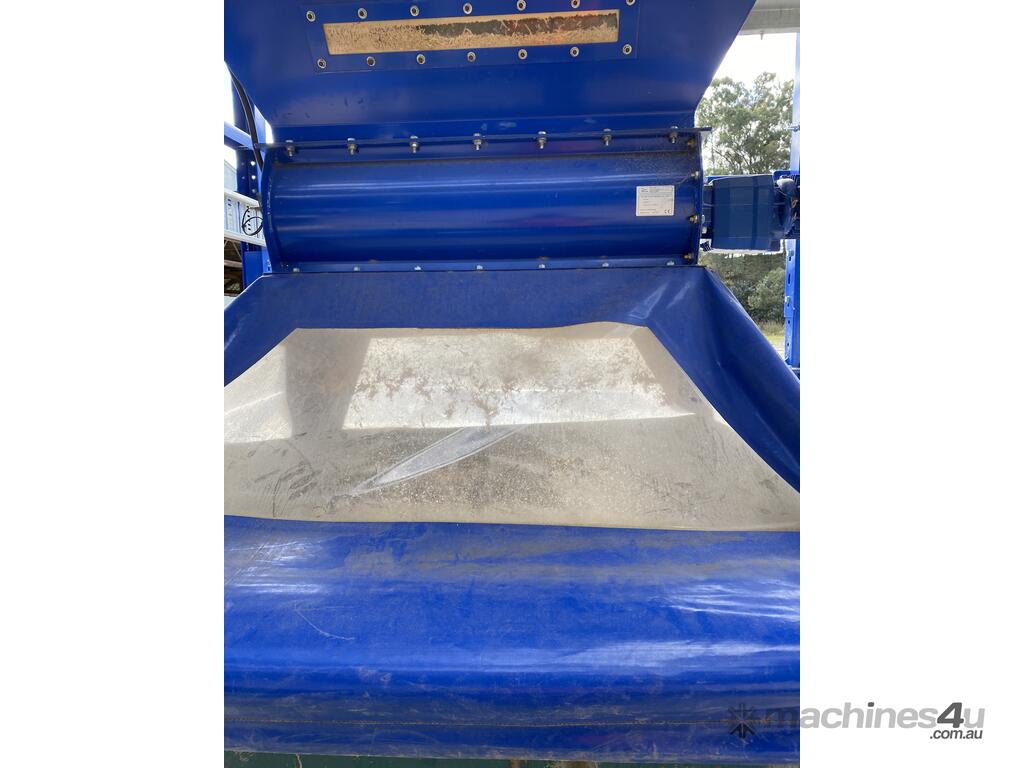

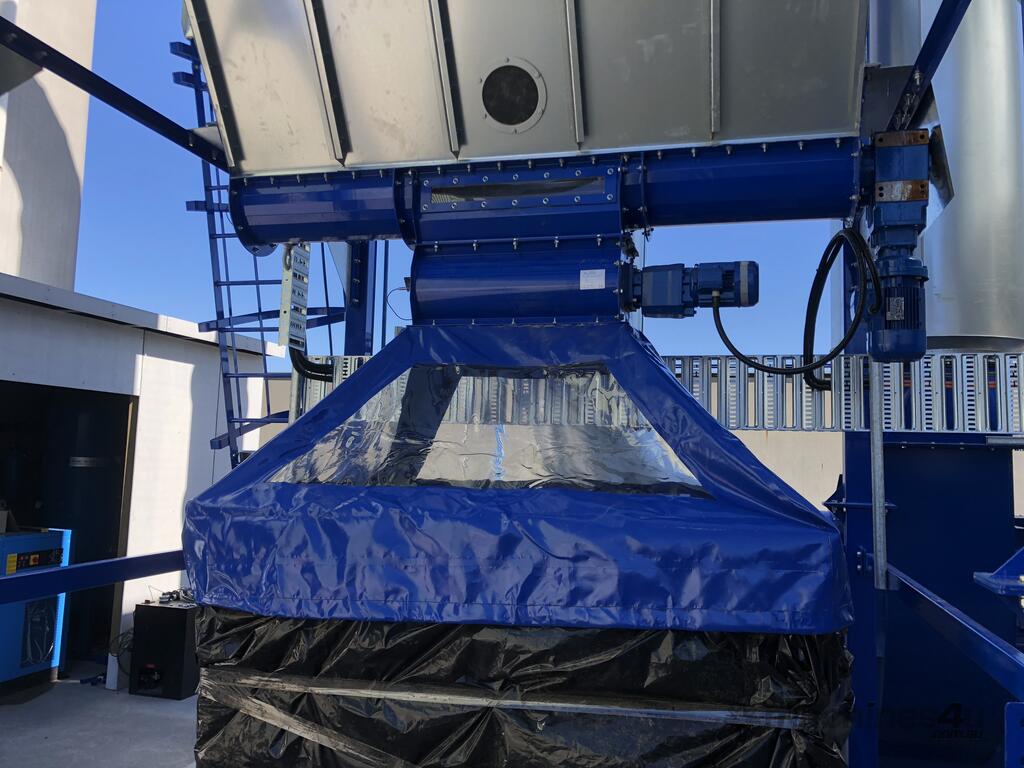

The BRV-N rotary valve (air-lock) series are used to feed the material into a pneumatic transport system or down into a waste bin or container.

ROTATION DETECTOR:
The rotary valves are equipped standard with a bracket for mounting the rotation detector. The rotation detector is an option. Rotation detector 24 VDC.

OPERATING RANGE
Pressure: + 5,000 Pa. - ÷ 5,000 Pa. Capacity at 50% filling: 32 M3/h. Operating temperature: ÷ 30 to + 80° C.

ELECTRICAL DEVICES
Bonfigioli Gear motor and reduction box 0.55 KW, 400 V., 50 HZ

Blue-vent Group also supply other type of rotary valves for varied applications
High pressure blow lines
Concrete and other abrasive materials
Cast iron
Stainless
Explosion proof
ATEX

Any assistance in selecting the correct rotary valve for your needs
Please enquire with Blue-vent and speak with a professional
