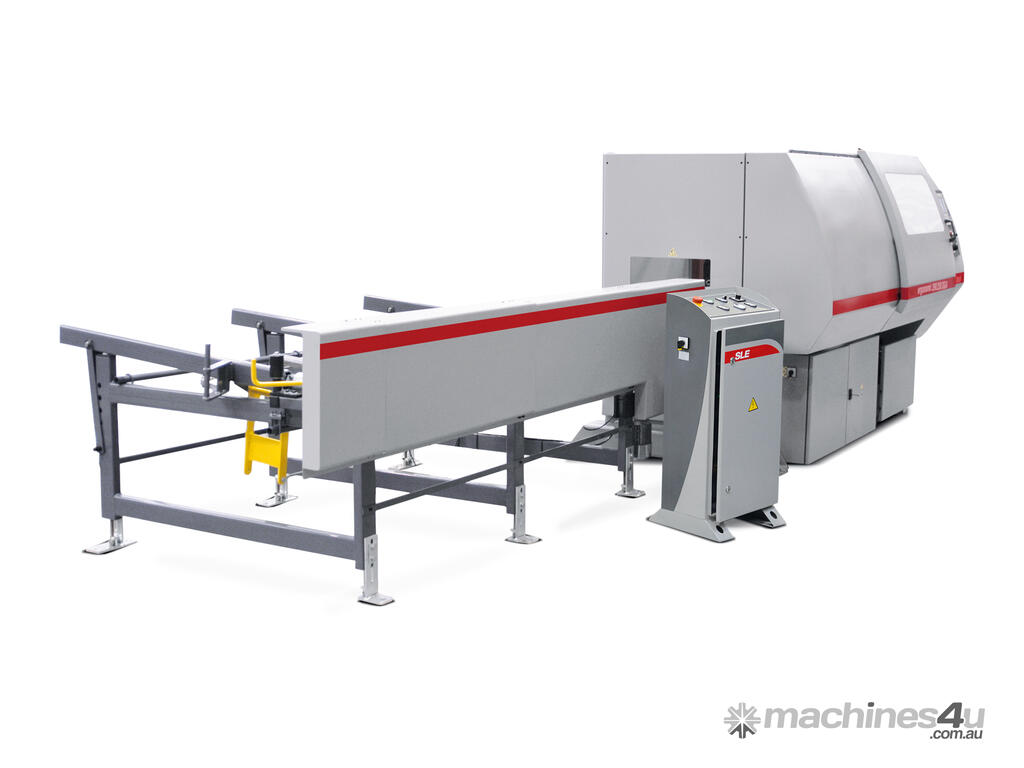

Bomar Ergonomic 290.258DGANC CNC Bandsaw

The Ergonomic 290.258 DGANC machine is a automatic band saw with CNC control providing possibility of automatic double angular cutting. Saw swivelling is smooth within range -45 and +60°. It is possible to clamp a cut either single pieces, or complete bundles of material at a time by means of the hydraulic bundle clamping device. Maximum length of one feed is 1500 mm,
The machine is equipped as standard with automatic control of band pressure to depth providing precise and straight cuts with the 25mm saw band. The saw can be operated simply via the control panel attached to the machine base.
Standard equipment

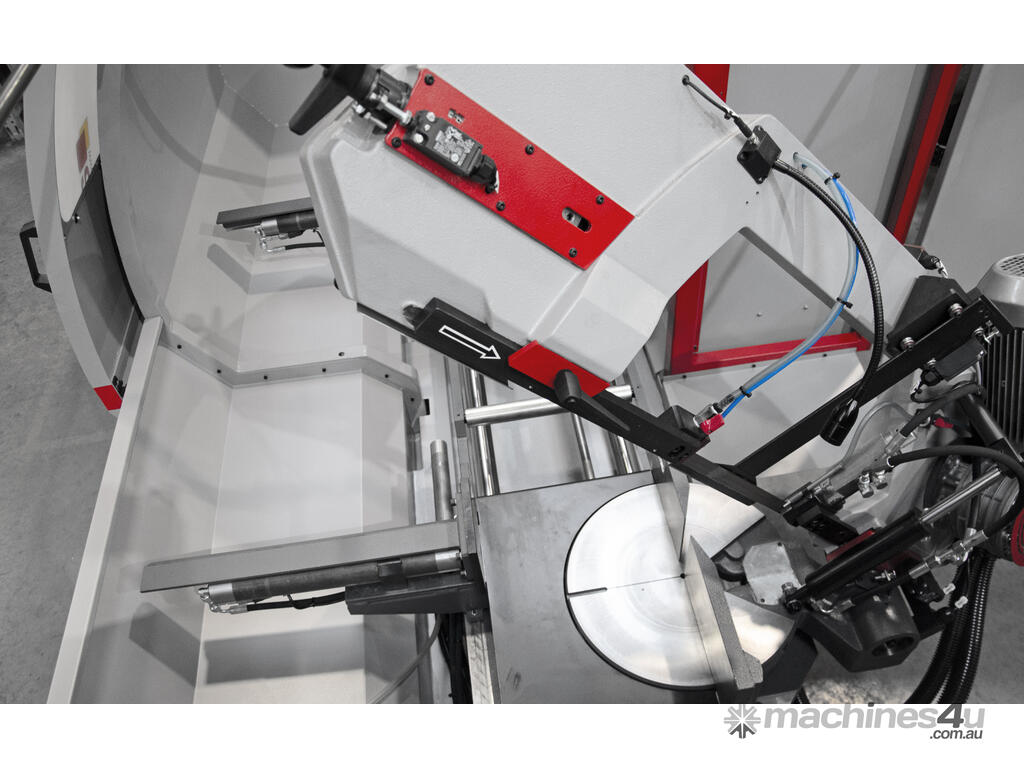

• Double-sided arm swiveling with cutting angle within range -45° left and +60° to the right
• Digital indicator of arm swiveling angle

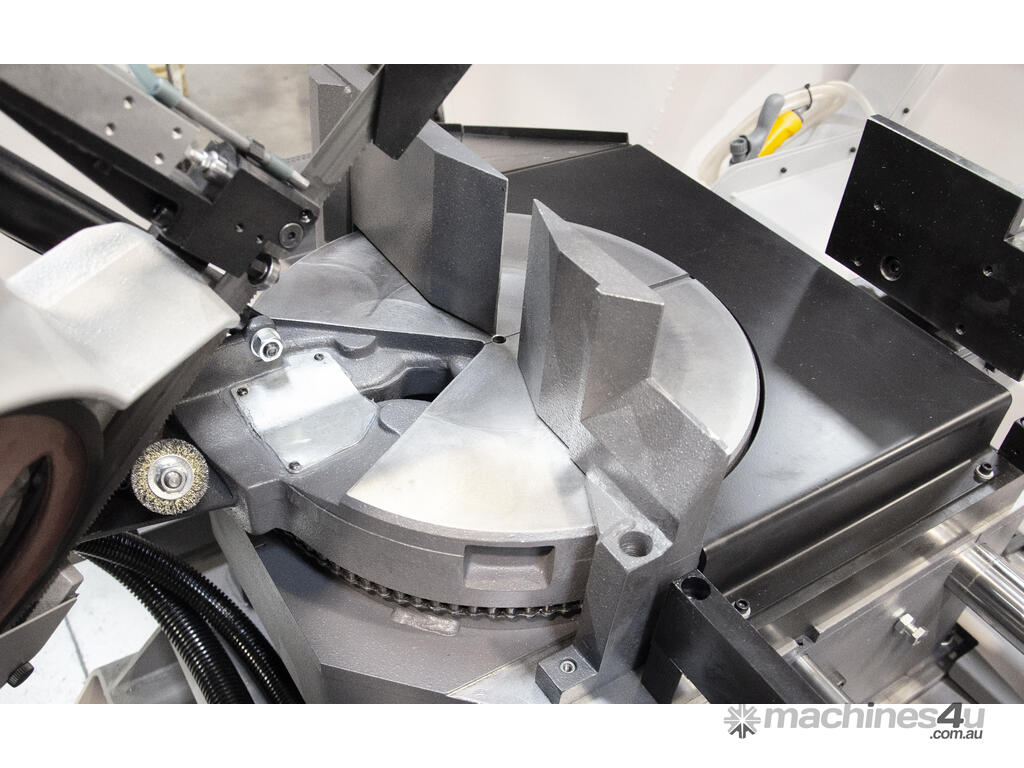

• Hydraulic full-lift clamping main vice and the feeding vice
• Continuously adjustable speed of the saw band
• Very precision saw band hard-metal guideways ensure cut accuracy
• Continuously adjustable saw arm feed to depth and pressure to depth
• Automatic control of saw band pressure to depth depending on cut material resistance
• Automatic shutdown of the machine due to not tensioned or broken saw band
• Powerful and reliable saw band drive motor 1.5 kW

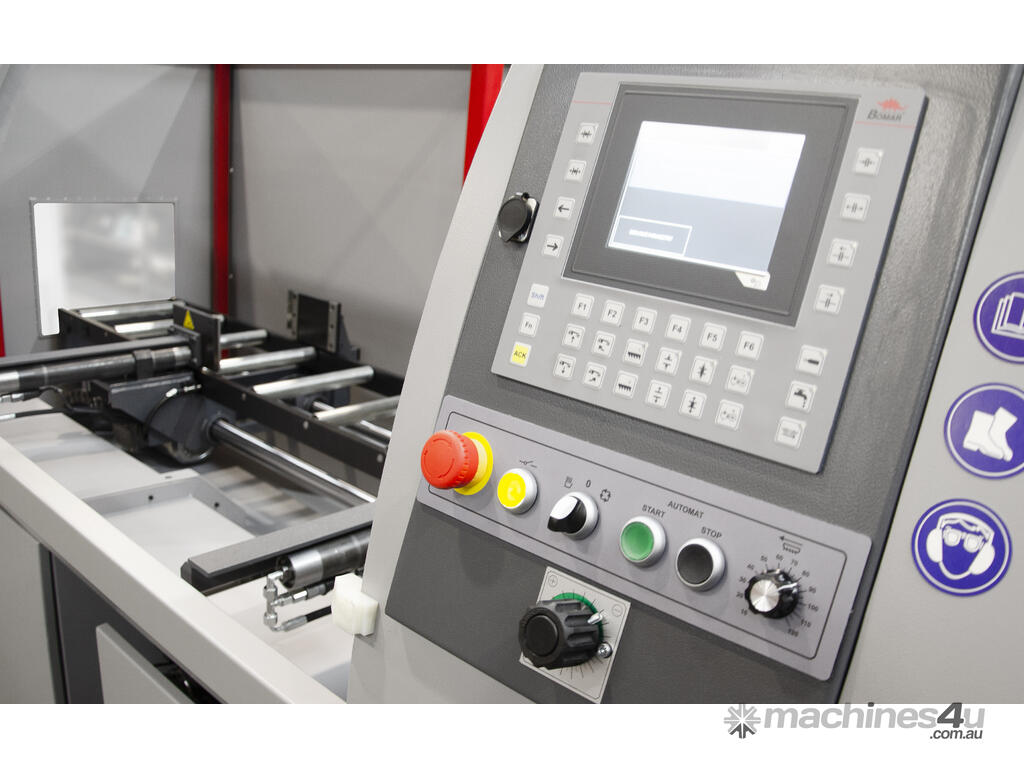

• Up-to-date control with the text display and the foil keyboard
• Freely positional control panel
• Big hydraulic aggregate
• Information on machine status and automatic cycle course available via the LCD display

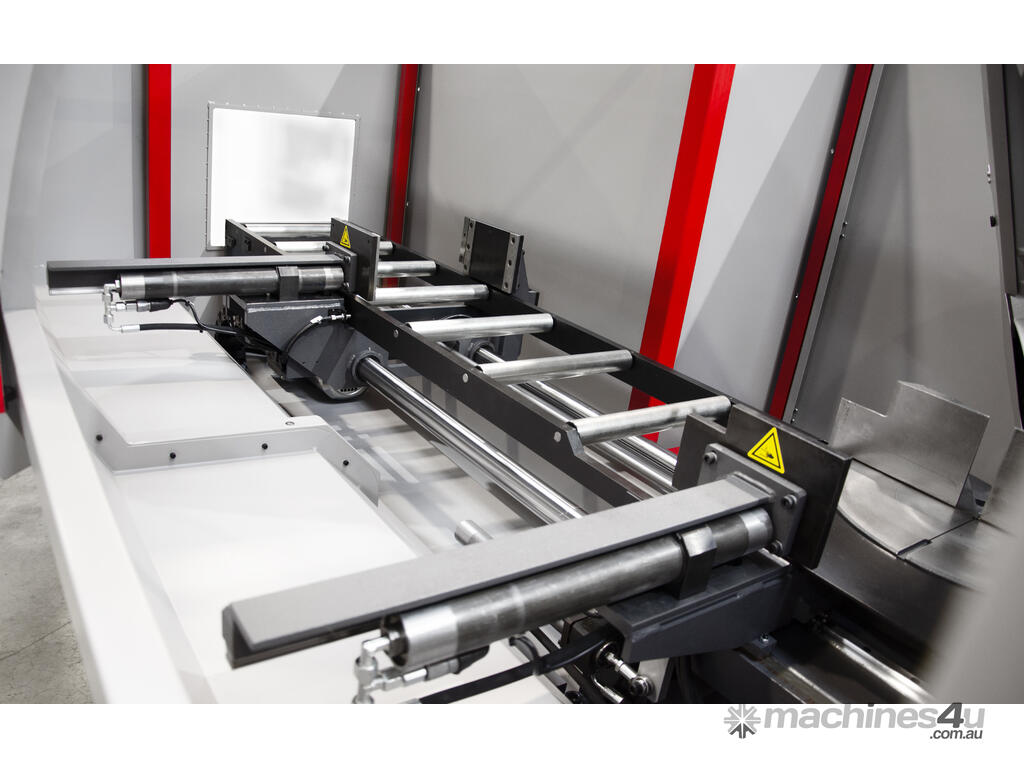

• Precise feeding vice positioning by means of a sensor on a magnetic tape
• Floating seating of the feeding vice

Cutting ranges
round rectangle Square
90°/0° ? 230 mm 300 x 200 mm 230 mm
45°R ? 195 mm 130 x 100 mm 195 mm
45°L ? 200 mm 190 x 130 mm 200 mm
60°R ? 135 mm 130 x 95 mm 95 mm

Min. vice opening 5 mm
Material bearing height 765 mm
Max. length of one feed 1500 mm
Saw band dimensions 2910 x 27 x 0.9 mm
Drive output 1.5 kW
Cutting speed 20–120 m/min.

optional bar feeder available
