Bomar Ergonomic 320.258DG Bandsaw

Bomar Ergonomic 320.258DG Bandsaw

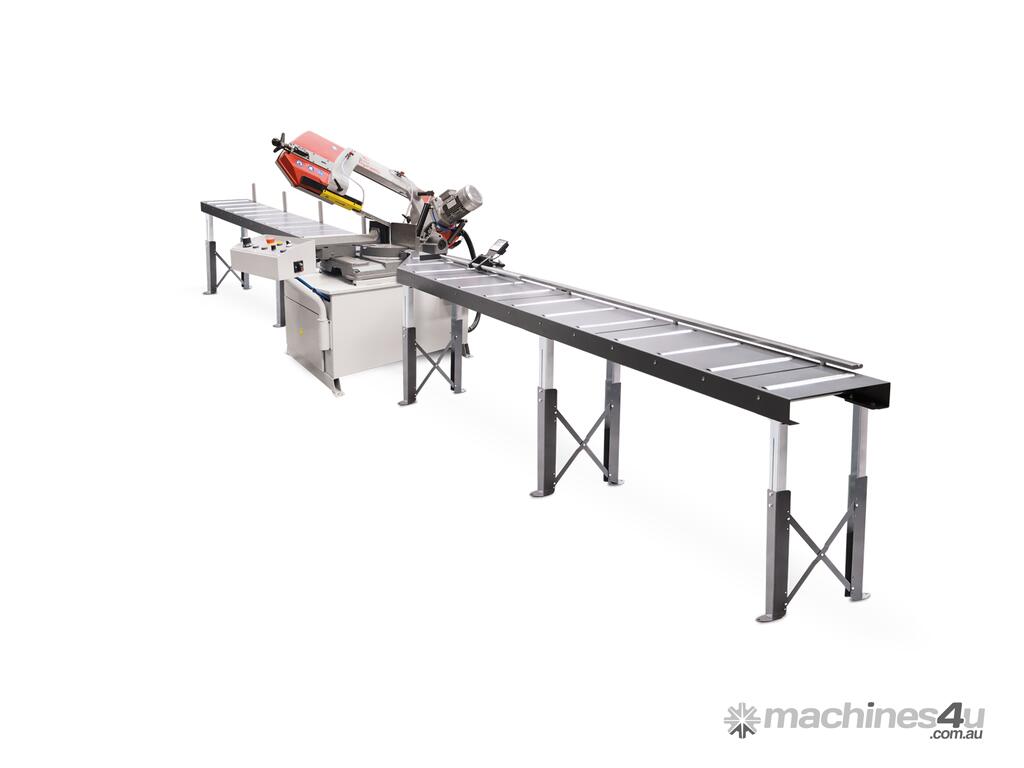

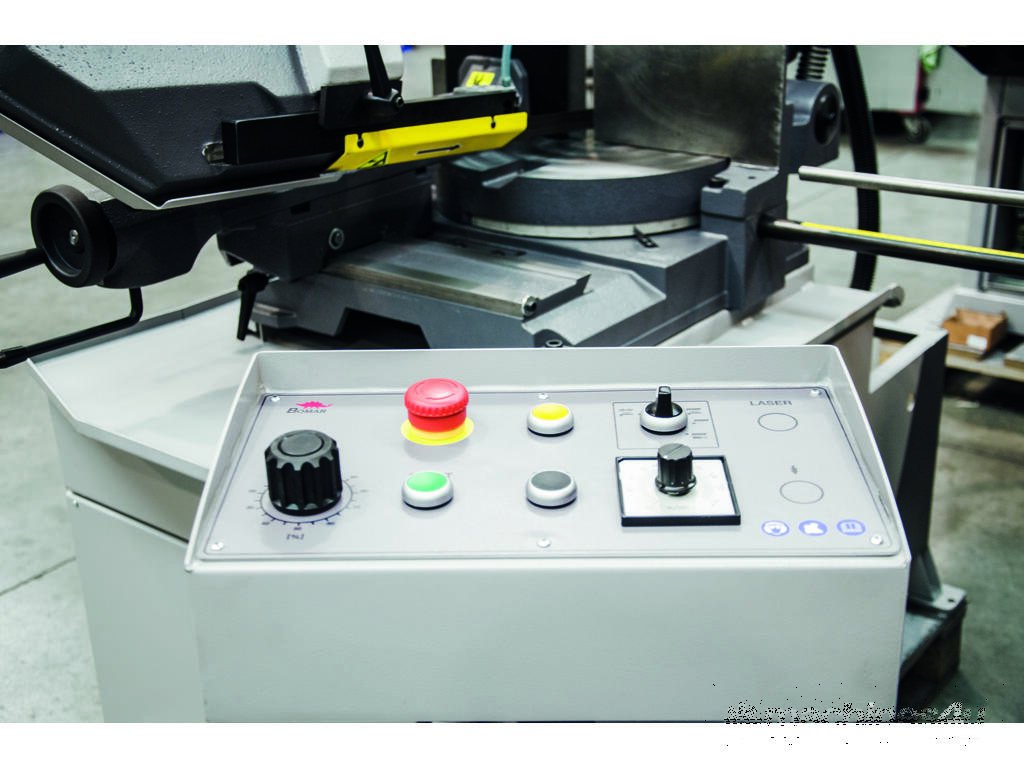

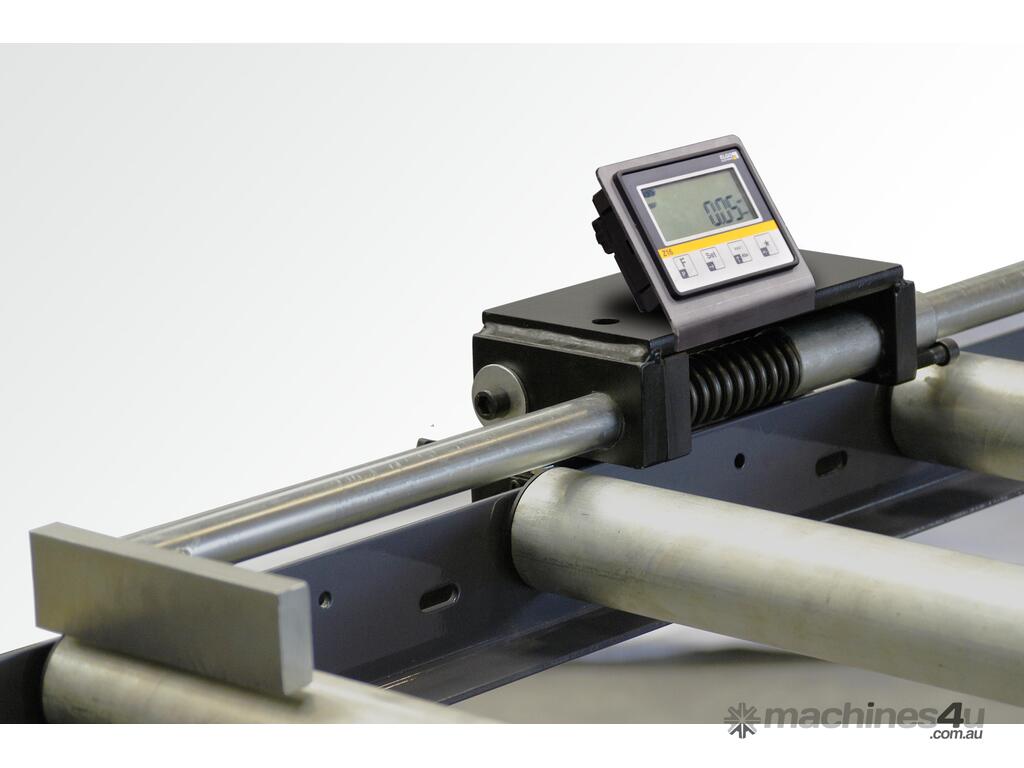

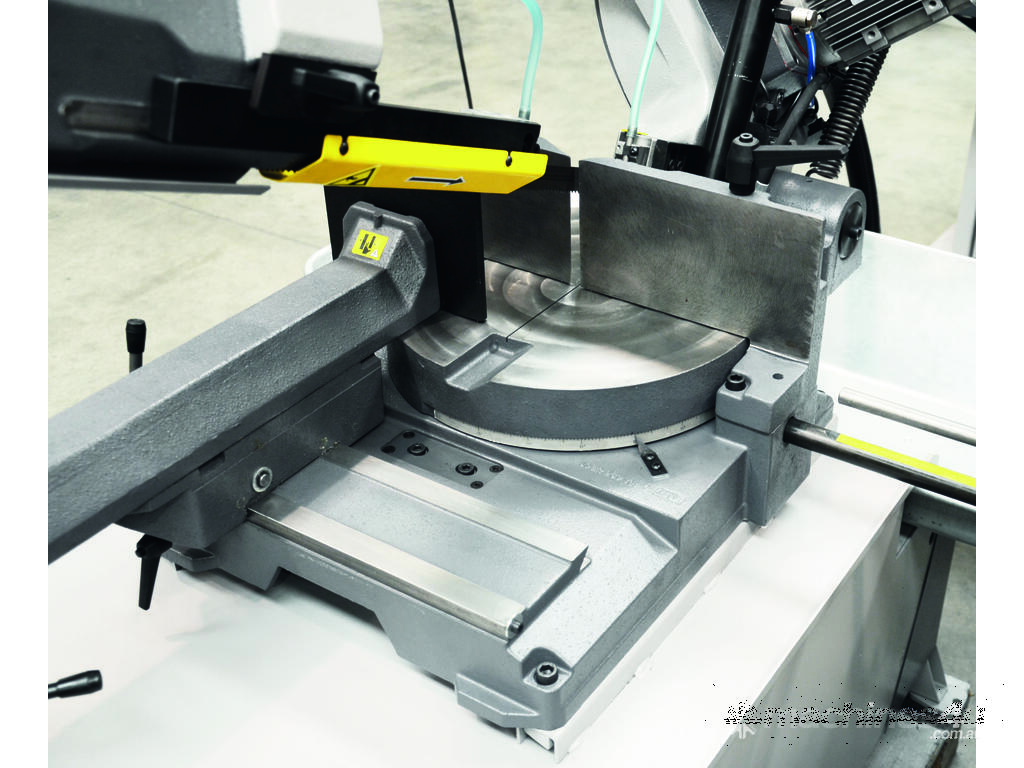

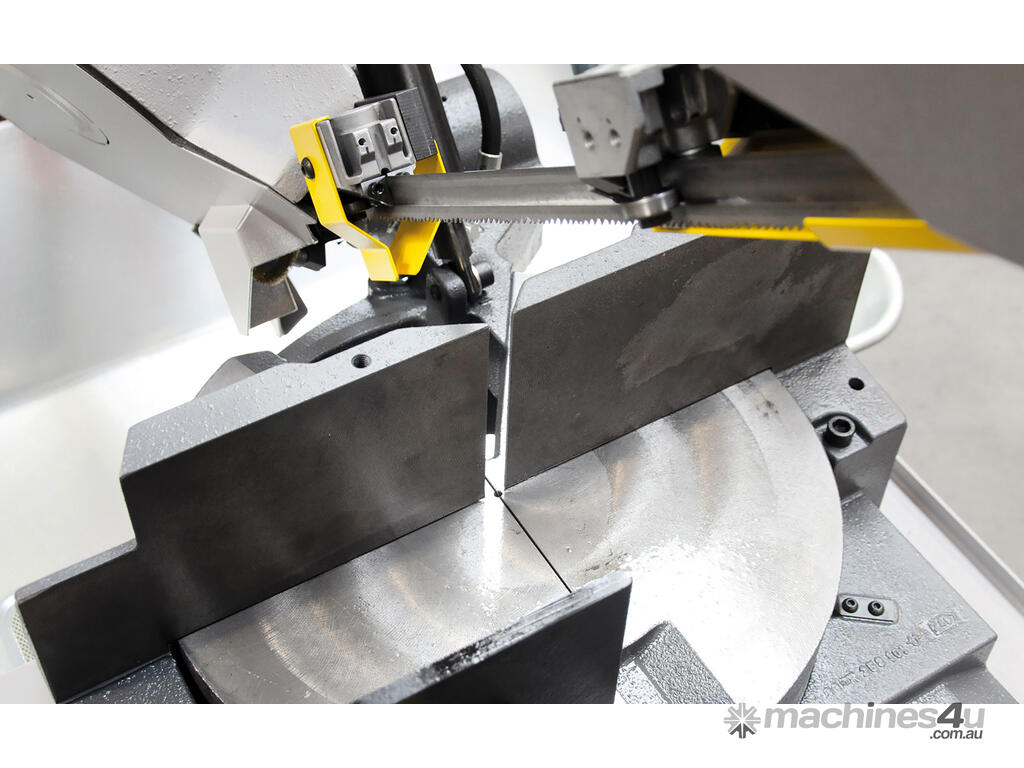

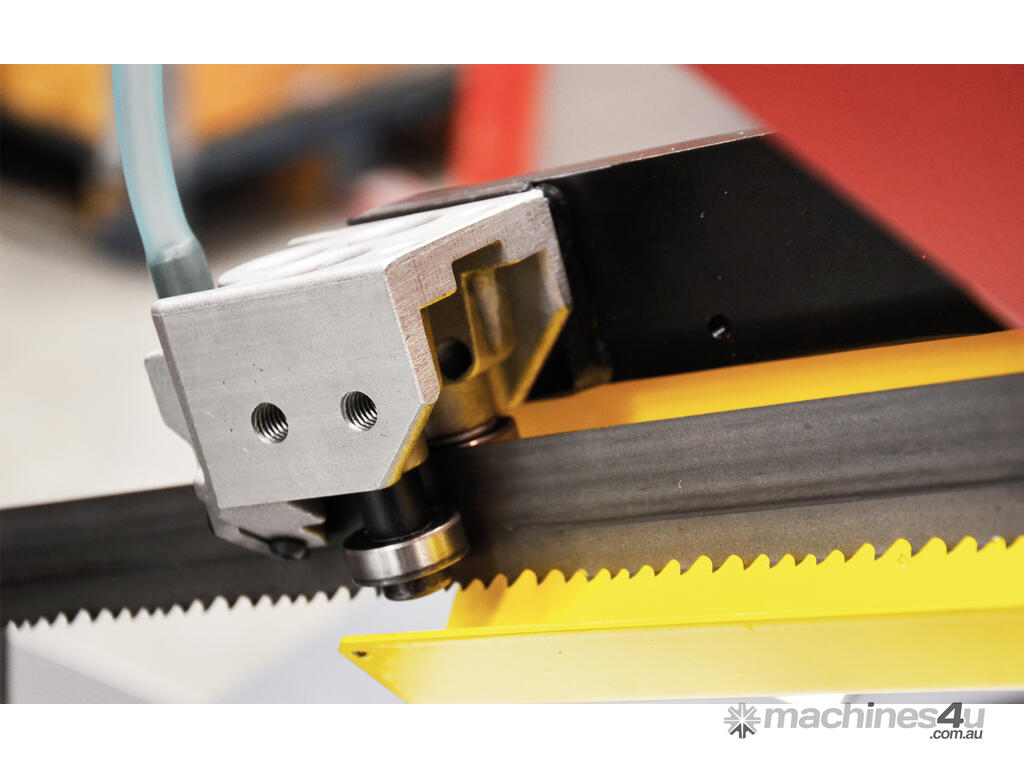

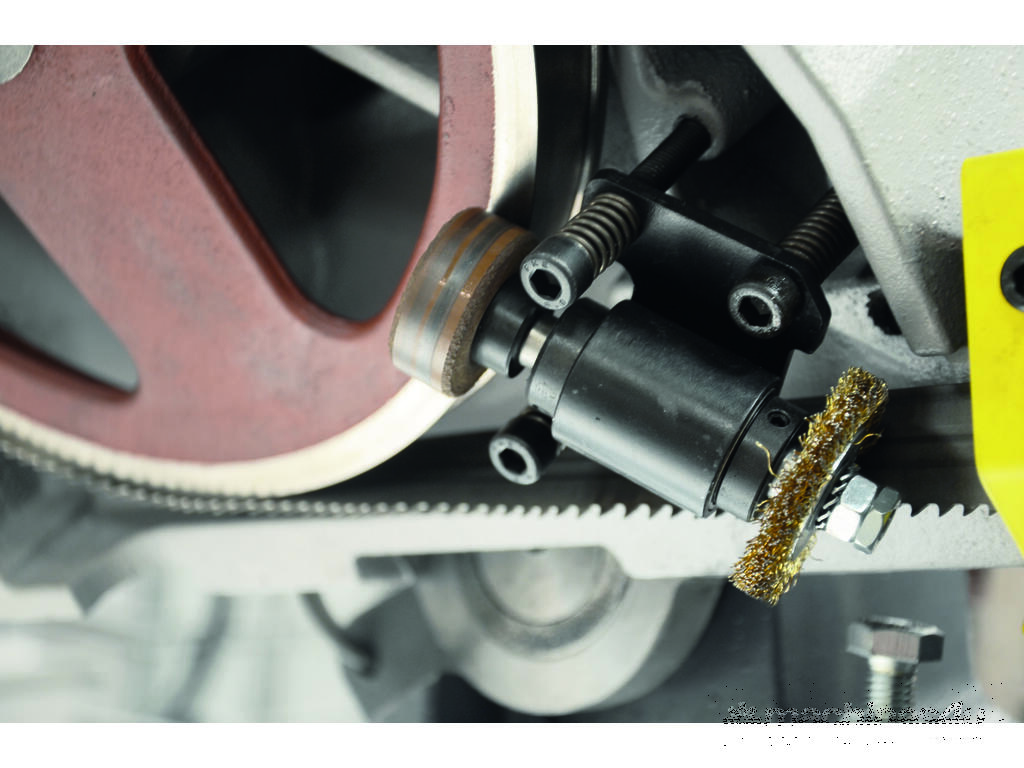

Bomar Ergonomic 320.258DG is a manual lift with control cut band saw with a heavy saw frame of vibration-proof cast alloy, with a powerful industrial engine and a spiral gearing running in an oil bath, Precise hard metal saw band guides, saw head pivot embedded in pre-stressed conical bearings, a 27mm saw band and a synchronic swarf brush are the prerequisites for excellent cutting performance. The front-handled, very simple and fast angle adjustment for cuts in the range of -45° to + 60° and a quick-acting vice clamping provide for a broad application range. The machine is equipped with a large rotary table providing a good basis also for short pieces. The frame lifting is manual and the cutting feed can be adjusted on the control panel. A coolant equipment in the machine base, a big extractable swarf container with a dripping sieve (ecological disposal of dry swarf) LaserLiner, Variable speed motor in the range 20m/min-120m/min belong to the standard equipment. A broad range of accessories and options as roller conveyors and stops, minimum-amount lubrication system, smooth variable speed regulation is available for this machine as options.

cutting capacity
0 deg 258mm Round, 320x100mm Rect, 250x250mm Square
45 deg Right 210mm Round, 210x100mm Rect, 195x195mm Square
45 deg Left 185mm Round, 195x100mm Rect, 170x170mm Square
60 deg Right 135mm Round, 135x100mm Rect, 110x110mm Square
