Bomar Individual 520.360DGANC-2300

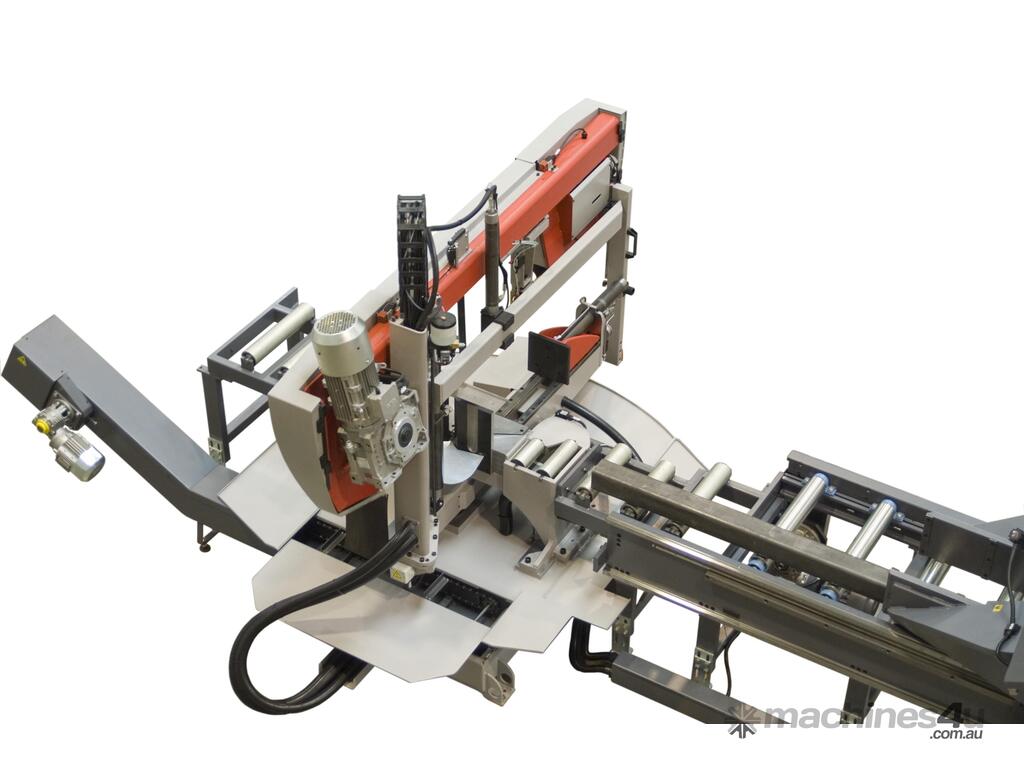

The Individual 520.360 DGANC 2300 machine is the automatic band saw of two-column design with CNC control providing possibility of automatic double angular cutting. Saw swivelling is smooth within range -60 and +60°. It is possible to clamp a cut either single pieces, or complete bundles of material at a time by means of the hydraulic bundle clamping device. Maximum length of one feed is 2300 mm, but is individually adaptable to the customer needs between 2300mm-6000mm (optional accessiories at extra cost).
The machine is equipped as standard with automatic control of band pressure to depth providing precise and straight cuts with the 34 mm saw band. The saw can be operated simply via the control panel attached to the machine base.
Standard equipment
• Two-column structure
• Saw arm is embedded on pre-tensioned linear guideways
• Double-sided arm swivelling with cutting angle within range -60° to the left and +60° to the right
• Digital indicator of arm swivelling angle

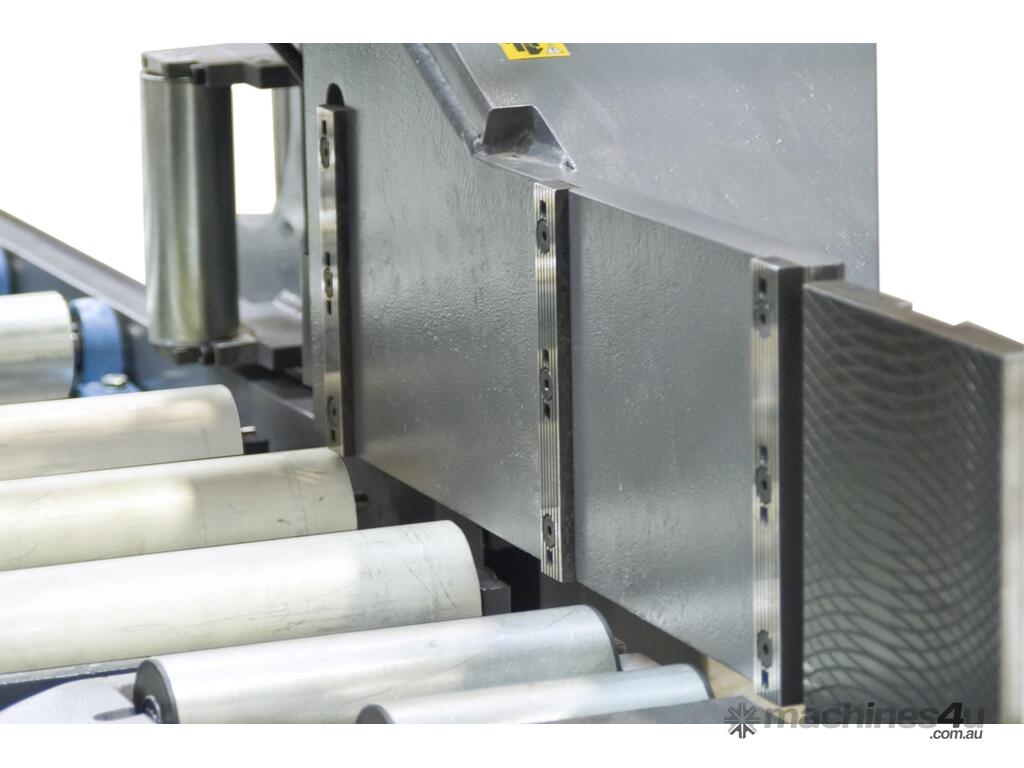

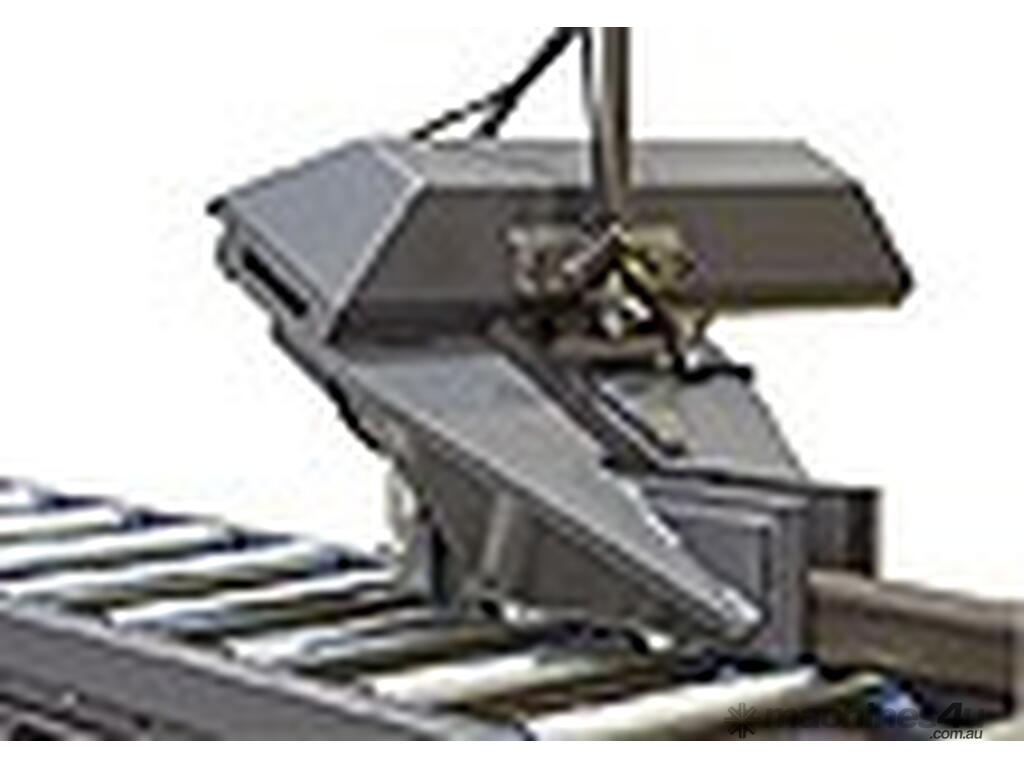

• Hydraulic full-lift clamping main vice and the feeding vice
• Continuously adjustable speed of the saw band

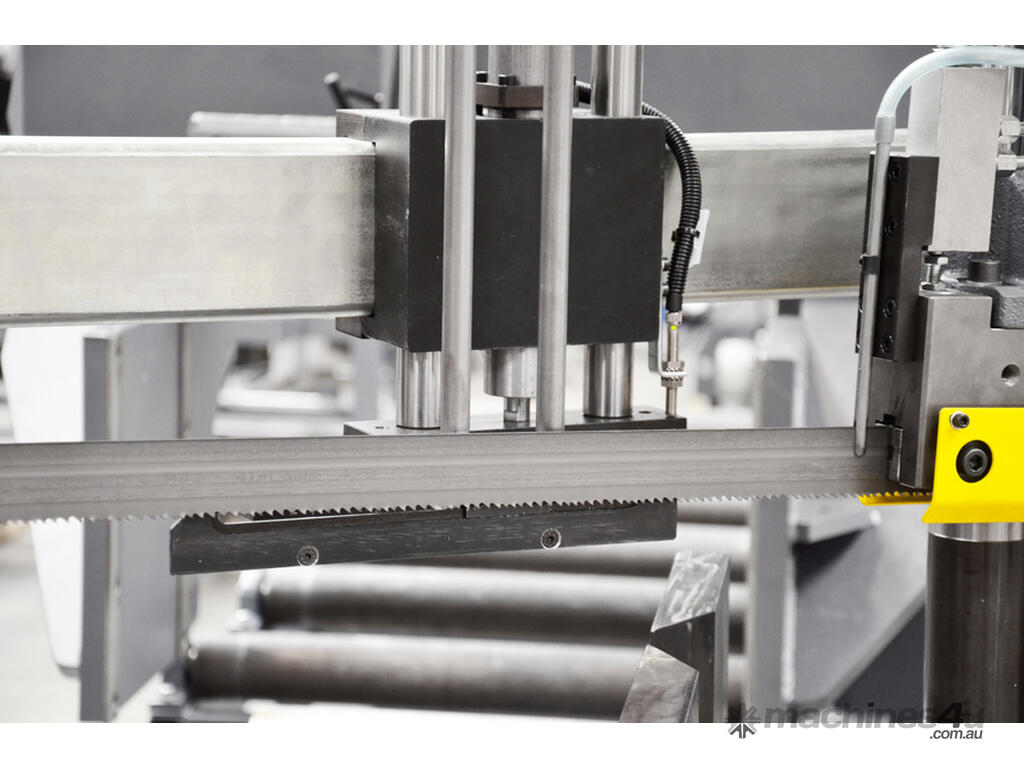

• Very precision saw band hard-metal guideways ensure cut accuracy
• Continuously adjustable saw arm feed to depth and pressure to depth
• Automatic control of saw band pressure to depth depending on cut material resistance
• Automatic shutdown of the machine due to not tensioned or broken saw band
• Powerful and reliable saw band drive motor 3.0 kW
• Up-to-date control with the text display and the foil keyboard
• Freely positionable control panel

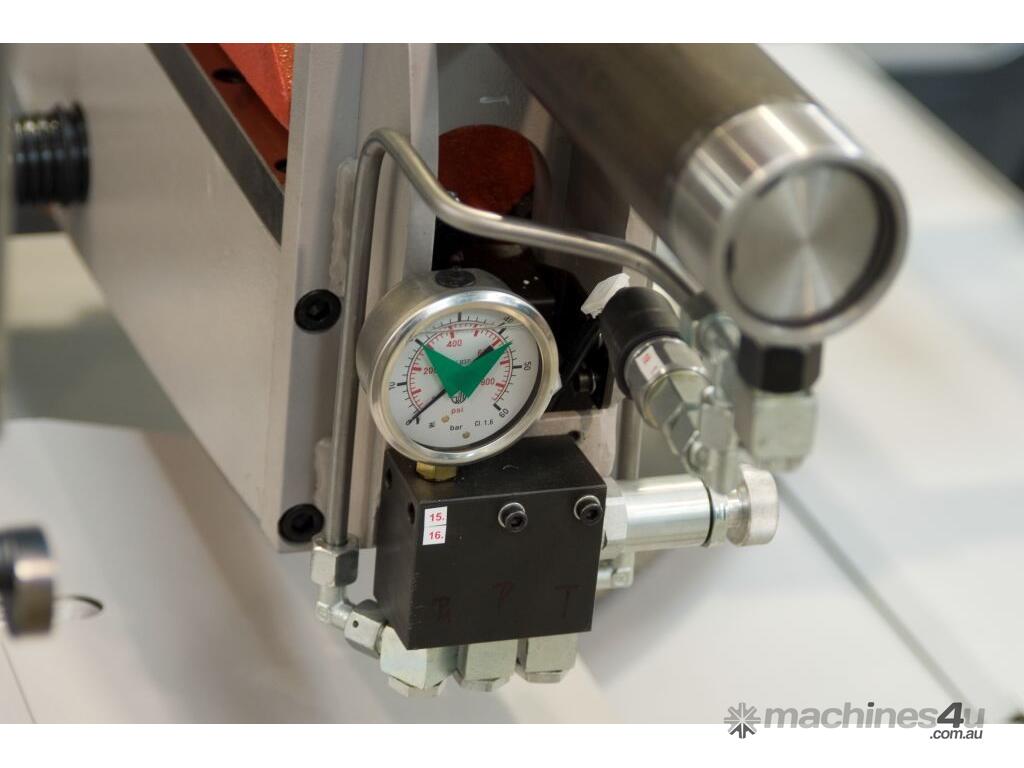

• Big hydraulic aggregate
• Information on machine status and automatic cycle course available via the LCD display

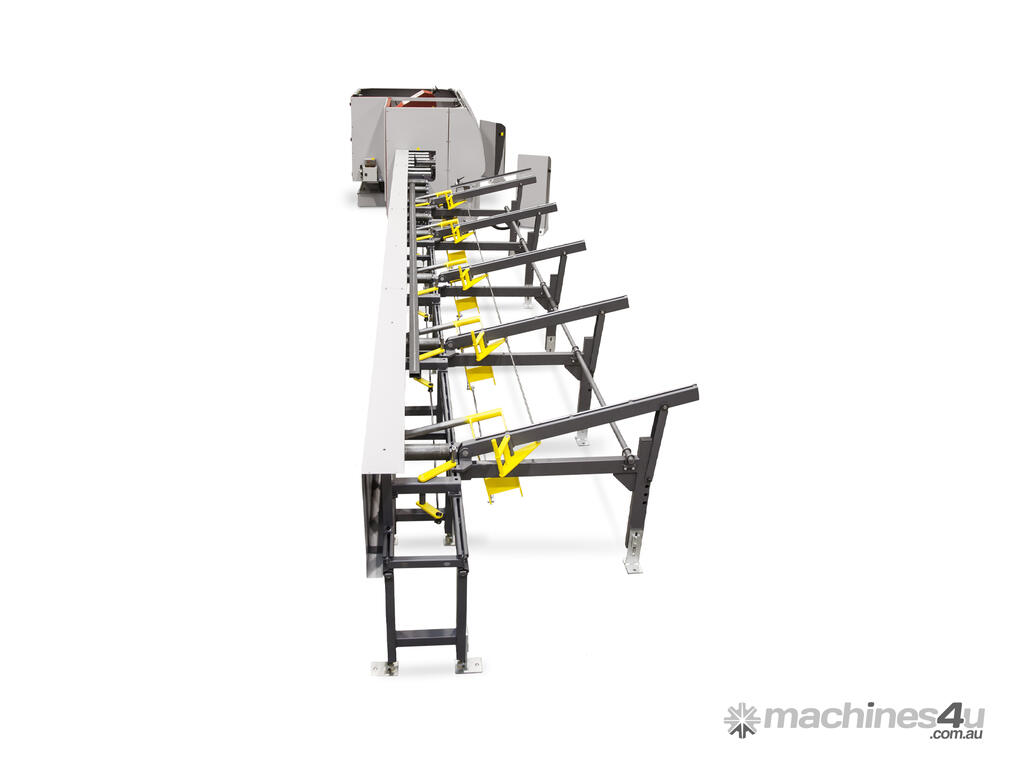

• Precise feeding vice positioning by means of a sensor on a magnetic tape
• Floating seating of the feeding vice

Cutting ranges

90°/0° 360 mm 520 x 360 mm 350 mm
45°R 360 mm 520 x 325 mm 350 mm
45°L 360 mm 365 x 350 mm 350 mm
60°R 240 mm 325 x 235 mm 235 mm
60°L 255 mm 255 x 340 mm 255 mm


Min. vice opening 5 mm
Material bearing height 765 mm
Max. length of one feed 2300 mm
Saw band dimensions 4780 x 34 x 1.1 mm
Drive output 3.0 kW
Cutting speed 20–120 m/min.
