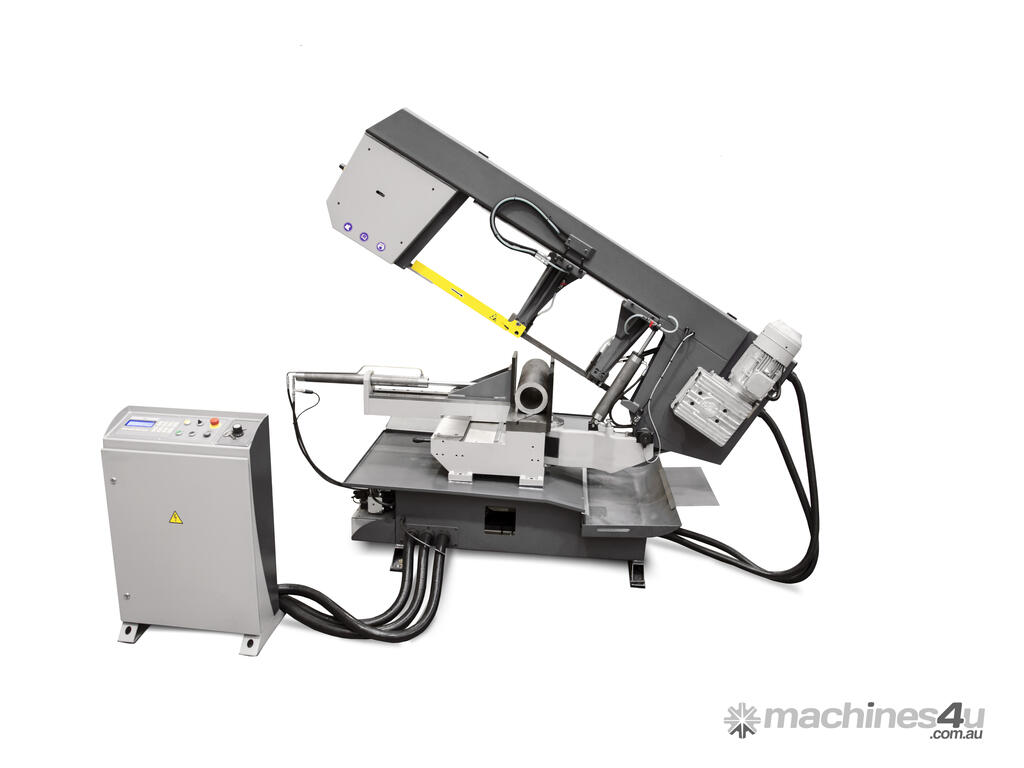

Bomar Transverse 510.330DGH Semi Auto

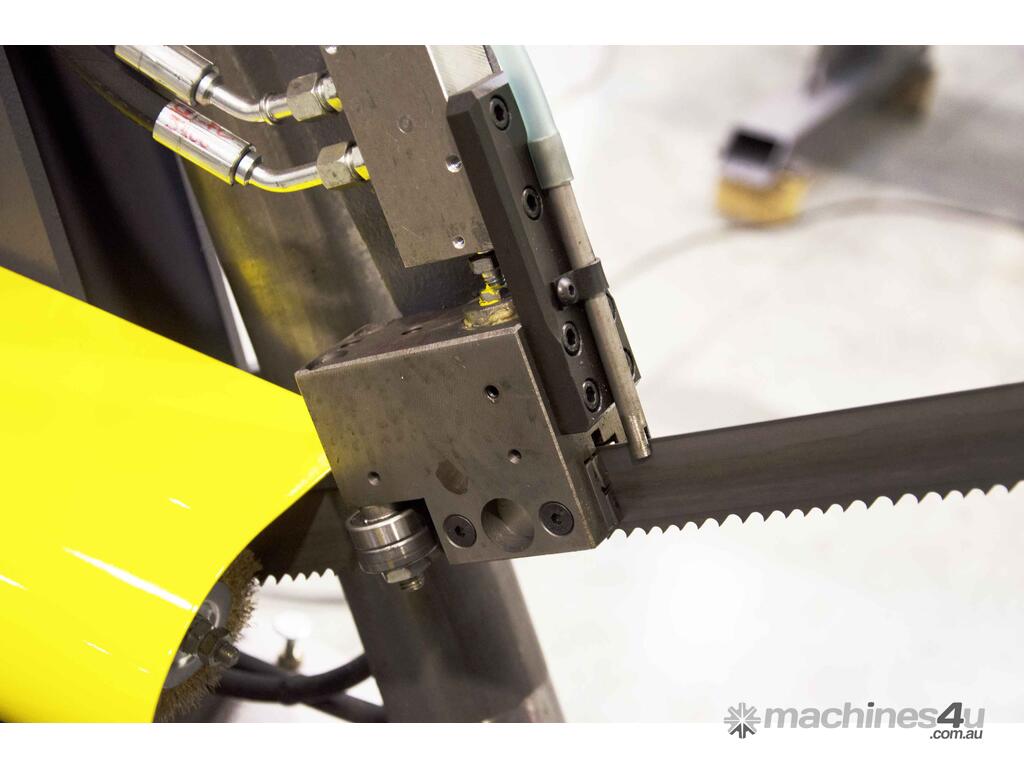

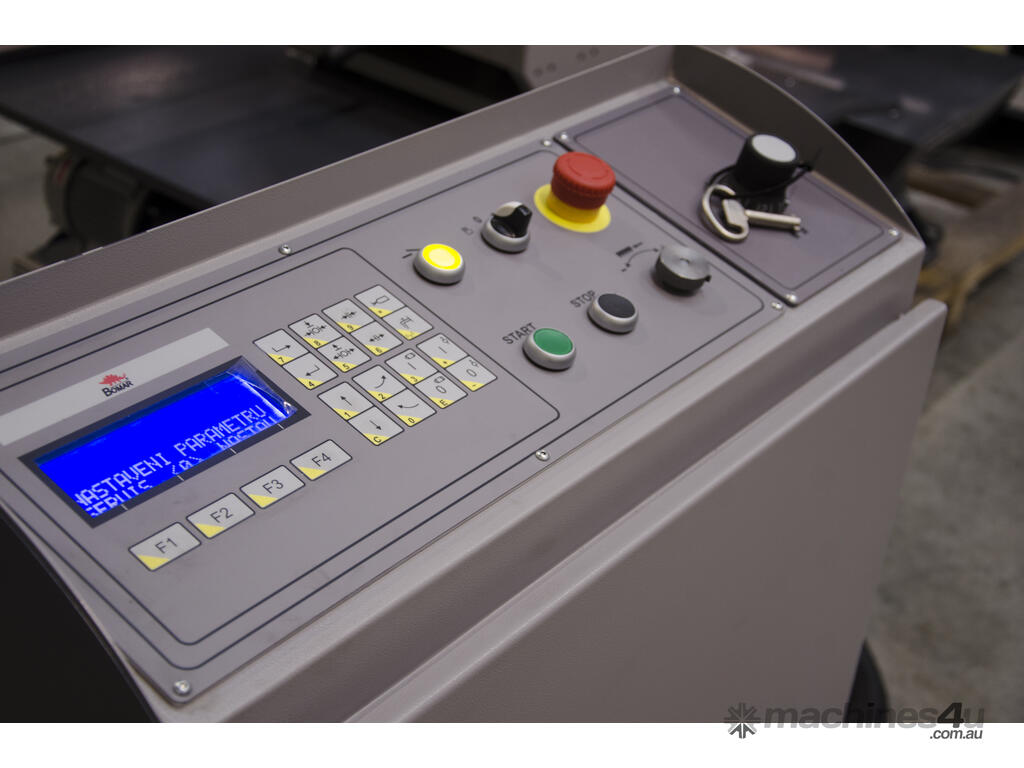

The Bomar TRANSVERSE 510.330 DGH is a Double Mitre Semi-Automatic Bandsaw with a top price-performance ratio, a broad cutting range and multiple options enabling its extension to a full hydraulic semi-automatic. Precise hard metal saw band guides, a 32mm saw band and a powered swarf brush are the prerequisites for excellent cutting performance. It comes with cooling in the machine base and with angle cuts to both sides in the range of 60° - 0° - 60°. Arm turning is performed manually. Adjustment of angle cuts is performed easily from the operator’s position. The machine is located on a turning console equipped with a digital angle scale. The peripheral speed of the saw band is adjustable in the range of 20 – 90 m.min-1. Material feeding into the cut is performed manually. The machine can be easily controlled from a moveable control panel as shown in the machine photo. The saw moves into the cut due to the frame weight with a hydraulic regulation of the feeding speed and it can be adjusted comfortably on the control panel. The return of the saw is also hydraulic driven.
A Laser liner enables to align your metal quickly and accurate.
The machine can be extended by a broad number of options including roller conveyors and stops, minimum-amount lubrication system, bundle-clamping device & smooth speed regulation
All Bomar Machines are manufactured to the highest European Standards. This included CE Certified Electrics. They manufacture over fifty different models and there are many thousands in service World wide.

• Laser Liner
• Flushing Down Gun
• Automatic down-feed pressure control on the sawing blade (ADFR-S)
• Hydraulic Saw Band Tension Indicator

Options: Hydraulic Bundle Clamping, Mist Spray Oiler, Vice Pressure Regulation, Halogen light
(only on new orders not stock machines)

We also do a range of heavy duty roller conveyors to suit
