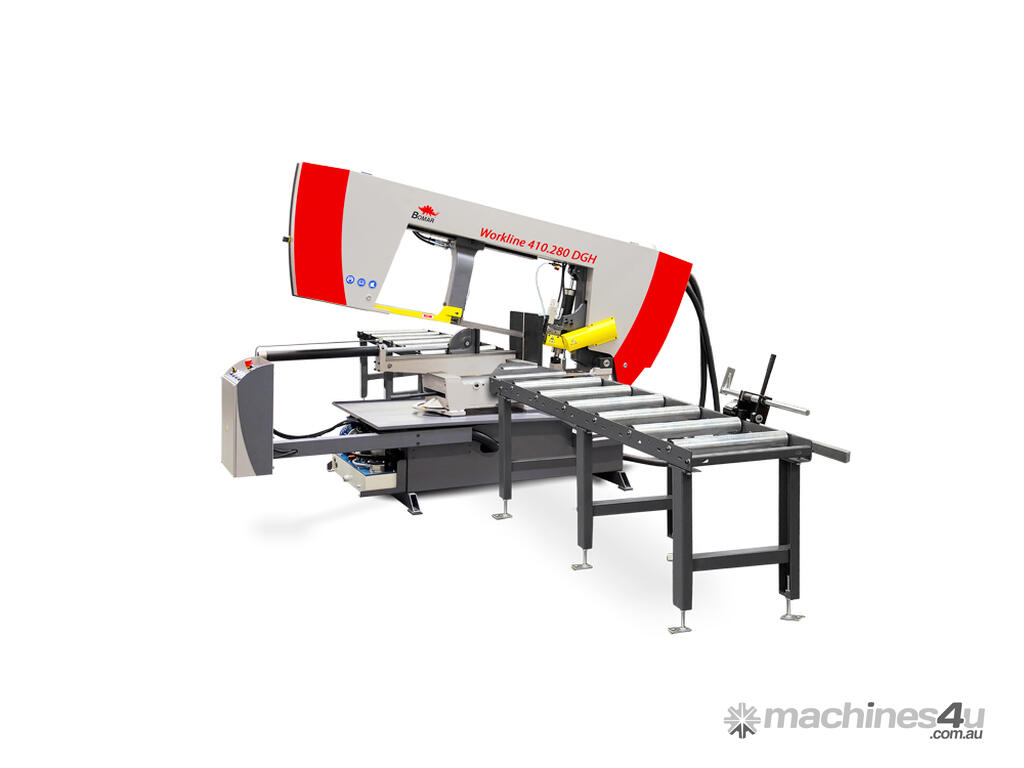

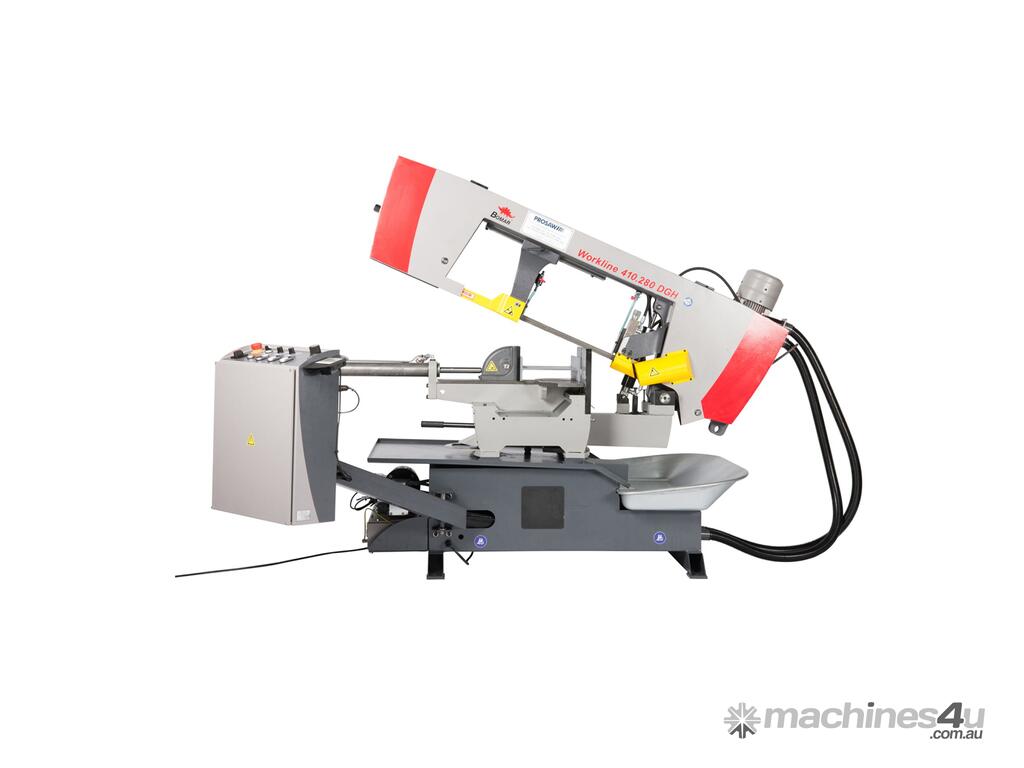

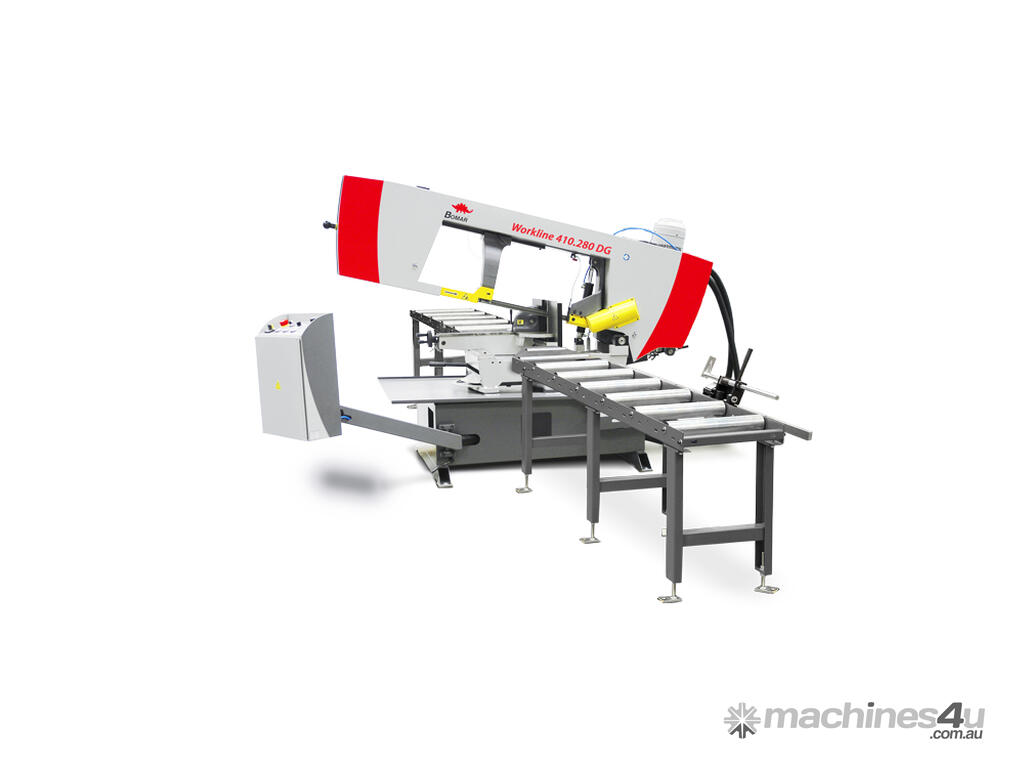

Bomar Workline 410.280DGH Bandsaw

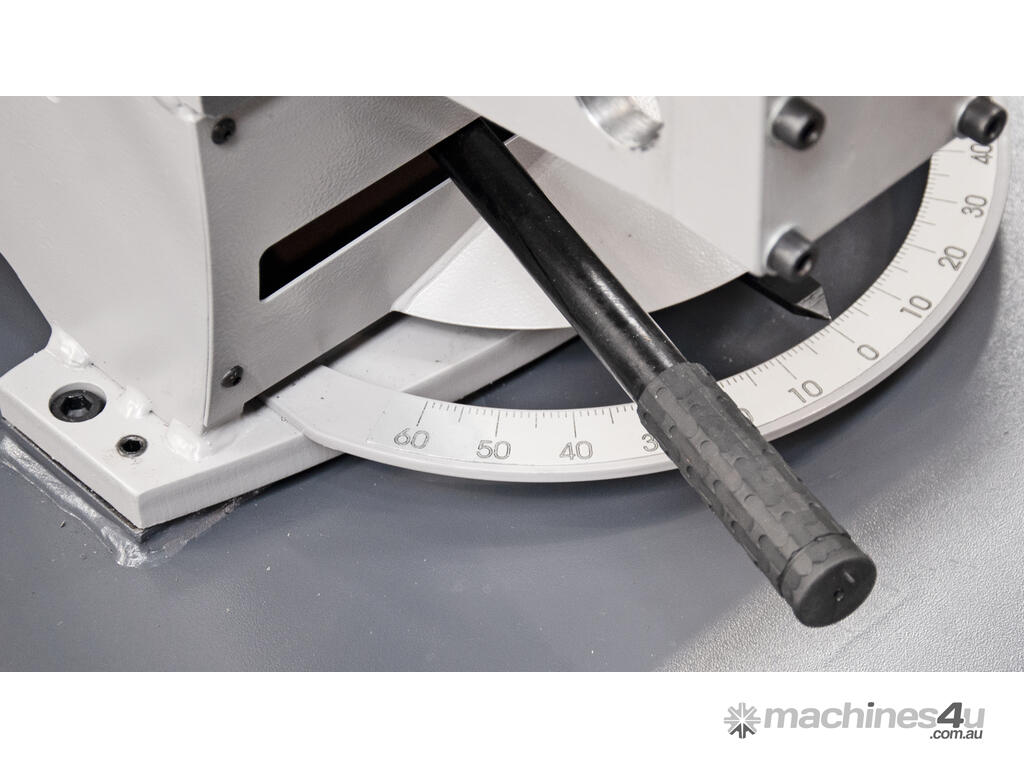

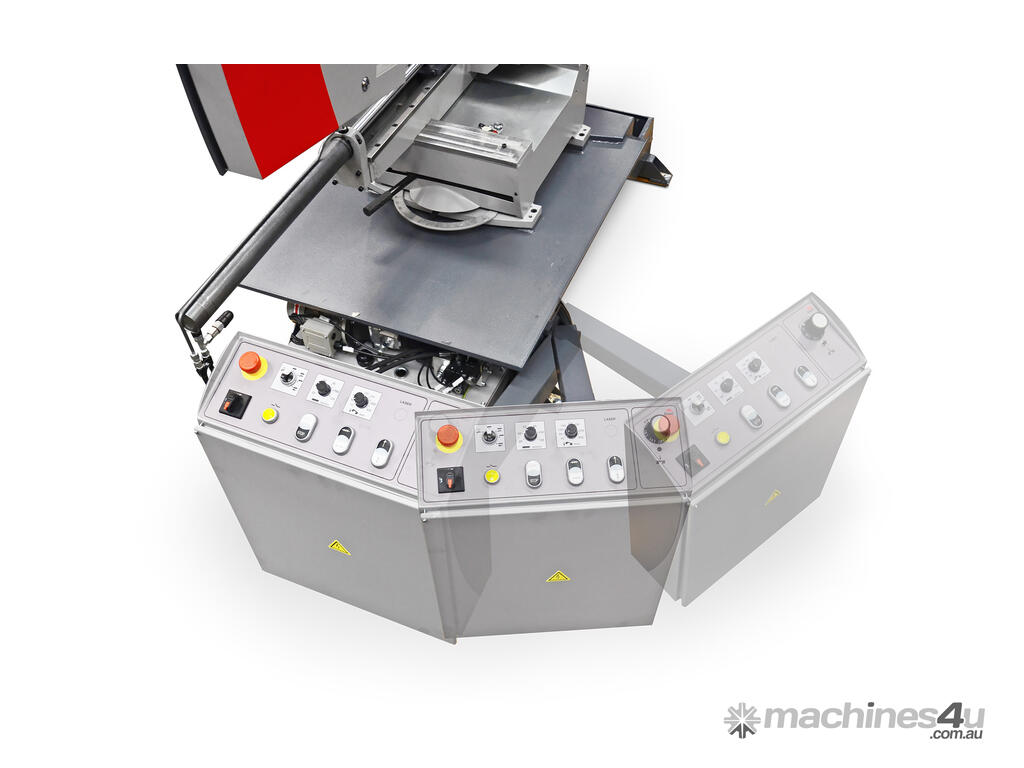

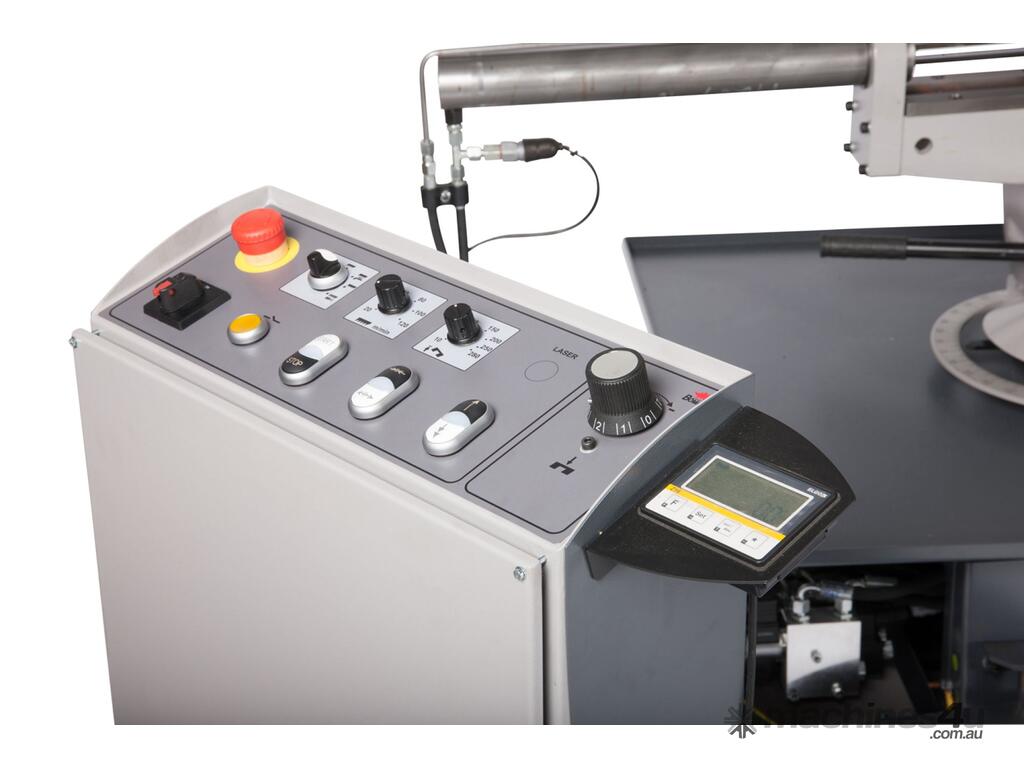

Metal band saw Workline 410.280DGH is a hydraulic semi-automatic machine with cooling located in its base. Angle cuts can be performed on both sides in the range of -60° / 0°/ + 60°. The sawing head turning is performed manually. Machine control and adjustment of angle cuts can be done very easily from the operator’s position. The saw is located on the turning console equipped with legible angle scale. Variable speed of the saw band is 20-120 m.min-1. Material feeding into the cut is manual. The saw can be easily controlled via controllers located on the control panel (see the picture).

• Frame is a steel weldmet.
• Automatic switching off the band after finishing the cut.
• Automatic switching off the saw in case of slack or broken band.

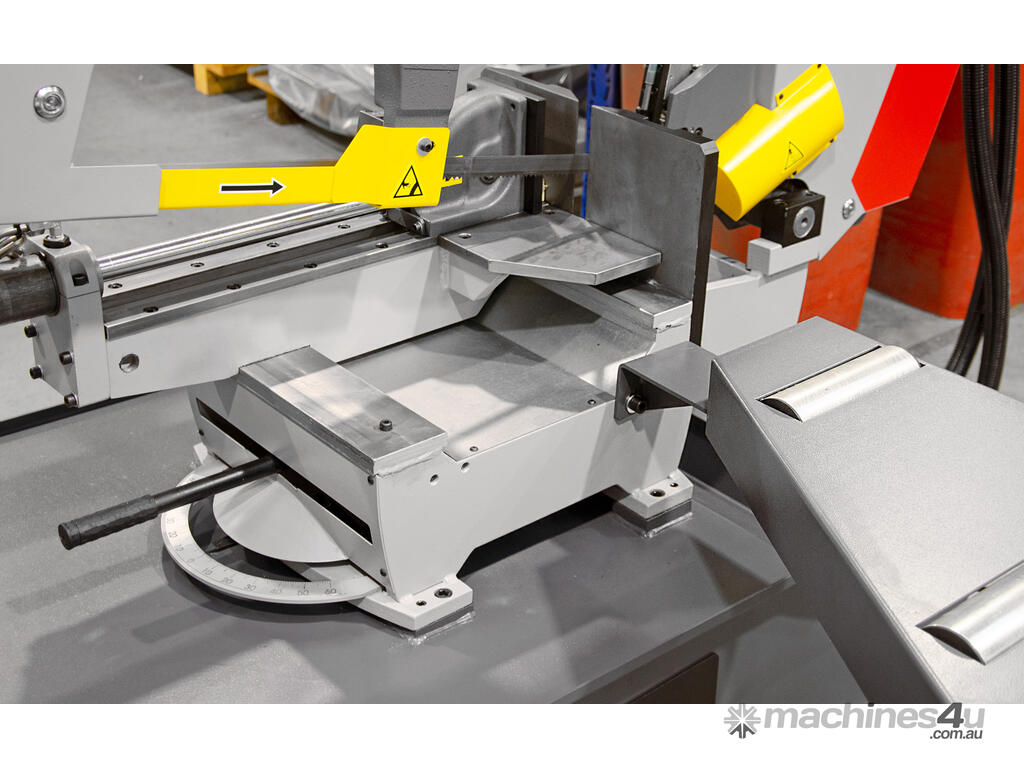

• Full-stroke clamping cylinder of the vice.

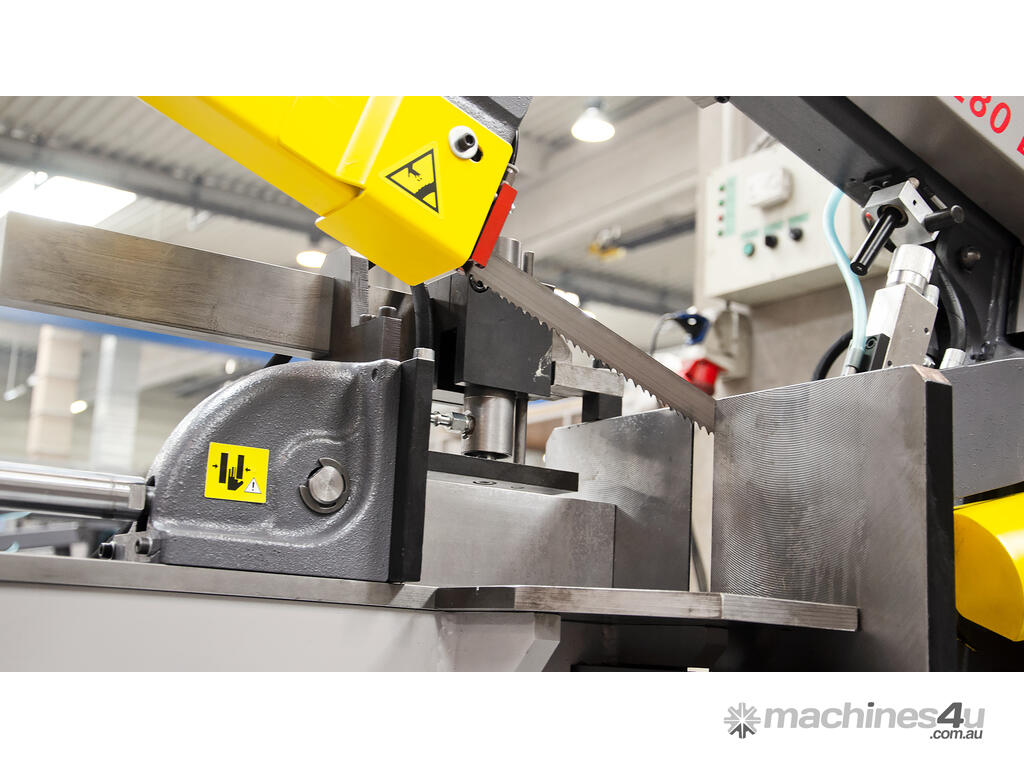

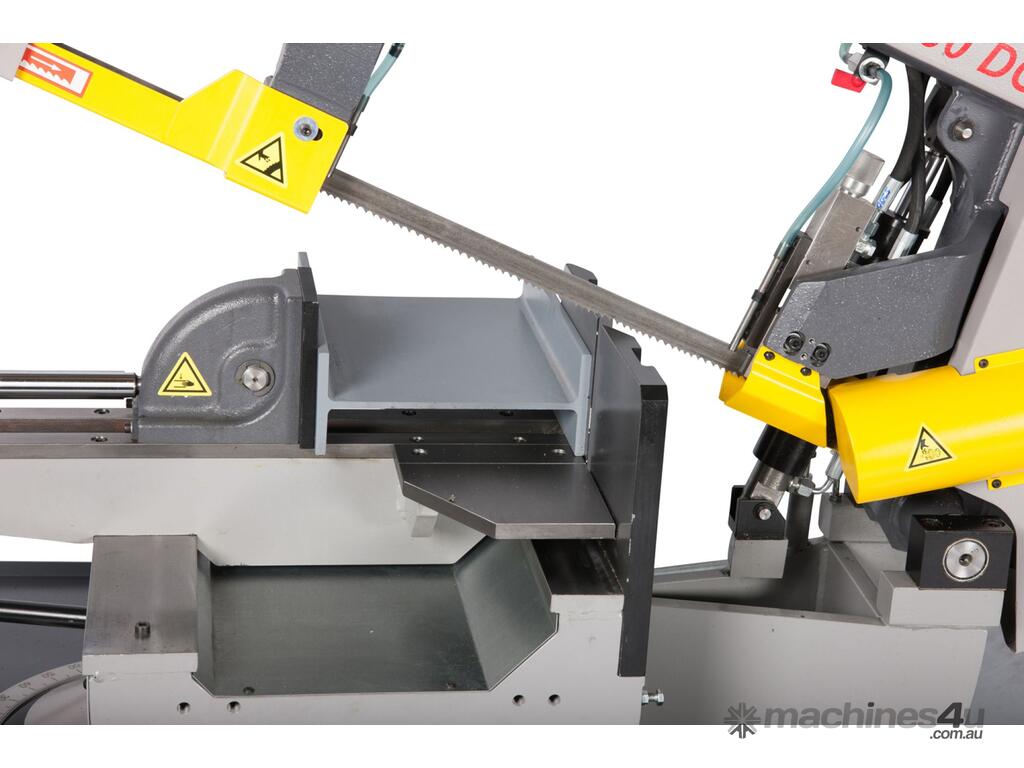

• Hard-metal guiding of saw band ensures the cut’s accuracy.
• Both-sided angle cuts in the range of 60° - 90° - 60°.
• Ergonomic design of the machine with easy control and working height 760 mm.
• Easy manipulation with swarf via the tank with drainage sieve.
• Complete cooling equipment located in the base of the machine.
• Wide range of accessories.
• max. diameter of material: 280 mm
• max. width of material: 410 mm
• min. scrap length: 100 mm
• smallest diameter to cut: 5 mm
• working height of the table: 760 mm
• saw band dimensions: 3800 ×27 (25) × 0,9 mm
• saw band speed: 20 - 120 m.min-1
• weight: 570 kg
