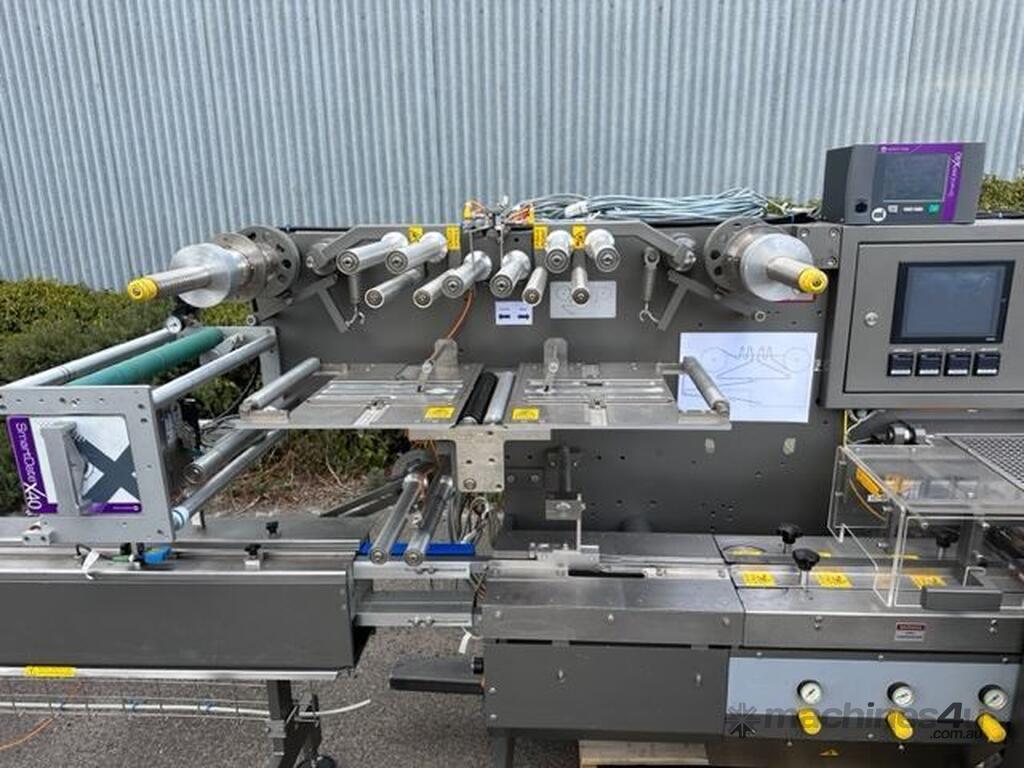

Bosch Horizontal Flow Wrapper confectionary line
This Horizontal flow wrapper line has had very little use whilst in a large factory running trial products. The line was set up for small Chocolate bars but would suit protein bars, muesli bars and a range of other confectionary and health bar type products.

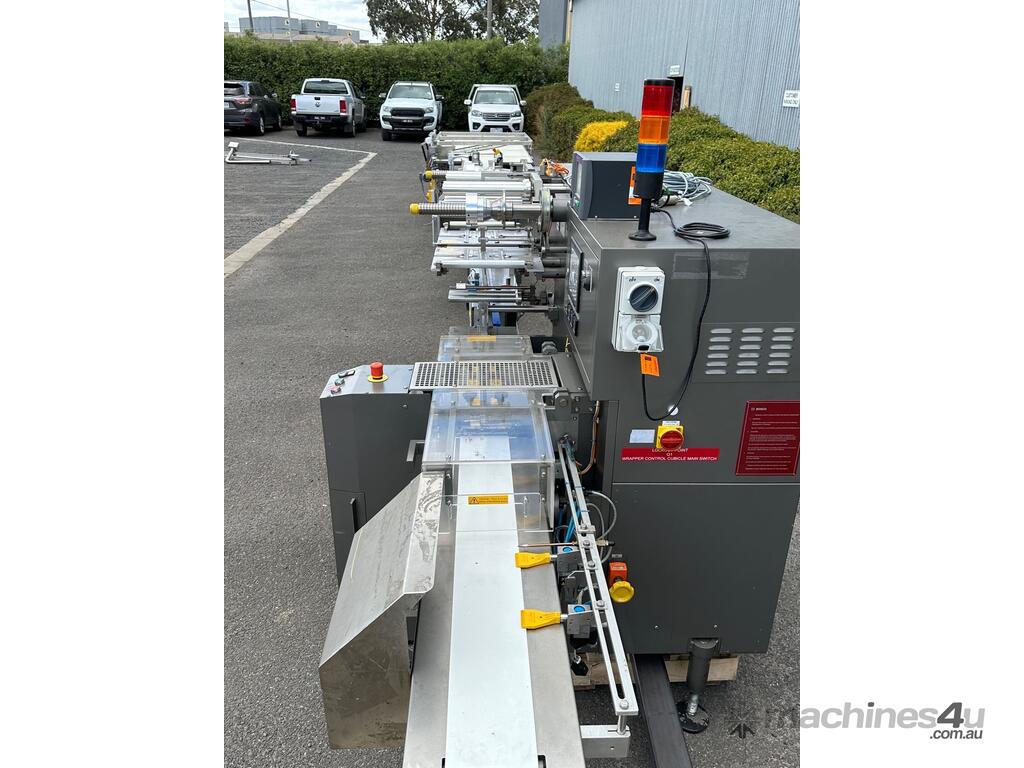

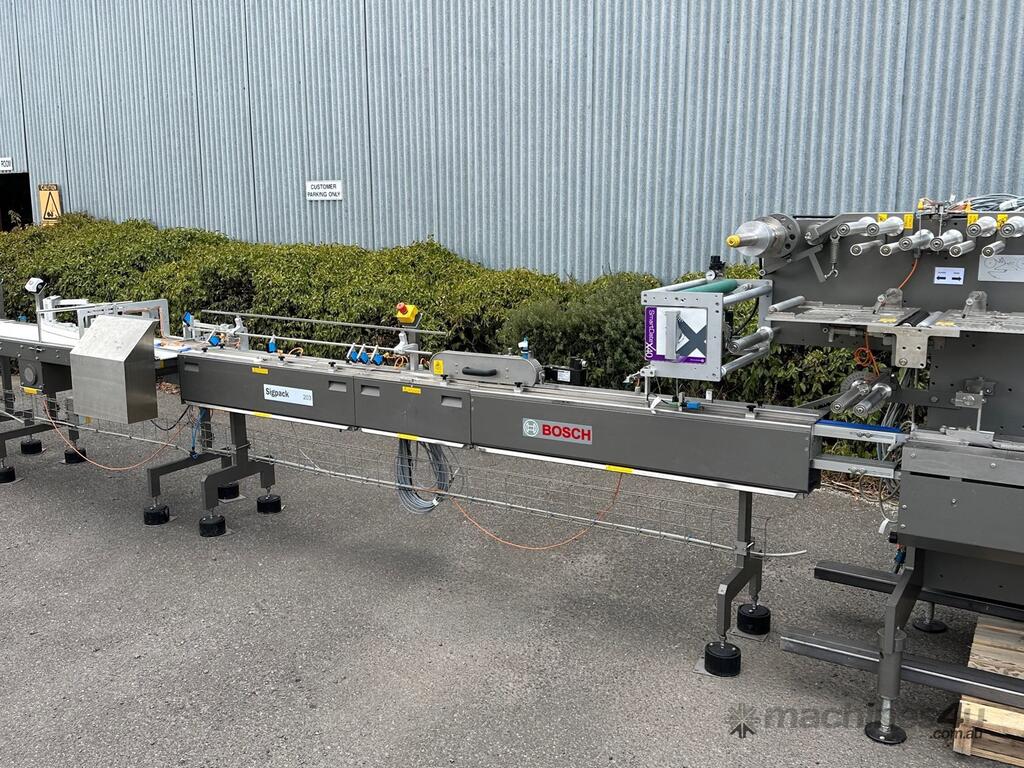

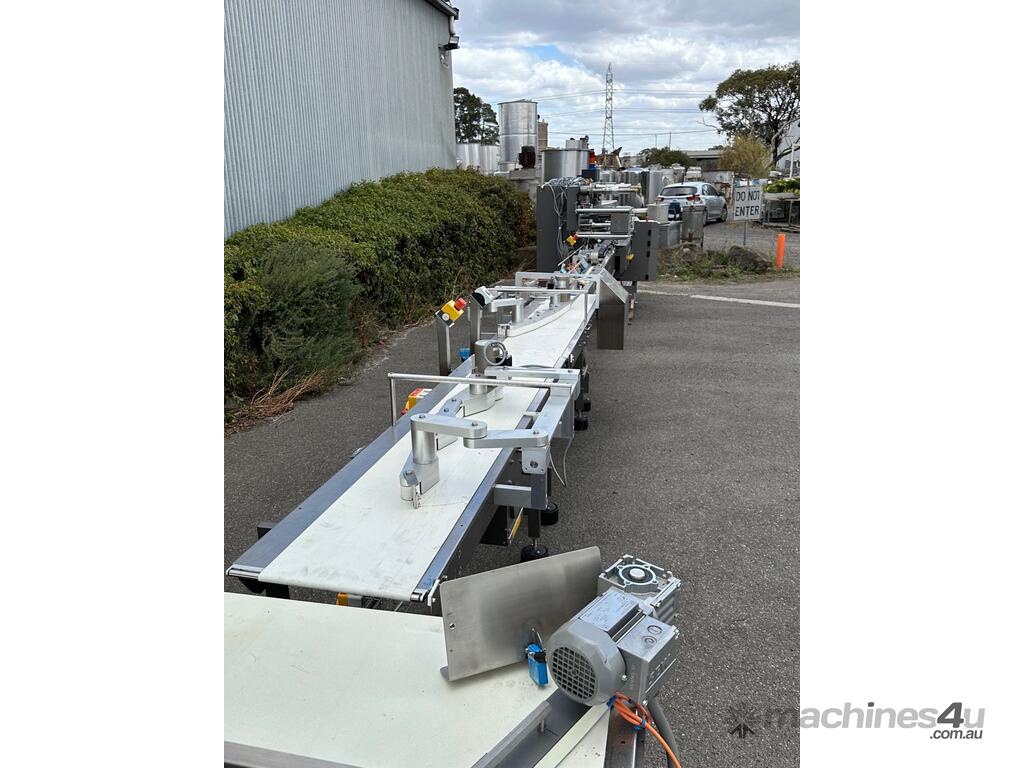

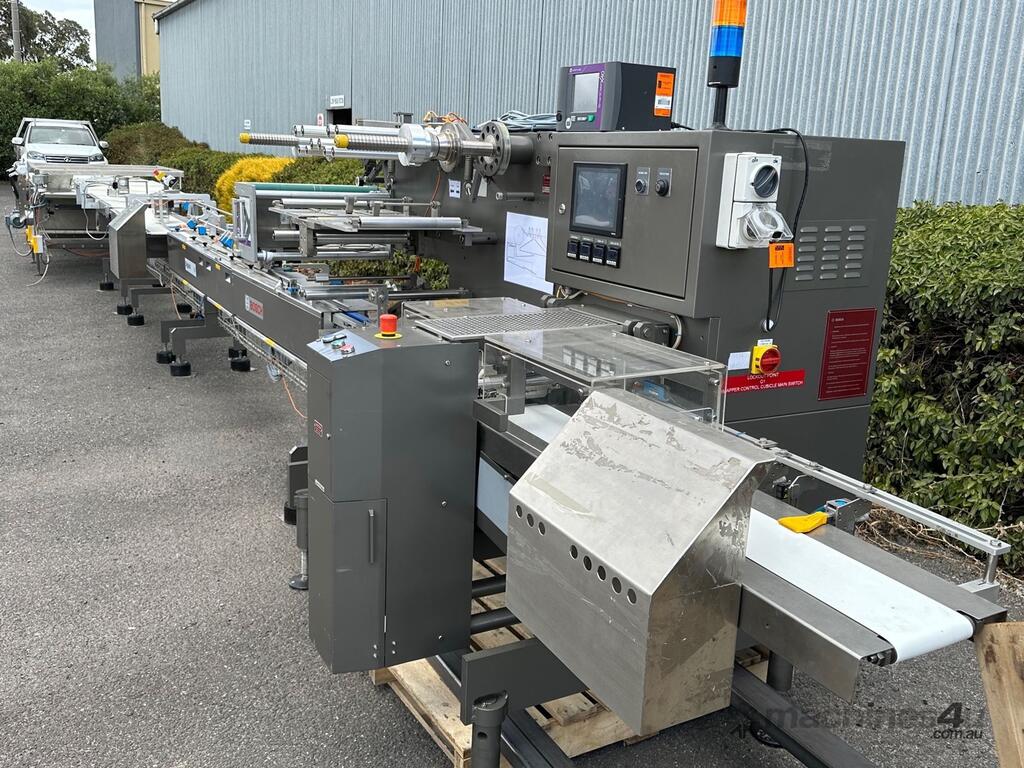

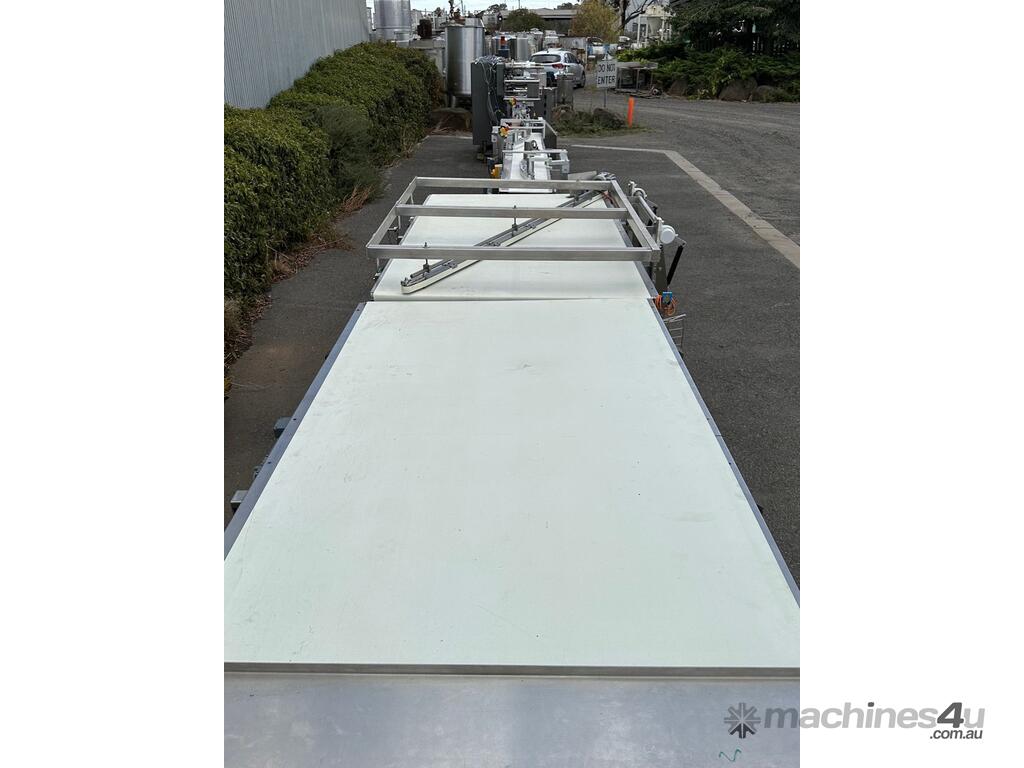

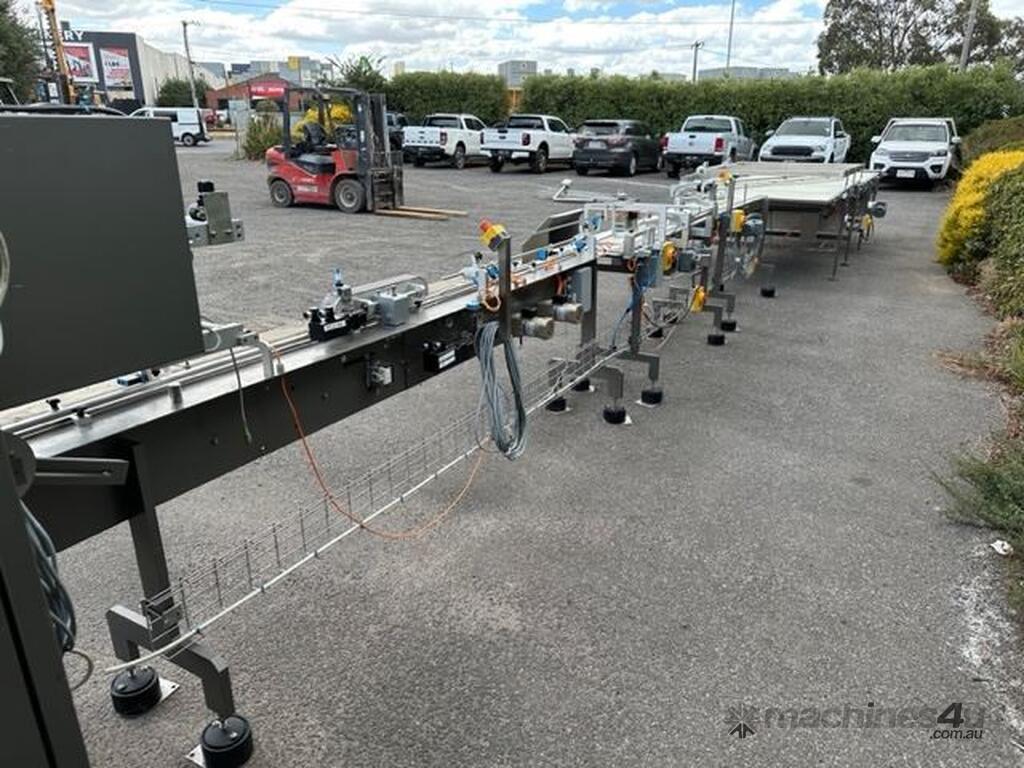

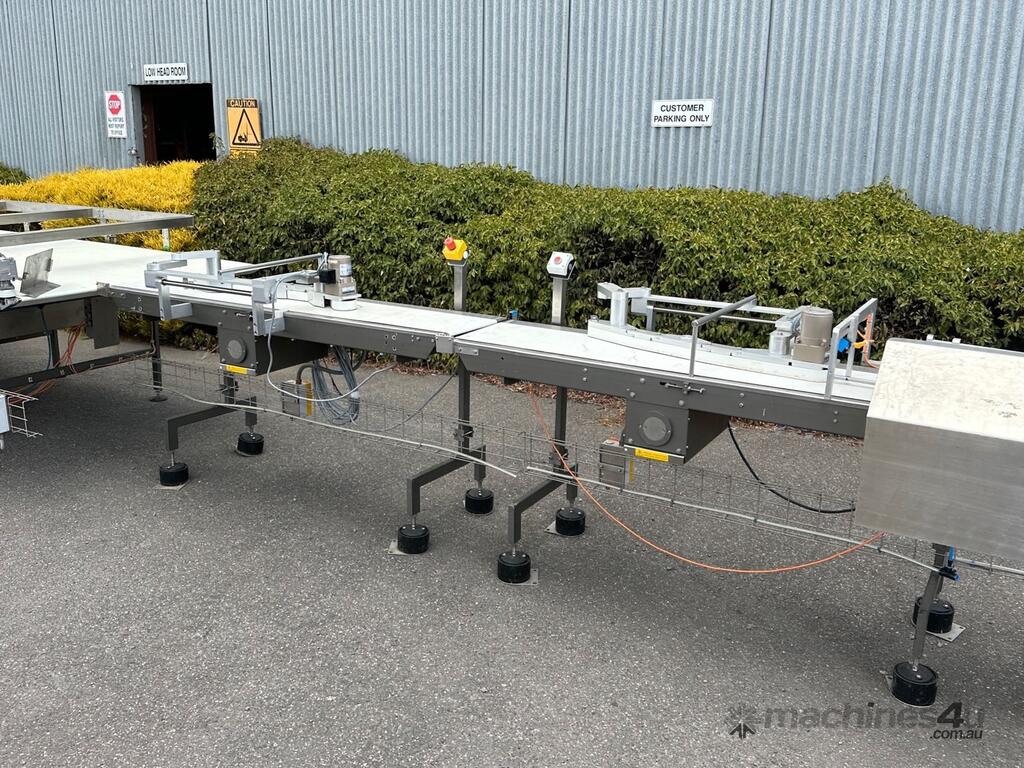

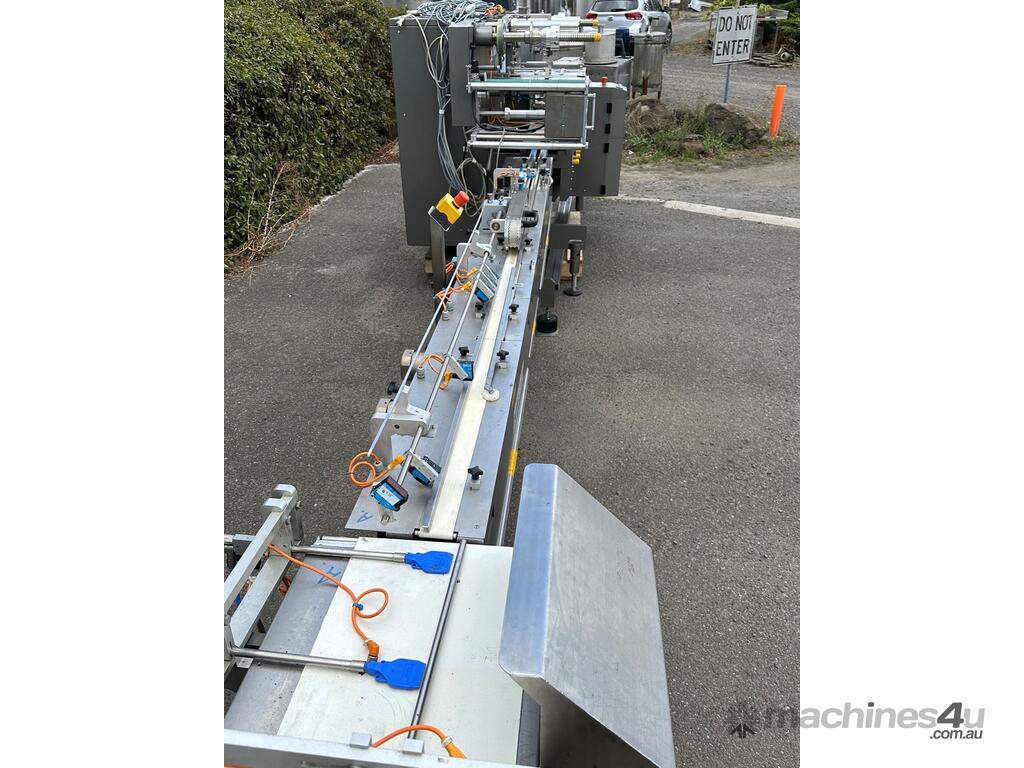

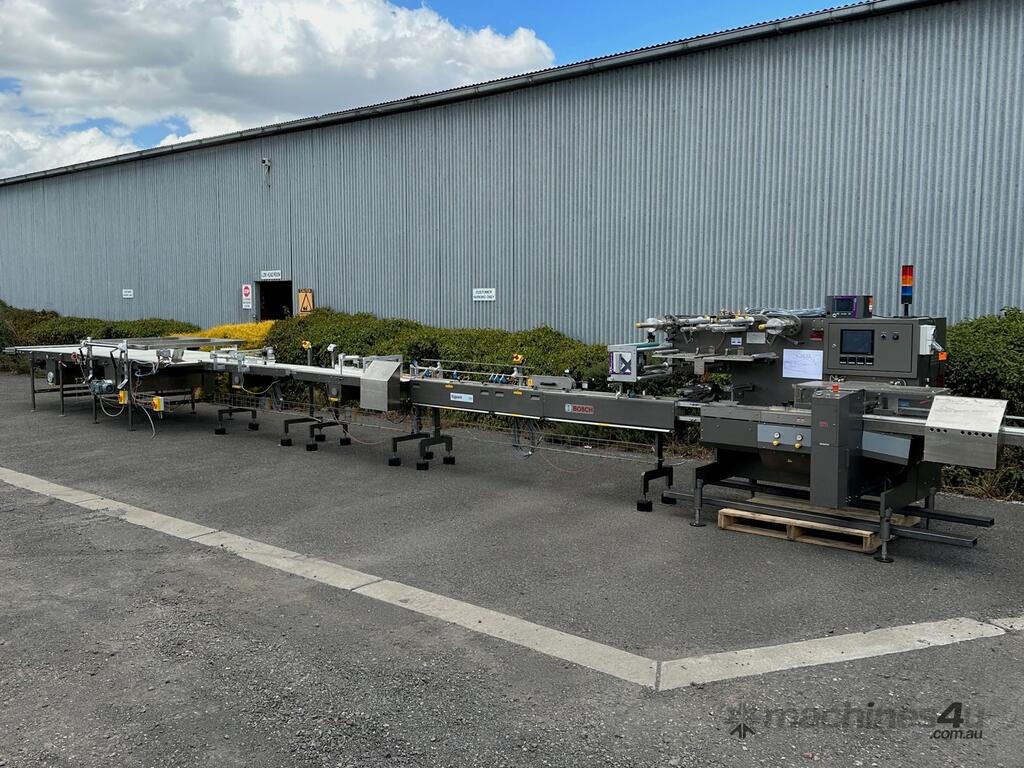

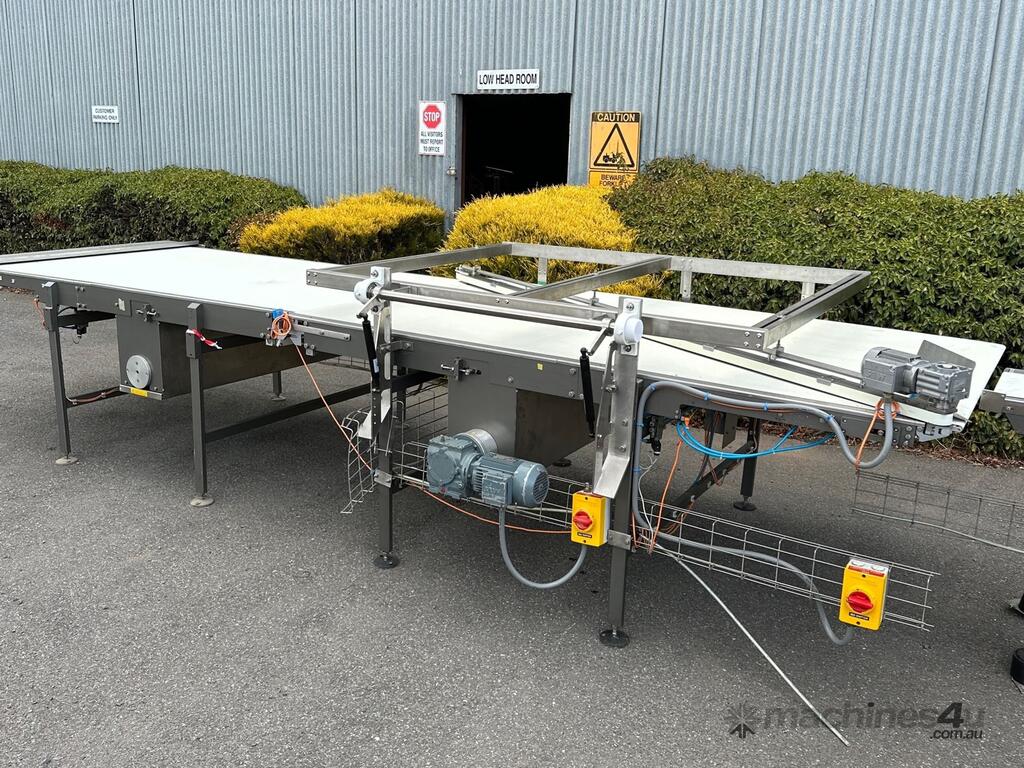

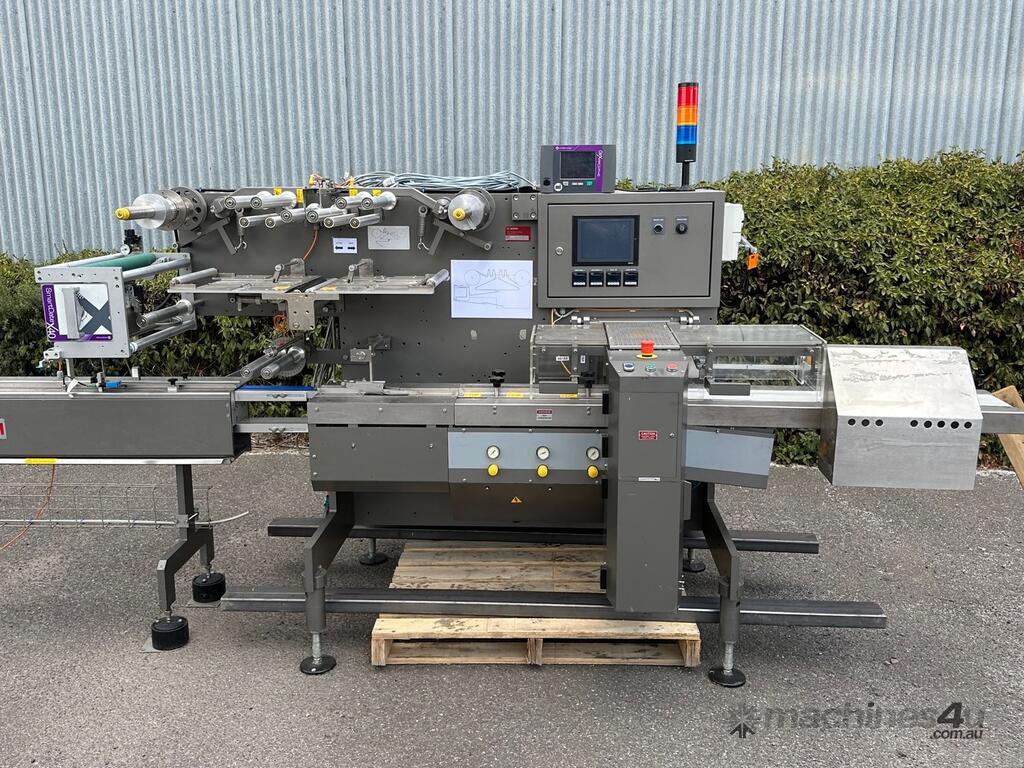

The line consists of two large infeed conveyors where the product was dumped on to a sorting conveyor, which directed the chocolate bars from multiple rows into a single row. From there two chicaning conveyors correct the bars into a single lane and feed the bars into the timing conveyor. After this the bars are feed into the Flow wrapper and sealed and can move into a secondary packaging machine (this is not available.)
Benefits
Productivity: High performance, rugged design and reliability
Easy: Operation, size change, cleaning, maintenance
Flexibility: Diverse product distribution, feeding and stacking options
Standard Features
Manual feeding with bakelite, nylon or stainless steel pushers

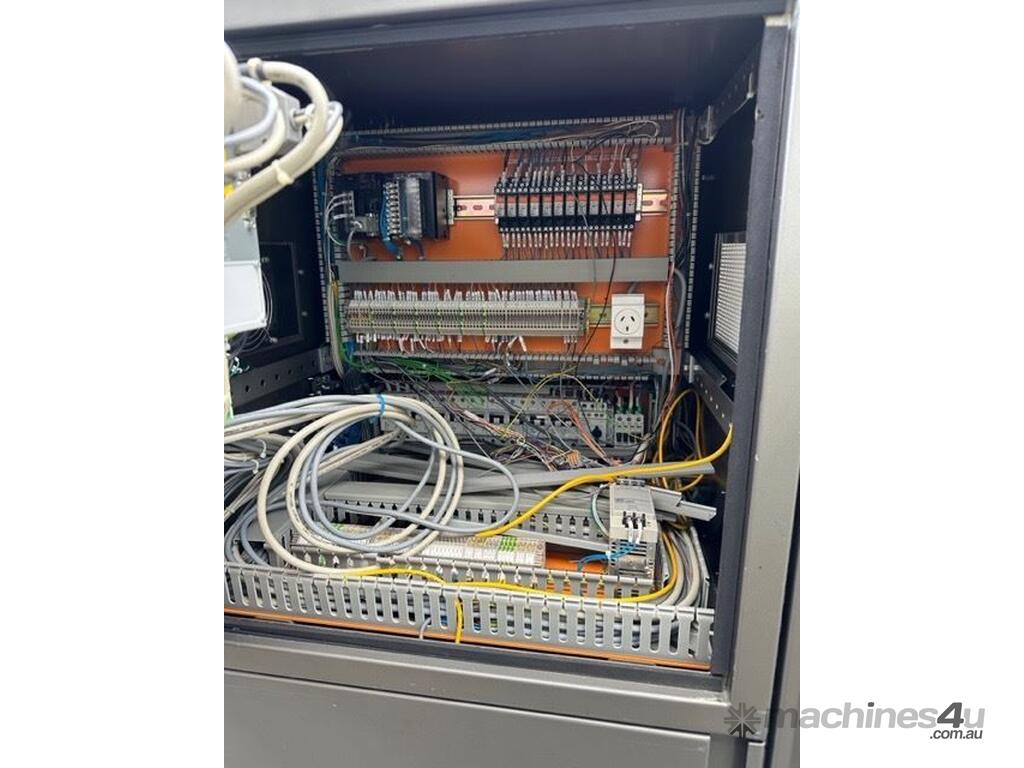

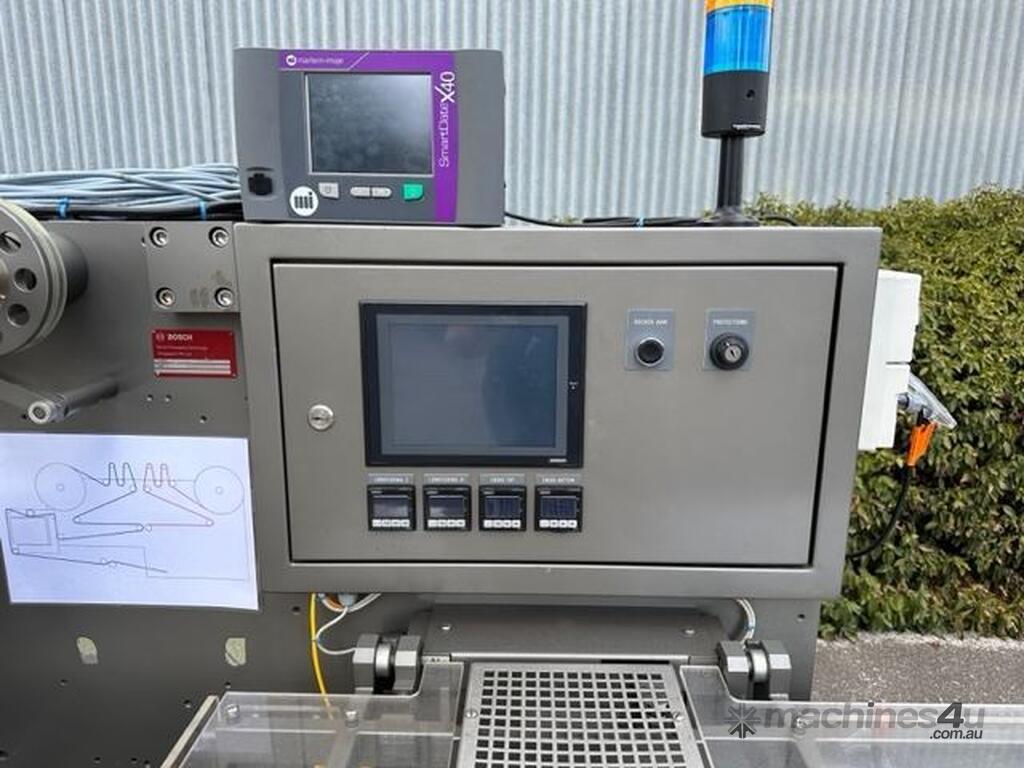

PLC and touch screen display operation
Photoelectric film centering
Controlled web material unwinding performed by a servomotor driven system
Automatic splicer for reel change, with manual preparation with double-sided tape
One set of single rotating sealing jaws
Straight cutting knife
One set of format parts including tests for one product dimension

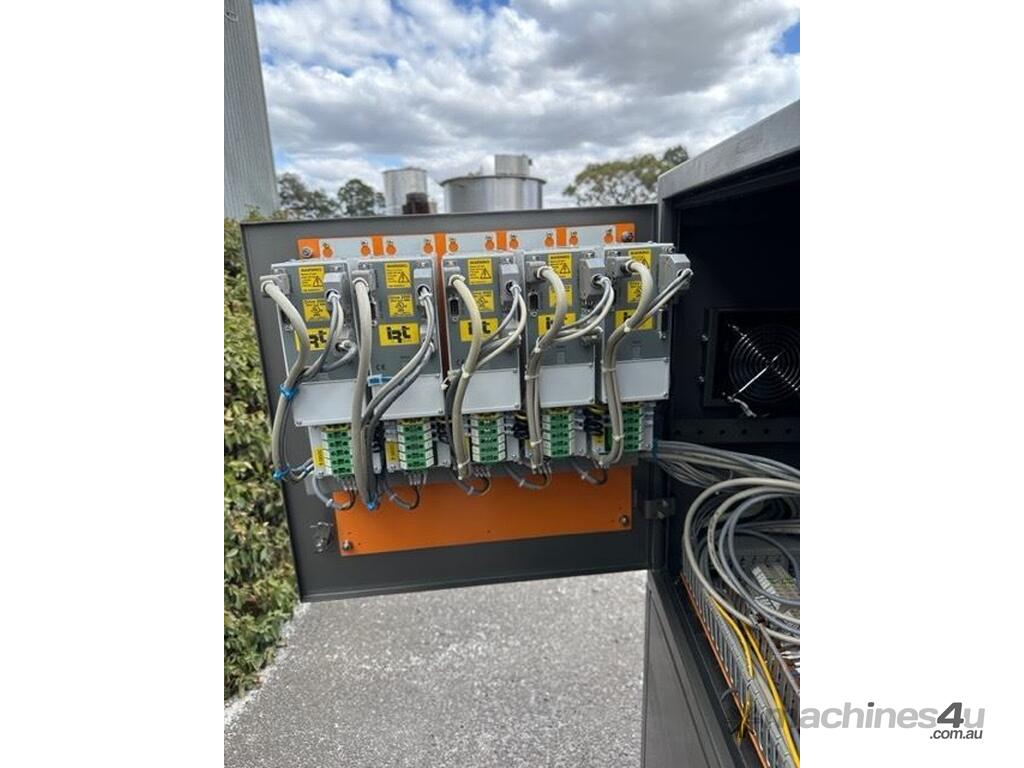

Allen Bradley servomotors
Application Examples
Biscuits packaged flat and on-edge
Wafers
Molded and coated chocolates
Candy bars
Cereals
Muesli bars
Protein bars
Other food products
Specifications
Output - Up to 1000 bags/min
Film speed - Up to 50m/min
Packaging Material - ET, BOPP, Laminated and coextruded
Current product descrIption
Length - 51mm Width - 39mm Height - 24mm
Total line dimensions - 13796m L x 1.5m W
YOM - 2015
Electrical and Pneumatic Power supply: 380 - 460 VAC
Frequency: 50/60 Hz
Control circuit: 24 VDC

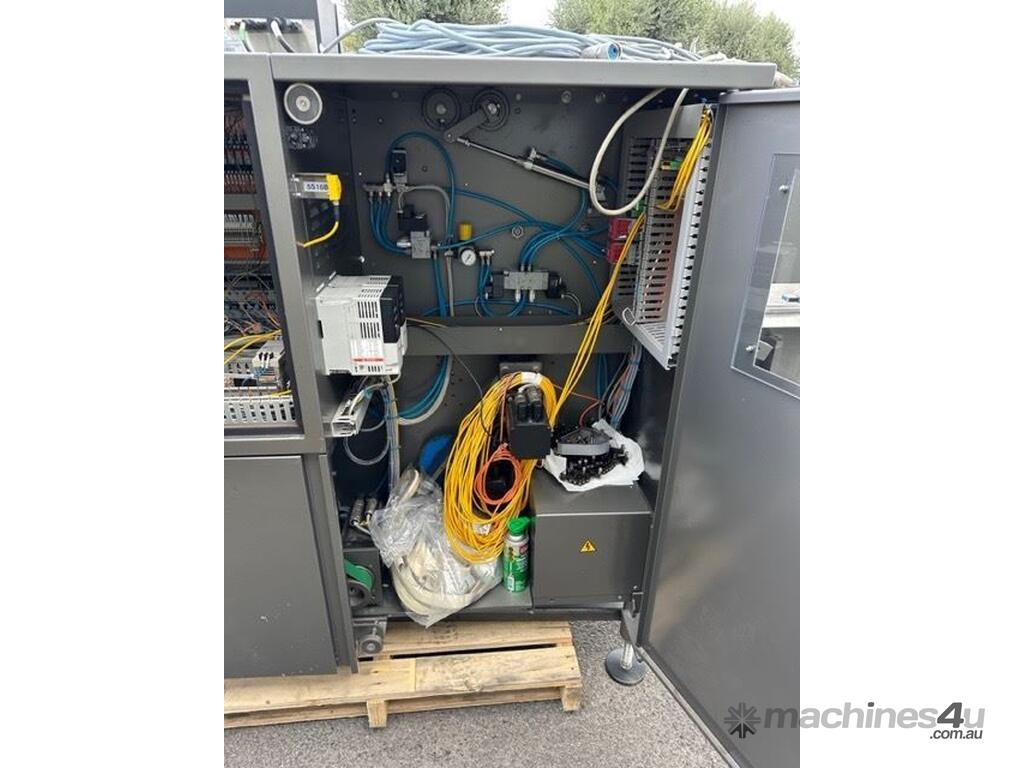

Pneumatic: Min. 6 bar
Compressed air consumption: 1 m³/h
