A must for every sheet metal company
All ECCO Line machines are equipped with 28 t punching pressure (40 t on request) and Trumpf Tooling system.
All models are equipped with:
• constant punching pressure
• maintenance free hydraulic drive
• one stripper holder an plate
• two different stroke length
The ECCO Line earns money with:
• small and medium series
• single pieces and prototypes
Tooling system

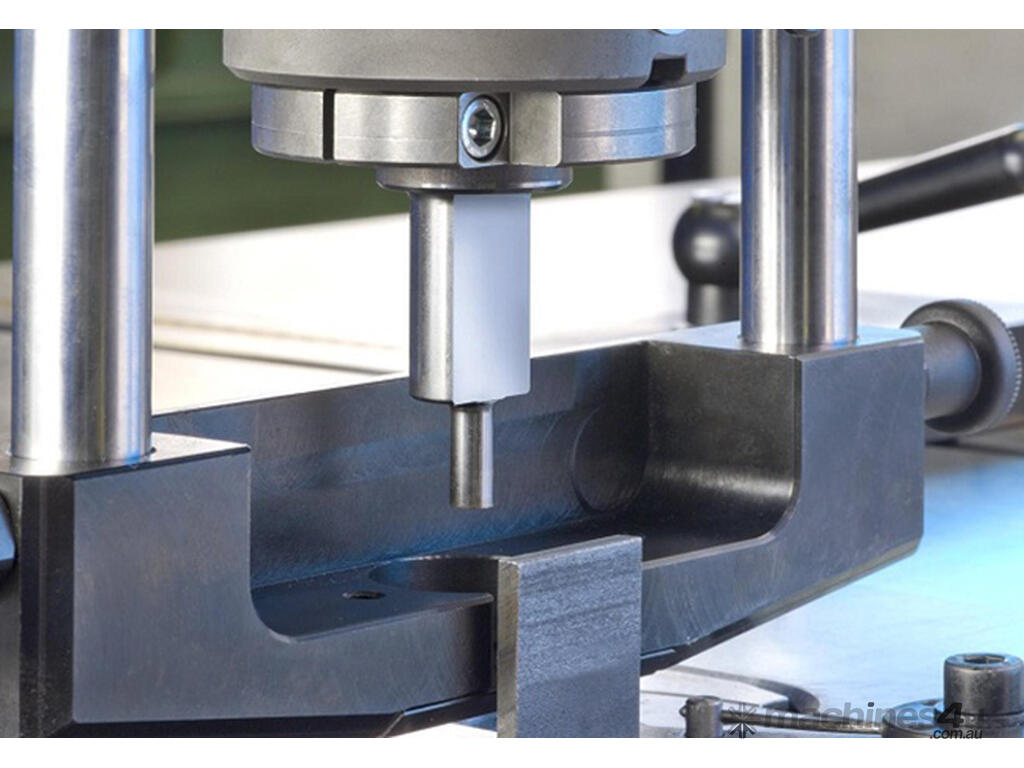

The worldwide approved Trumpf tooling system is used on the ECCO Line (other systems on request, e.g. Amada, Rainer, XX28). The tool is put into the tool holder without an intermediate case. Through the large propagation of the Trumpf tooling, the machine is virtually always ready for operation.
7 seconds. The largest tool diameter is 105 mm (4?). Besides a wide range of standard toos, it is possible to manufacture arbitrary tool within the range of 105 mm diameter. The metal loss from sharpening will be compensated through changes of the punch stroke length. Exact alignment of cutting tools with ridig clamping ensures long tool life. It also enables the use of angled Whisper-Tools which can achieve a noise reduction of up to 50%.
For more information visit our and download the brochure.
