Boschert Multipunch 1250 x 2500
Year 2008
Available for immediate delivery. Can be seen operating. Great working condition, regularly serviced.

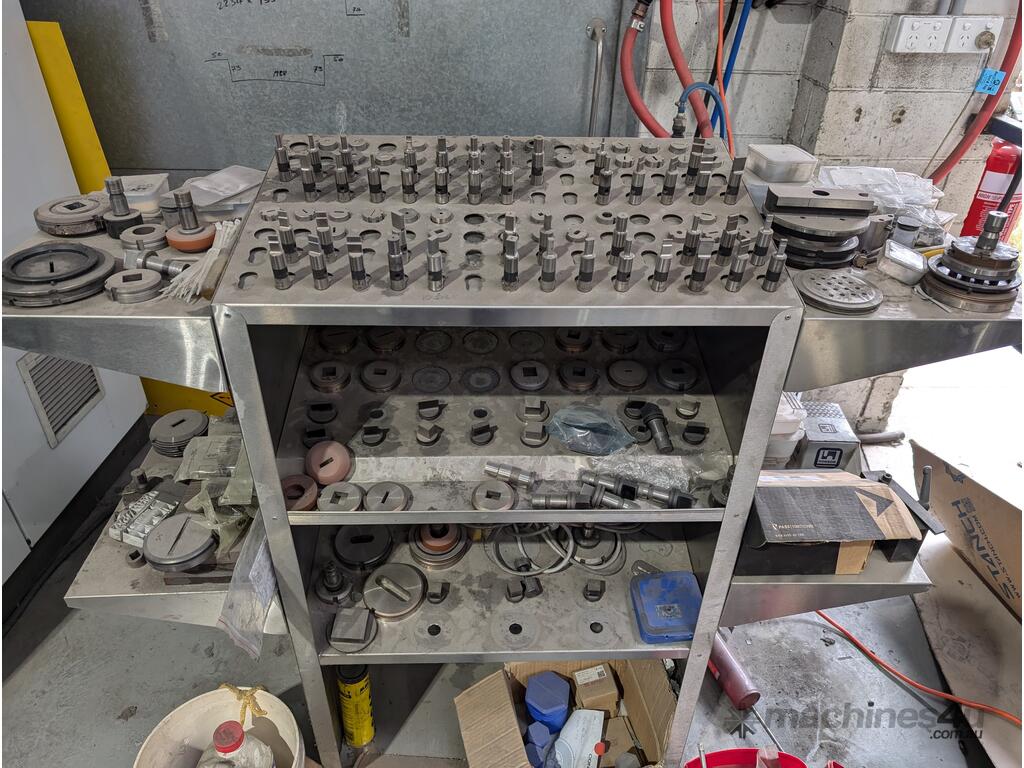

Includes a full set of tooling
Location - East Melbourne
Specs:
Punching pressure : approx. 280 Kn. (28 tons)
Punching throat depth : 1250 mm
Max. punch diameter : 76.2 mm or any shape within
Max. stroke height : 35 mm infinitely adjustable
Max. material thickness : 6 mm
Nibbling sequence : 3 mm stroke height, 1 mm pitch 800 strokes / min.
The machine is equipped with:

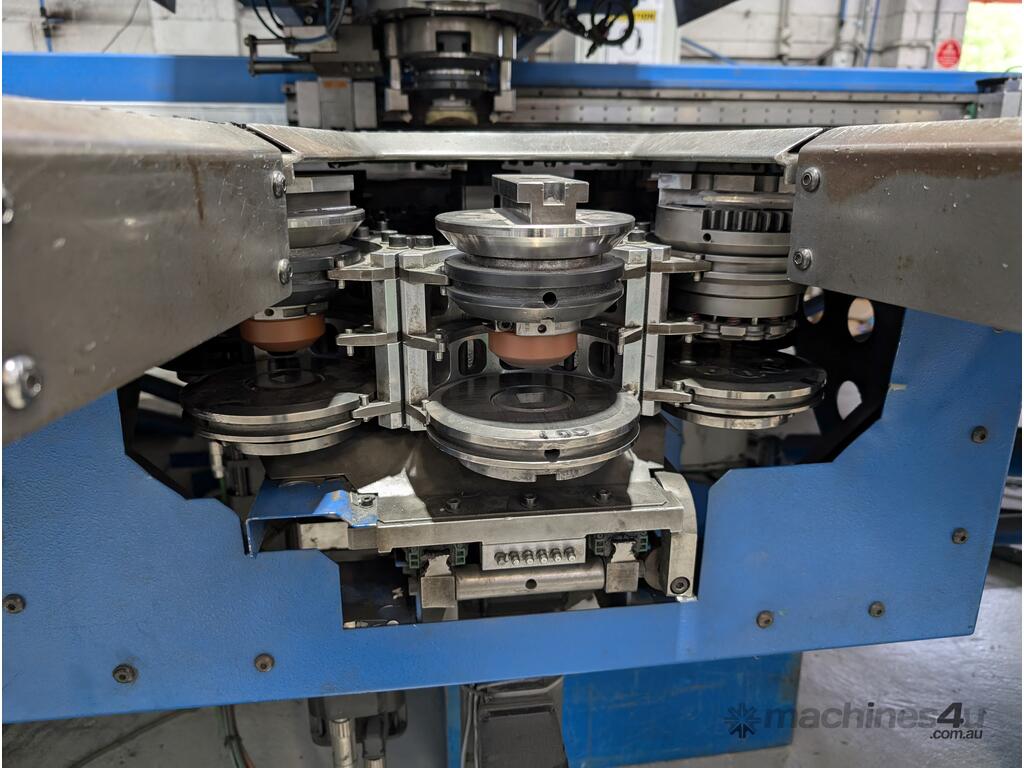

8 Station Automatic Tool Change tooling, system TRUMPF
Rotation with stepless Index of all tools
Up to 64 Tools available (with Revotools)
Very short time for tool change (max. 5 seconds)
All standard Trumpf tools may be used
Clamp system for automatic material – handling with 2 clamps
Automatic clamp positioning programmable by CNC
Pneumatic chute for small parts 300 x 200 mm
Fast hydraulic – 800 strokes/minute (oil cooling included)
Automatic tool Lubrication
Waste removal suction
Brushes in the table
