Bottle and Drum - Mobile Filling Machine 1L to 1000L

Mobile Bottle and Drum Filling Machine 1L to 1000L

100% AUSTRALIAN MADE AND LOCALLY SERVICED

Available: Food Grade, Chemical Grade & Aggressive Acids (Price apply)

Designed and built by our team of engineers and tradesmen in Leongatha, Victoria.

This extremely versatile mobile filling machine is capable of accurately filling containers ranging from 1L to 1000L.
Stainless steel or PVC fill heads and product handling surfaces suitable for a wide variety of foods or chemicals of ranging viscosities.

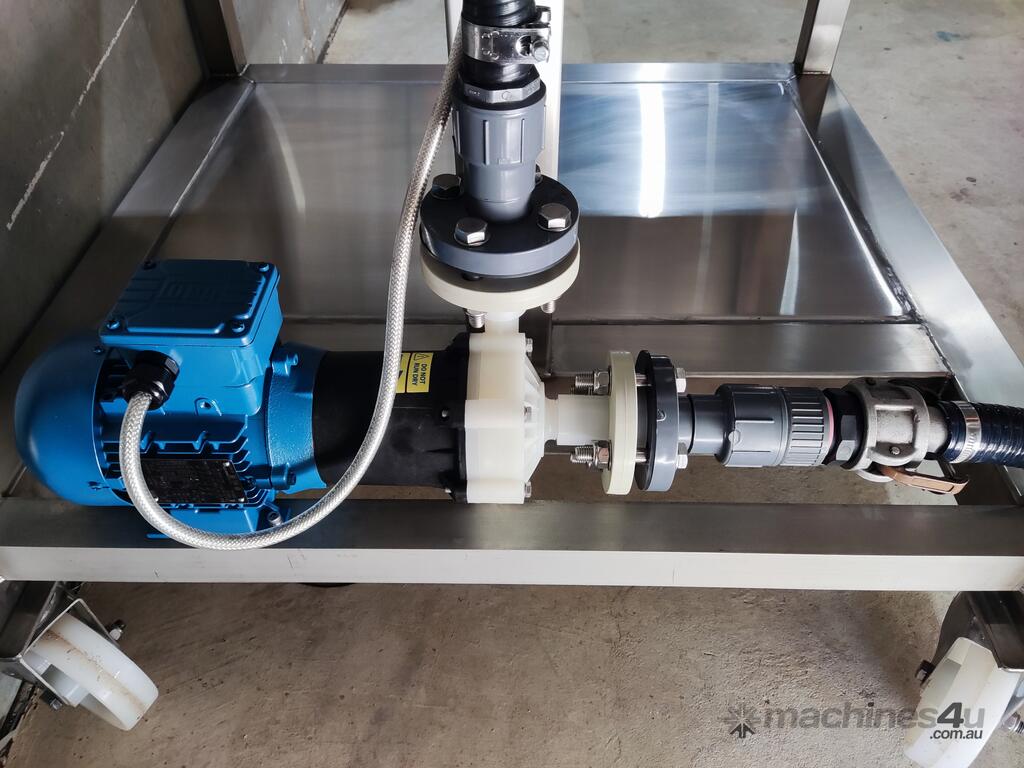

Through variable pump speed control, accuracy of +/-10ml is achievable, without compromising fill time and avoiding product foaming and agitation.

Estimated throughput:

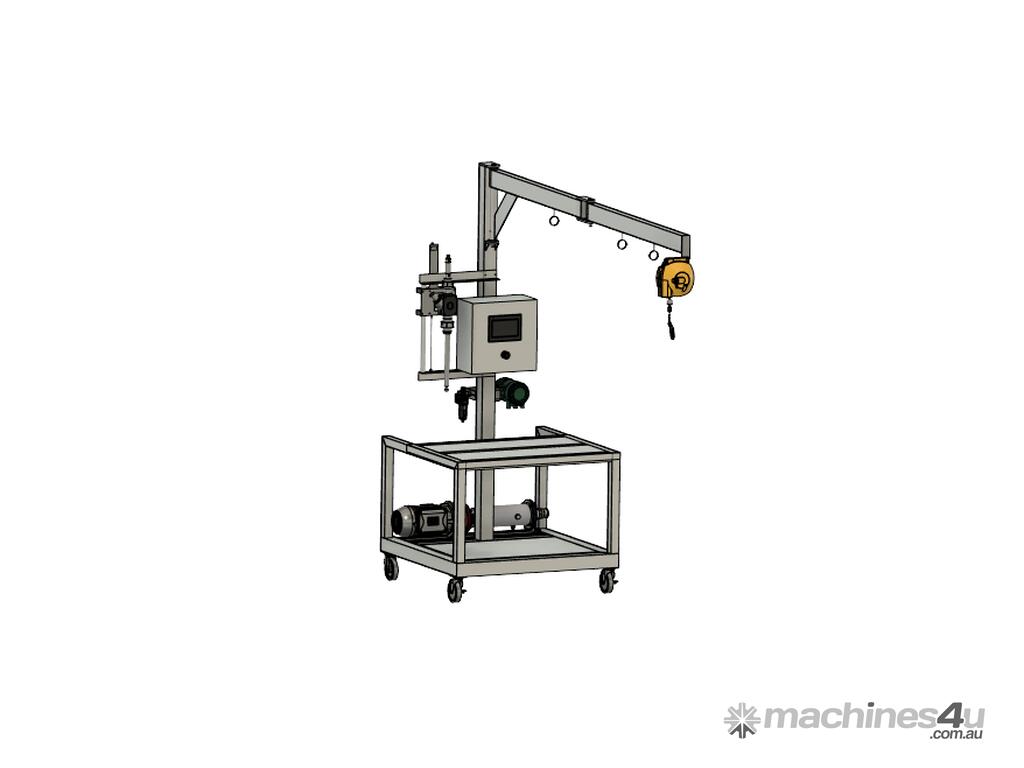

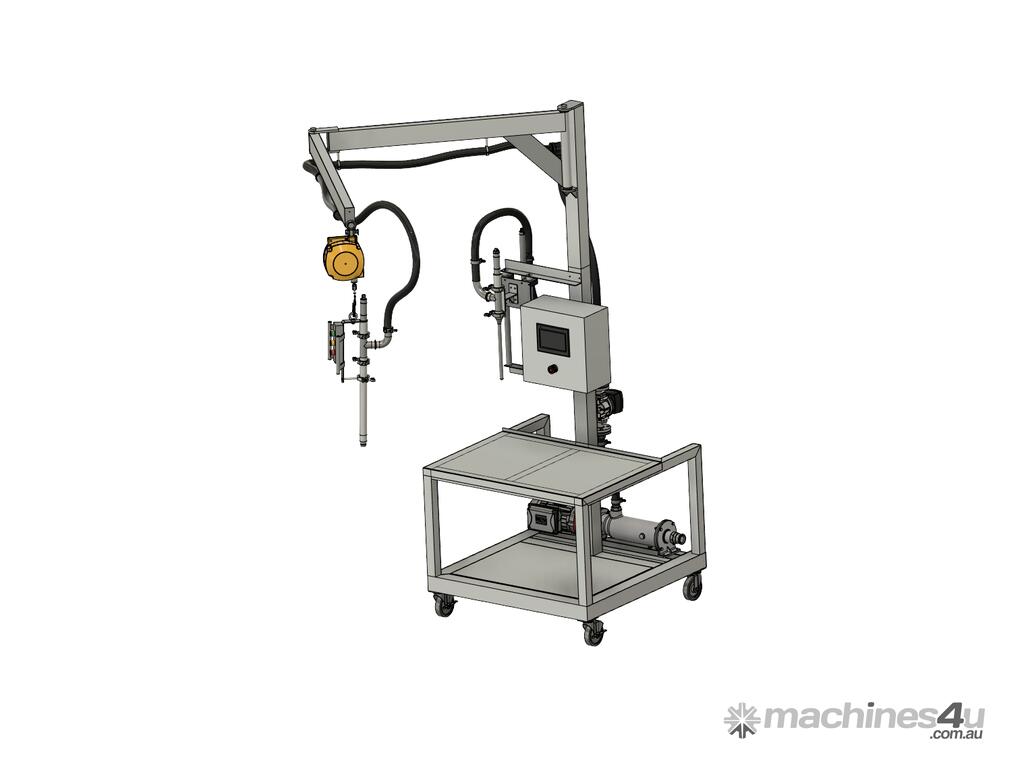

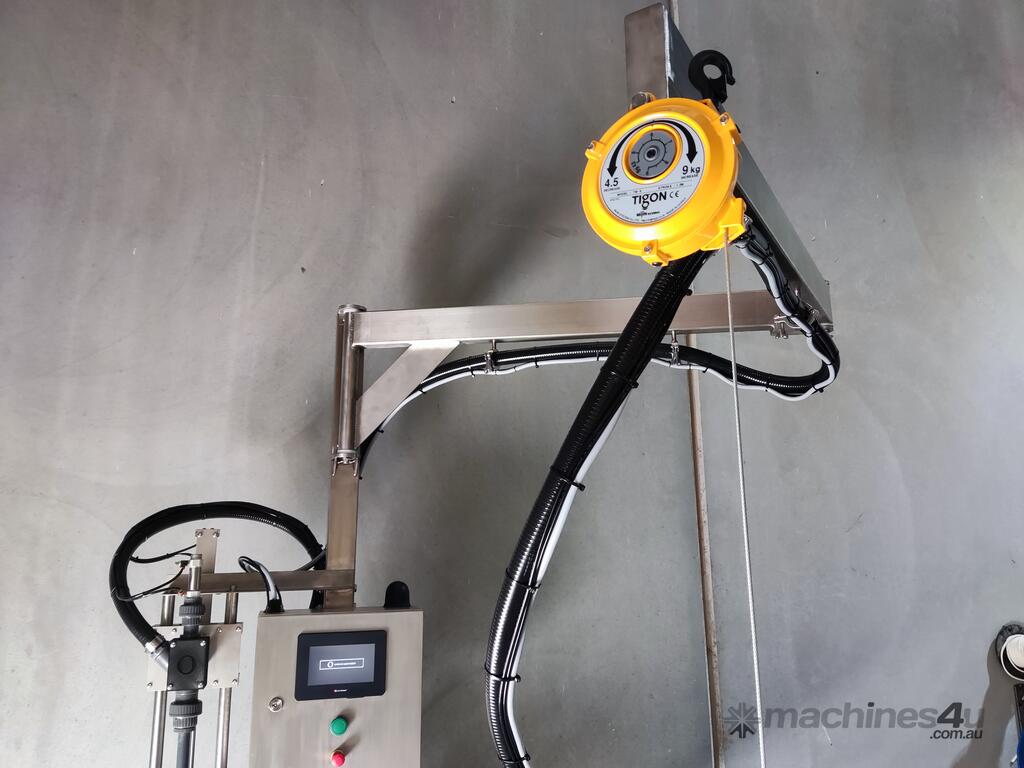

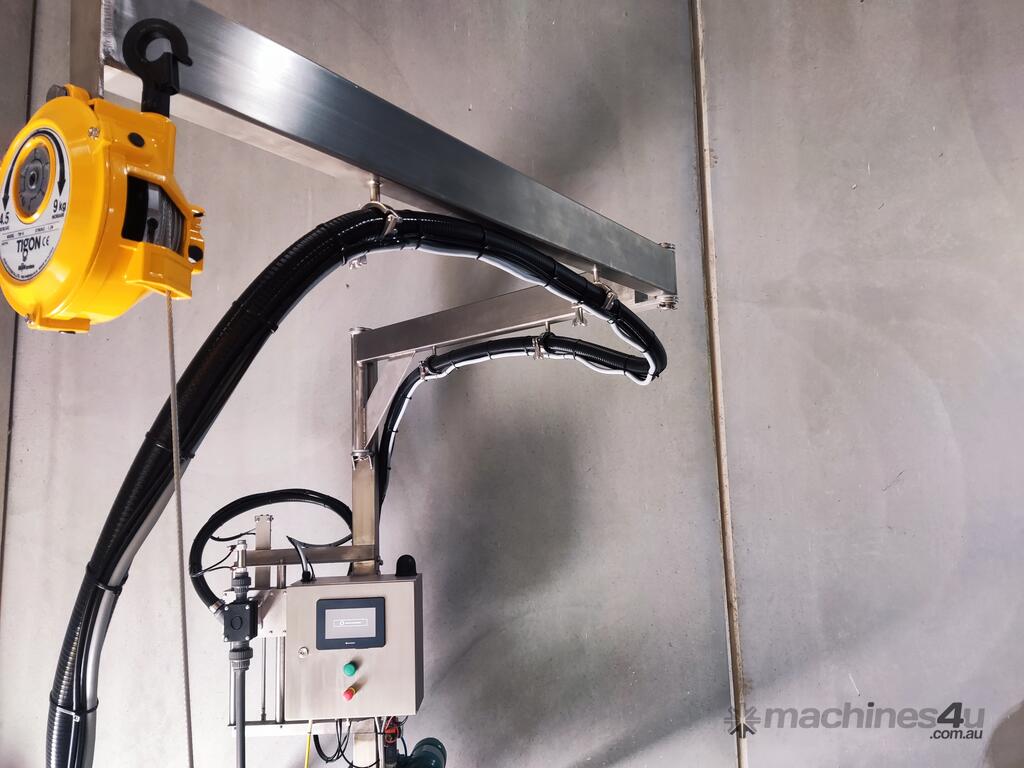

With our boom Filler: Pallet of 20L drums (32drums total), filling low viscosity, low foaming product, filled, capped with our capping tool, on pallet in under 15mins. (filling low viscosity, low foaming product)
With our Table filler: 5L container, filled, capped with our capping tool, 6-8 per min. (filling low viscosity, low foaming product)

Designed with ergonomics in mind, the 'Mobile Bottle and Drum Filling Machine' is easily manoeuvred throughout it's broad operating range, allowing bottles/drums to be filled in situ. Along with simplifying the overall batching process, this substantially reduces manual handing risks for the operator.

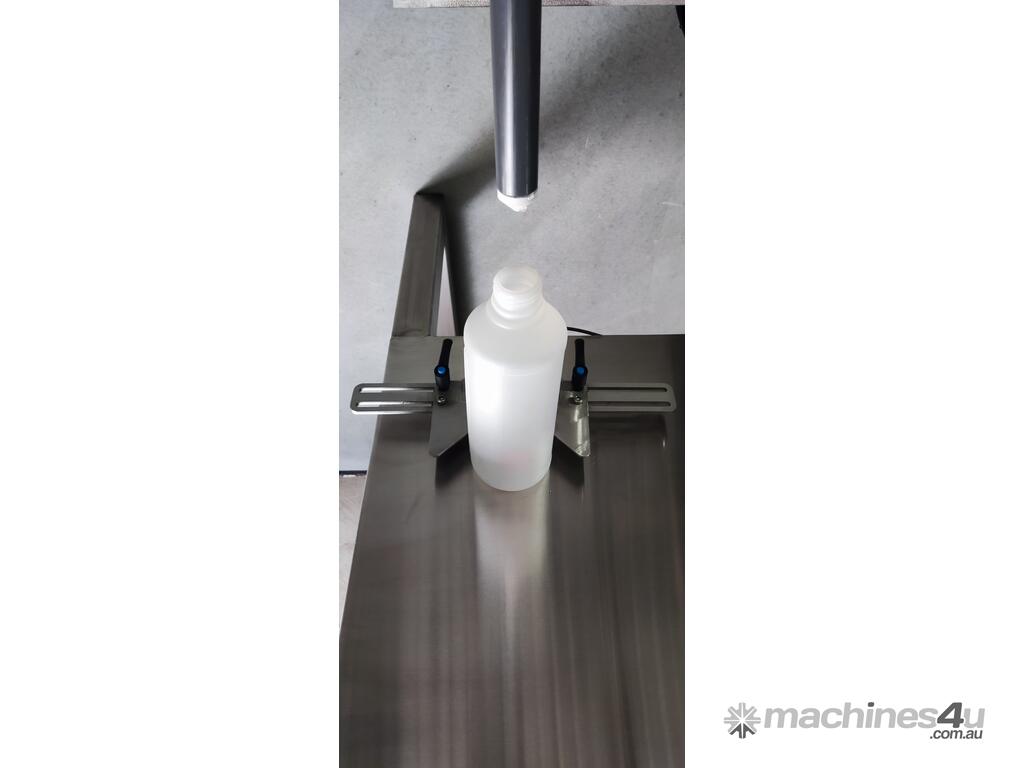

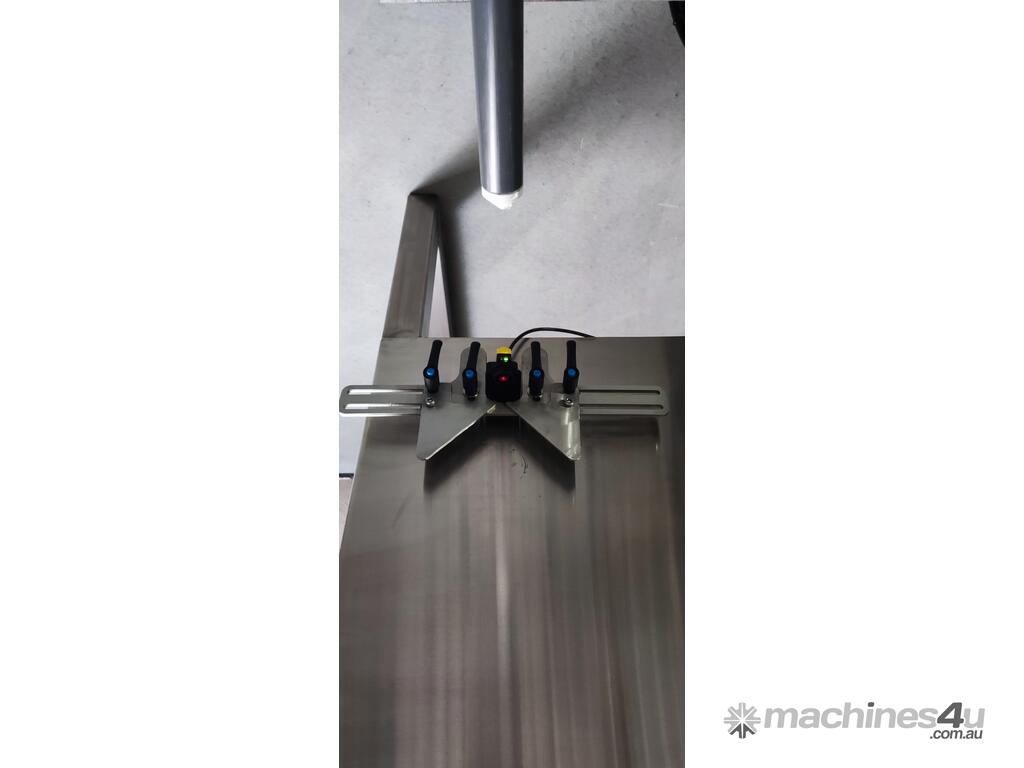

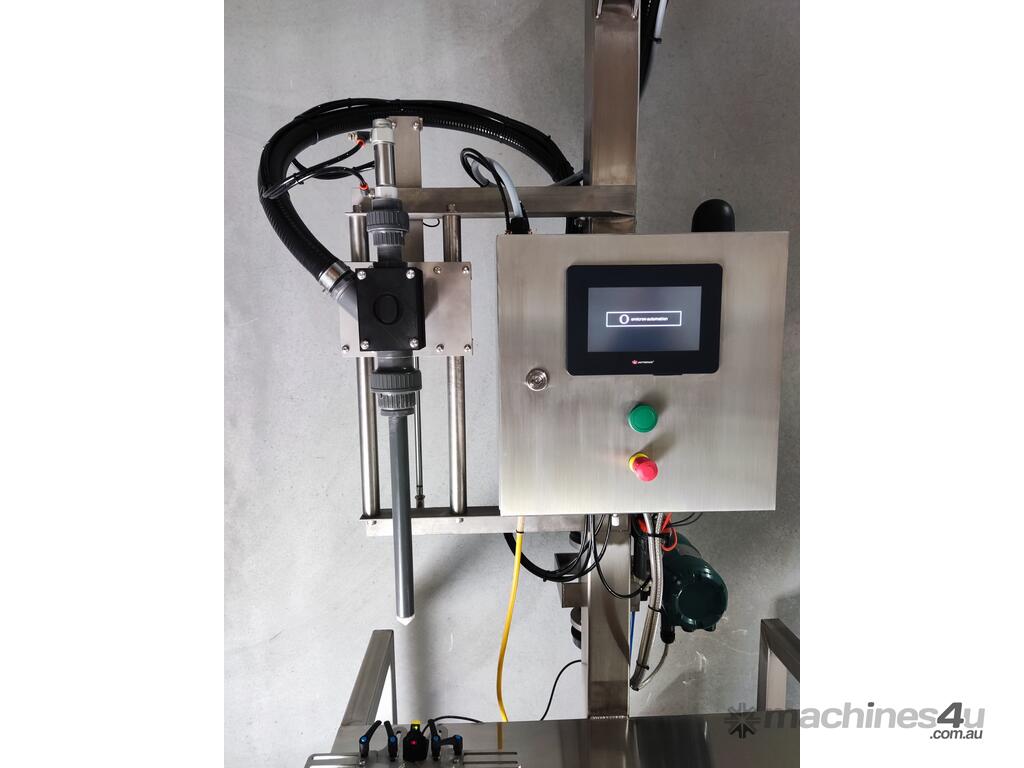

The 'Mobile Bottle and Drum Filling Machine' is equipped with an adjustable universal container locator to enable smooth loading of the machine. The fill can either be started automatically via the 'container detection' sensor, or a start button located on the operator panel.

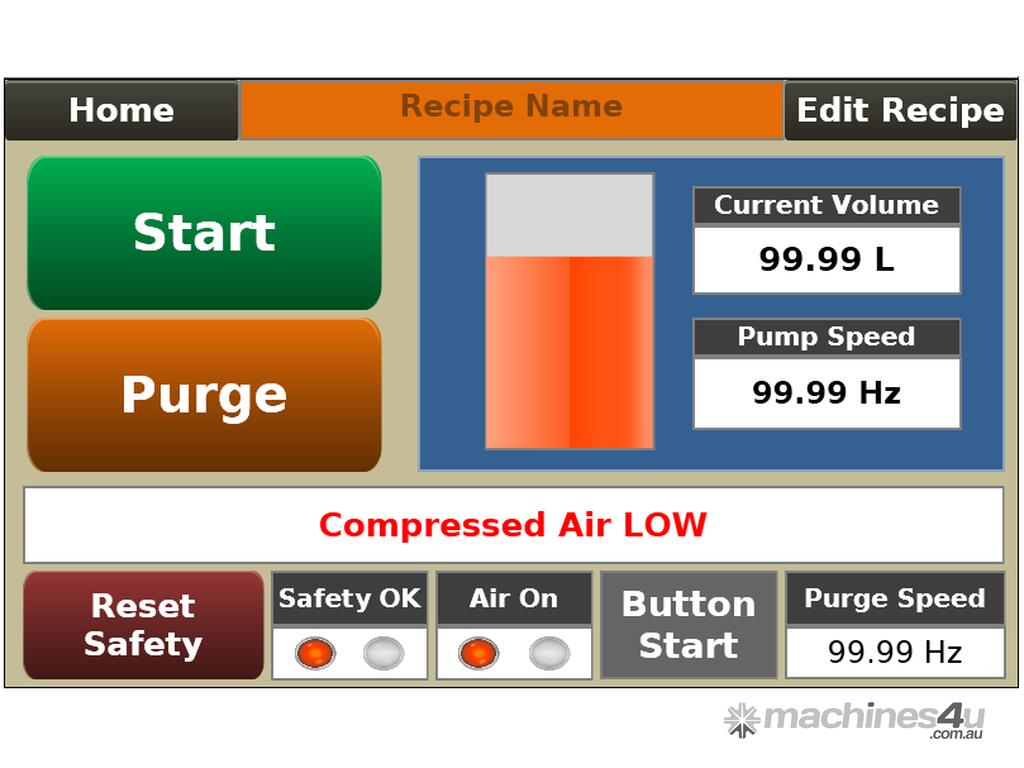

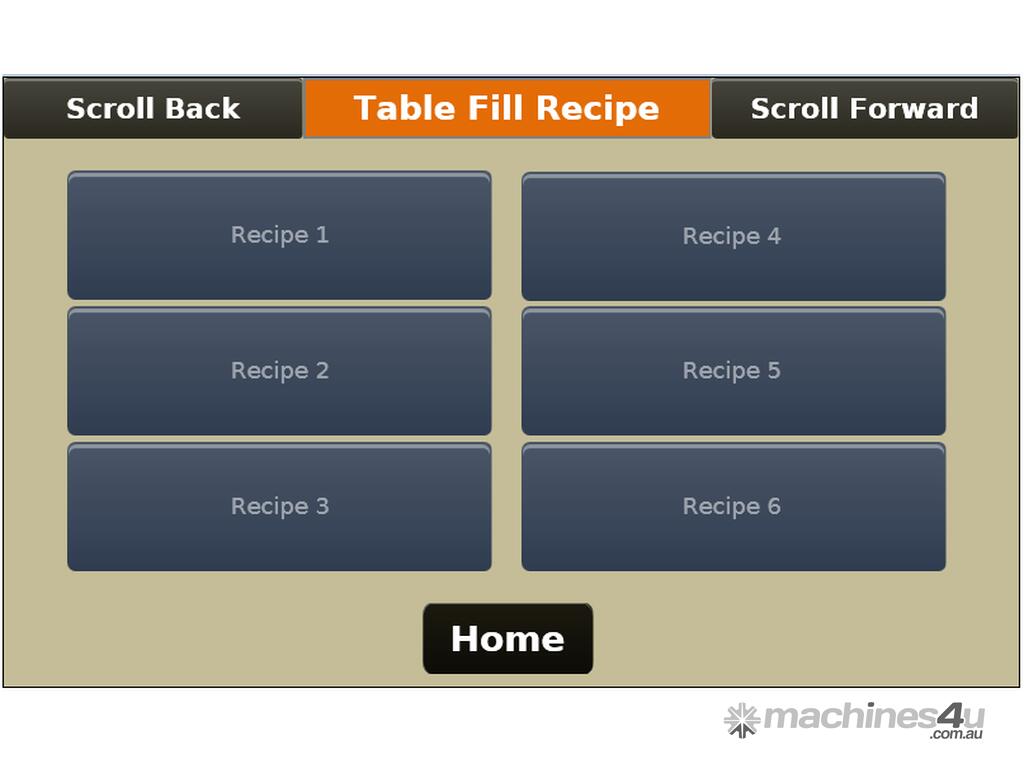

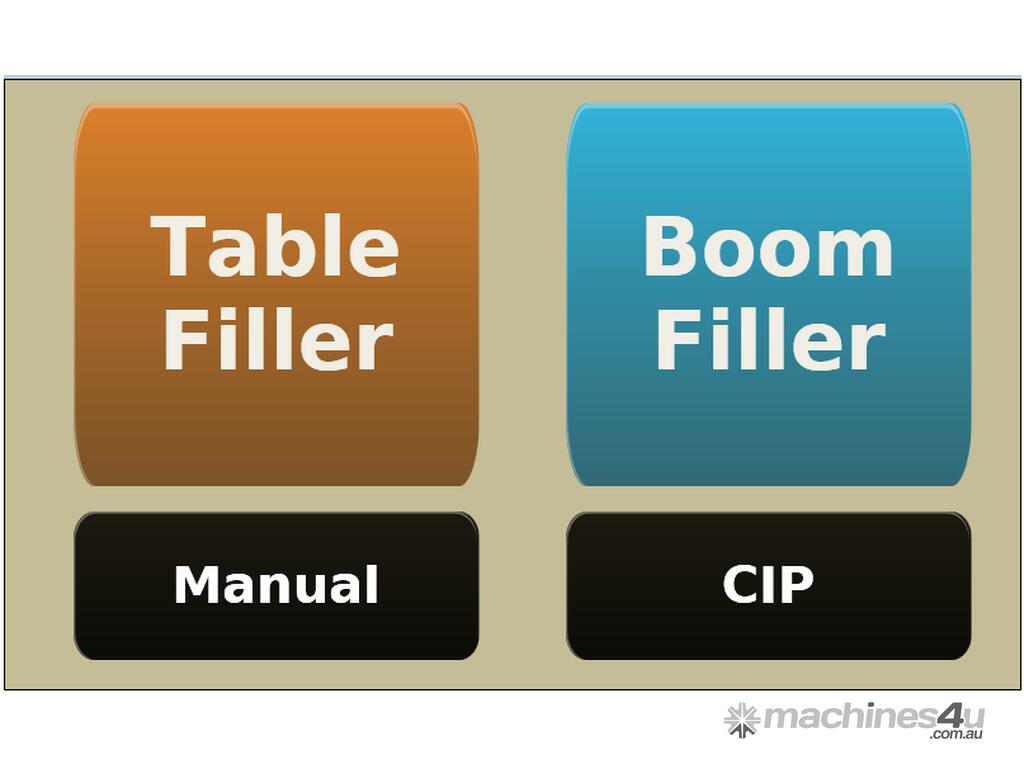

The 7in colour touch screen is intuitive and simple, and provides the operator necessary data to track and monitor each fill. Navigation between pre-saved filling 'recipes', the machine's CIP (Clean In Place) function as well as a manual/diagnostics mode is accessible with only a few clicks.
Built-in remote access means on-site commissioning can be carried out remotely, and at very low cost.

The machine can be partially disassembled (no tools required) to pack down into a 1200mm x 1200mm x 2400mm crate for efficient local and international freight.

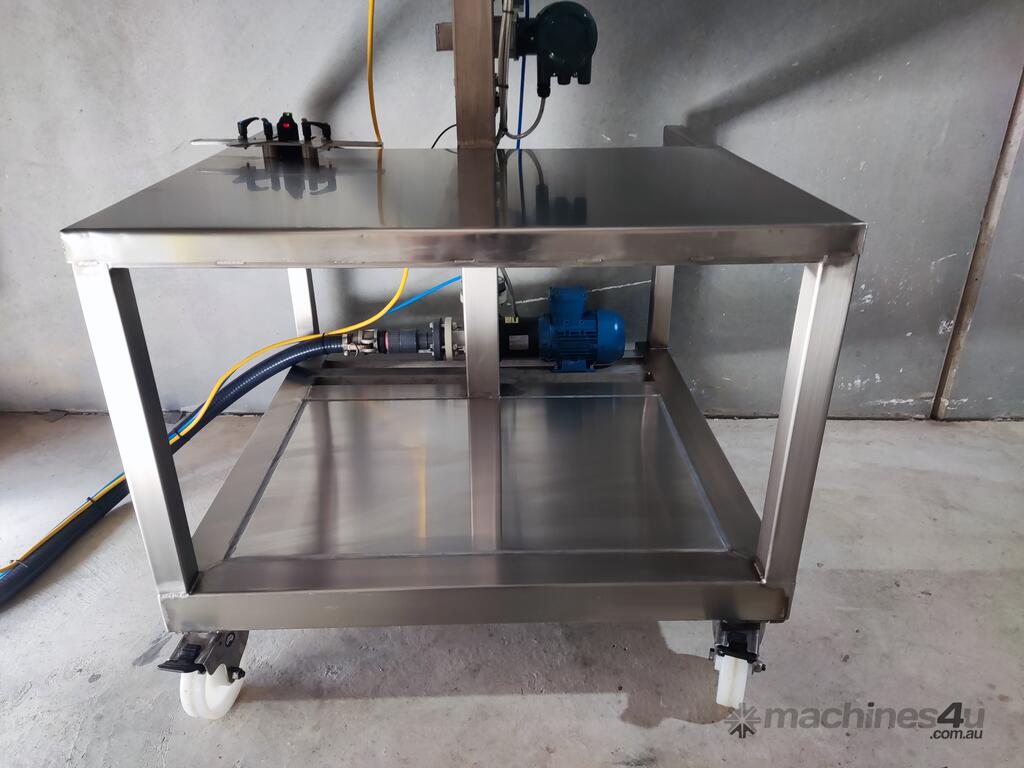

Built with high quality componentry, stainless steel, Omicron Automation's Boom & Table Filler is a proven asset to any large or small liquid batching plant.
