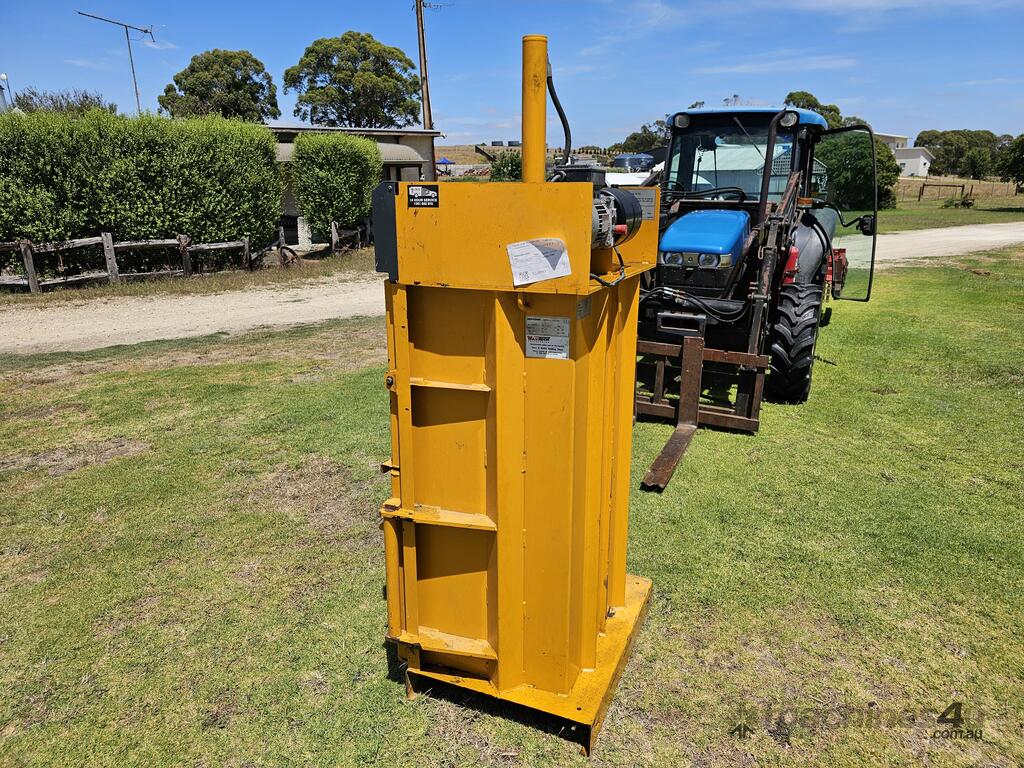

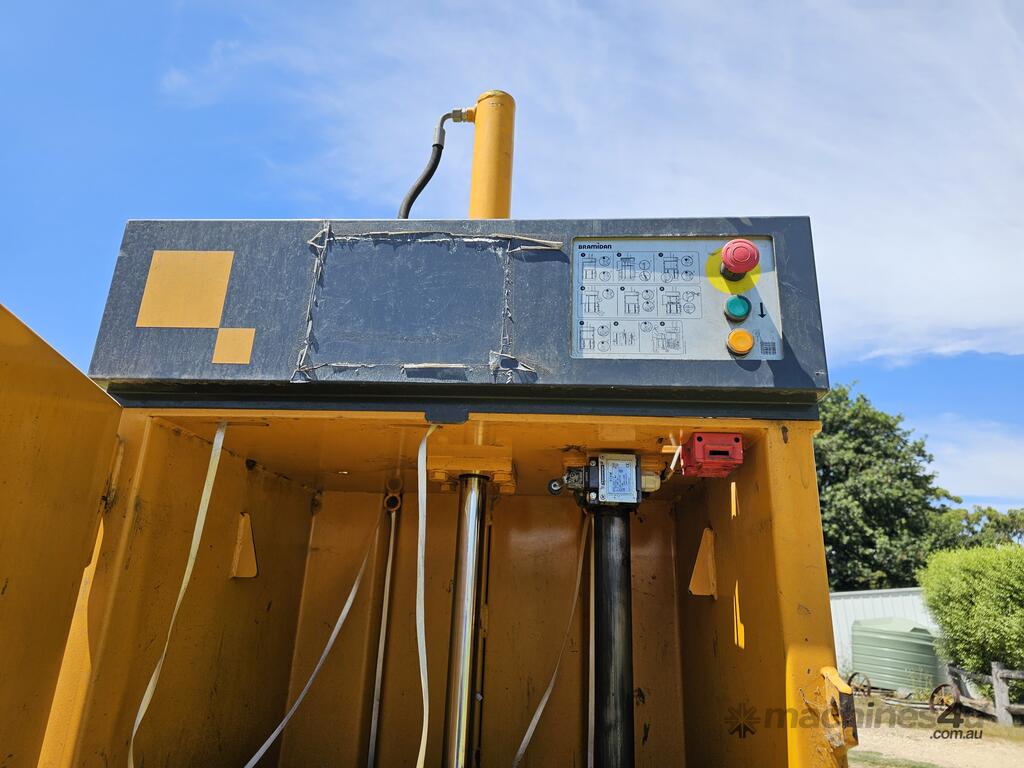

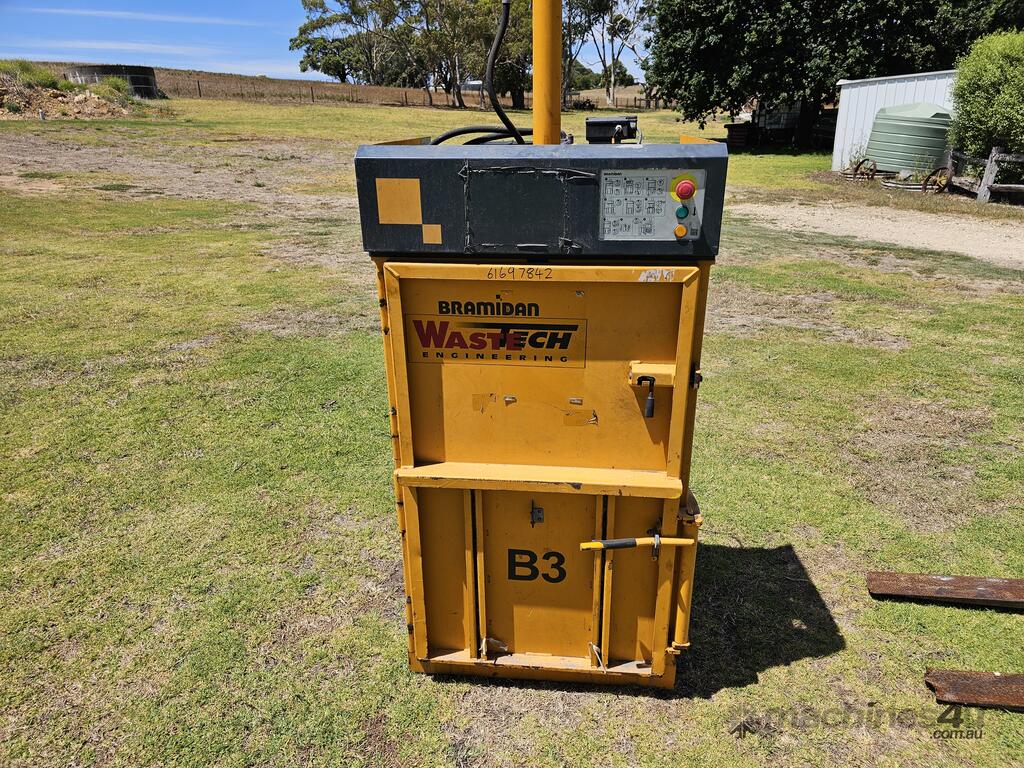

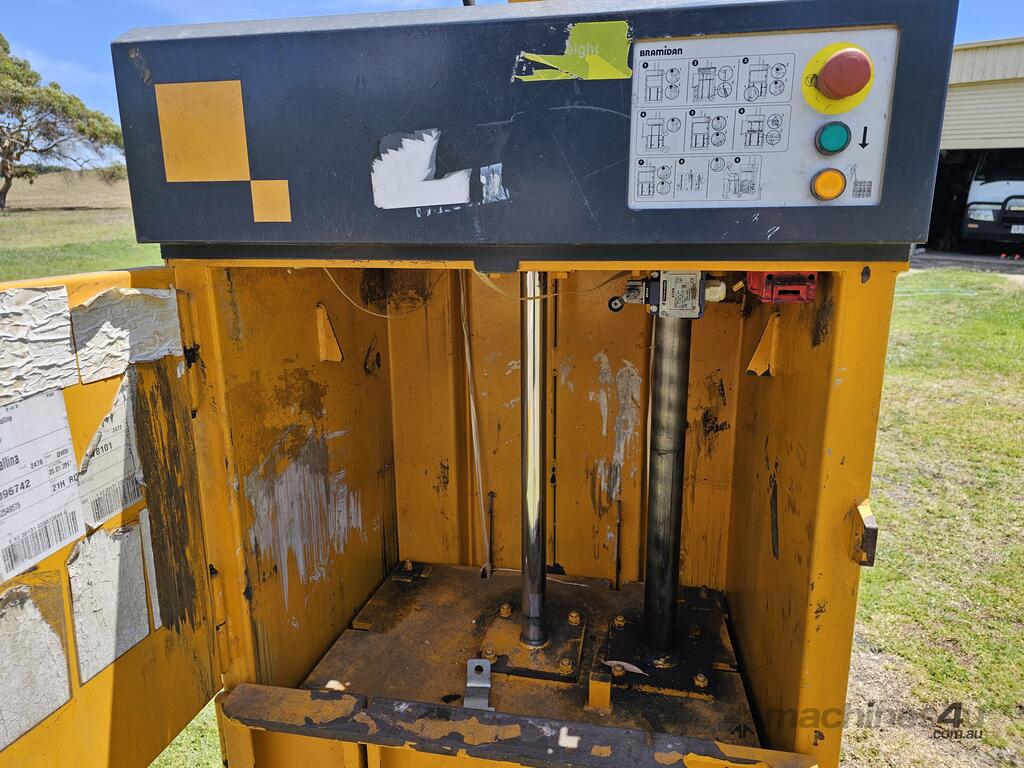

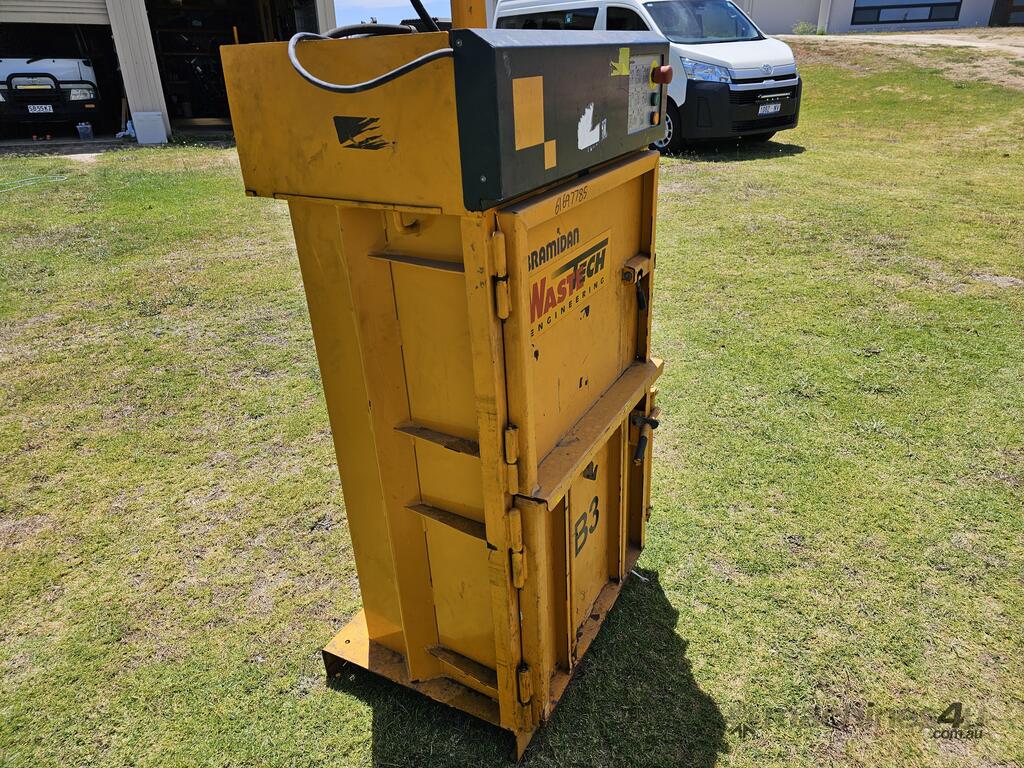

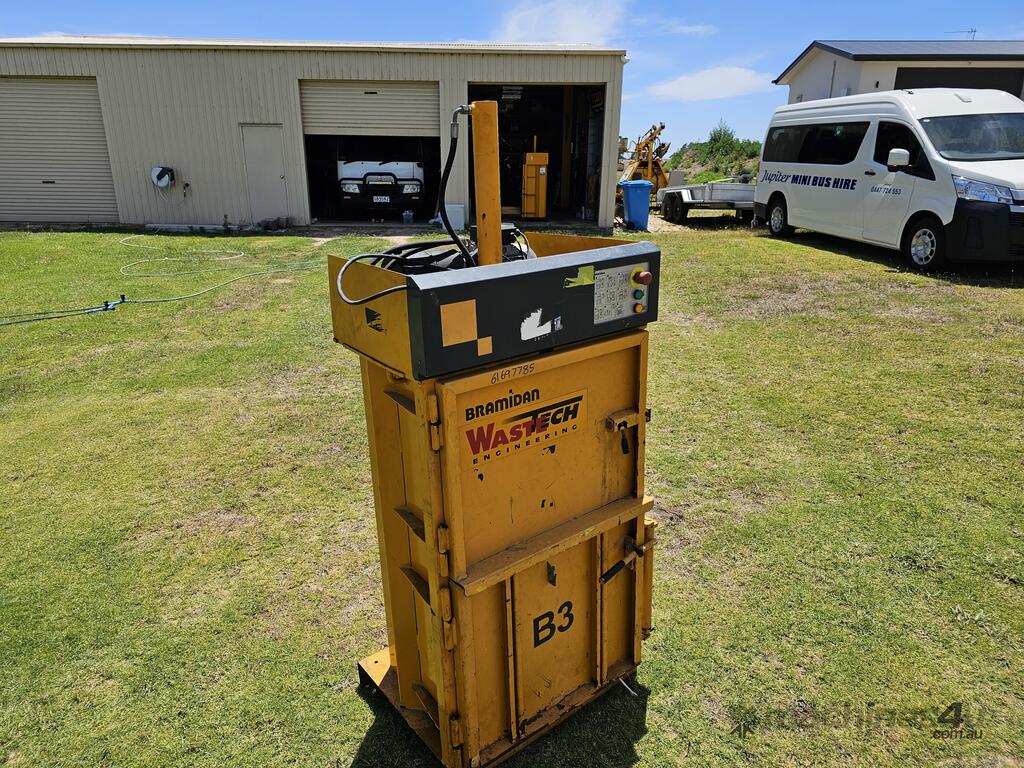

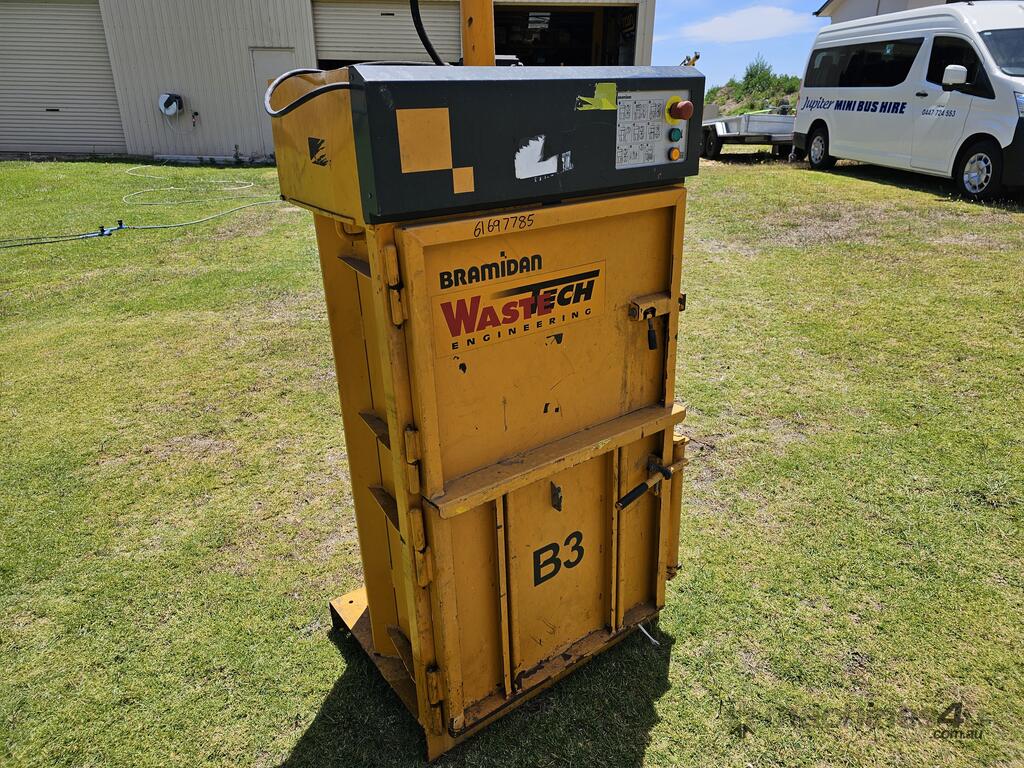

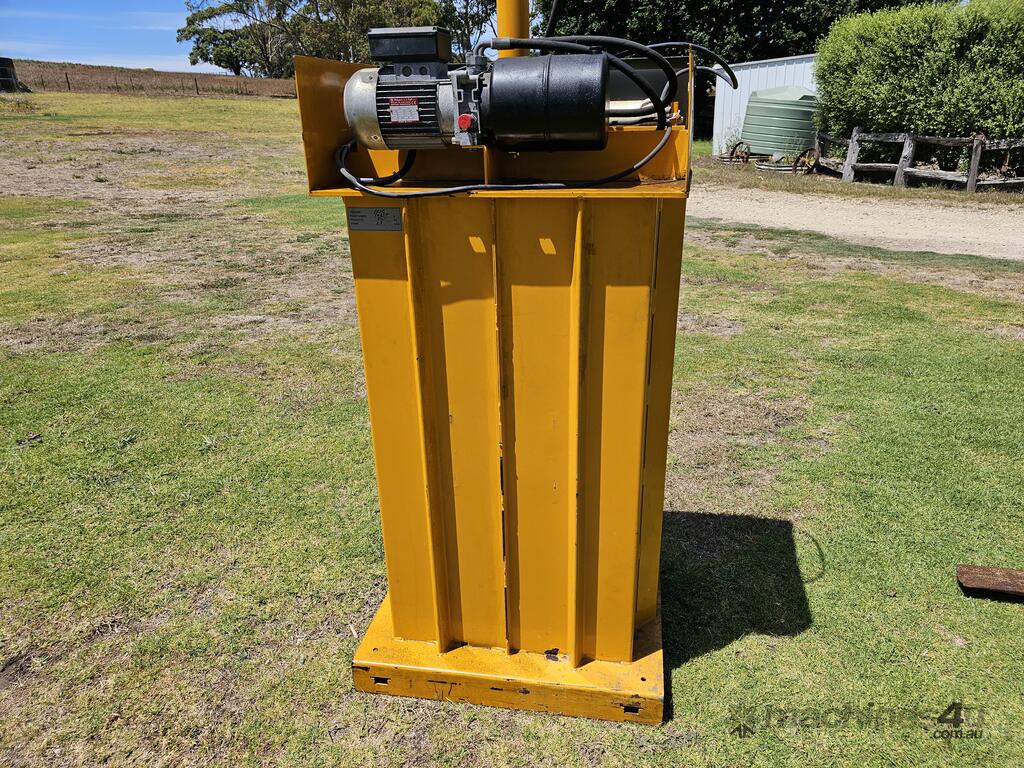

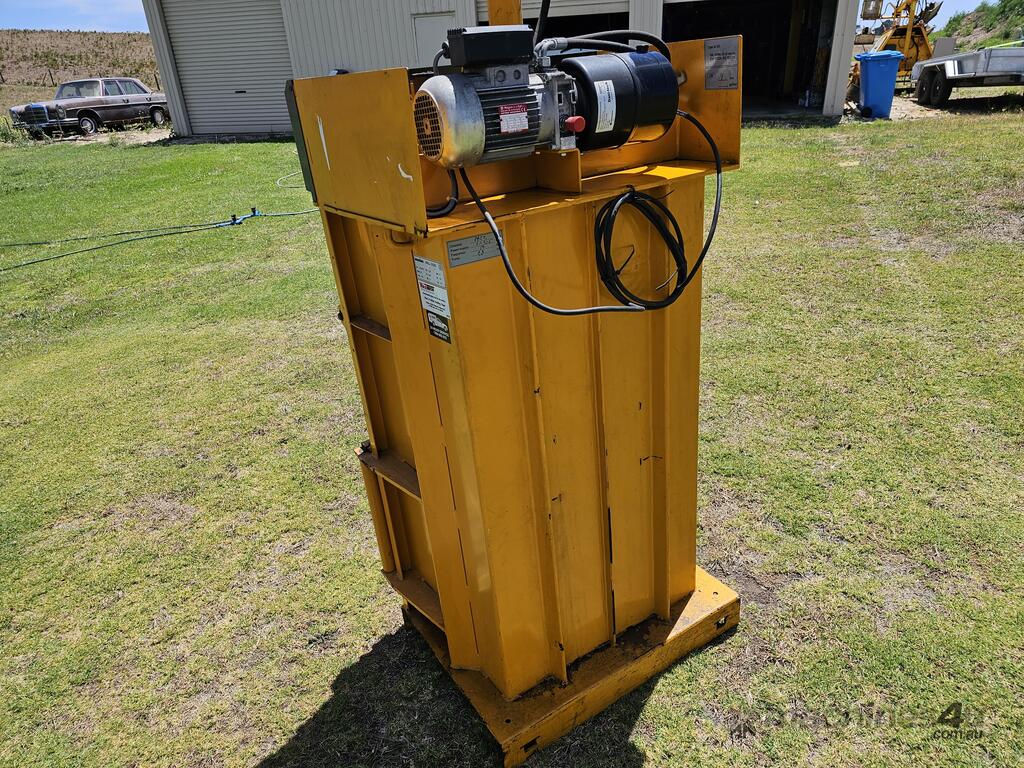

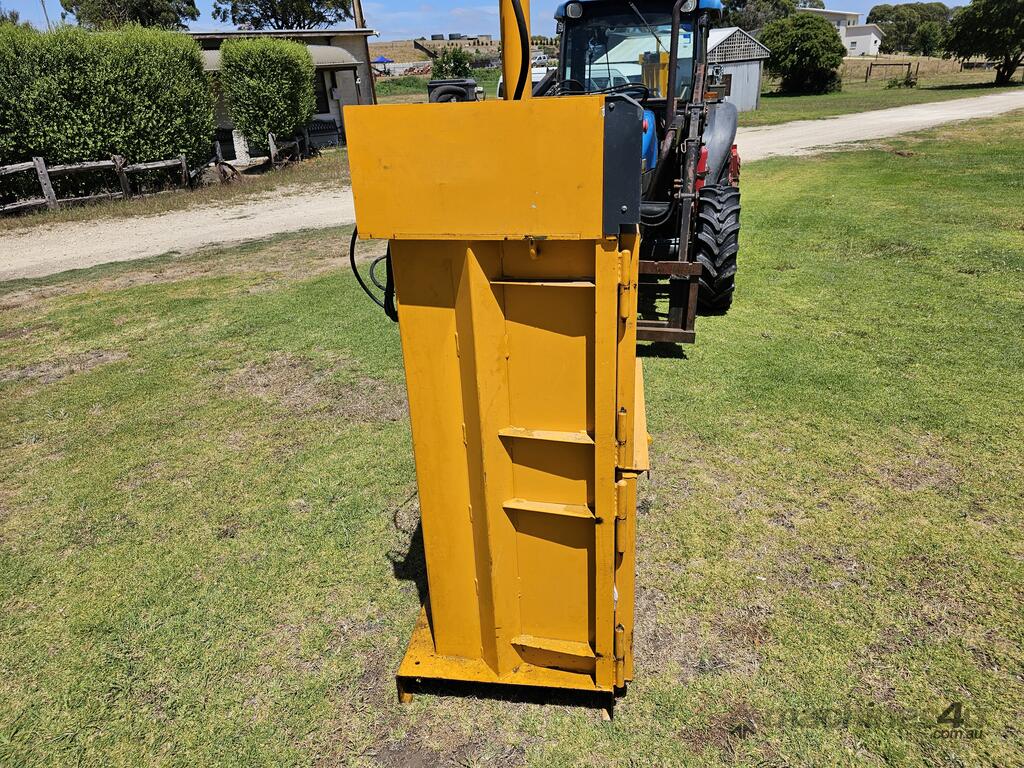

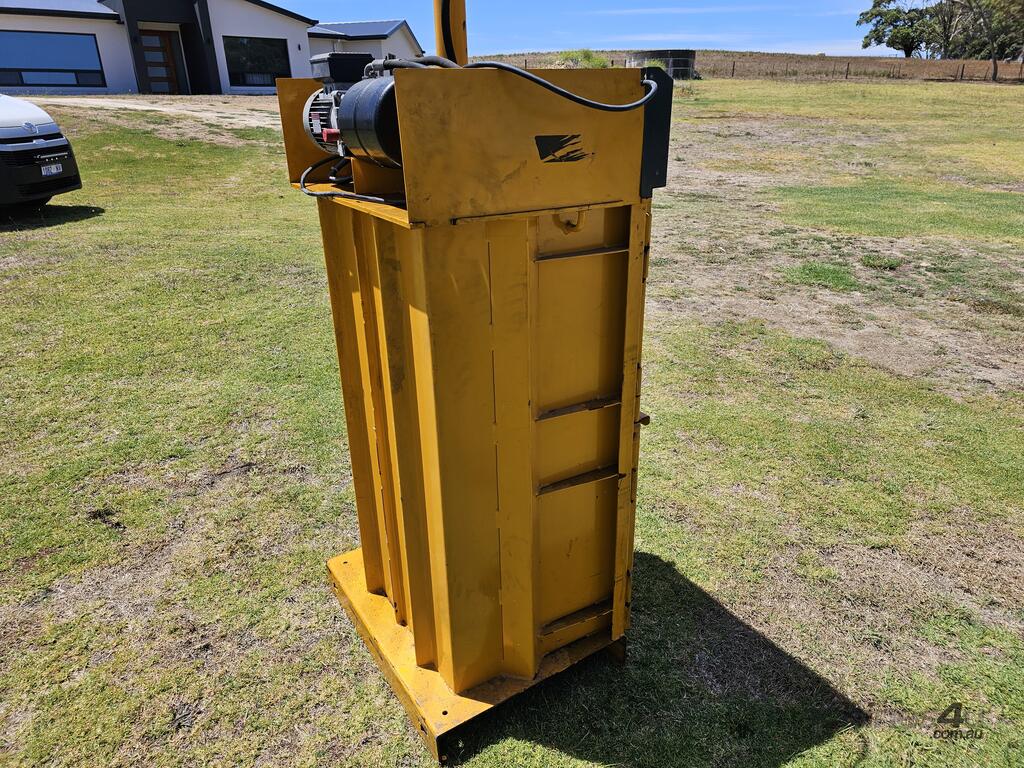

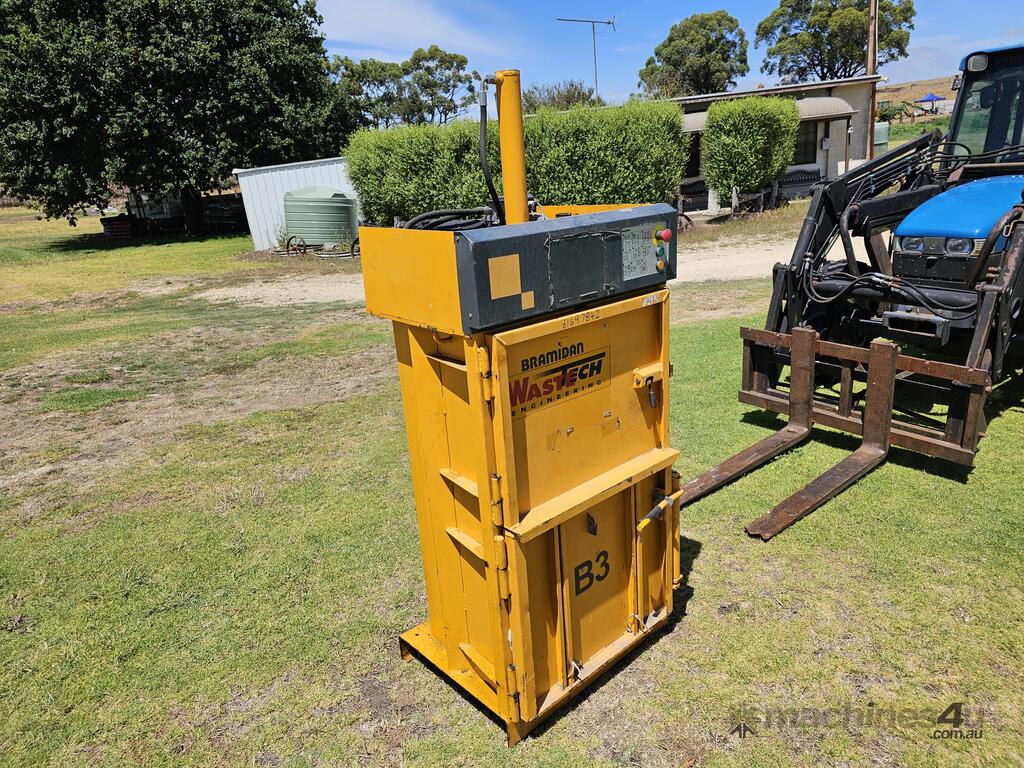

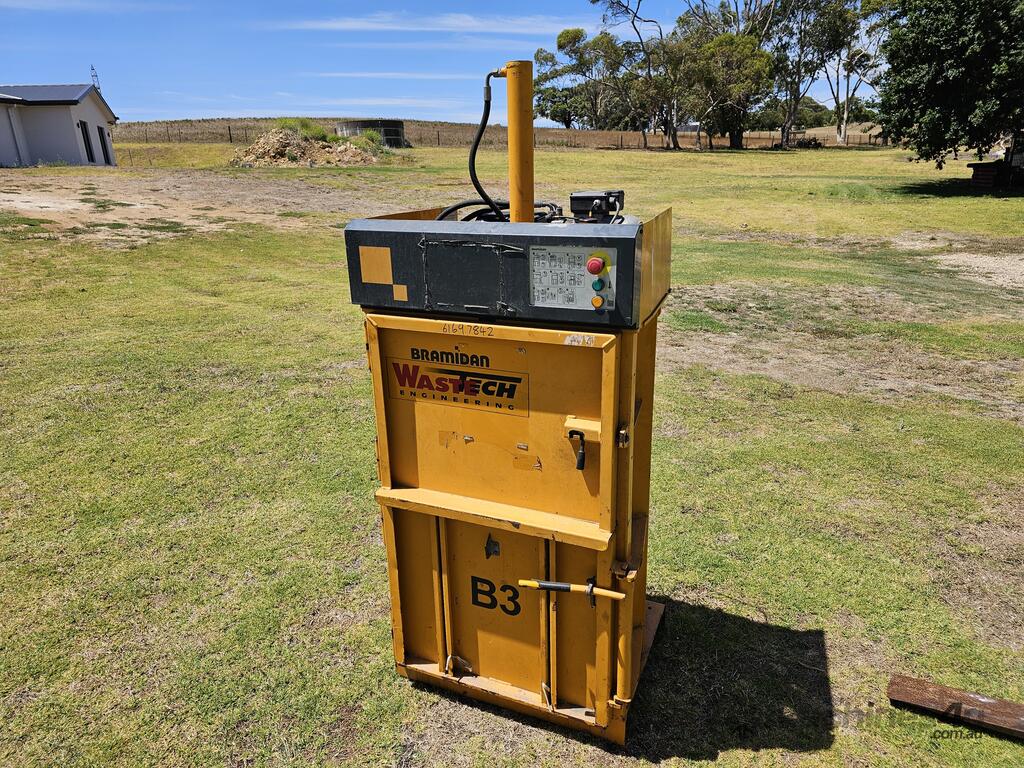

The B3 combines high compaction with a small base area and low height. It fits where you need it.
Handle bales easily
You can easily remove the finished bale with the hand cart included.
B3 – Small footprint baler for narrow spaces:
Simple and safe to use
Small manageable bales
Easy installation
Small base area (0,67 m2) and low overall height
Operates on single phase power supply

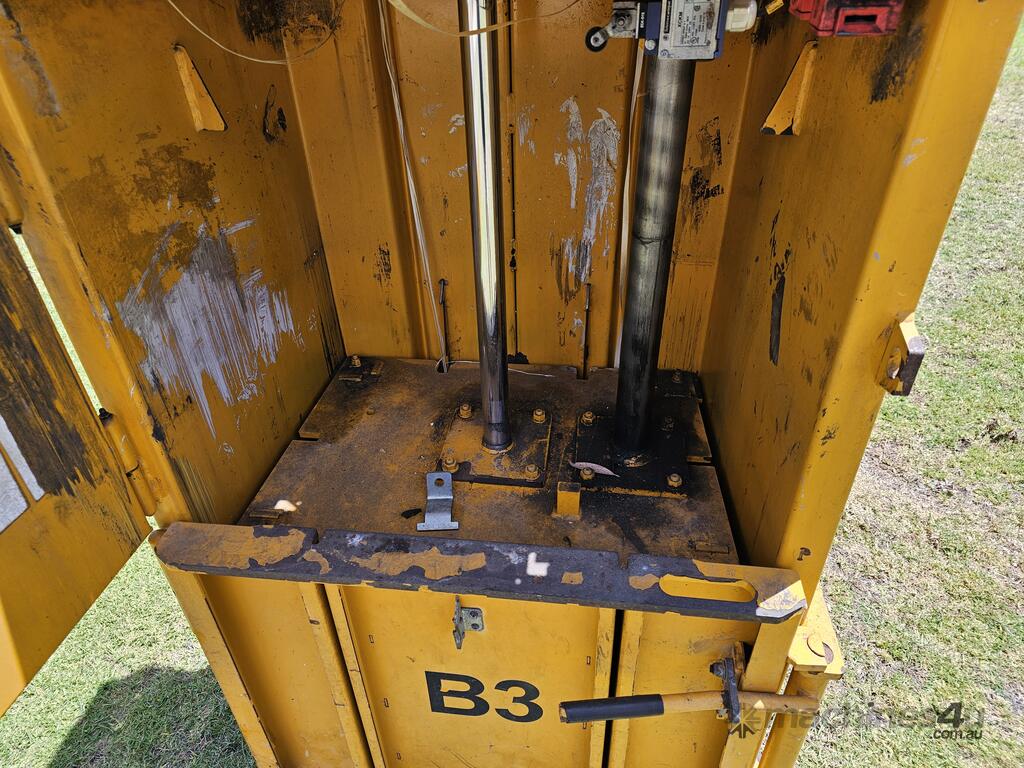

Safe and controlled opening of the lower door
Powder Coating provides durable finish in many colors
Bale weight cardboard (kg) 30-50
Bale weight plastic foil (kg) 40-60
Press force (t) 3

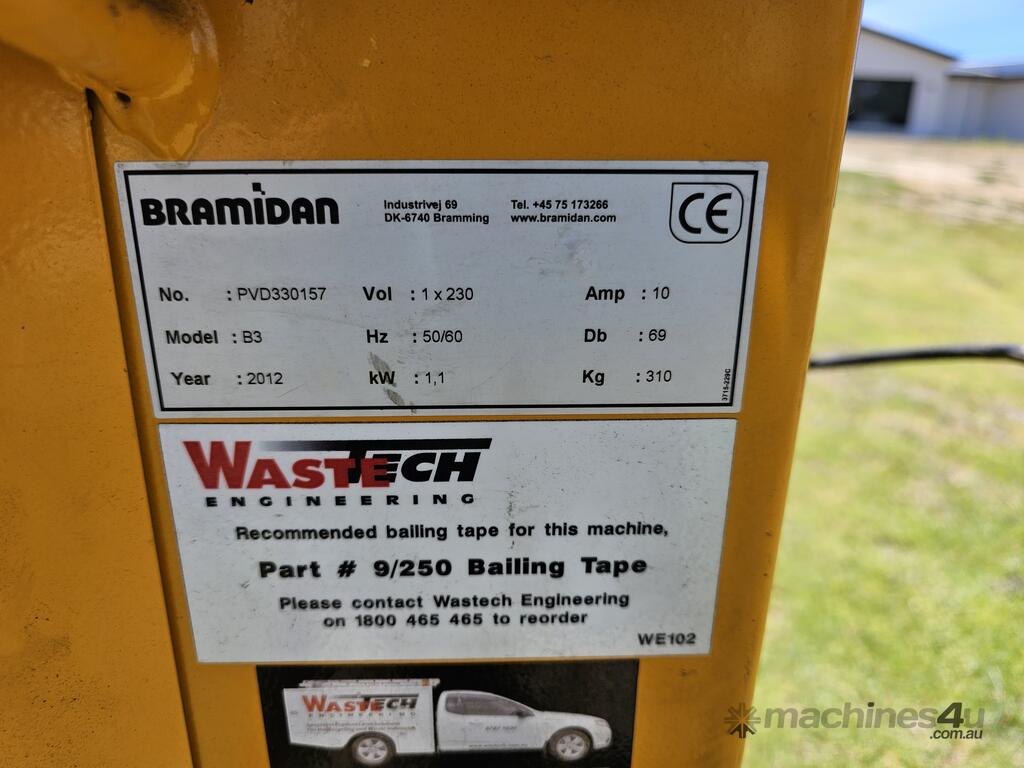

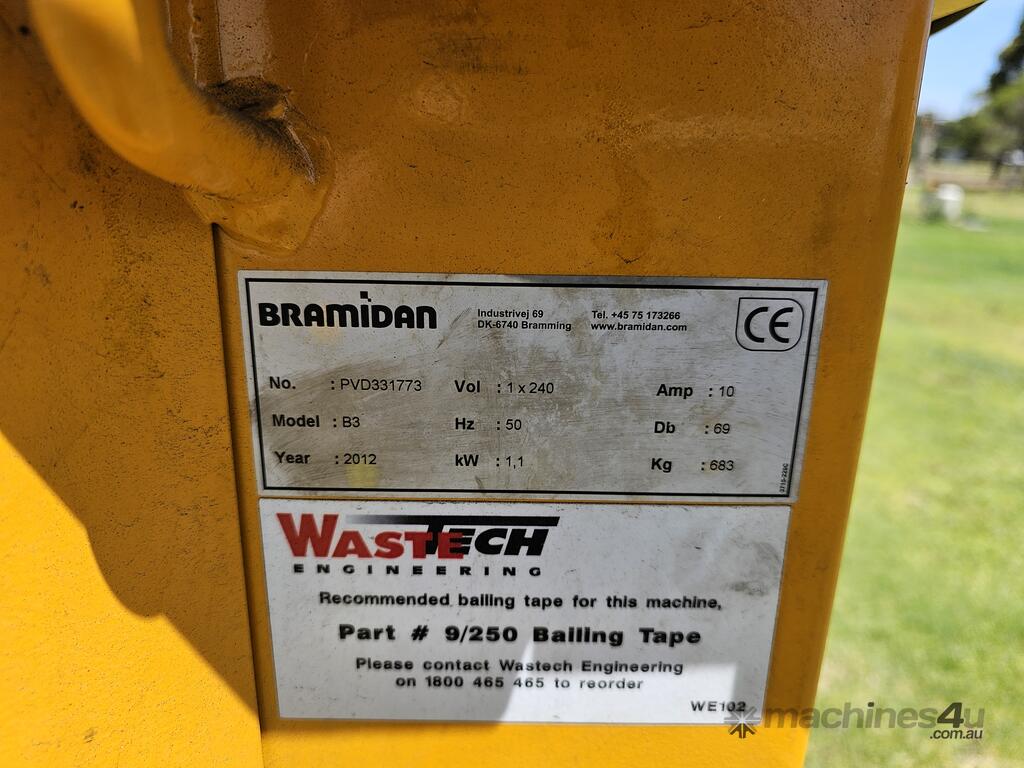

Power supply 1x230V 50Hz 10A

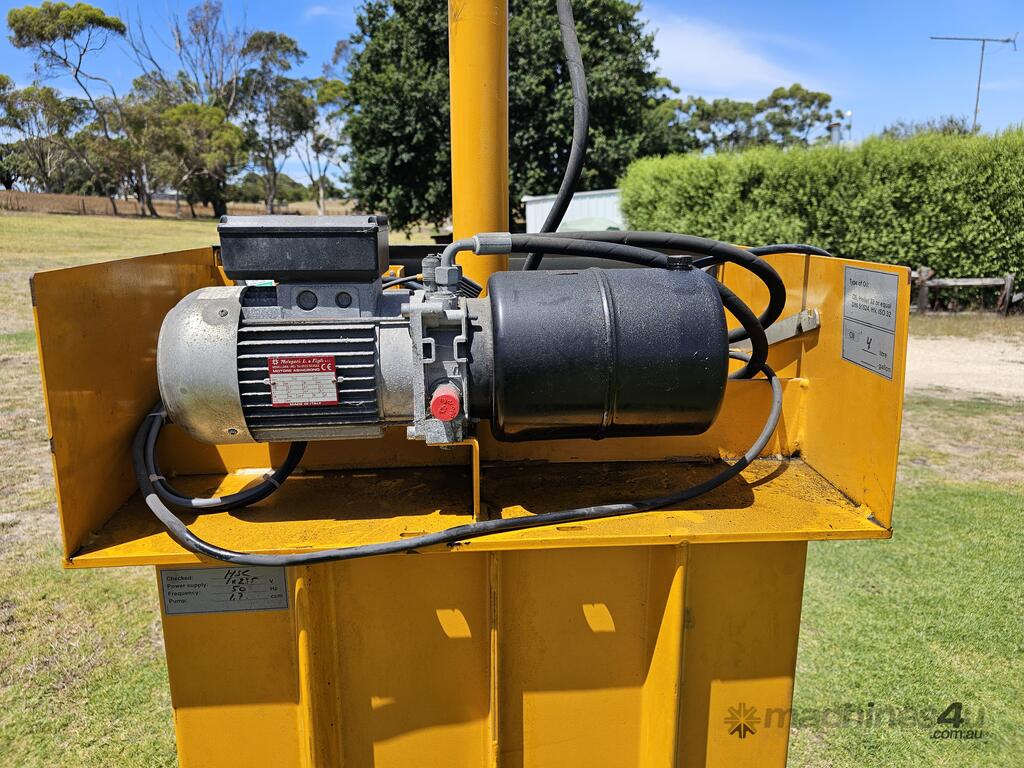

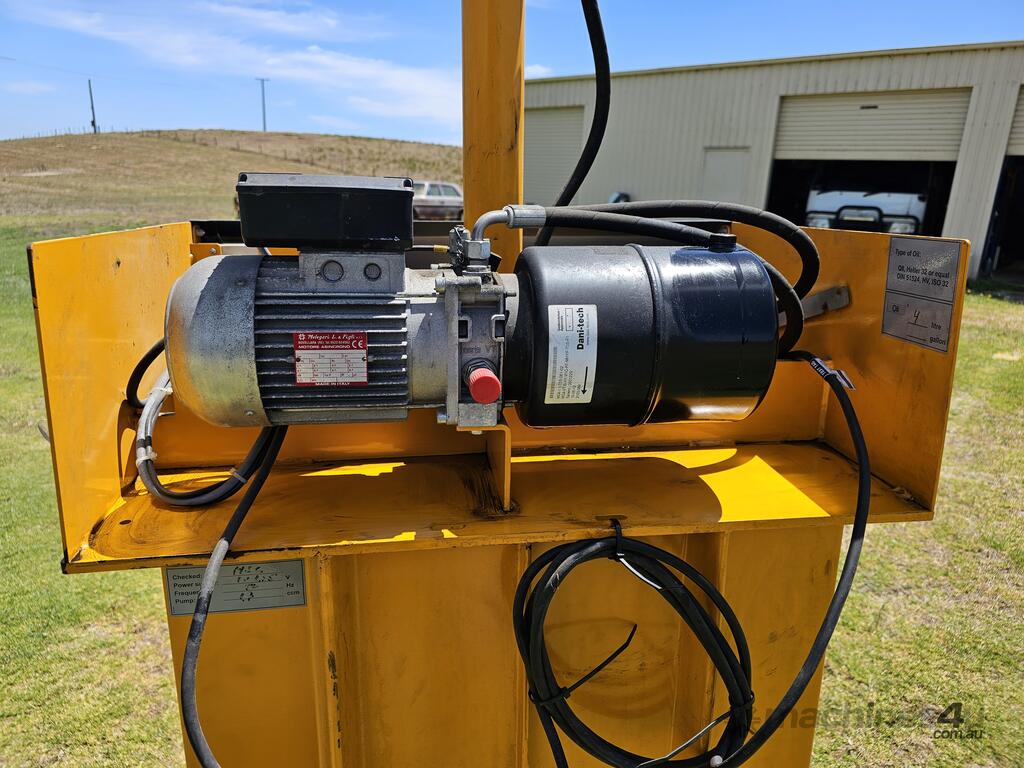

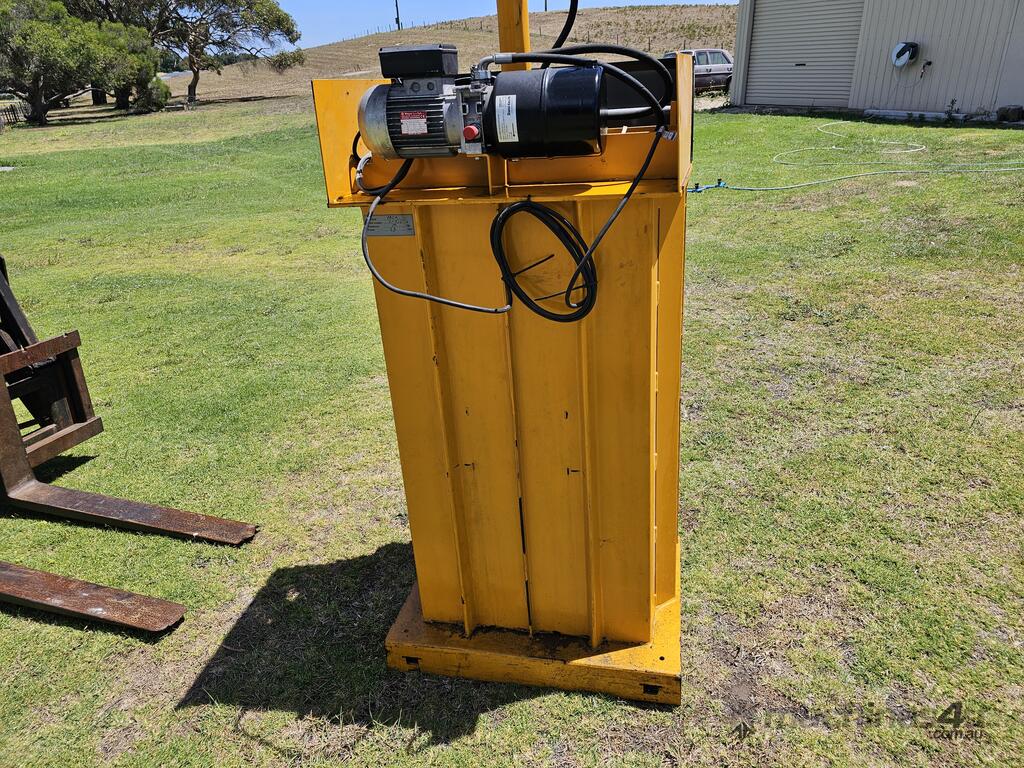

Motor (kW) 1.1
Noise Level (dB) 65-68
Cycle time avg. (sec) 24
Dimensions WxDxH (mm) 940 x 715 x 1985
Weight (kg) 290
Feed opening WxH (mm) 770 x 460
Filling height (mm) 645

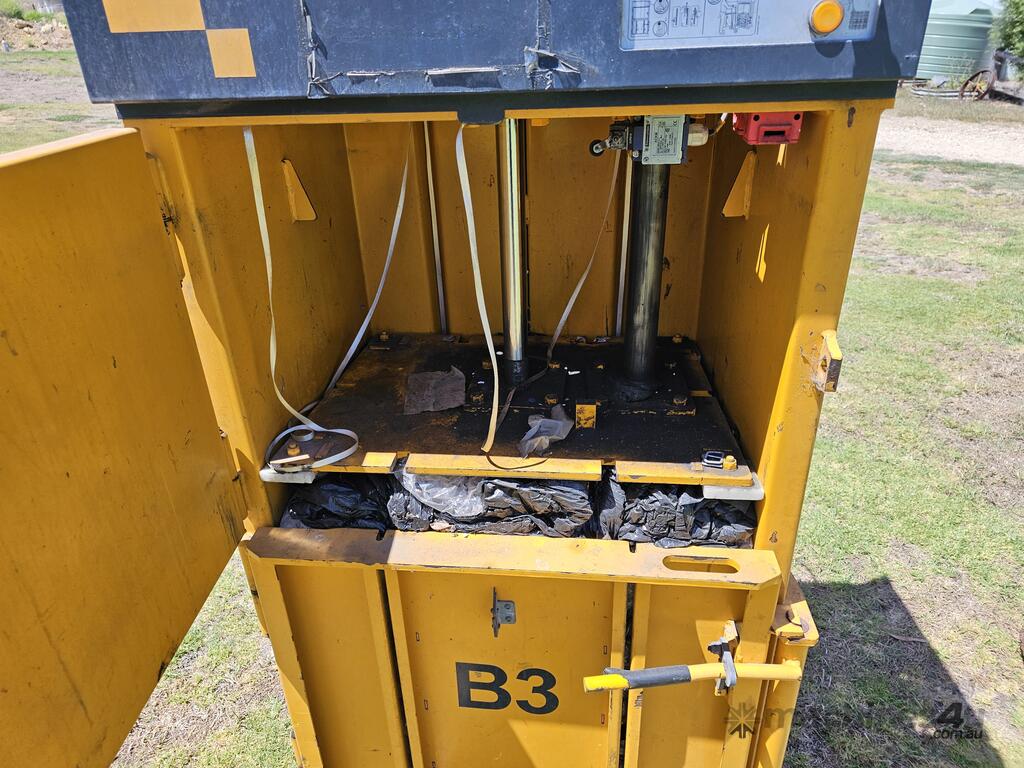

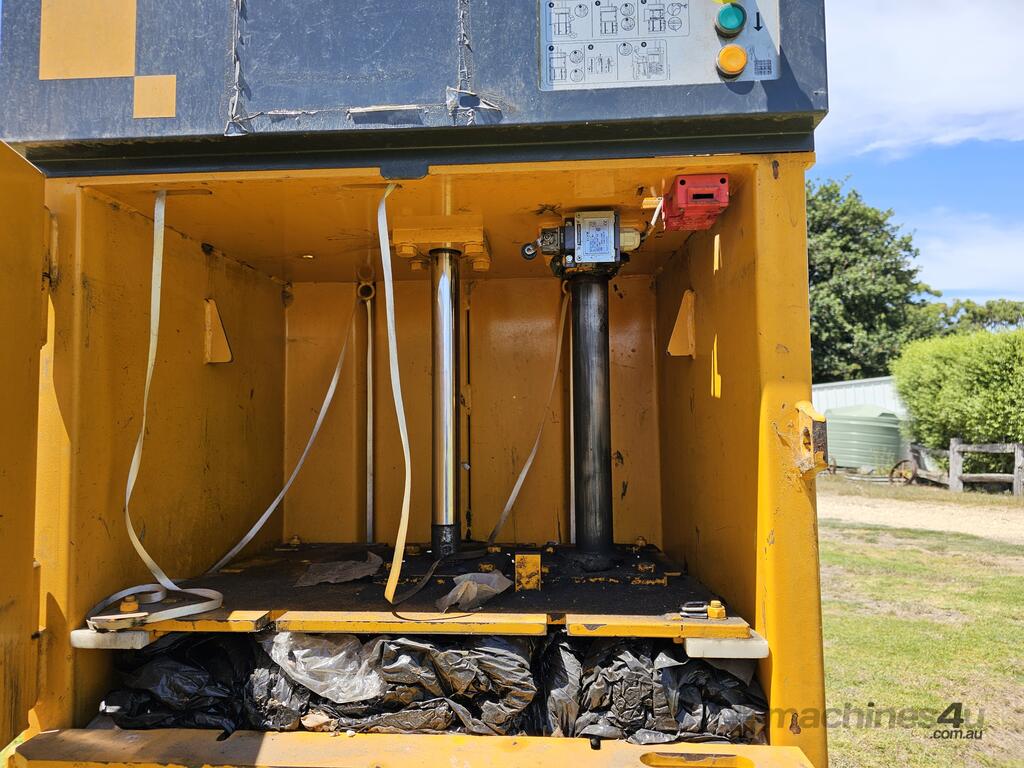

Chamber height (mm) 1000
Stroke (mm) 550
Number of ties 2
Type of tying Twine
Full bale light Yes
Bale eject Manual
Waste volume Small
