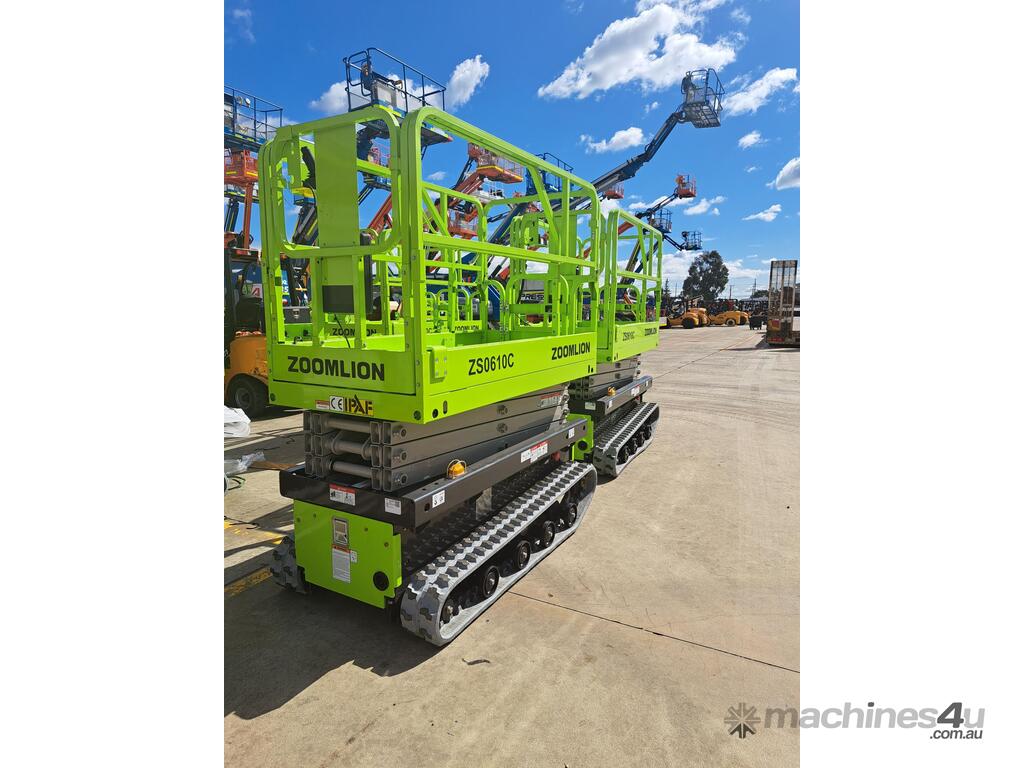

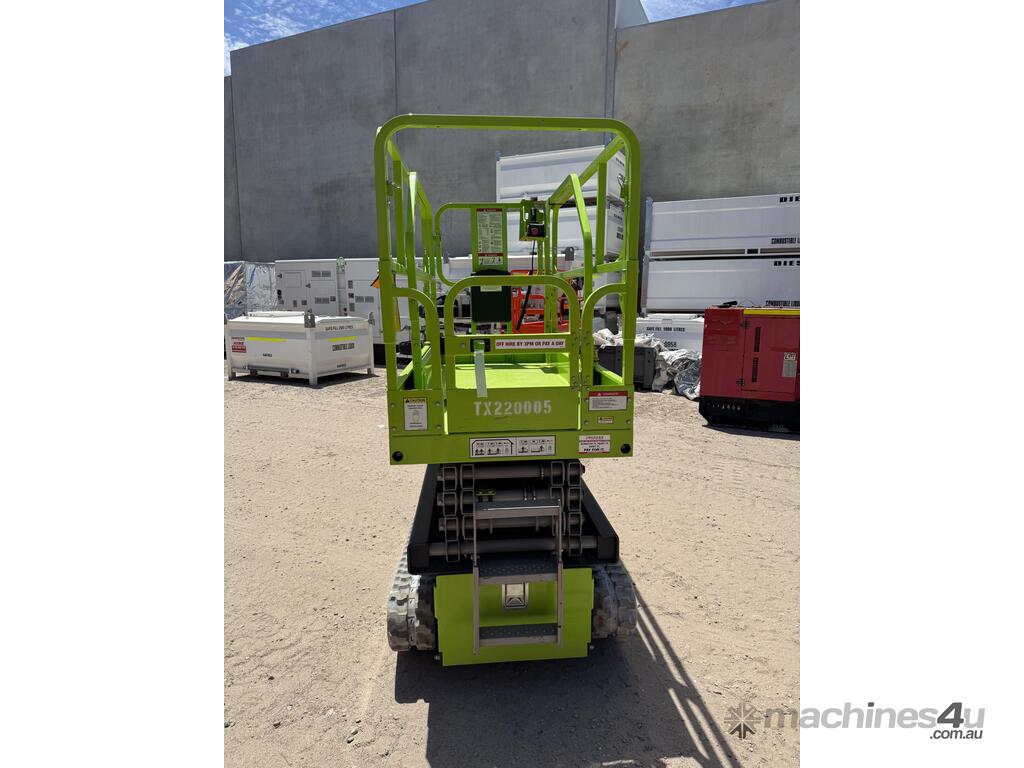

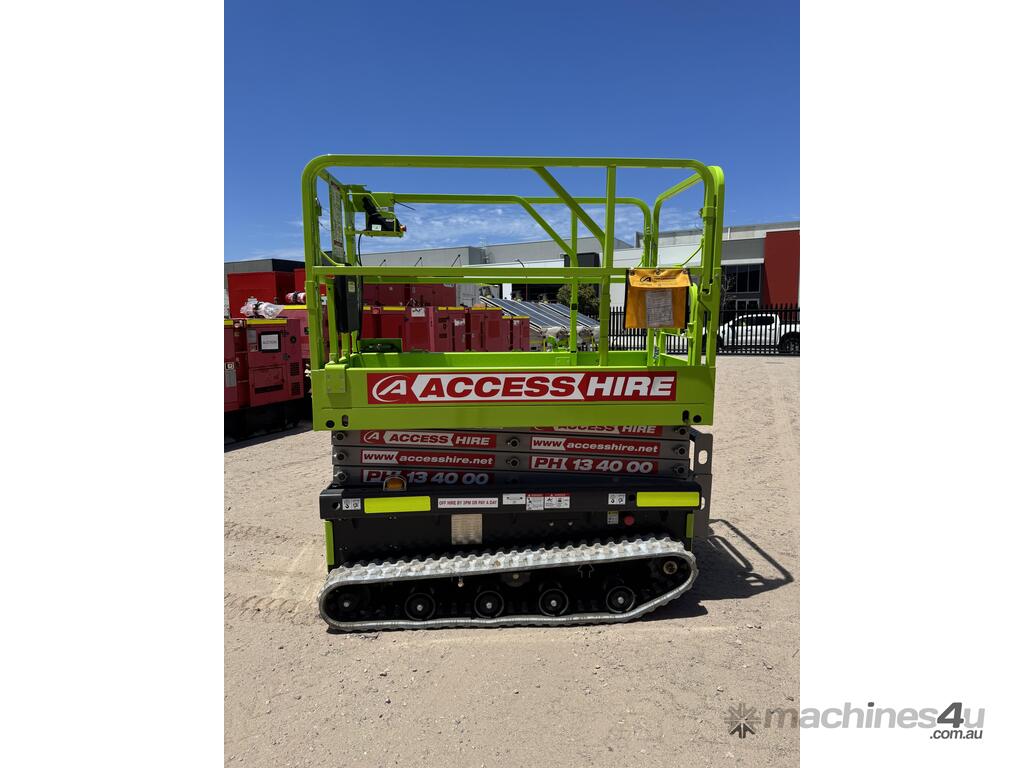

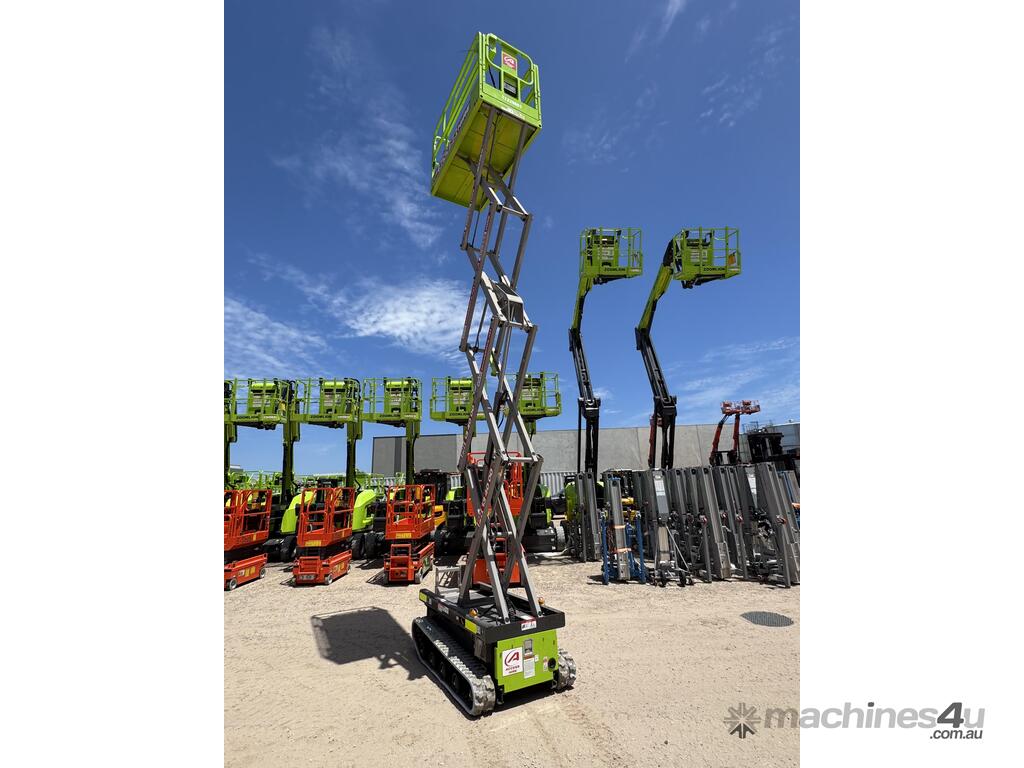

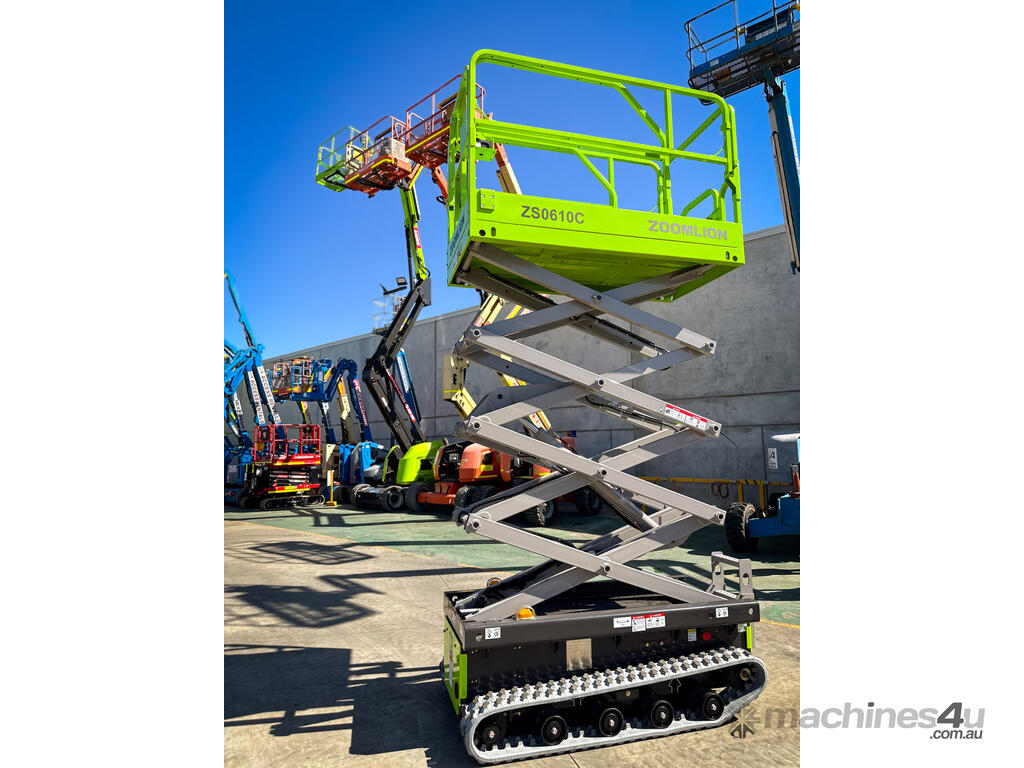

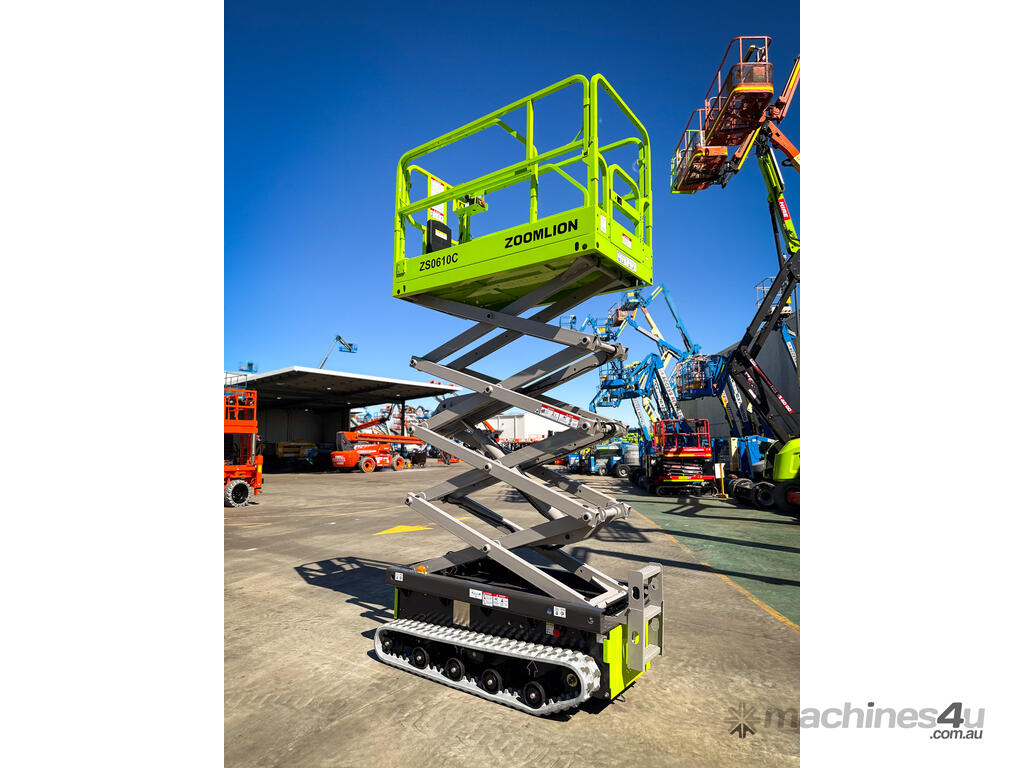

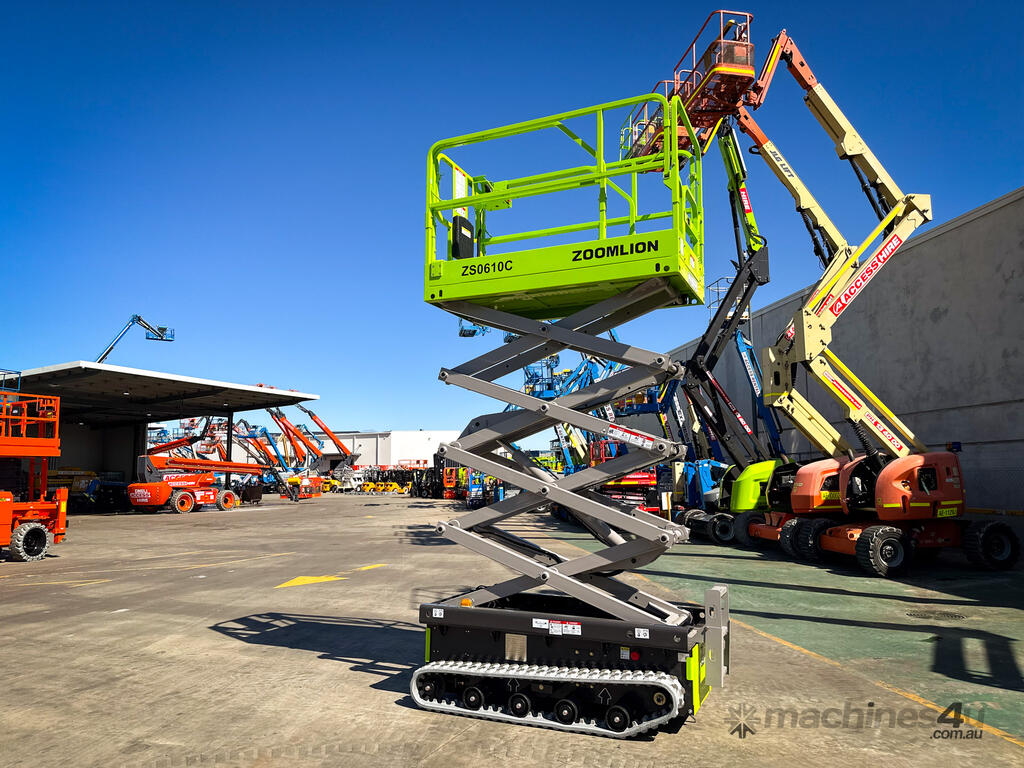

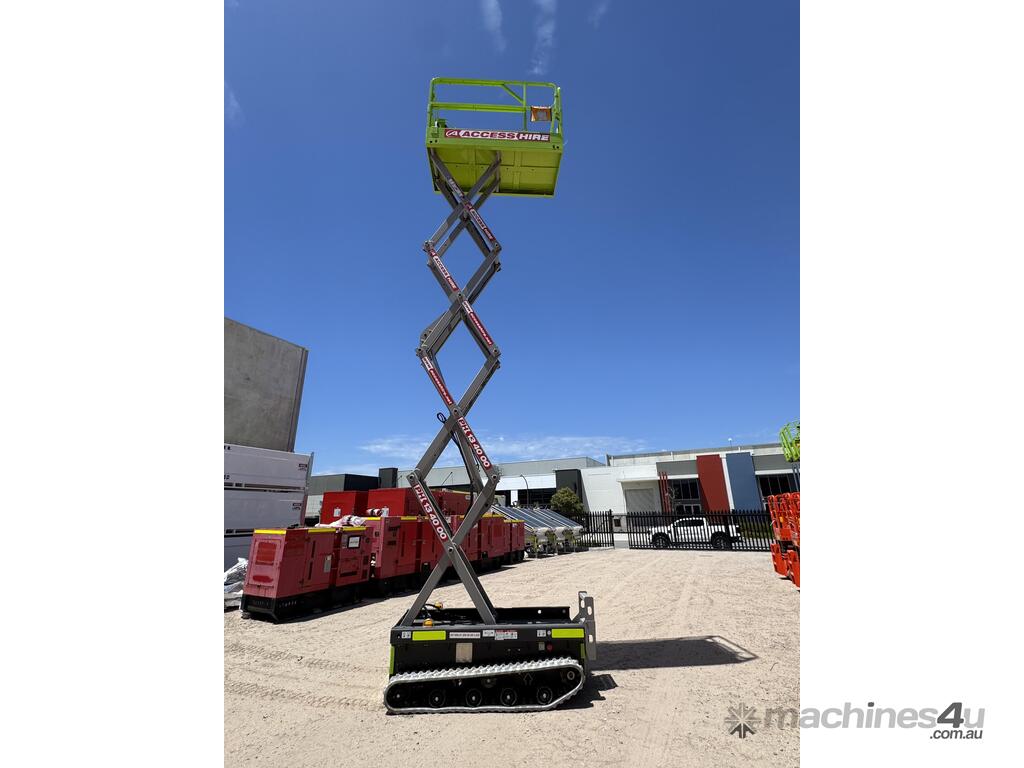

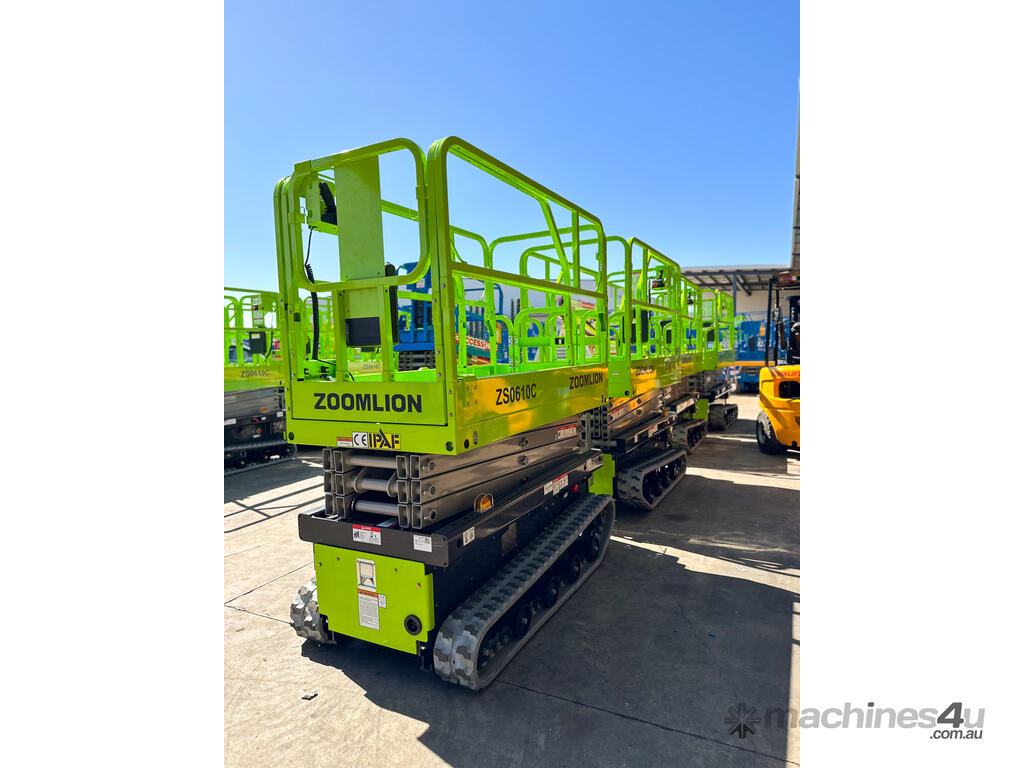

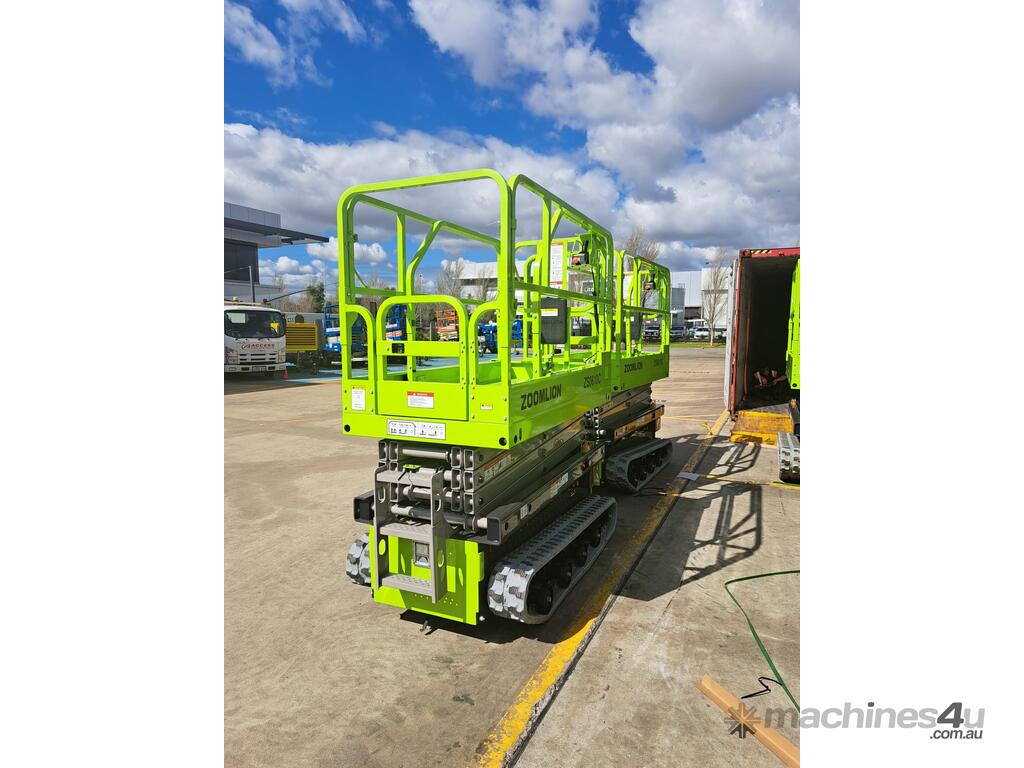

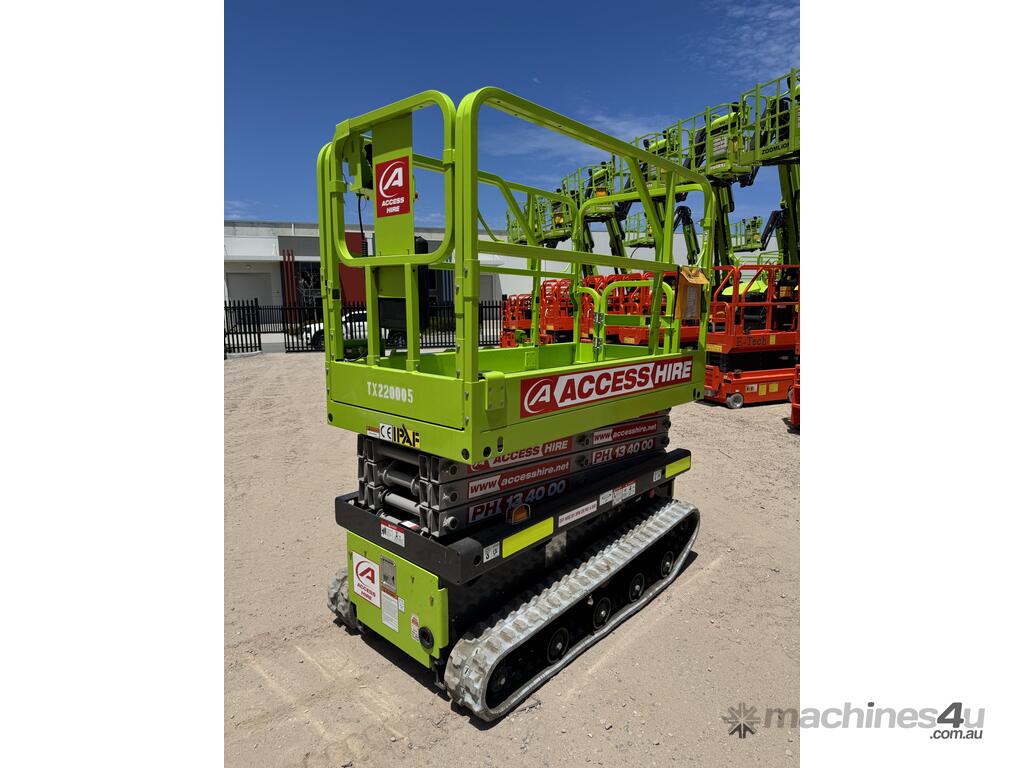

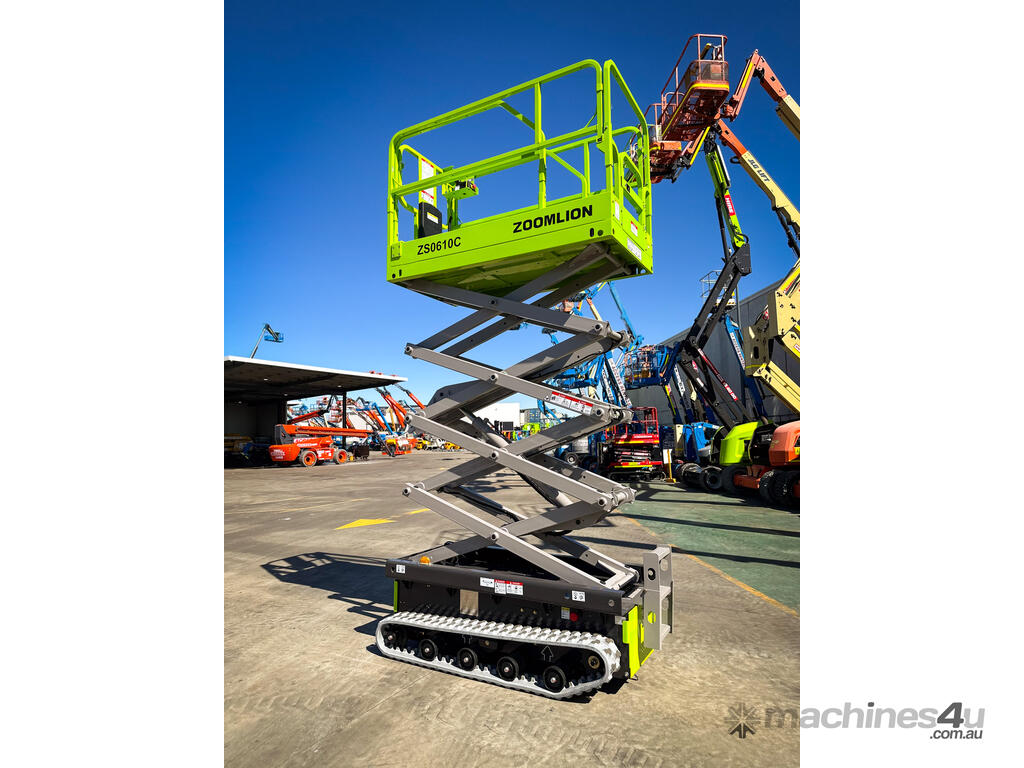

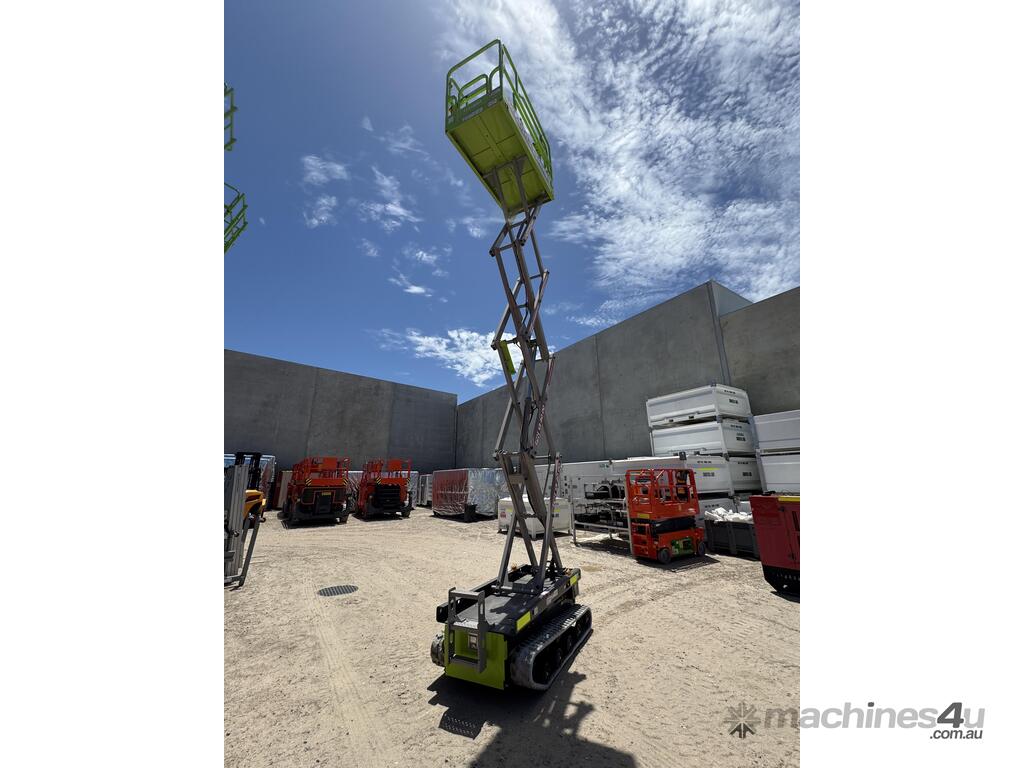

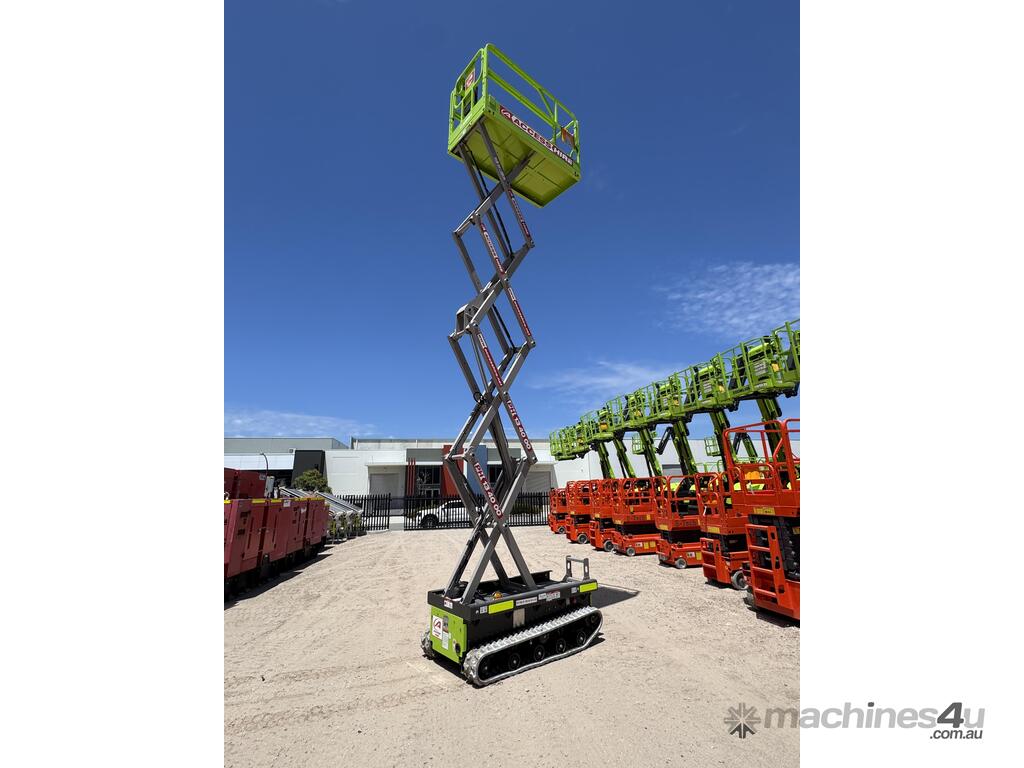

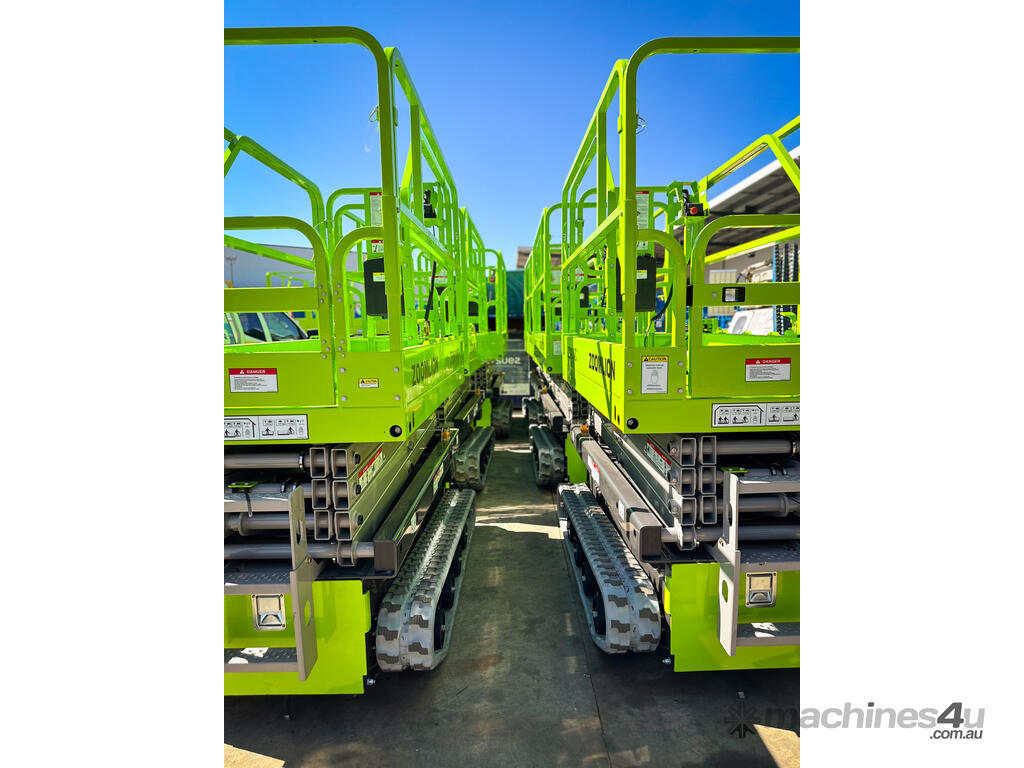

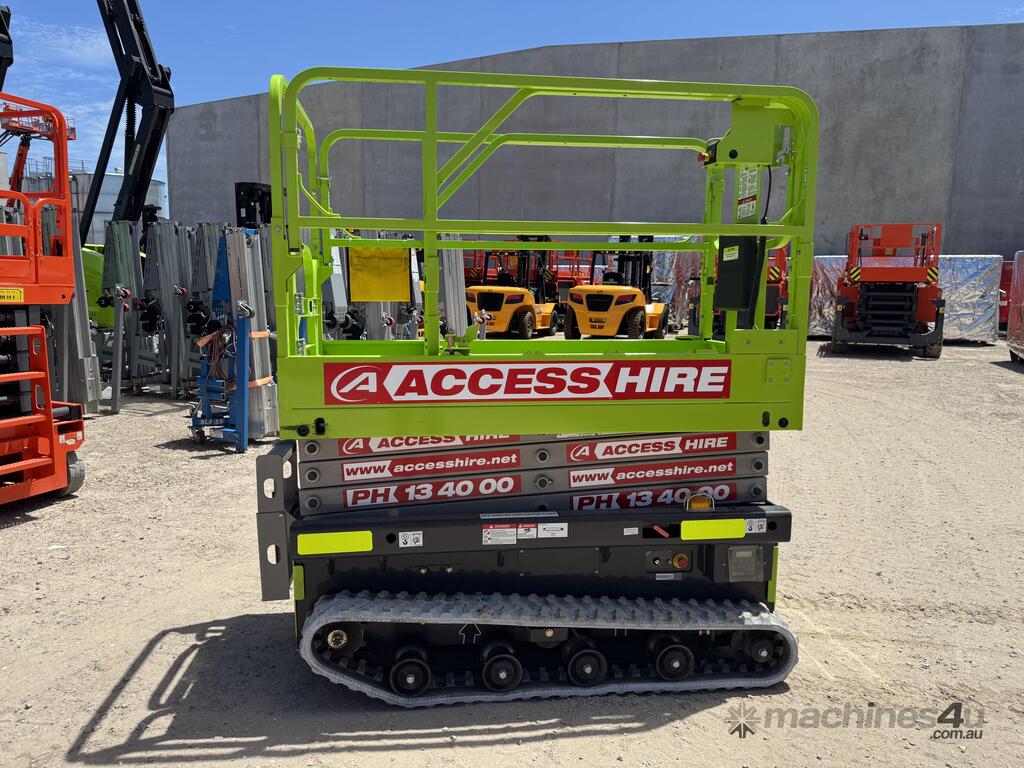

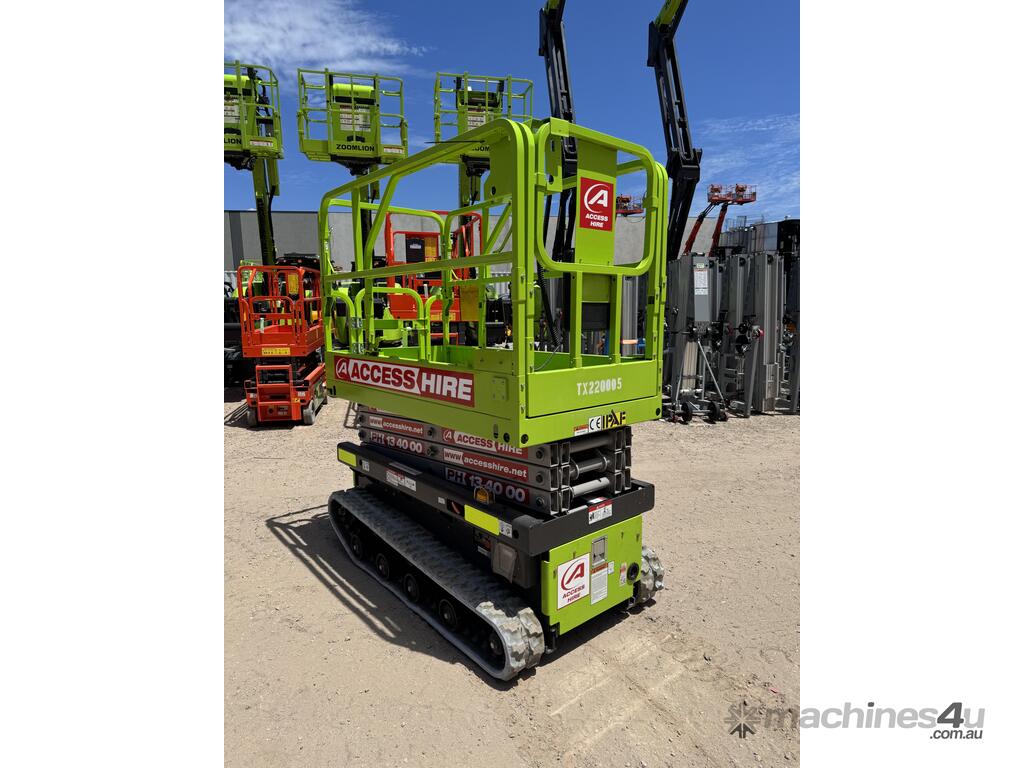

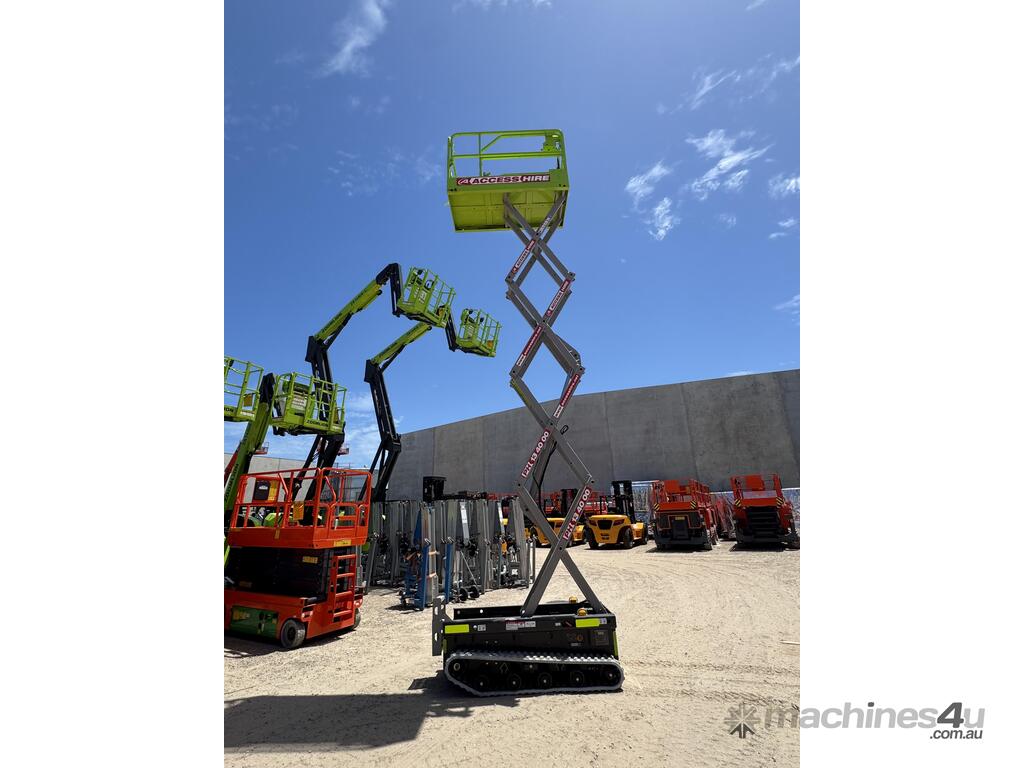

The ZS0610C is a 28ft electric tracked scissor lift designed for indoor and outdoor access on uneven or soft ground. It offers a working height of 28ft 11in (8.80m), platform height of 22ft 4in (6.80m), and a 250kg lift capacity. The compact tracked undercarriage provides strong traction and low ground pressure while maintaining smooth operation with proportional controls and rear-wheel electric drive.
Features:
- Platform Height: 22ft 4in (6.80m) / Working Height: 28ft 11in (8.80m)
- Platform Size: 6ft 4in × 3ft 2in (1.94m × 0.95m)
- Deck Extension: 3ft (0.91m)
- Capacity: 250kg (550lb)
- Capacity on Extension: 113kg (250lb)
- Max Workers: 1
- Drive Speed: 1.25mph (2km/h) stowed
- Gradeability: 30 percent
- Max Working Slope: 2° lateral / 2° vertical
- Turning Radius: Zero
- Drive Motor: 24V / 2 × 1.8kW
- Up/Down Time: 34s / 30s
- Battery: 4 × 6V 220Ah or 4 × 12V 270Ah
- Charger: 24V / 30A

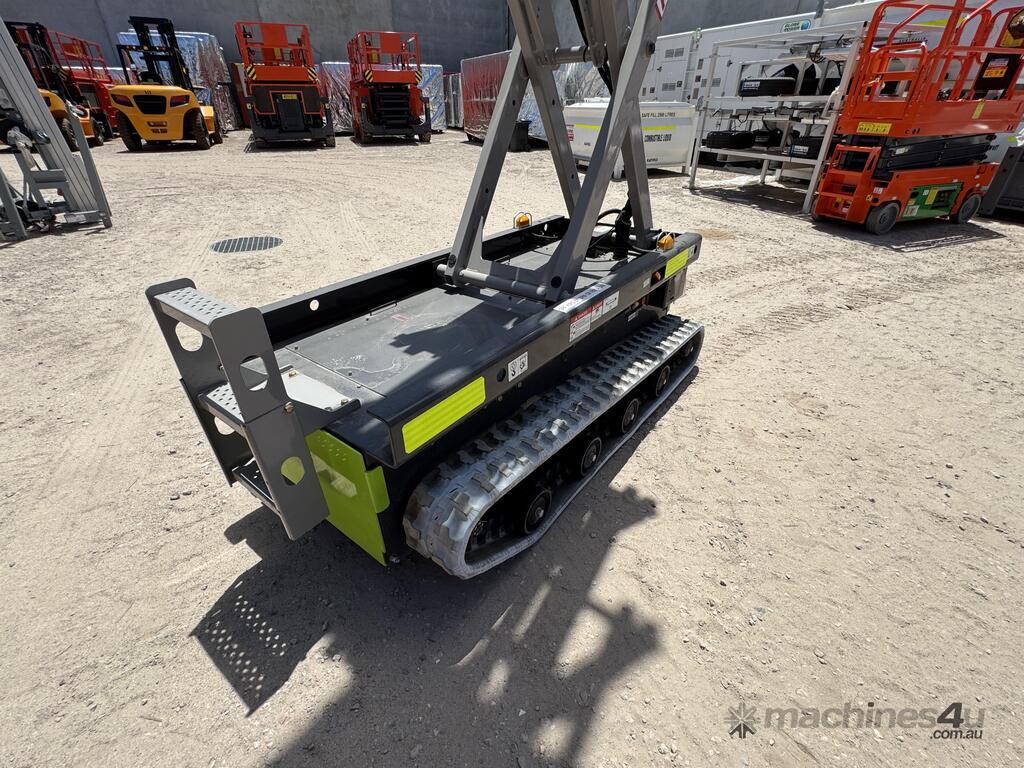

- Tyres: Tracked system
- Weight: 1700kg
Applications:
- Construction sites with soft or uneven ground
- Indoor and outdoor maintenance
- Facility and warehouse access
- Elevated work requiring compact tracked mobility
