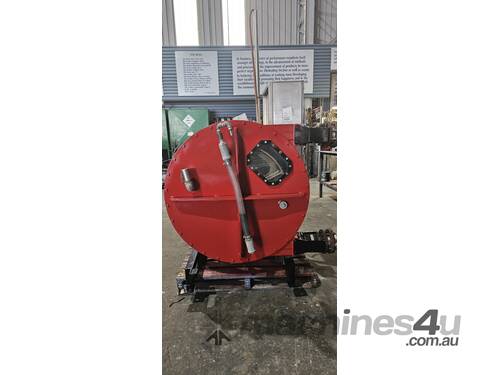

Bredel SP80 Peristaltic Hose Pump System

This robust Bredel SP80 peristaltic hose pump system is mounted on a skid and includes a vacuum pump primer, a SEW motor with gearbox, and an additional cooling fan for optimal performance under lower RPM operation. It also features a Telemecanique Square D Altivar 58 4kW (5HP) variable speed drive (VSD) housed in a stainless steel cabinet.
Specifications:

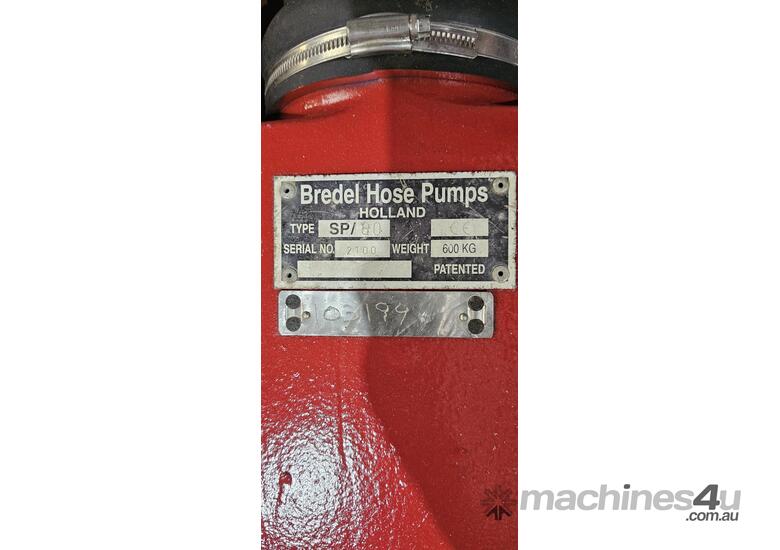

• Pump Model: Bredel SP80
• Hose Inner Diameter: 80 mm
• Flow Rate: Up to 28,080 liters per hour
• Volume per Revolution: 11.7 liters
• Maximum Discharge Pressure: 16 bar (232 psi)
• Maximum Operating Speed: 40 rpm (continuous), 60 rpm (intermittent)
• Suction Capability: Up to 9 meters water column (354 inches water column)
• Operating Temperature Range: -20°C to 45°C
• Fluid Temperature Range: -20°C to 80°C
• Hose Lubricant Required: 40 liters
• Starting Torque: 2,000 Nm (17,701 inch-lbs)
• Dimensions: 1600 mm (L) x 1650 mm (W) x 1800 mm (H) (+840 mm if extension is left on)
• Weight: 1,114 kg
Features:

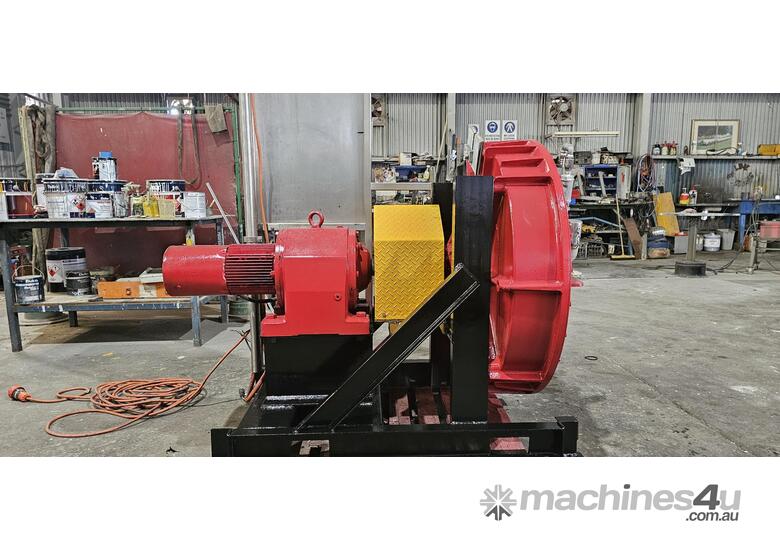

• SEW Motor with Gearbox: Provides reliable and efficient power transmission.
• Cooling Fan: Added to the motor to enhance performance during low RPM operation.
• Dry Running and Self-Priming: Capable of running dry and self-priming with a suction lift capability up to 9 meters water column.
• Sealless Design: No seals, ball-checks, diaphragms, glands, immersed rotors, stators, or pistons to leak, clog, corrode, or replace.
• Handles Various Fluids: Suitable for abrasive slurries, corrosive acids, gaseous liquids, and high-viscosity or shear-sensitive products.
• Accurate Metering: Provides true positive displacement for accurate, repeatable metering.
• Reversible Operation: Fully reversible to blow out suction and drain lines safely.
• Minimal Maintenance: Simple hose change decreases cost of ownership, downtime, and need for parts inventory.
Applications:
Ideal for industries such as chemical processing, water and wastewater treatment, mining, construction, and food and beverage, where reliable handling of aggressive, abrasive, or shear-sensitive fluids is required.
Additional Information:

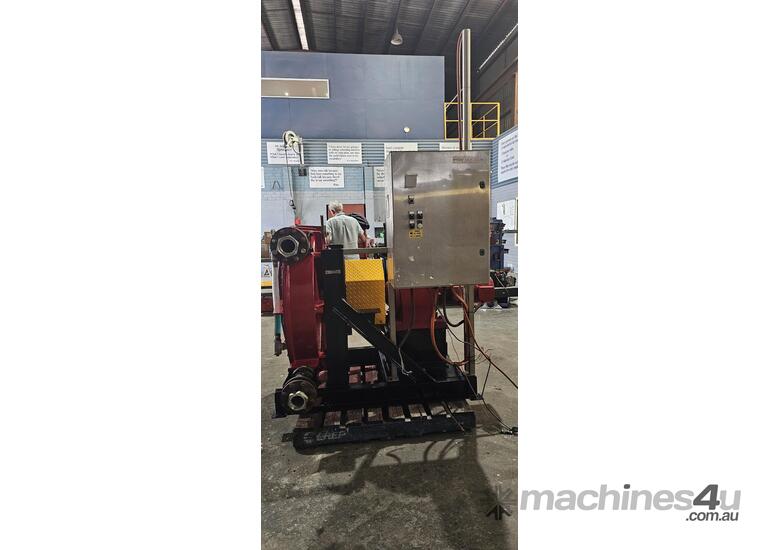

The system includes a Telemecanique Square D Altivar 58 4kW (5HP) VSD housed in a stainless steel cabinet, providing variable speed control for precise flow rate adjustments.
