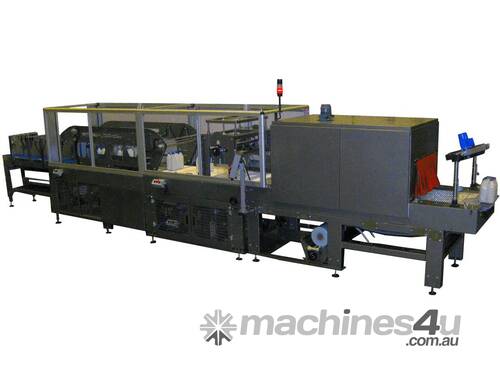

Bundle Machine Minipack Wrapjet 30 F

AUTOMATIC FILM SEAMLESS SLEEVE WRAPPER WITH PLC AND MULTILINE DIVIDER (6 TRACKS) AND AUTOMATIC LOADING OF CARDBOARD FLAPS

bundle packaging in film only or film + flap

Seamless film machine without sealing bar
Multi-row inline feeder
Volumetric product sorting system
Large cardboard flap store (up to 600 flaps) located under the machine
Flap dimensions min. mm. 220×162 – max. mm. 450×300
Option to package products with film only or film + flap
System for wrapping the film around the package by overlapping the film under the package, which self-glues while going through the tunnel
Film feeding and cutting unit with rotating blade
Manual sealer for film splice
Ionising bars to remove the electrostatic charge which accumulates in the film reels
Heat-shrinking film reels with max diameter 400 mm – thickness between 50 and 100 microns
Height of the worktop: 1000 +/-25mm
Managed by MICROPROCESSOR and TOUCH to change data and display the alarms for machine reset
Wrapping bar control and cutting blade with BRUSHLESS motors
Real time monitoring of the alarms and direct editing of the machine settings with possibility of storing up to 10 formats
The tunnel temperature is controlled by the microprocessor
Heat-shrinking tunnel insulated with rock wool and heated with resistors. Forced ventilation with air circulation
Heat-shrinking tunnel Length 2900 mm with air circulation system
Internal conveyor belt in the heat-shrinking Tunnel, driven by a gear motor with adjustable speed and featuring a thin steel mesh grate with side chains
Switch to change the cycle from automatic to manual
Installed power 58kW
Average electricity consumption is reduced by about 40% during normal operation
Air consumption 80 nl/min
Pneumatic components that work with non-lubricated dry air
Machines compatible with Machinery Directive 2006/42/EC
