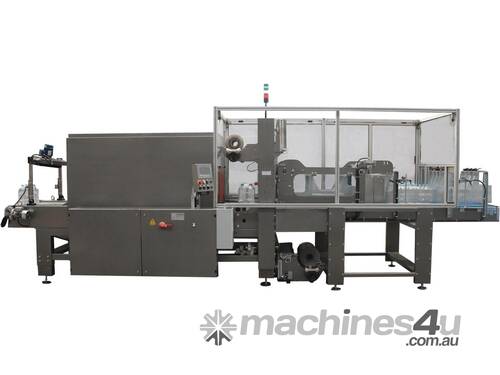

Bundle Sleeve Wrapper Minipack 70

AUTOMATIC SEALING BAR SLEEVE WRAPPER WITH PLC AND MULTILINE DIVIDER with 700 mm sealing bar

– Multi-row inline feeder
– Volumetric product sorting system
– Sealing bar with a film cutting blade (no smoke during the sealing step)
– Height of the worktop: 1000 +/-25mm
– Photoelectric cell that blocks the sealing bar if it encounters an obstacle in its path
– Passage opening under the sealing bar 380 mm
– Automatic wrapping system of the film reels with dragging rollers with acoustic and luminous signal of film reel end
– Heat-shrinking film reels with max diameter 350 mm – thickness between 35 and 100 microns
– Managed by PLC and TOUCH to change data and display the alarms for machine reset
– Real time monitoring of the alarms and direct editing of the machine settings with possibility of storing up to 10 formats
– The temperature of the sealing bar and the tunnel is controlled by the PLC
– Heat-shrinking tunnel insulated with rock wool and heated with resistors. Forced ventilation with air circulation
– Heat-shrinking tunnel Length 1900 mm with air circulation system
– Internal conveyor belt in the heat-shrinking Tunnel, driven by a gear motor with adjustable speed and featuring a thin steel mesh grate with side chains
– Switch to change the cycle from automatic to manual
– Installed power 40kW
– Average electricity consumption is reduced by about 40% during normal operation
– Air consumption 220 nl/min
– Pneumatic components that work with non-lubricated dry air
– Machines compatible with Machinery Directive 2006/42/EC
