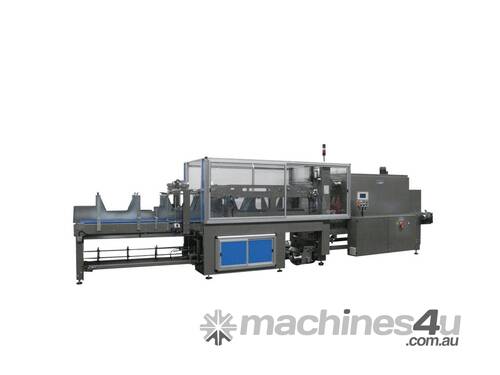

Bundle Sleeve Wrapper Minipack 70F

AUTOMATIC SEALING BAR SLEEVE WRAPPER WITH PLC, MULTILINE DIVIDER AND AUTOMATIC LOADING OF CARDBOARD FLAPS

with 700 mm sealing bar

Multi-row inline feeder
Volumetric product sorting system
Large cardboard flap store (up to 600 flaps) located under the machine
Flap dimensions min. mm. 220×162 – max. mm. 450×300
Option to package products with film only or film + flap
Height of the worktop: 1000 +/-25mm
Photoelectric cell that blocks the sealing bar if it encounters an obstacle in its path
Passage opening under the sealing bar 380 mm
Automatic wrapping system of the film reels with dragging rollers with acoustic and luminous signal of film reel end
Heat-shrinking film reels with max diameter 350 mm – thickness between 35 and 100 microns
Managed by PLC and TOUCH to change data and display the alarms for machine reset
Real time monitoring of the alarms and direct editing of the machine settings with possibility of storing up to 10 formats
The temperature of the sealing bar and the tunnel is controlled by the PLC
Heat-shrinking tunnel insulated with rock wool and heated with resistors. Forced ventilation with air circulation
Heat-shrinking tunnel Length 1900 mm with air circulation system
Internal conveyor belt in the heat-shrinking Tunnel, driven by a gear motor with adjustable speed and featuring a thin steel mesh grate with side chains
Switch to change the cycle from automatic to manual
Installed power 40kW
Average electricity consumption is reduced by about 40% during normal operation
Air consumption 220 nl/min
Pneumatic components that work with non-lubricated dry air
Machines compatible with Machinery Directive 2006/42/EC
