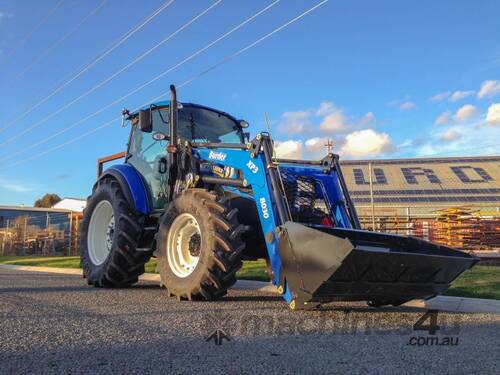

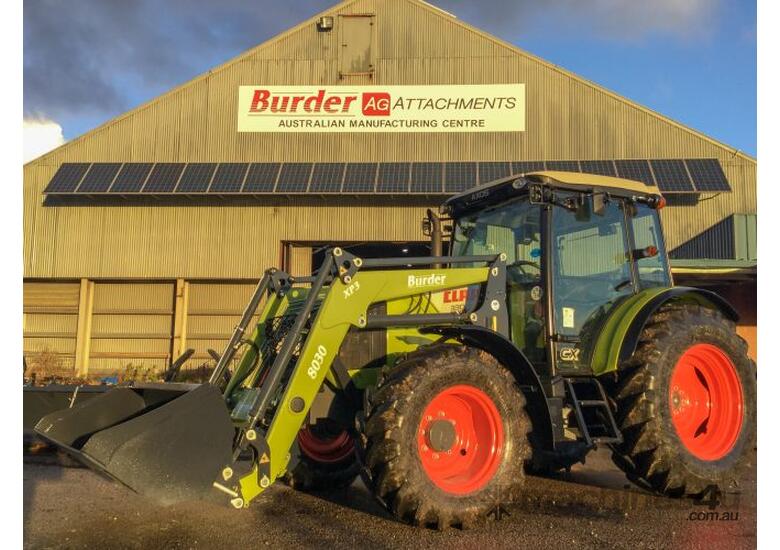

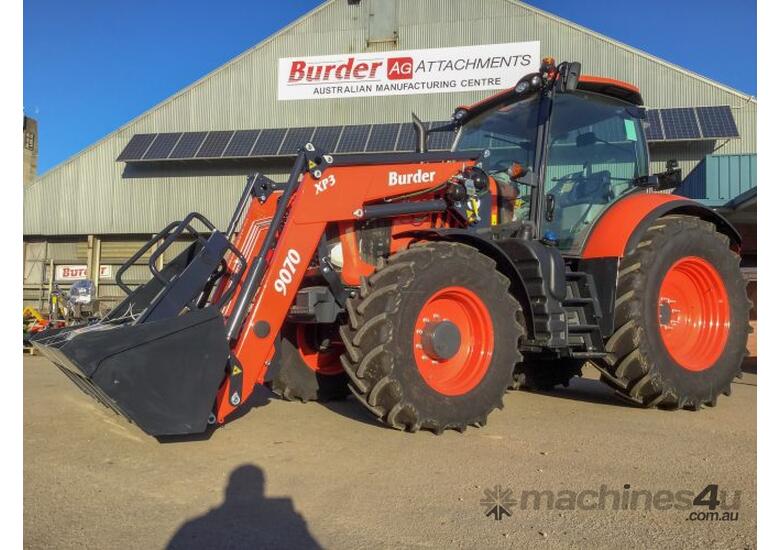

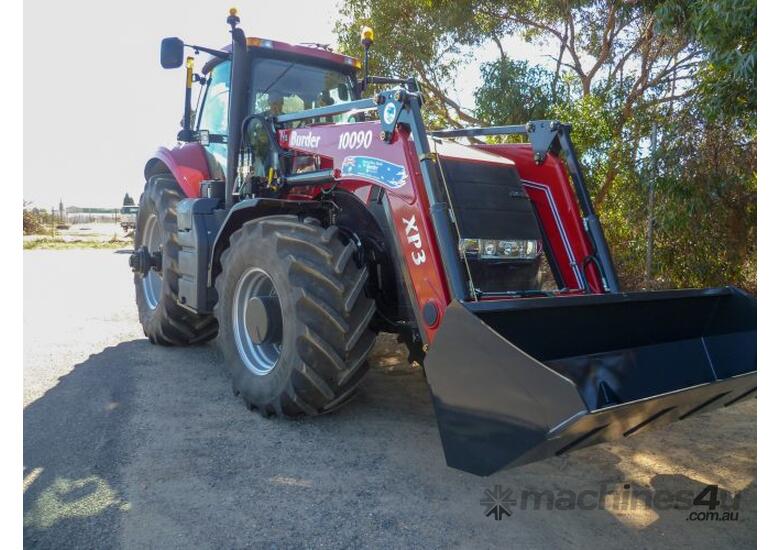

Burder Tractor Front End Loader up to 200HP

The Burder loader series are built to be tough, agile and performs well even under extensive usage.

The Burder loader series comes with a multitude of features such as return to level, soft ride and quick change. These features helps to promote safety, efficiency and productivity in the work environment. As the industry evolves, consumers require more complex features in the loaders in order to enhance productivity in the work environment.

Burder invests resources in R&D to ensure consumer demands are met as well as constantly creating designs that exceed expectations.

Simple And Easy To Use Leg Locking System
The Parking Leg/Stand Is Used When The Loader Boom Is In A Parked Position • Single Operation Release • Discreet Upright Position

Vesconite Bushes In All Wear Points For Easy Maintenance
Vesconite Bushes Are Low Friction And Designed To Operate With Little Or No Greasing. It Has Approximately 10 Times The Life Of Bronze Bushes And Is Highly Suitable In Conditions Where It Is Moist Or Dirty.

Protective Cover For Manifold And Hoses On Crossmember
Including Hydraulic Quick Couplers For Front Remotes. Standard Hydraulic Fittings Used For Easy Repair.

Hydraulic Dampeners For An Easy Ride And Longer Life For Loader
Standard For 8000 Series Loaders And Up, Optional For Others.

Simple And Easy To Use Level Indicator
Unrestricted View From The Tractor Allows The Operator To Identify If The Implement Is At Level Position By Quickly Glancing At The Level Indicator.

Burder Quick Change Lever System For Easy Operation

2040/ 3020XP2/ 3030XP2/ 3050XP3/ 5050XP2/ 6050XP2/ C8030XP3/ 8030XP3/ 8070XP3/ 9050XP3/ 9070XP3
Tractor HP - - - 150-200
Bucket width (m) 1.2 1.0/1.2 1.35 1.35/1.5 1.65/1.8 1.5/1.8 1.8/2.1 1.8/2.1 2.1/2.4 2.1/2.4
S.W.L. (Std Bucket) 280kg 300kg 550kg 500kg 800kg 1000kg 1000kg 1200kg 1500kg 1500kg
A. Lift height to pin (mm) 2400 2700/
B. Dump height (mm) 1860 1990/
C. Dig depth (mm) 180
D. Crowd angle 40º 25º 35º 40º 35º 45º 45º 50º 50º 50º
E. Dump angle 45º 40º 45º 50º 55º 55º 55º 55º 55º 55º
Front end loader weight (kg) 170kg 250kg 300kg 350kg 550kg 730kg 800kg 950kg 1100kg 1250kg

Self-Latching Spring Mechanism Allows Easy Implement Attachment From Tractor.
Hydraulic Operated Quick Change Available.
