Burny 10LCD Plus CNC Shape Cutting Controller

The Most Advanced CNC – Burny 10 LCD Plus
Industrial Grade Windows 8.1 PC

The 10LCD Plus CNC brings to you the performance of a cutting edge CNC that is built on more than 40 years of experience in the motion control and cutting industries. This CNC is designed for multiple axis cutting machines and features the latest advances in CNC technology on a proven platform engineered to increase productivity, reduce costs and enhance your profitability. Our software provides you with flexibility, ease of use and technologies that put our experience and expertise in your operators’ hands, resulting in extremely good cut quality and high productivity.

The 10LCD Plus is an industrial grade PC, designed to operate in factory environments where temperature and humidity extremes, metal dust, RF radiation, vibration, and constant machine movement are commonplace. It is easy to learn, easy to use, and allows multiple control and programming tasks to be completed simultaneously.

With The Burny 8 software, the 10LCD Plus produces extremely precise and repeatable motion control. The results are clear – achieve the highest accuracy and the tightest tolerances – even on the most complicated parts.

The 10LCD Plus can operate any cutting machine and interfaces with virtually all processes including: plasma, oxyfuel and waterjet. The system is backed by our extensive staff of experienced in-house engineers and service technicians.

All PCS machines using a Burny CNC come with a wireless connection and remote diagnostic software that allows PCS to remotely access your Burny for training, maintenance, diagnostics, upgrades etc.

Processor: PC Based Intel Pentium® class and 1GB Memory
Display: 15” LCD Color Display
Easy Touch Screen Operation
Robust Industrial Hardware Design

Operating System: Windows® 8.1 Embedded Operating System combined with tenAsys INtime® (real-time motion control).
Pentium® cache memory

Hard Drive: High Capacity >80 Giga-Byte SATA Solid State Hard Drive
Operator Interface: Full Interactive icon and soft key touch sensitive menu system
200 Standard Shapes library which can be expanded
Complete graphic display of parts with non-cutting moves shown in yellow

Functionality : Program Scaling
Program Rotation
Remote Diagnostics
Automatic acceleration and de-acceleration on corners
Advanced cut-loss recovery options also forward and backup on path
Programmable feedrate (can be over-ridden)
Mirror in X, Y and both X and Y
Imperial/Metric Programming
Program Relocation (point move)
Two Plate Alignment Schemes (alignment to selected corner, accounting for non square plate placement)
Kerf Compensation
Real Time Cut Path Display
Home to Limit Switches
Repeat Shapes with three grid patterns including chain cuts
Advanced diagnostics
Password protection for vital machine parameters (user changeable)
Upgrades can be obtained on the internet free of charge
Built in database for tracking consumable usage for plasma and oxy-fuel applications

Connectivity: Ethernet Connections for Windows® Networking,
USB conveniently located on front panel for easy maintenance and configuration

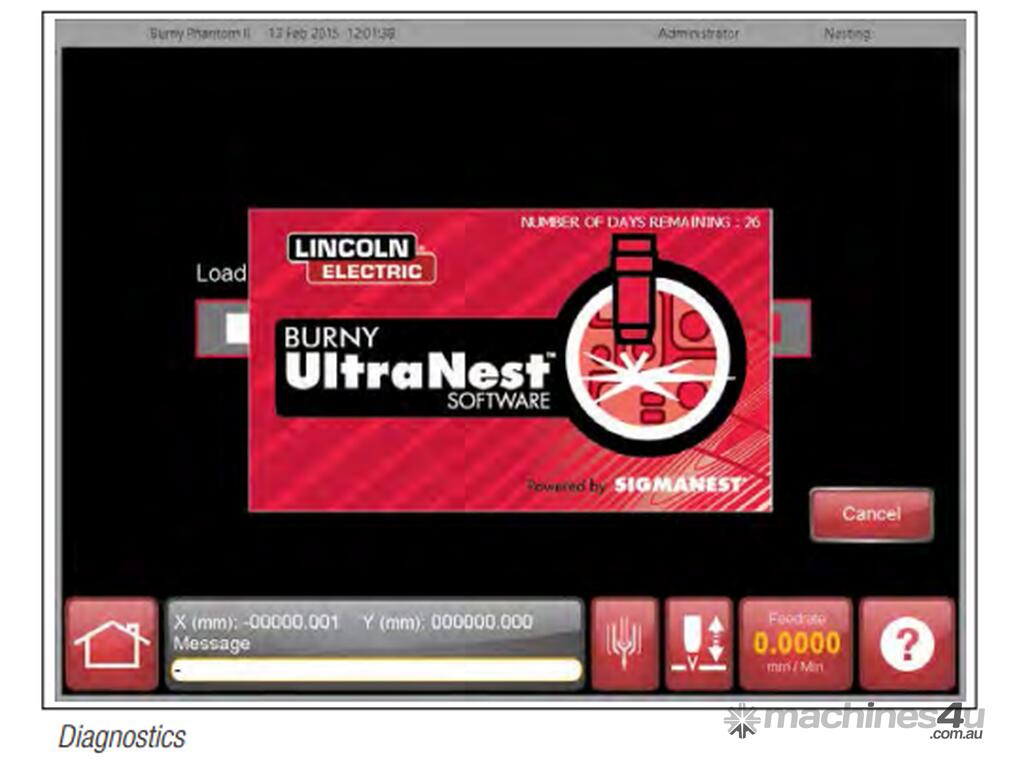

Available Options: Many Options available Including Job Track and On Screen Automatic Nesting software. SERCOS digital real-time optical fiber communication
protocol, plus PCS applications:
Drilling HMI
PCS TurboGas
PCS Plate Track
PCS Smart Fume Extraction
PCS Maintenance Miser App
Many more – contact PCS for details


STANDARD FEATURES

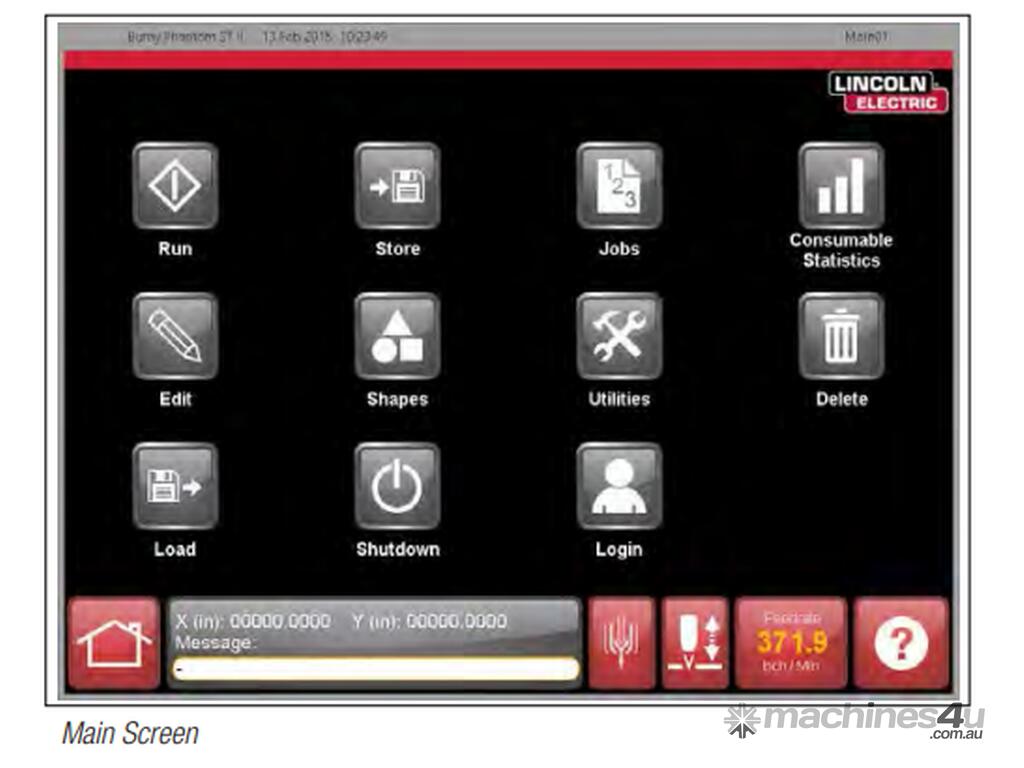

Improved User Experience
New intuitive graphical user interface features optimized screen to screen navigation; drop down menus, easy access panel for torch height control, Shapes and Job Set up menus.

Fast DXF Conversion
The 10LCD Plus™ accepts direct downloads of CAD/CAM .dxf files, which eliminates the expenses of third –party post processing software. Furthermore, the 10LCD Plus can automatically assign Lead In/Lead Out positions- or the operator can make these assignments manually.

Go To (Job Interrupt)
Interrupt the current cutting routine to cut a new part, move ahead multiple pierce points, recover from cut loss, recover from power loss, change torch consumables, interrupt a long nest or reverse the cutting path-all quickly done at the touch of a button without losing machine position and without scrapping valuable material.

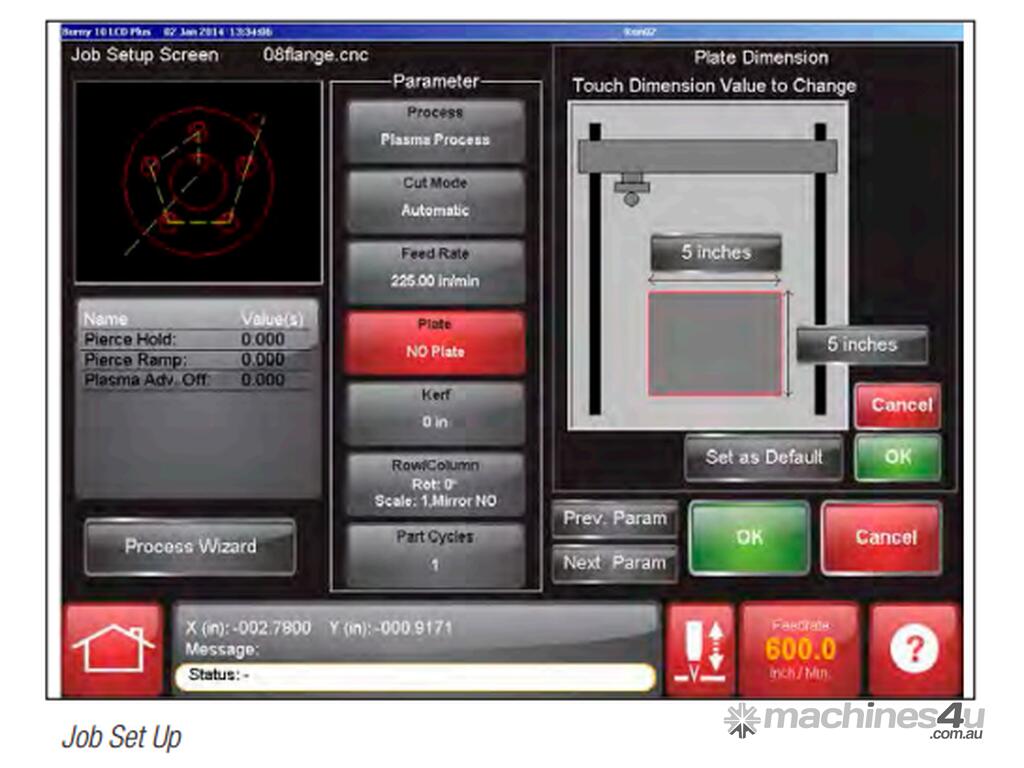

Quick Plate Alignment
Quickly compensate for a plate that is not aligned properly on the machine. The 10LCD Plus controller rotates the part program for the proper placement on the true plate position. Virtually drops the plate and cuts. This saves material and wasted time moving the plate into the correct cutting position.

Plasma Process Wizard for Advanced Plasma Process Control
Using the wizard to manage on/off controls of the plasma system saves the operator initial repetitive set up time. Factory loaded cut charts or custom cut charts give you the ability to cut like an expert by simplifying the job setup to only a few steps of choosing your material type and material thickness on the CNC. Once selected, send your cut chart data to the plasma system and begin cutting in minutes. Using the process wizard, easily change the torch height control settings to optimize the cut quality.
