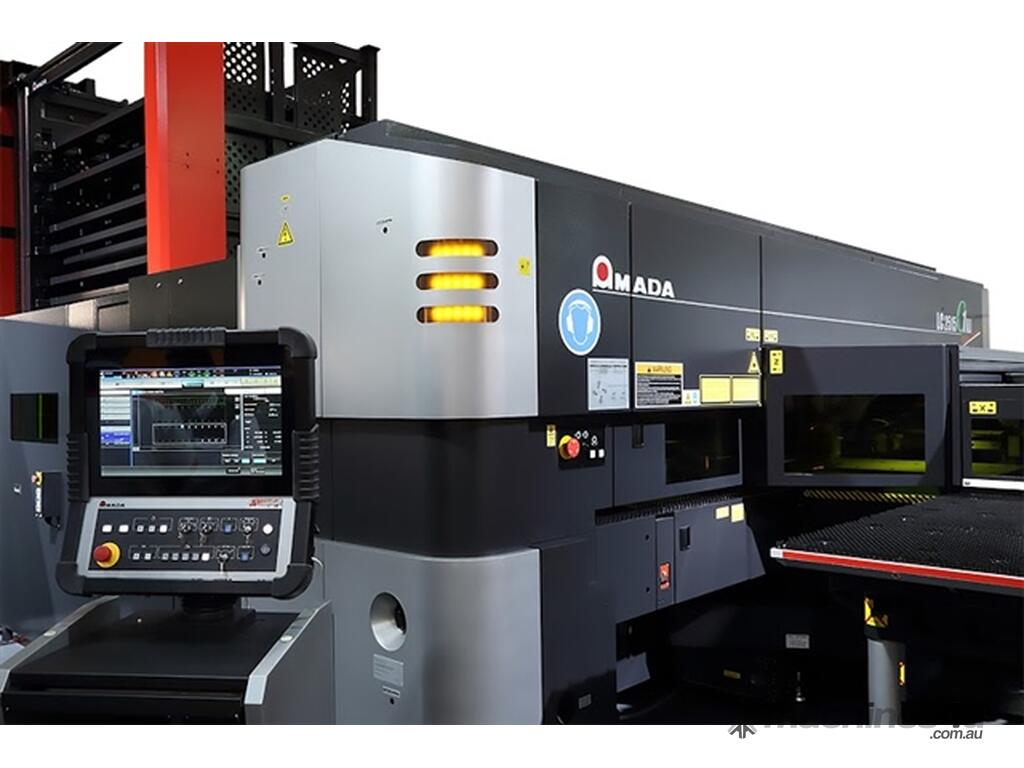

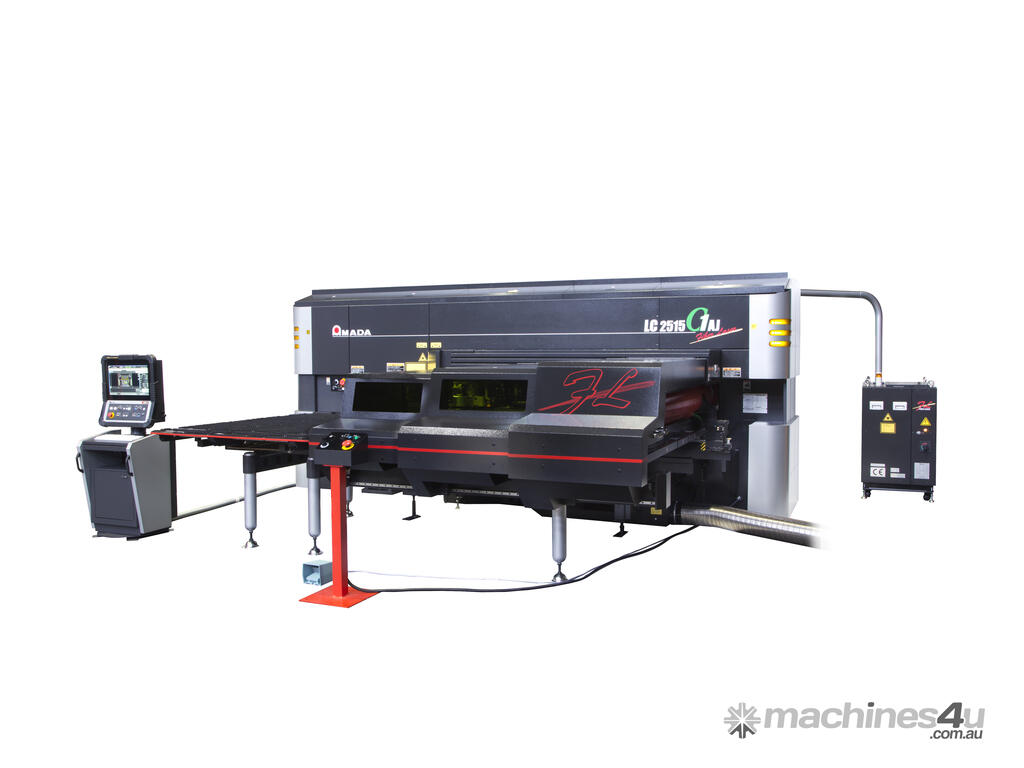

To maximise punching productivity in conjunction with fiber laser cutting, the LC 2515 C1 AJ features a 49-station Multi-Purpose Turret (MPT). Unique features of the MPT include four tapping tool stations and three innovative die lift stations. The die stations automatically lift to facilitate upward forms while reducing material scratches and preventing downward forms from hitting the forming dies during sheet movements. In addition, a brush table automatically lifts to support material and provide scratch-free processing — eliminating the need for secondary finishing.
AMNC touchscreen control with a 900 cut condition database
Bar-code reader for rapid program loading
49 station MPT or 46 (4 auto index) provides flexible production
MPT also provides unique forming and tapping functions
Patented bridge frame construction
Compact and ergonomic safety enclosure
Energy saving — ECO Cut and reduced power consumption
Rapid changeover between synchronised punch and laser
Flexible table design
Compact footprint
