CANADIAN QUALITY - Vertical Bandsaw : Hydmech V-18APC-60 - Automatic CNC

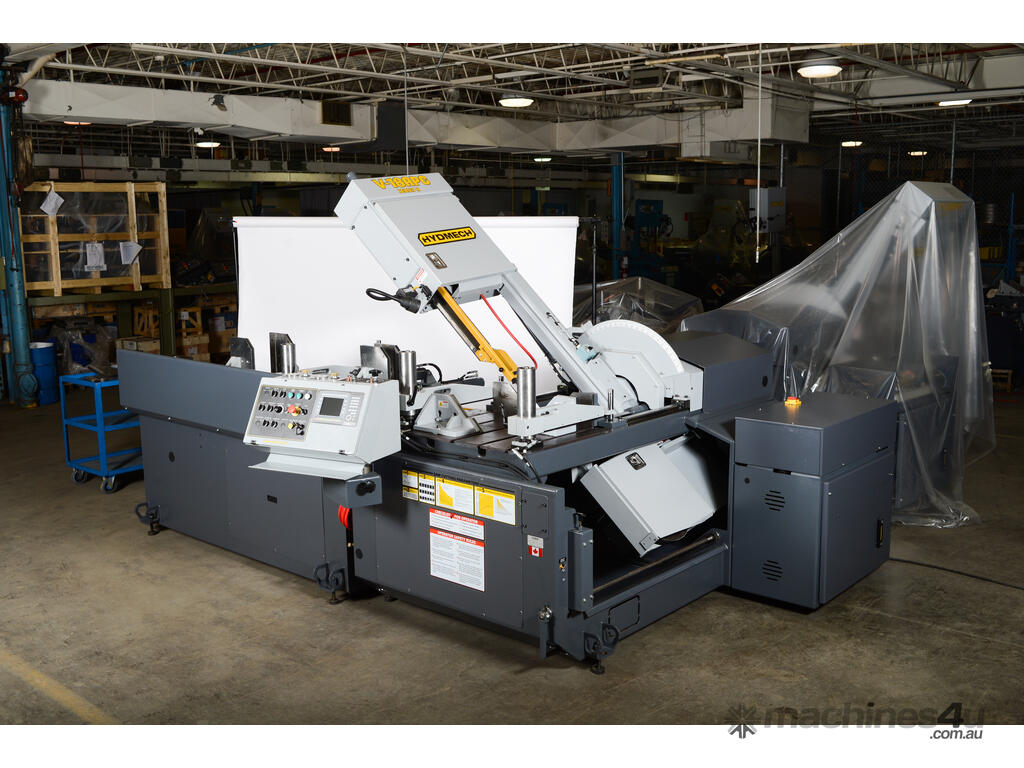

Hydmech V-18 APC is an Automatic Double Mitre Vertical Bandsaw with a cutting capcity of 457 x 558mm. Canadian Made.

UNIQUE FEATURES

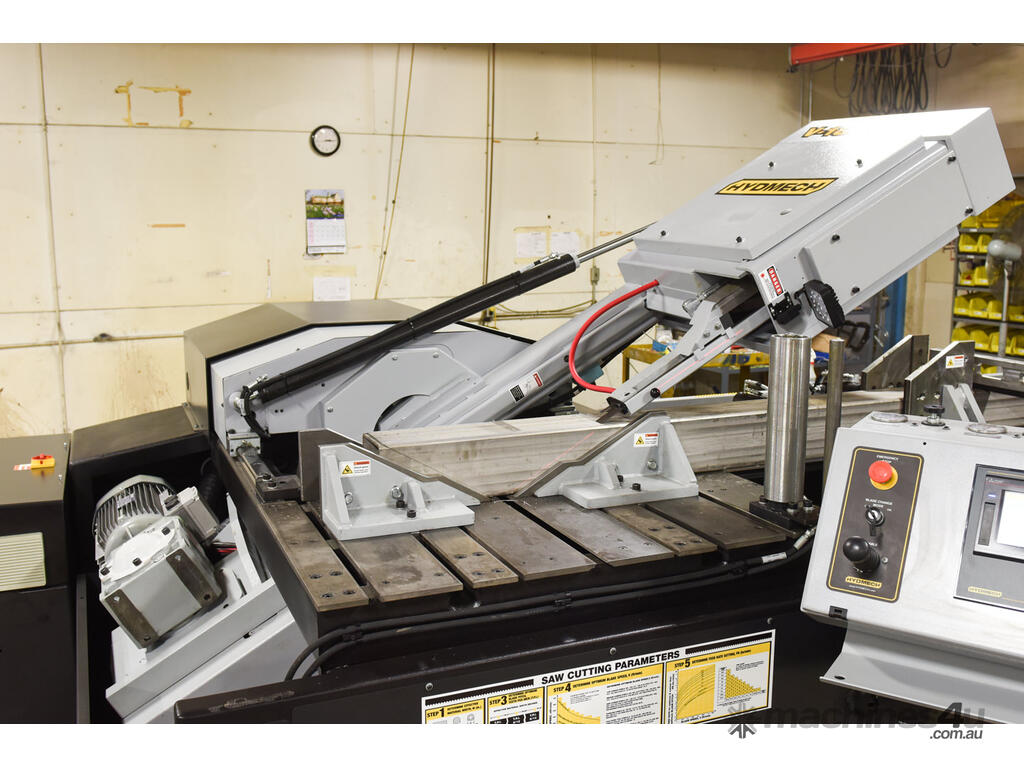

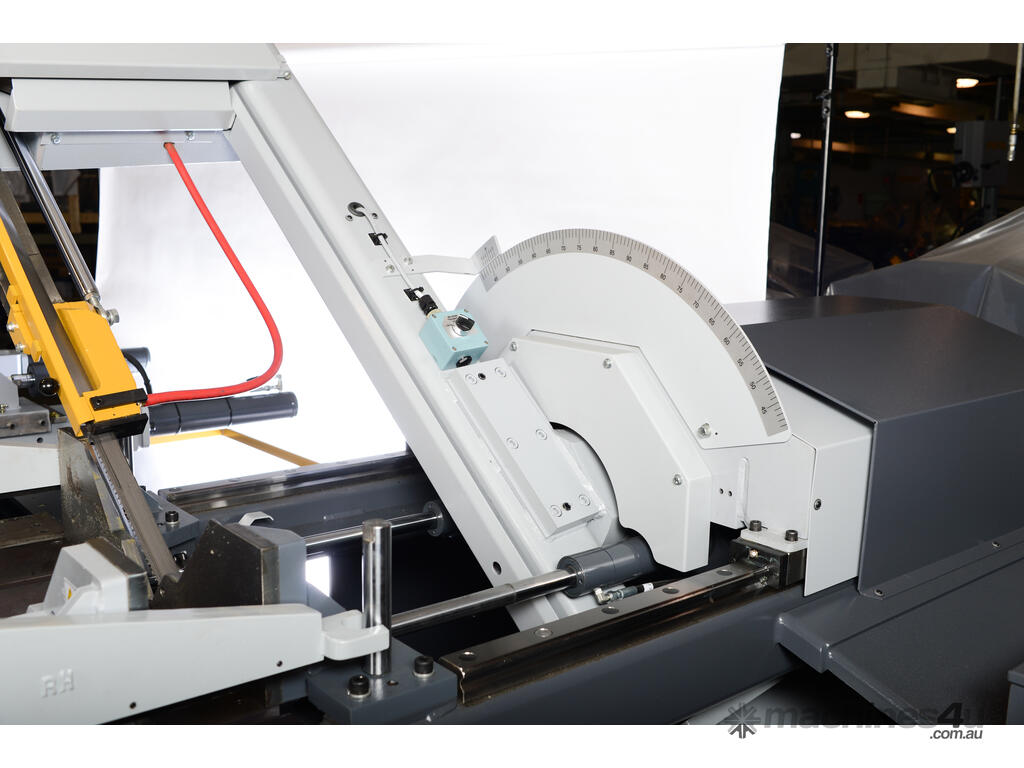

• Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right

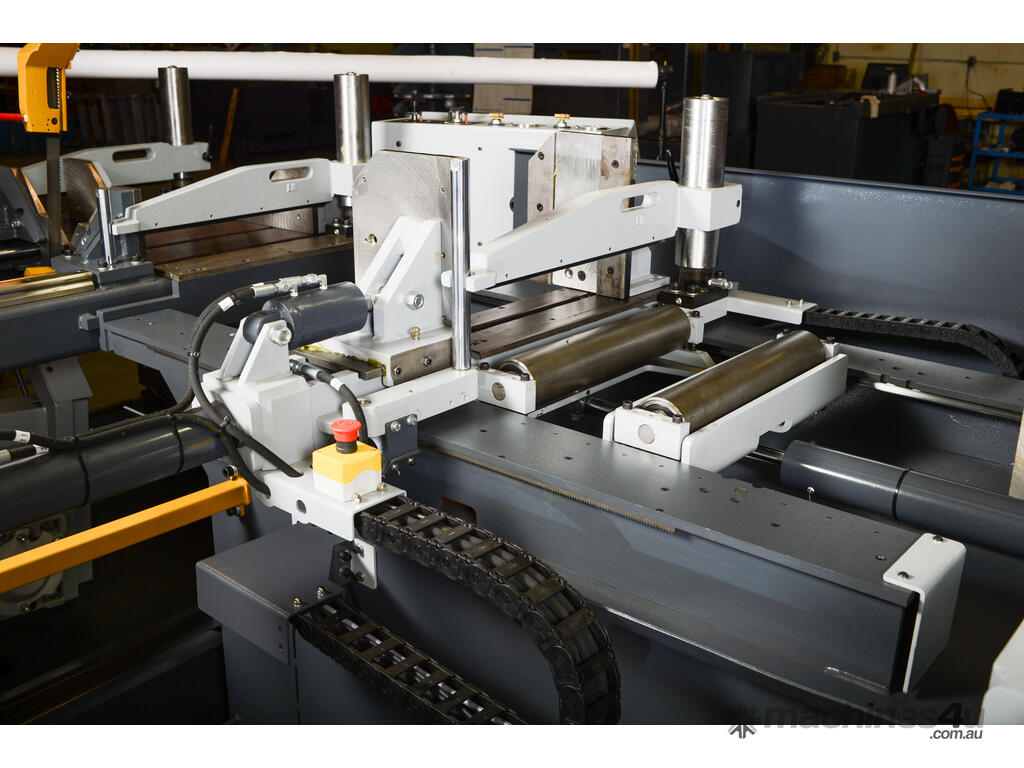

• Four full stroking hydraulic vices (feed, main, and outboard) and squaring vice

• Automatic multi-indexing up to 40” in a single stroke

• Powered movable guide arm

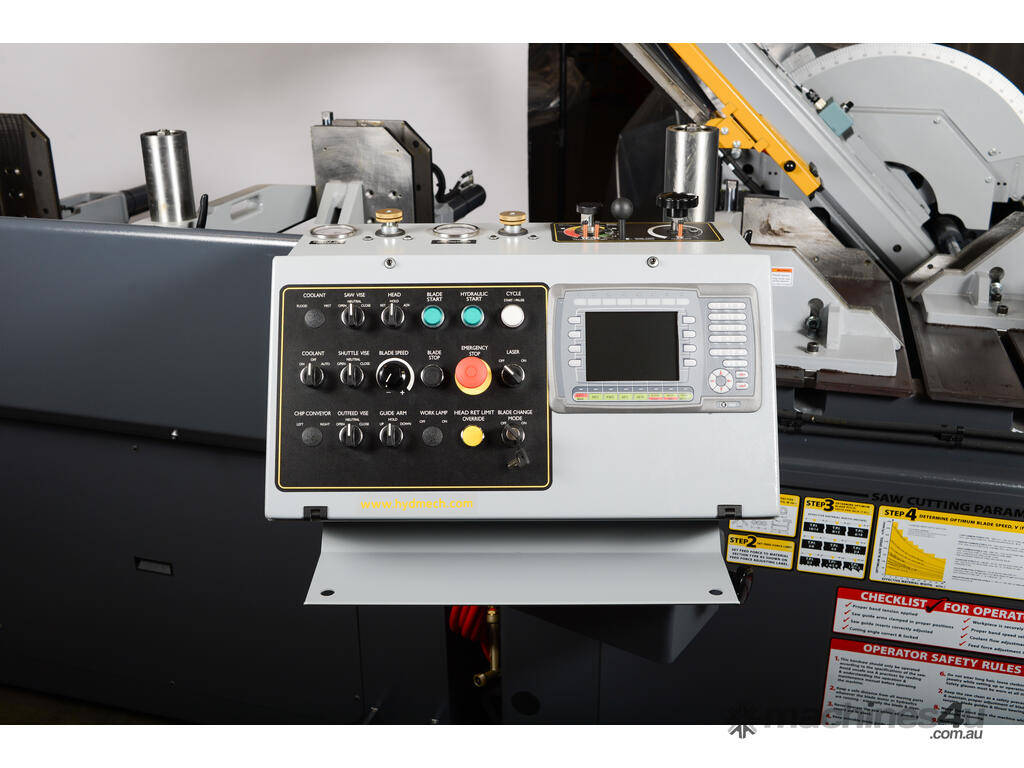

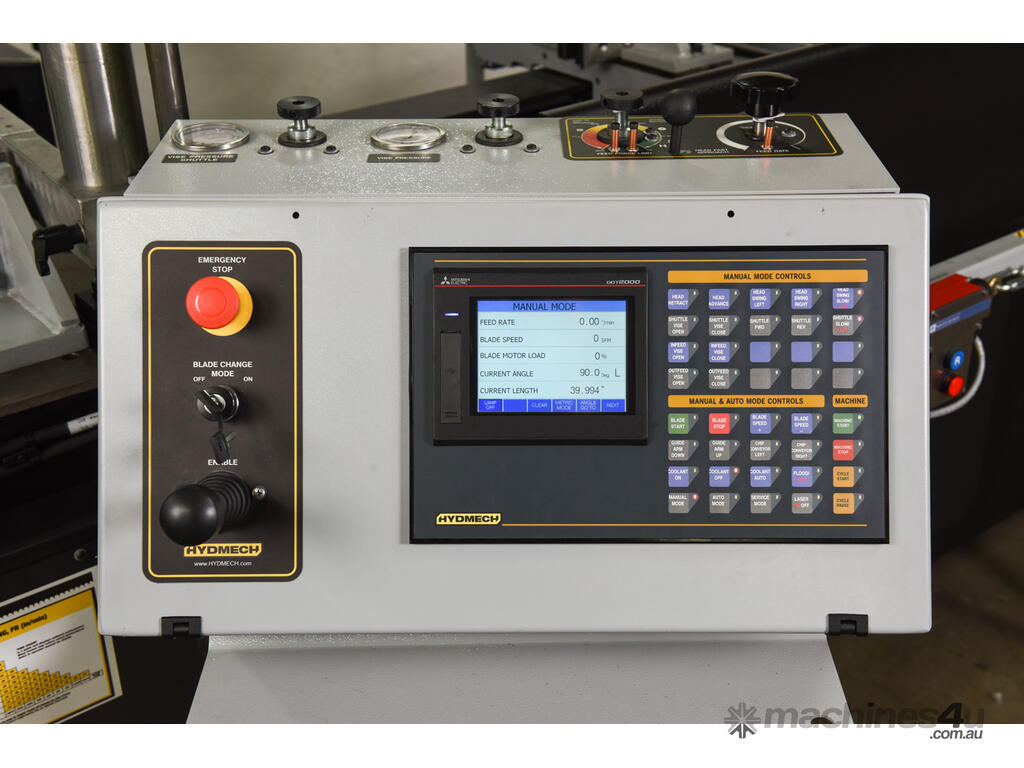

• Automatic PLC control programmable up to 1000 jobs with 5 in queue

• Hydraulic overhead bundling

• 7.5 HP VFD. True direct blade drive – no belts/pulleys

• Hydraulic DDF system

• Blade chamber separates material from cut part

• Out of stock switch

• Cast iron band wheels

• Replaceable blade brush

• Robust steel base

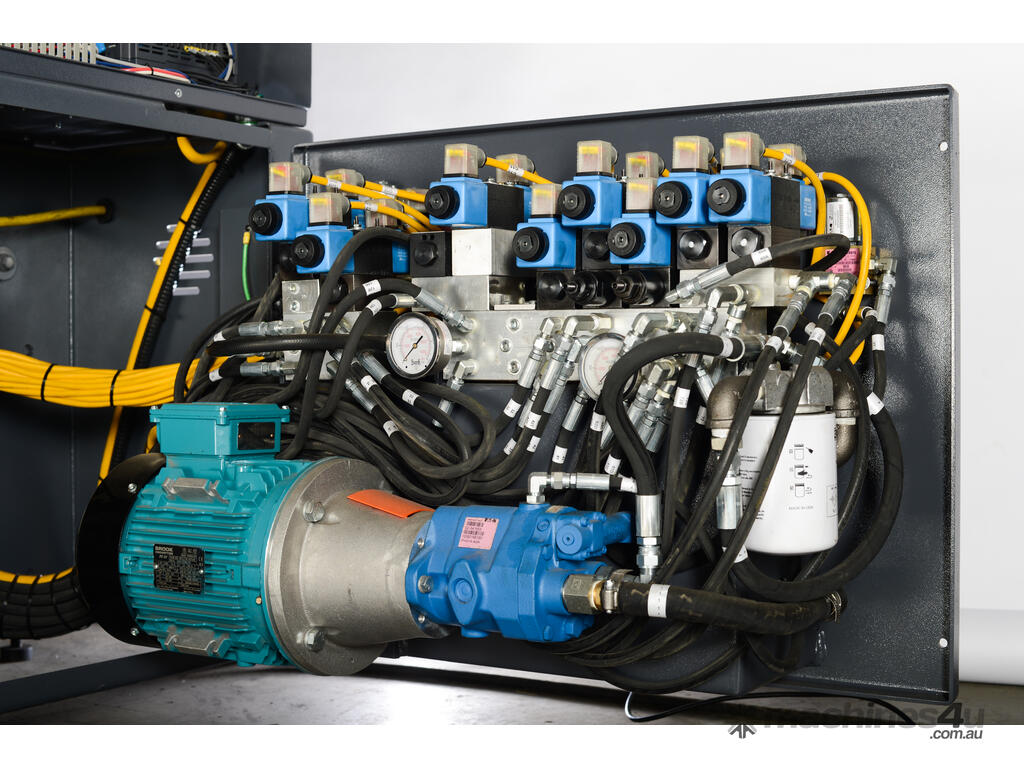

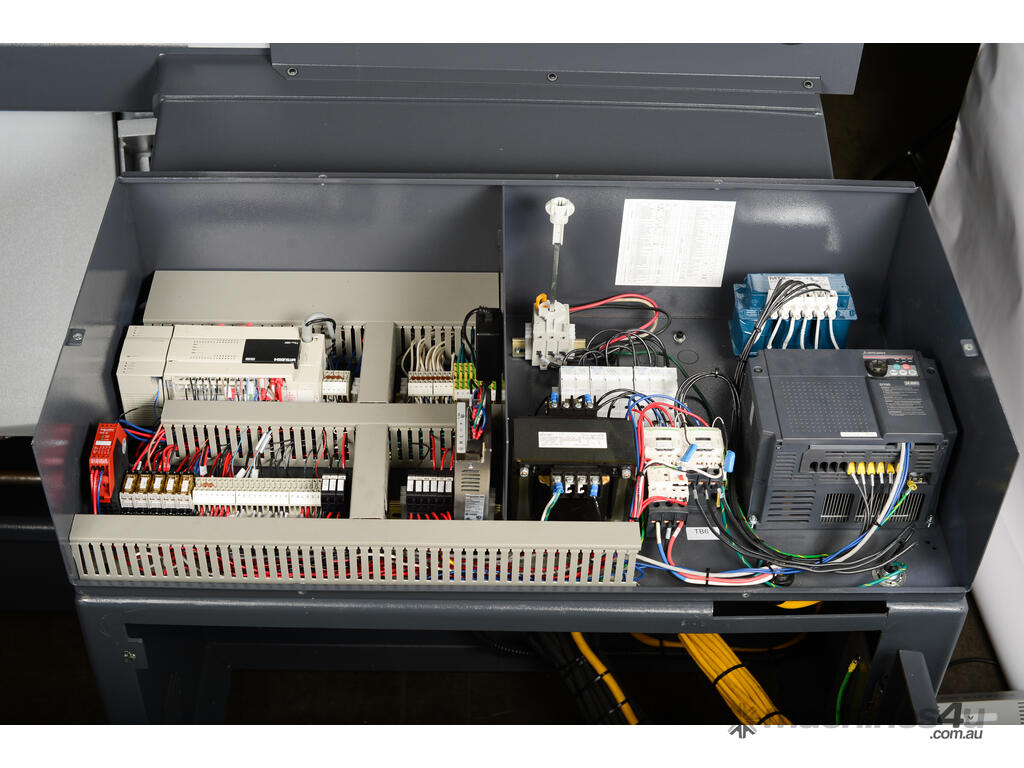

• Easy access electrical panel and hydraulics

• Blade breakage switch

• Drag chain chip conveyor

• You choose left or right side infeed

• Hydraulic band tensioning with digital readout

• Replaceable carbide guide inserts

• 2 HP hydraulic pump provides system pressure

• Safety door interlocks

• Flood coolant with wash down hose

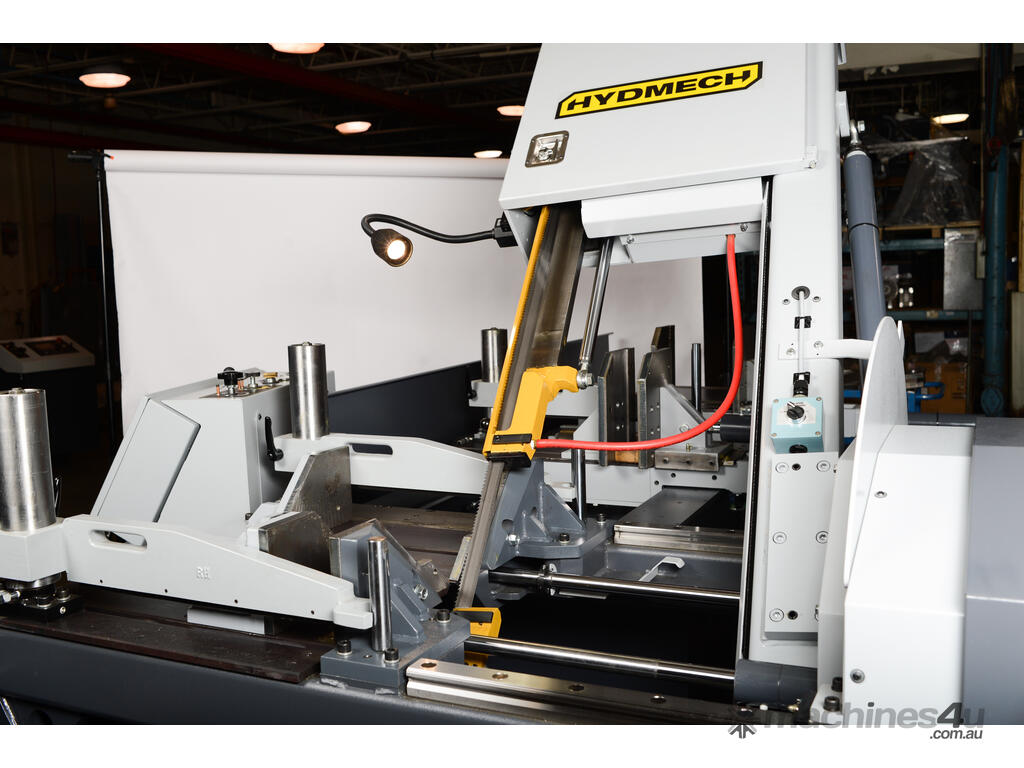

• Laser light and Work light

• Variable vice pressure

• 3 degree canted head
