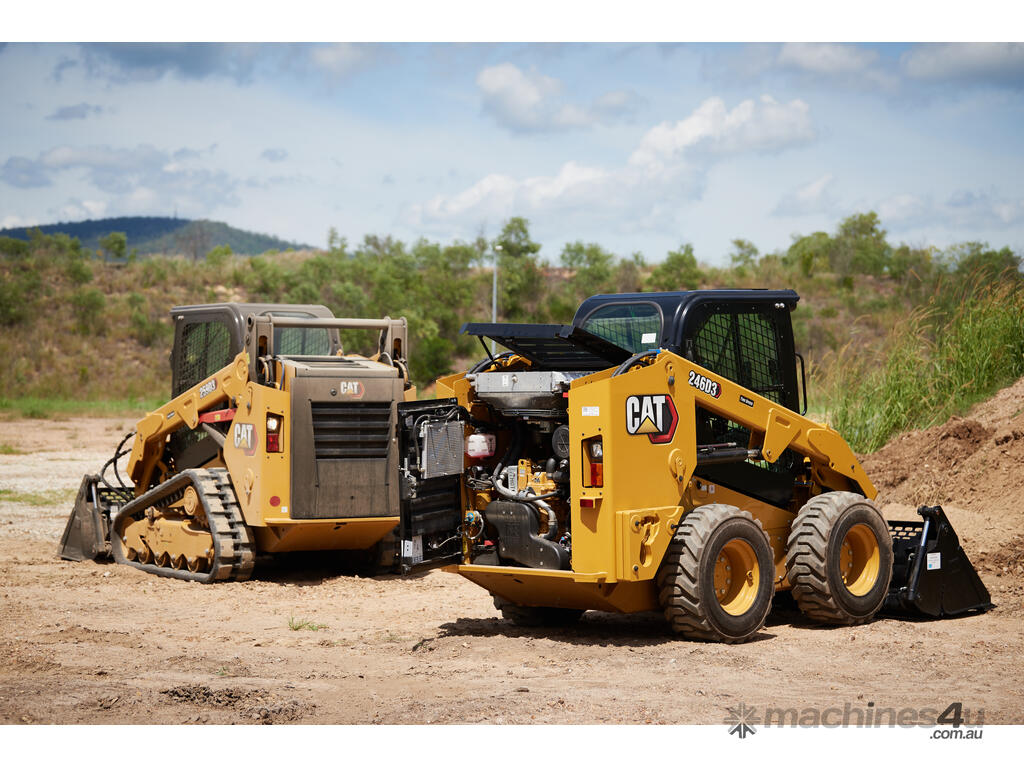

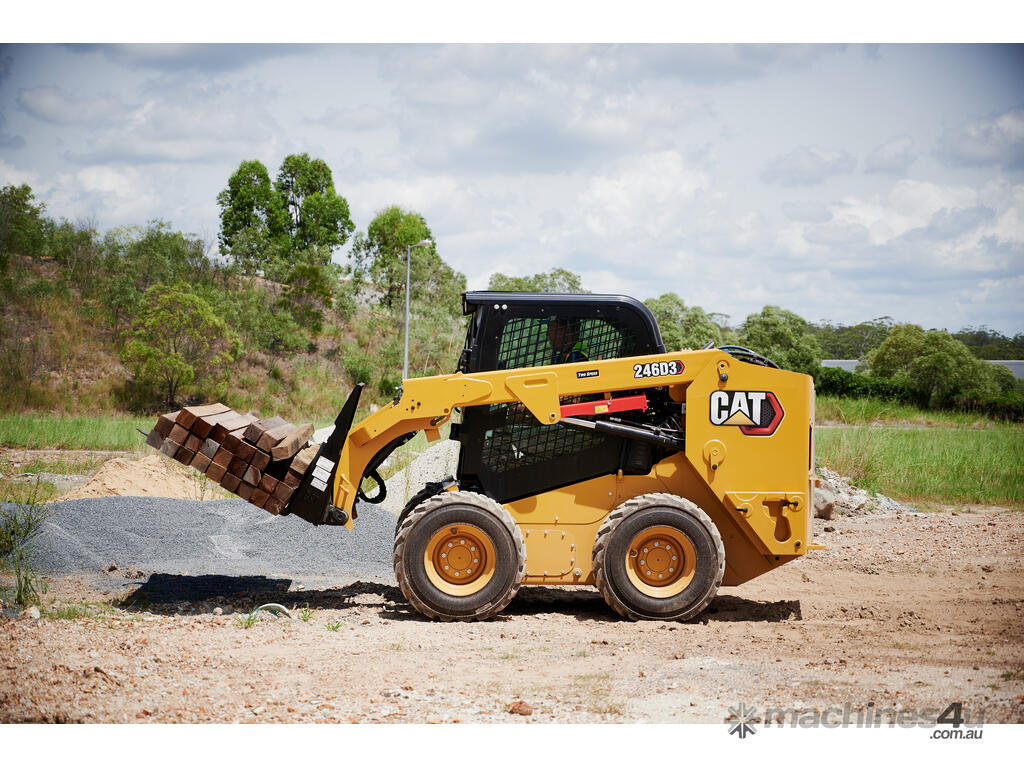

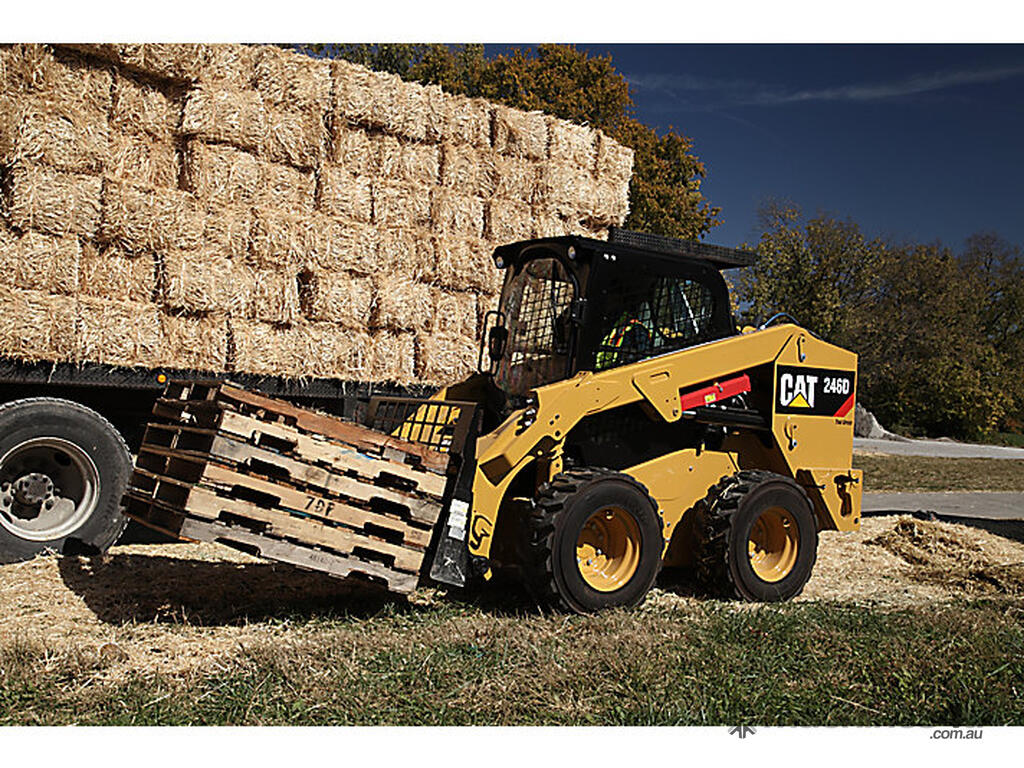

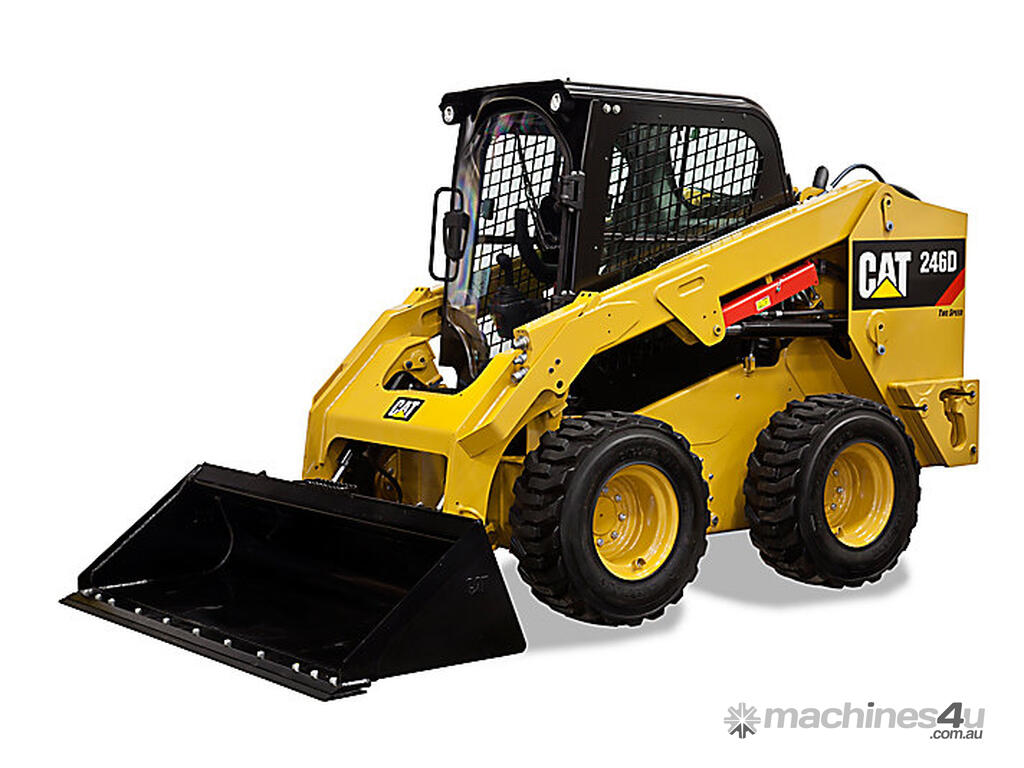

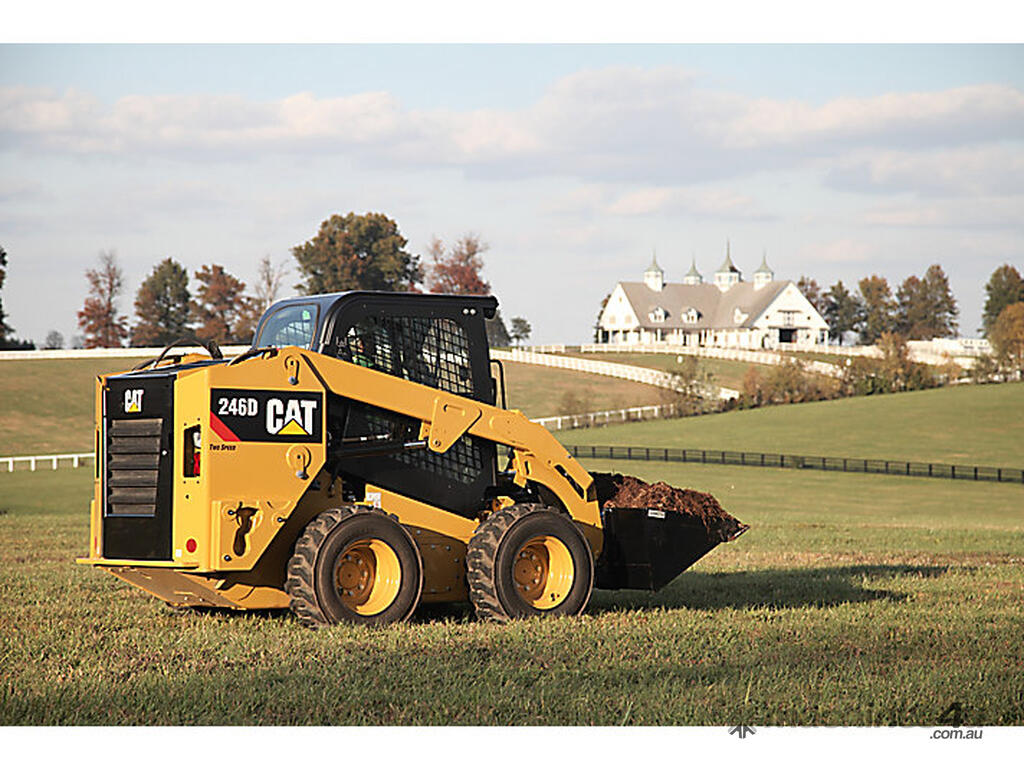

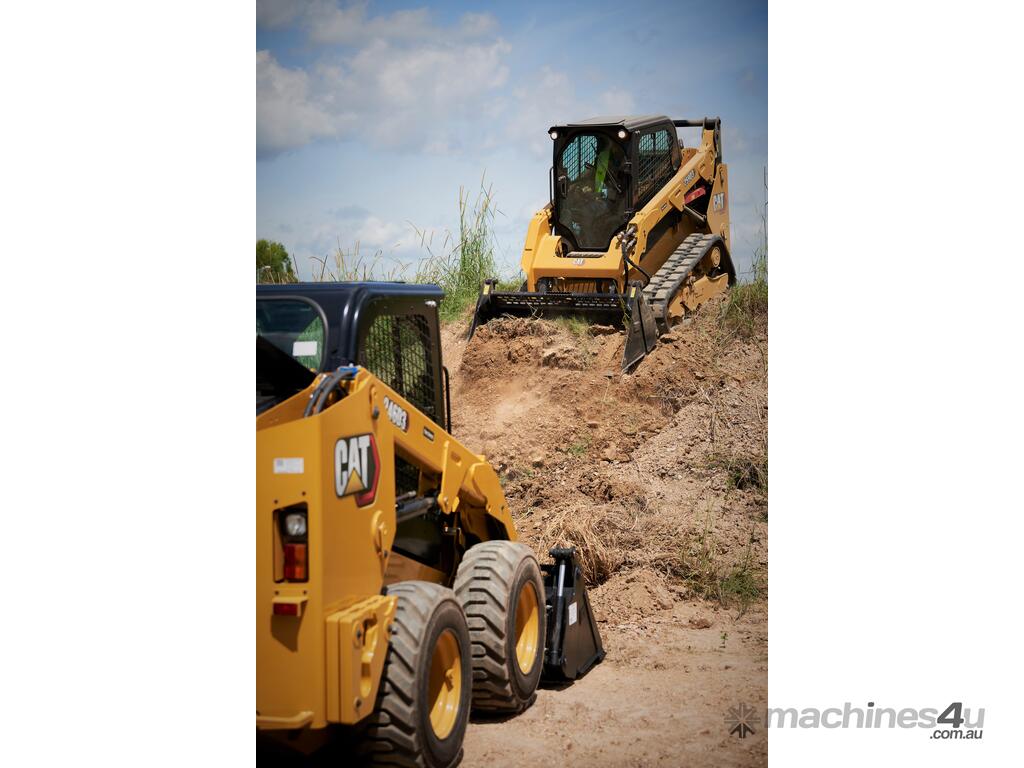

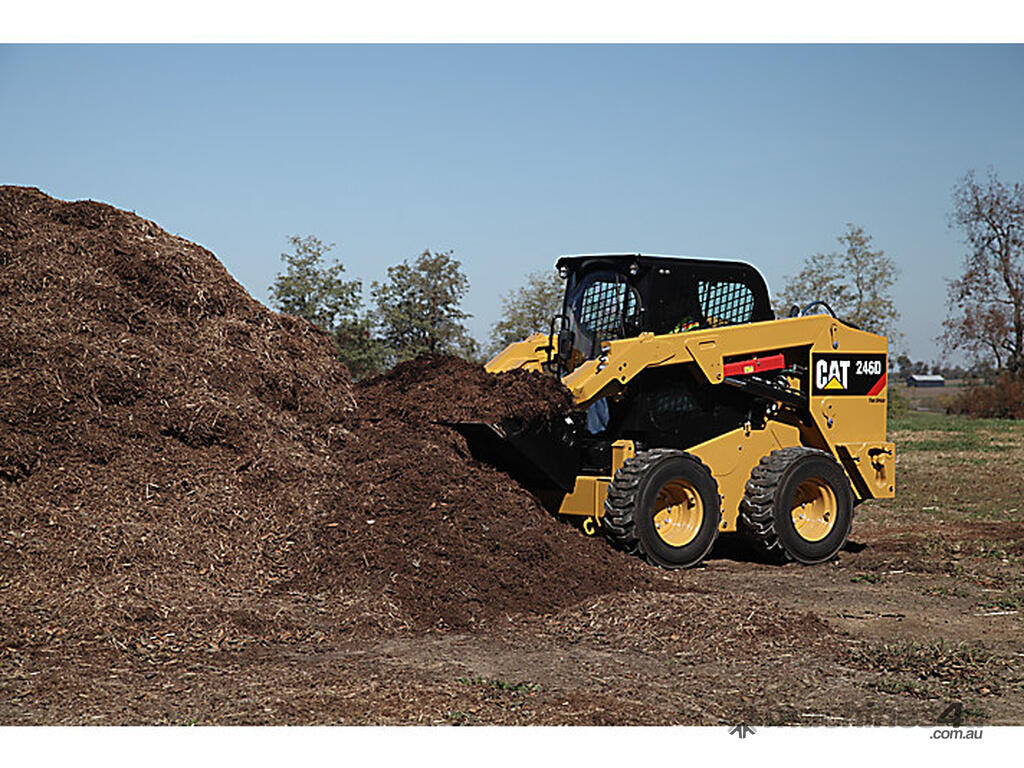

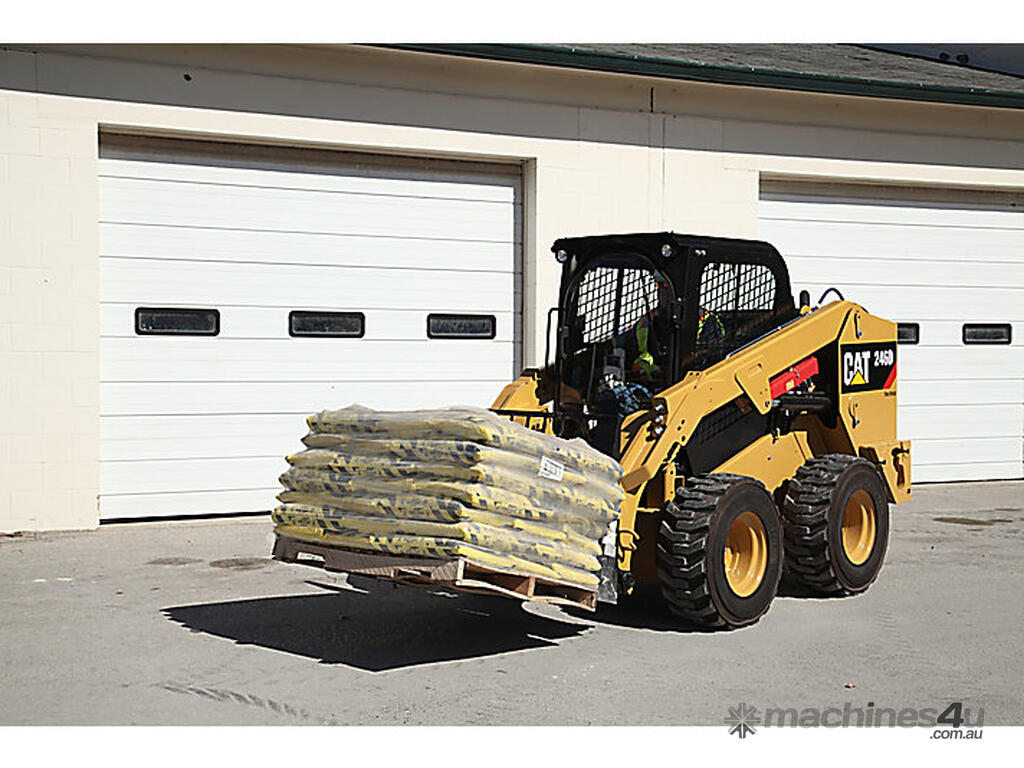

CATERPILLAR 246D3 SKID STEER LOADER

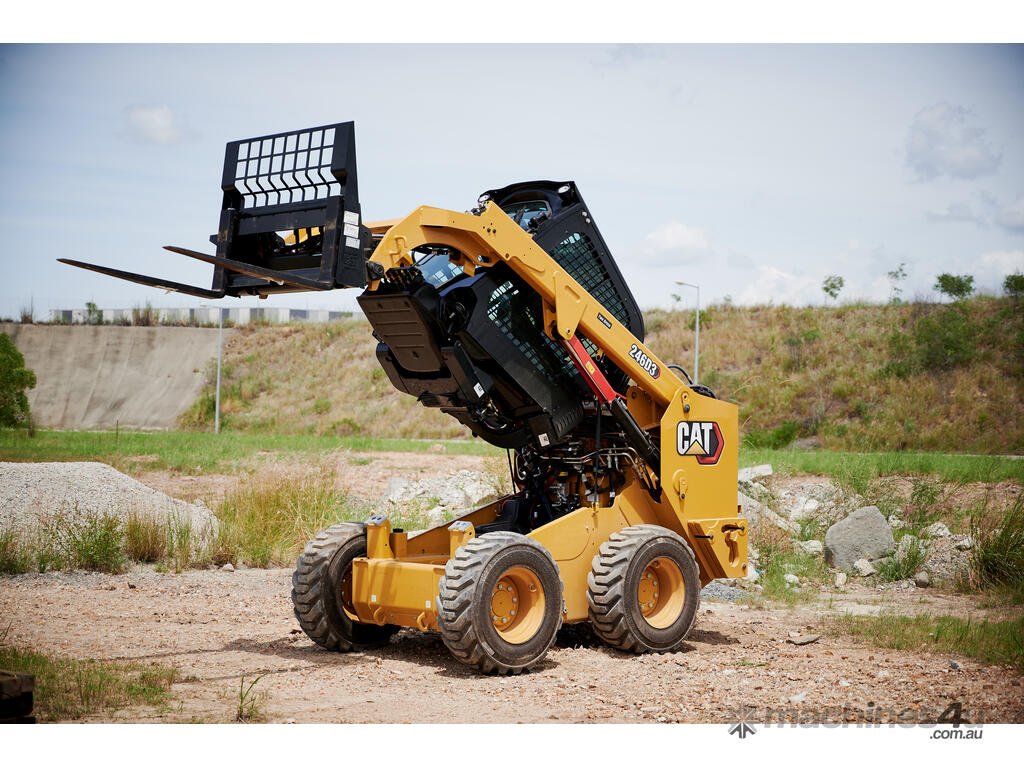

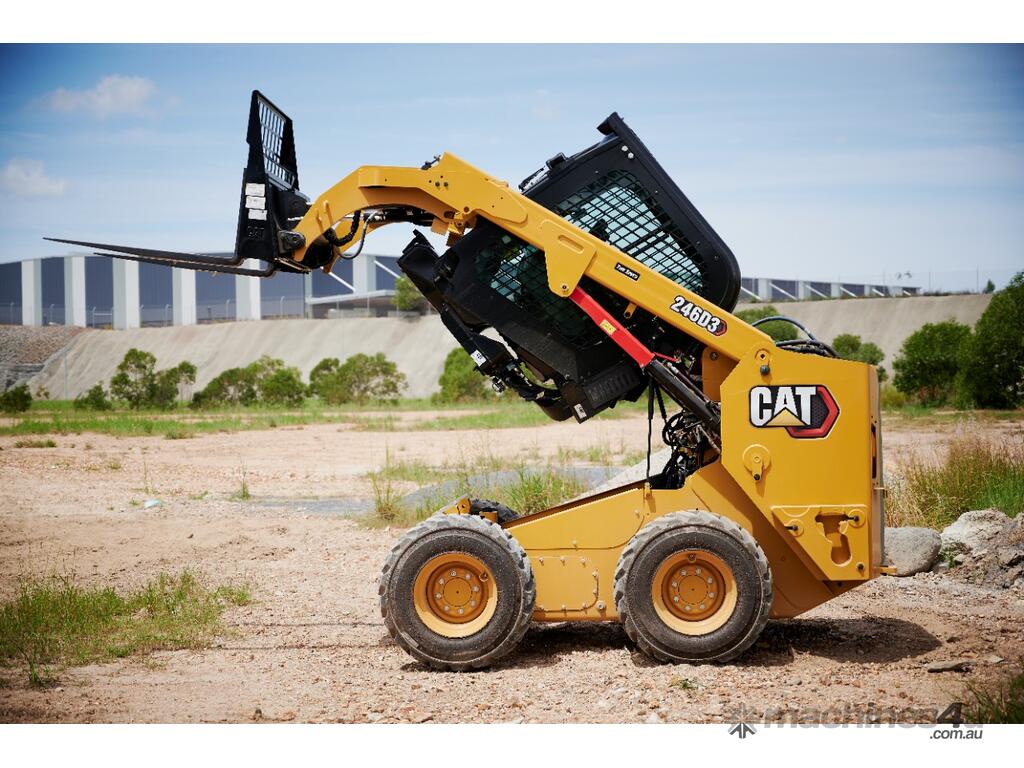

The Cat 246D3 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.

ENGINE
UNITS: US METRIC
Engine Model - Cat C3.3B DIT (turbo)
Net Flywheel Power - 53.6 kW
Gross Power - SAE J1995 - 55.4 kW
Net Power - SAE 1349 - 53.6 kW
Displacement - 3.3 l
Stroke - 120.0 mm
Bore - 94.0 mm
Net Power - ISO 9249 - 54.1 kW
Net Power SAE 1349† - 54.0 kW
Net Power ISO 9249† - 54.6 kW
†Tier 4 Interim equivalent engine offered only for Australia/New Zealand, Macedonia, Ukraine and South Korea.
Peak Torque - 1,600 rpm - SAE J1995 - 265.0 N·m

WEIGHTS*
Operating Weight - 3368.0 kg
*Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (66 in) dirt bucket, Cat PC 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).


COMFORTABLE CAB
Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent work tool visibility. Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes the D Series the industry leader in operator comfort.

OUTSTANDING POWER
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, optional two speed travel and an industry exclusive electronic hand/foot throttle with decel pedal capability. Cat C3.3B engine and high performance power train provide high engine horsepower and torque, allowing partial-throttle operation for lower sound levels and fuel consumption. High Flow XPS hydraulic system is available for applications that demand maximum hydraulic work tool performance.

VERSATILITY TO TACKLE ANY JOB
Cat “Intelligent Leveling” system (ILEV) provides industry leading technology, integration and optional features such as dual direction self level, work tool return to dig and work tool positioner. Speed Sensitive Ride Control option improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. Broad range of performance matched Cat Work Tools makes the Cat Skid Steer Loader the most versatile machine on the job site.

ADVANCED DISPLAY
Maximize machine capability and control with optional Advanced Display providing on-screen adjustments for implement response, hystat response and creep control. The display also features multi-language functionality with customizable layouts, security system and rearview camera.

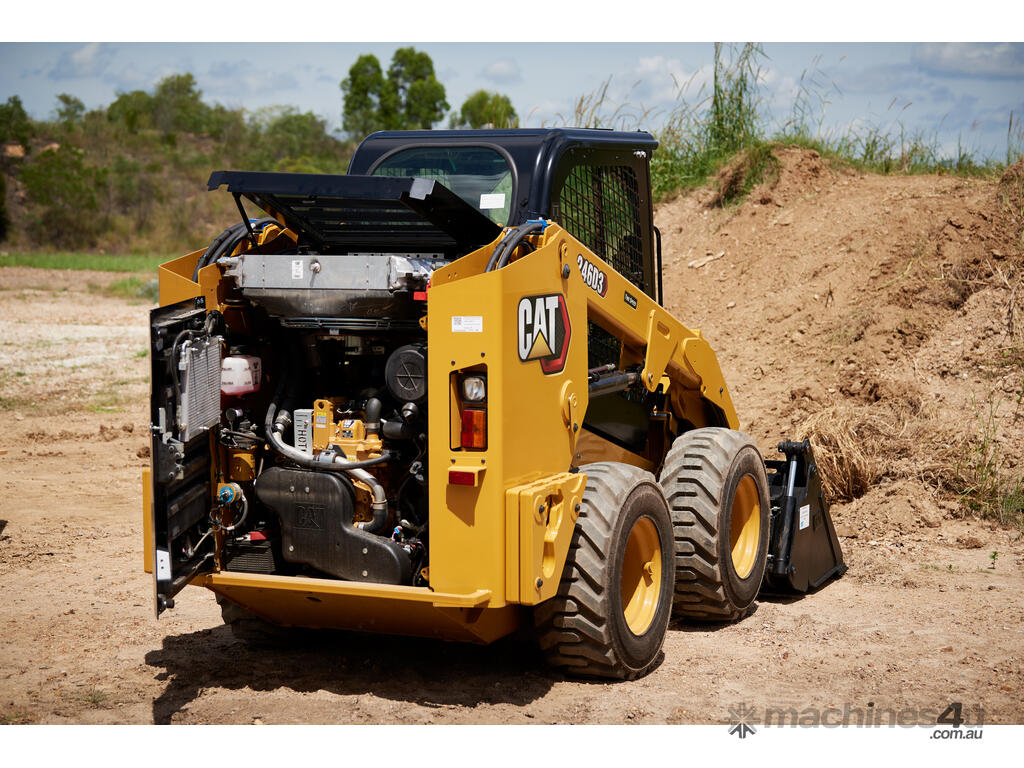

EASY SERVICE
Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
