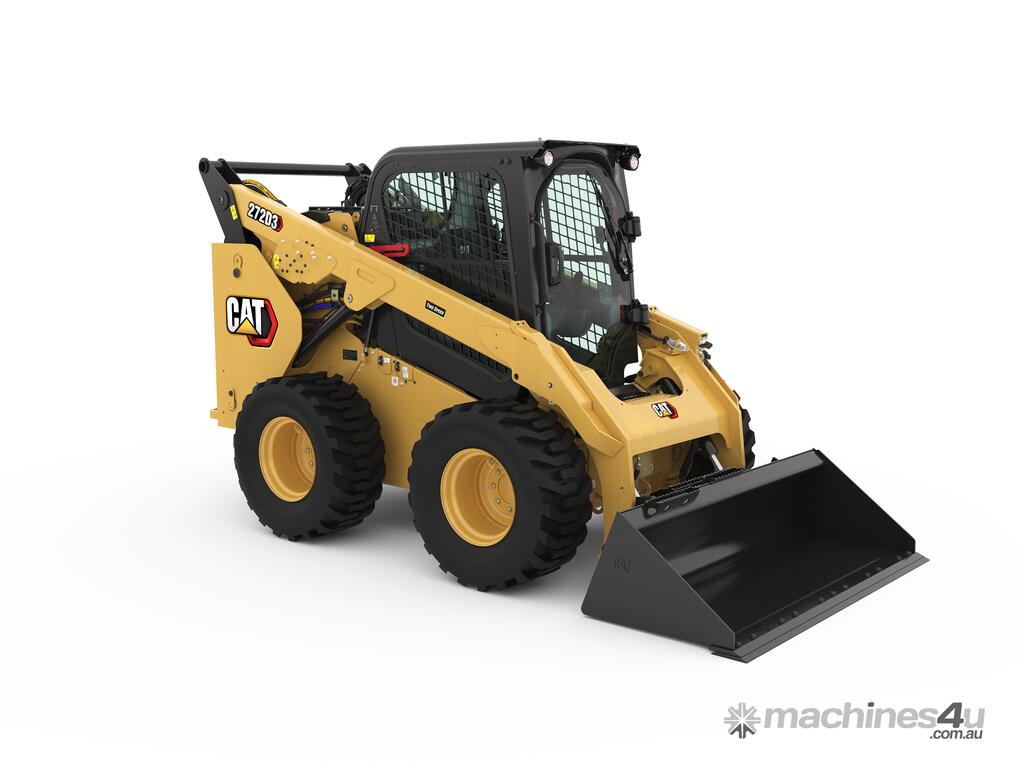

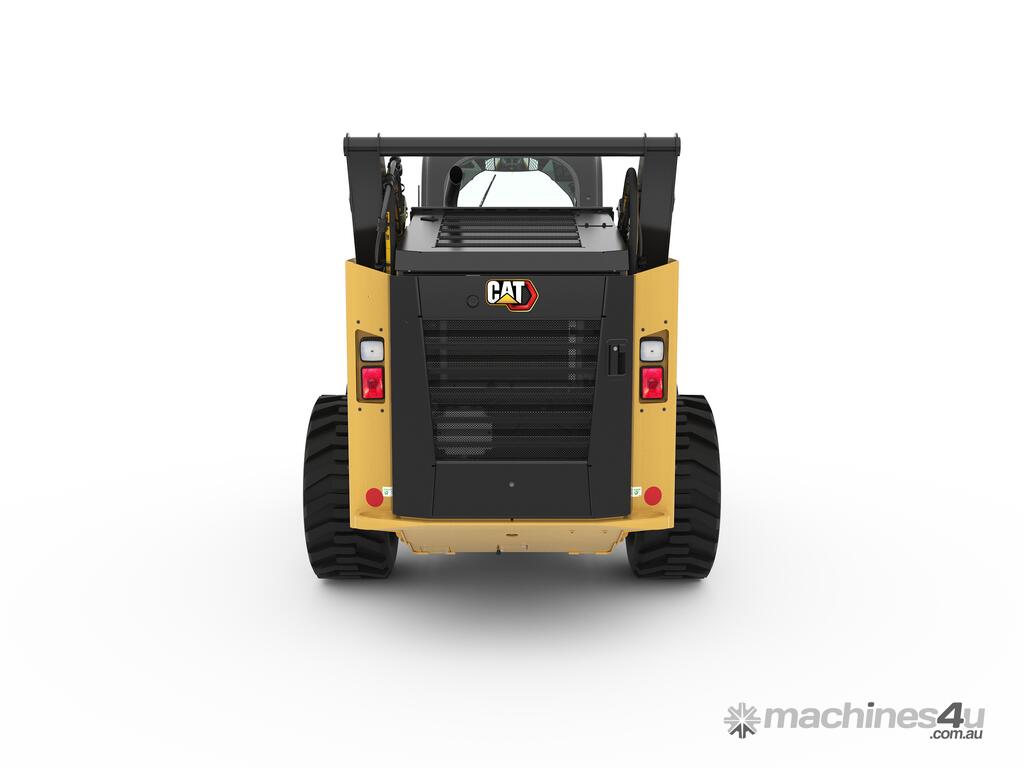

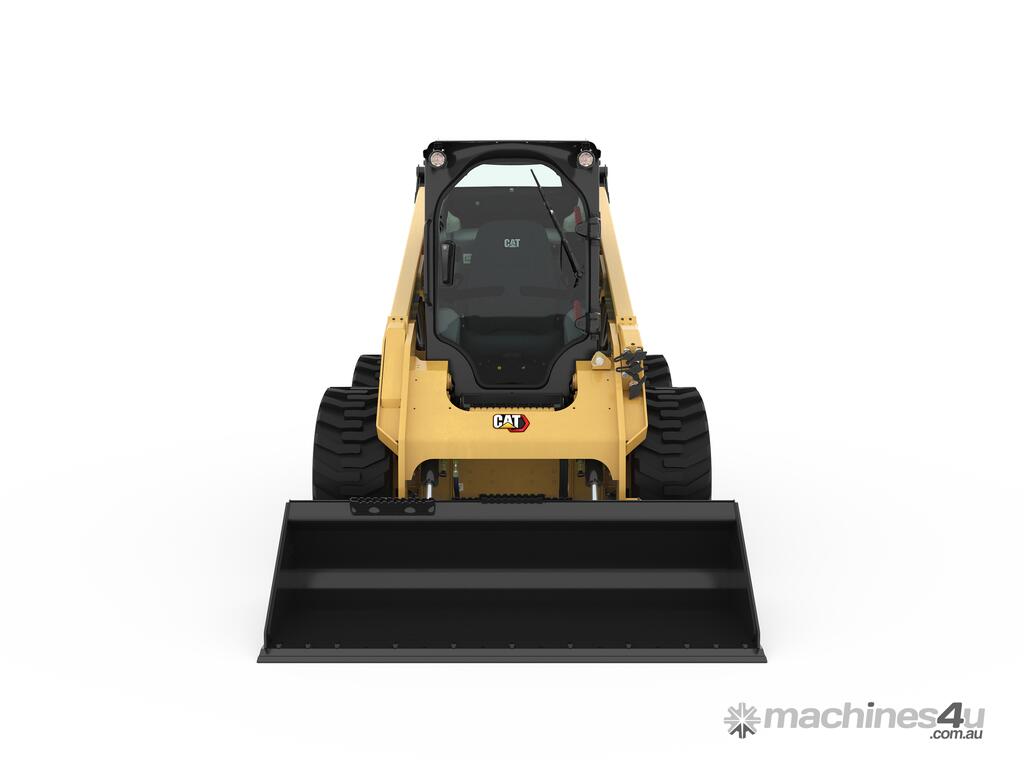

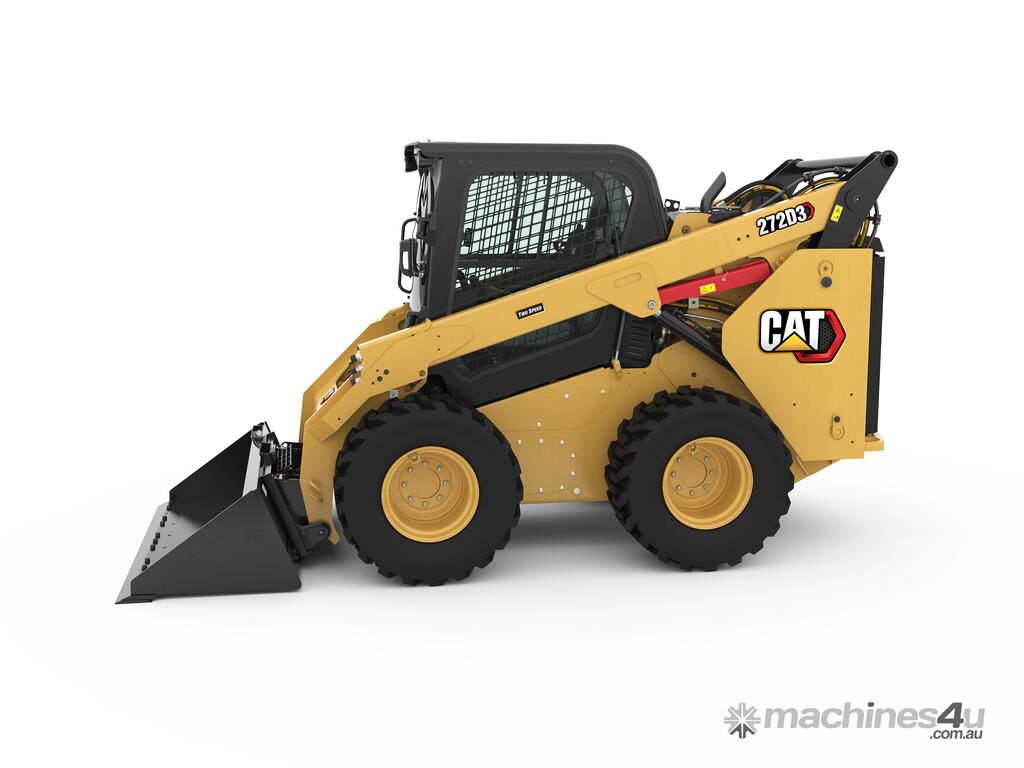

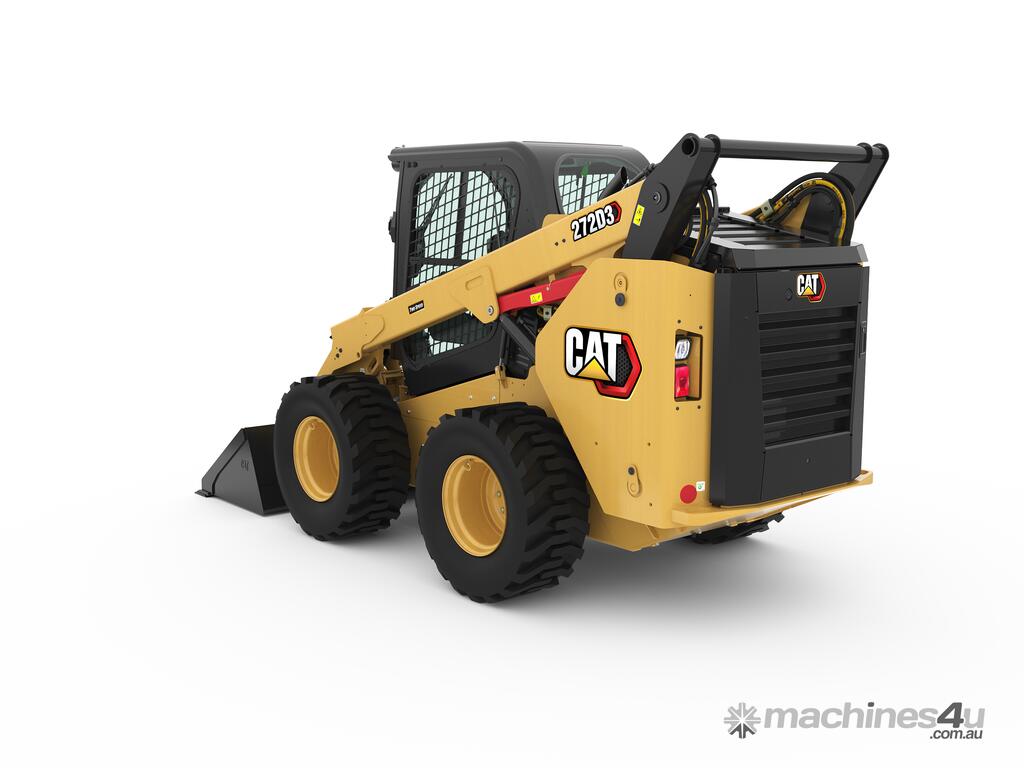

CATERPILLAR 272D3 XE SKID STEER LOADER

OVERVIEW
The Cat® 272D3 XE Skid Steer Loader, with its powerful engine, high output hydraulic system, high lift forces and vertical lift design, provides the maximum performance for work tool productivity, digging, truck loading and material handling.

ENGINE
UNITS: US METRIC
Engine Model - Cat C3.8 DIT (turbo)
Gross Power - SAE J1995 - 82.0 kW
Net Power - SAE 1349 - 79.0 kW
Displacement - 3.8 l
Stroke - 120.0 mm
Bore - 100.0 mm
Net Power - ISO 9249 - 80.0 kW
Peak Torque - 1,500 rpm - SAE J1995 - 374.0 N·m

WEIGHTS
Operating Weight - 4342 kg

HYDRAULIC SYSTEM
Hydraulic Flow – XE:
Maximum Loader Hydraulic Pressure - 28 000 kPa
Maximum Loader Hydraulic Flow - 150 L/min
Hydraulic Power (calculated) 70 kW

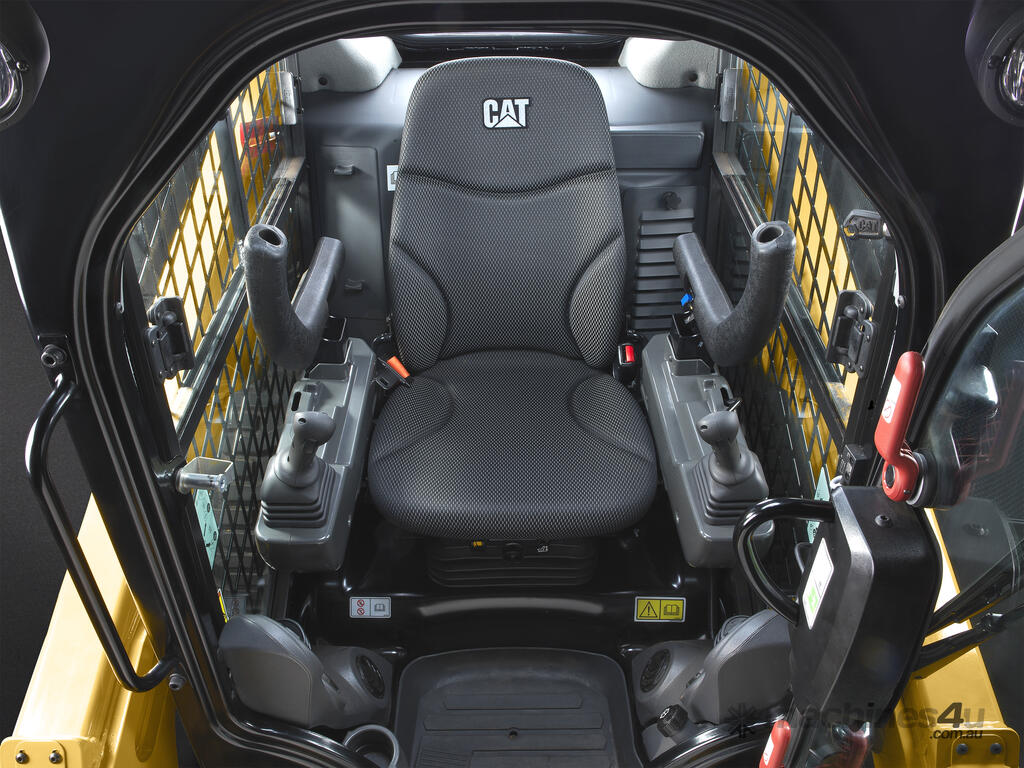

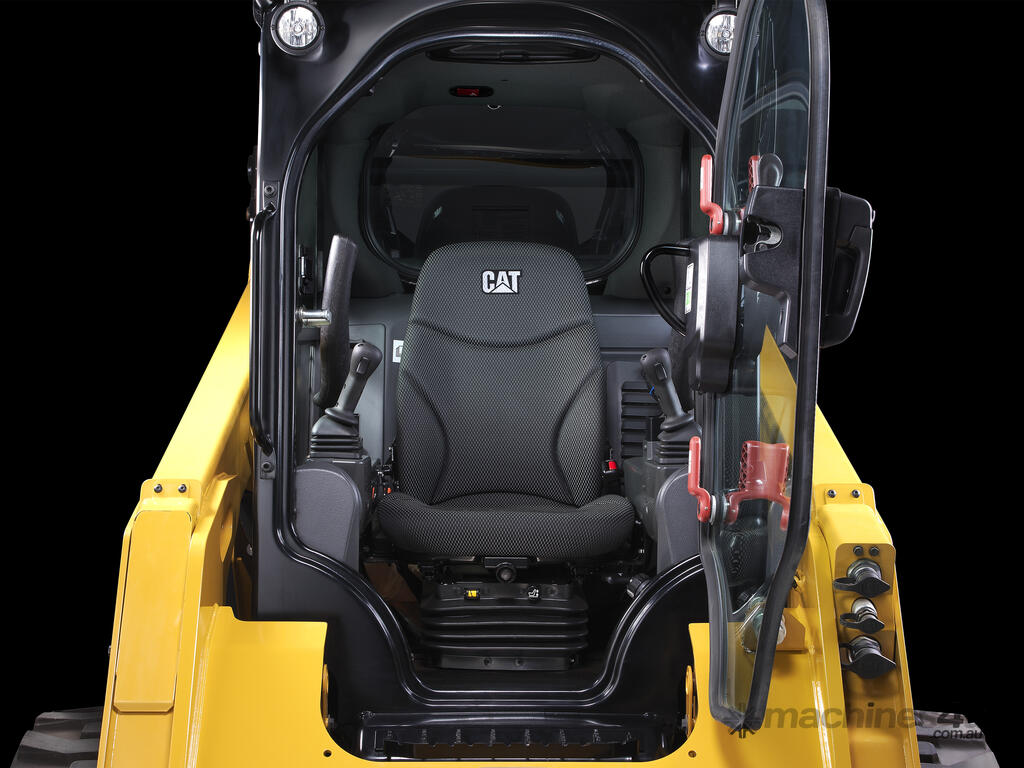

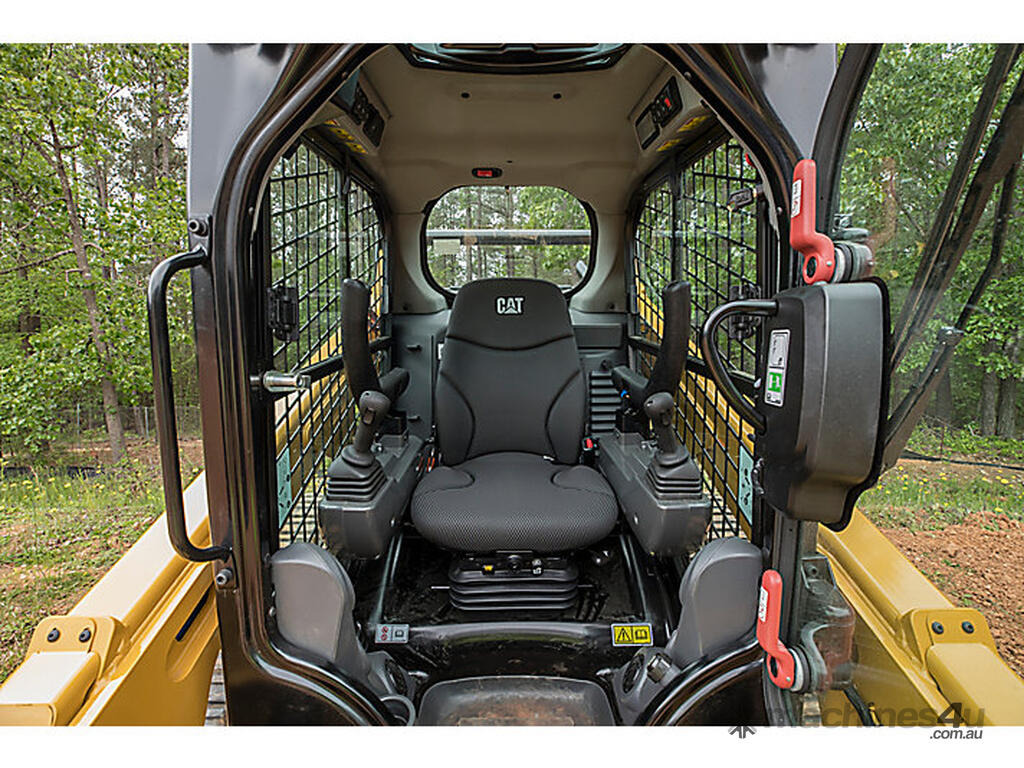

COMFORTABLE CAB
Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent work tool visibility. Standard high-back, heated, air ride seat with seat mounted adjustable joystick controls makes Cat Skid Steer Loaders the industry leader in operator comfort.

ADVANCED DISPLAY
Maximize machine capability and control with the standard Advanced Display providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

POWERFUL PERFORMANCE

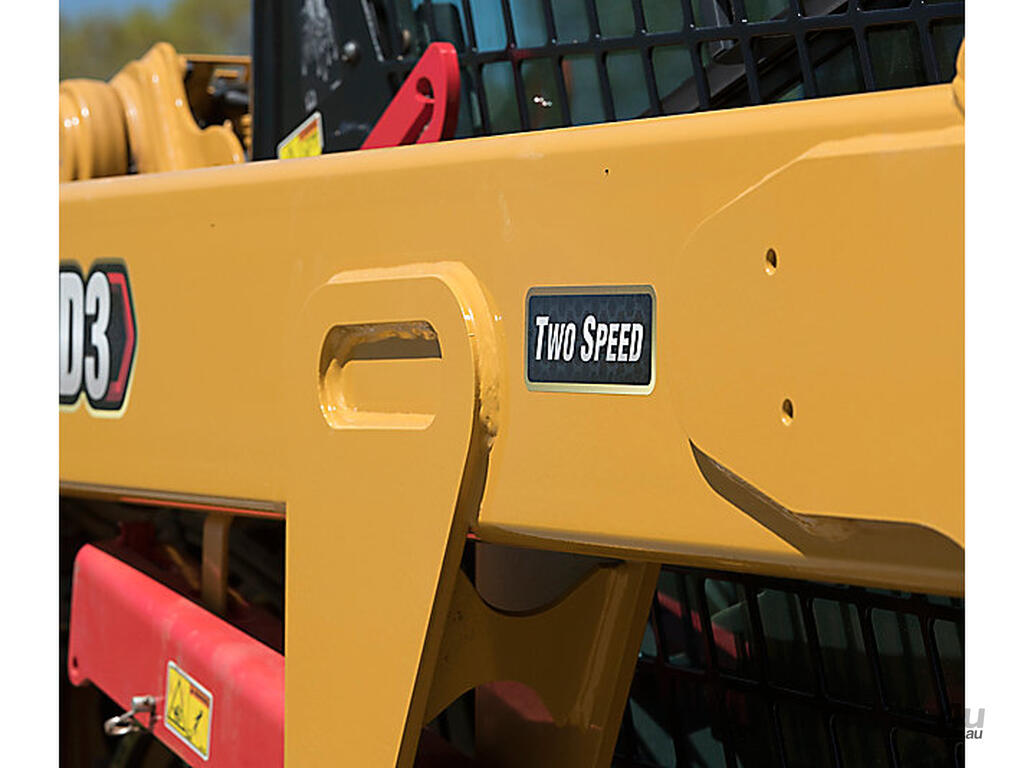

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability. XHP hydraulic system provides high flow and high pressure that delivers industry leading hydraulic horsepower to efficiently run even the most power hungry work tools. Electronically controlled Cat C3.8 engine provides high horsepower and torque while meeting U.S. EPA Tier 4 Final/EU Stage IV emission standards. Cat “Intelligent Leveling” system (ILEV) provides industry leading technology, integration and features such as dual direction self level, work tool return to dig and work tool positioner.

RIDE CONTROL
Standard Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

HYDRAULIC SYSTEM
272D3 XE hydraulic system provides high flow and high pressure that
delivers industry leading hydraulic horsepower to efficiently run even
the most power hungry work tools.

OUTSTANDING VERSATILITY
Broad range of performance matched Cat Work Tools make the Cat Skid Steer Loader the most versatile machine on the job site.

EASY SERVICE
Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
