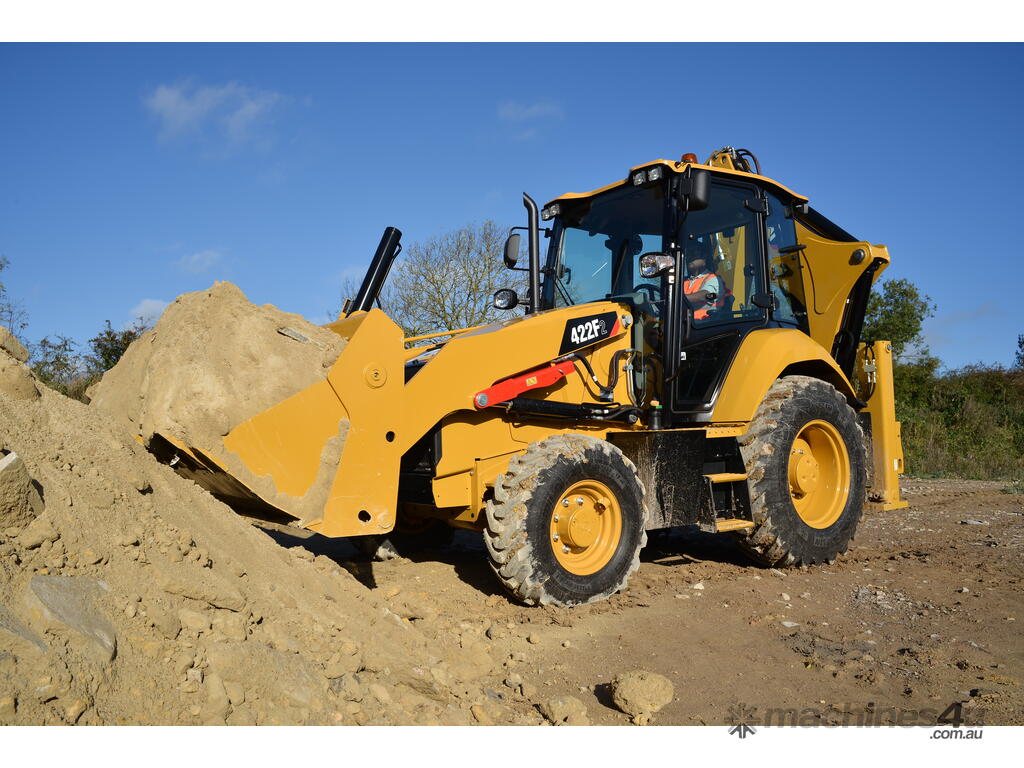

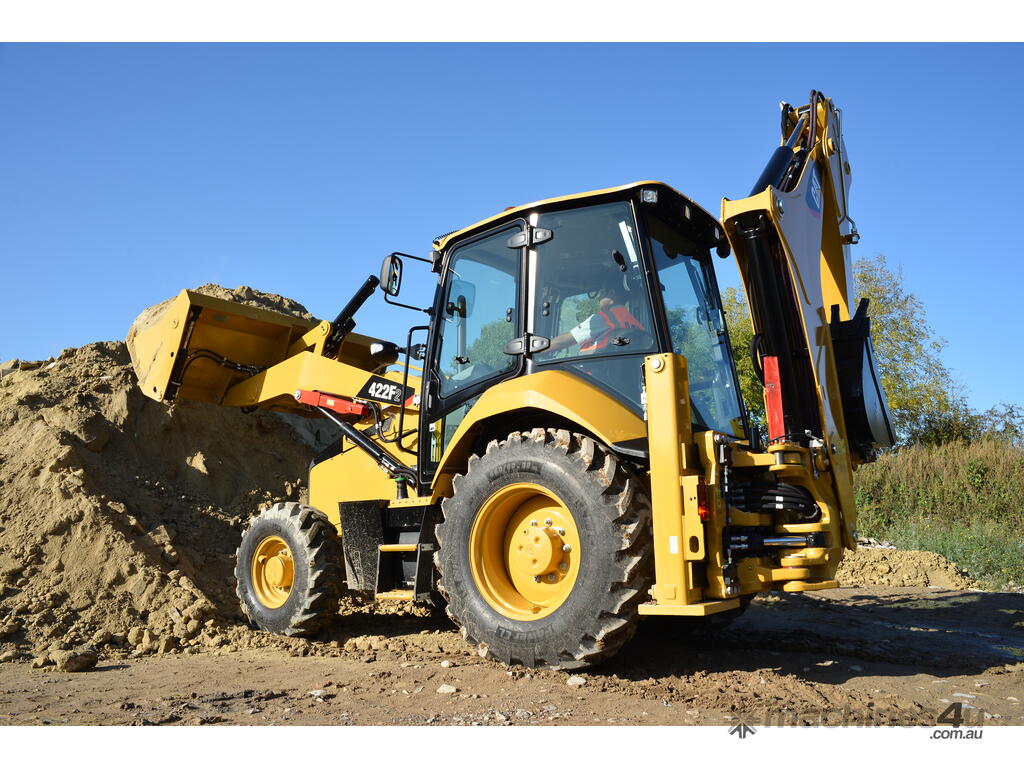

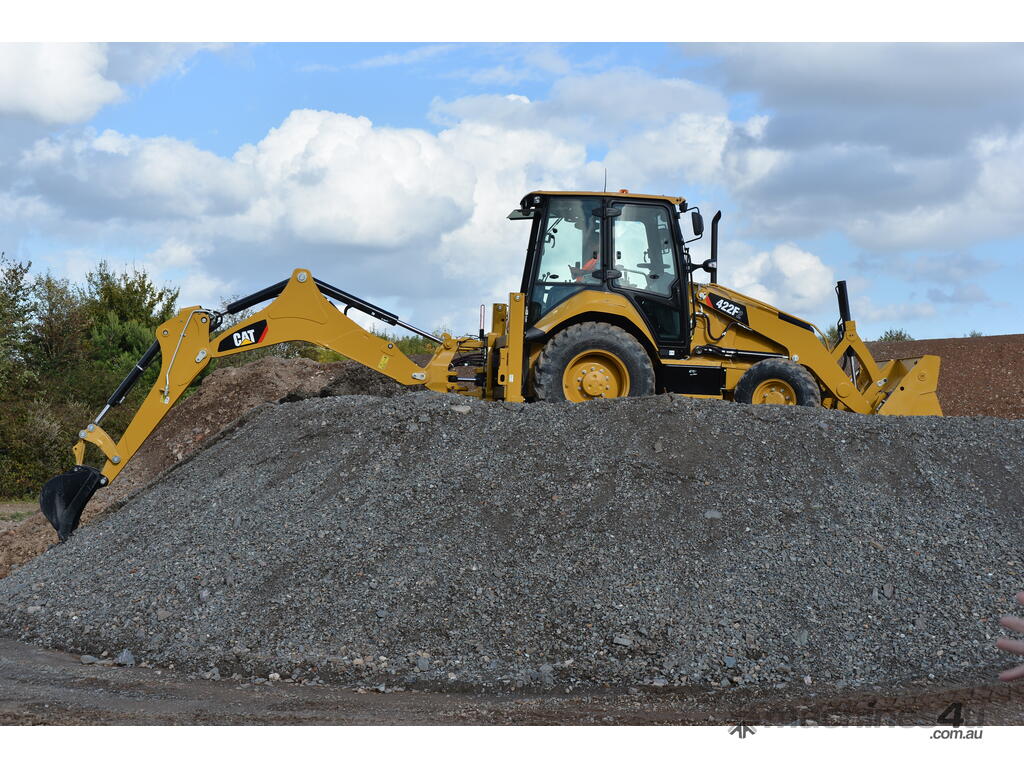

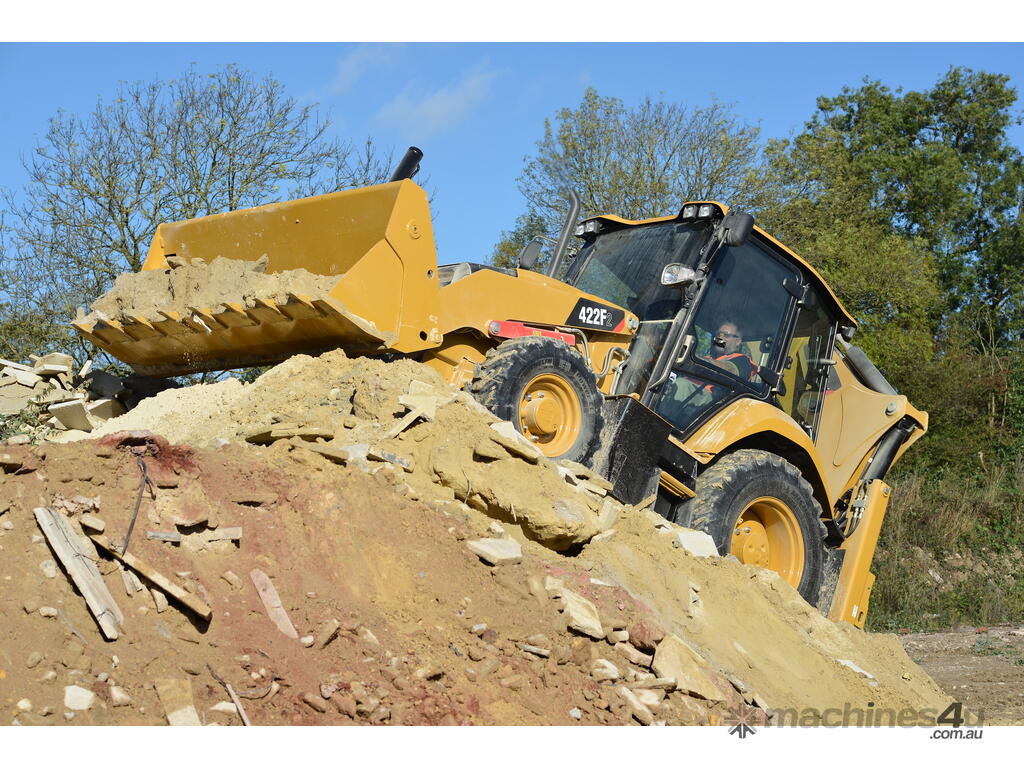

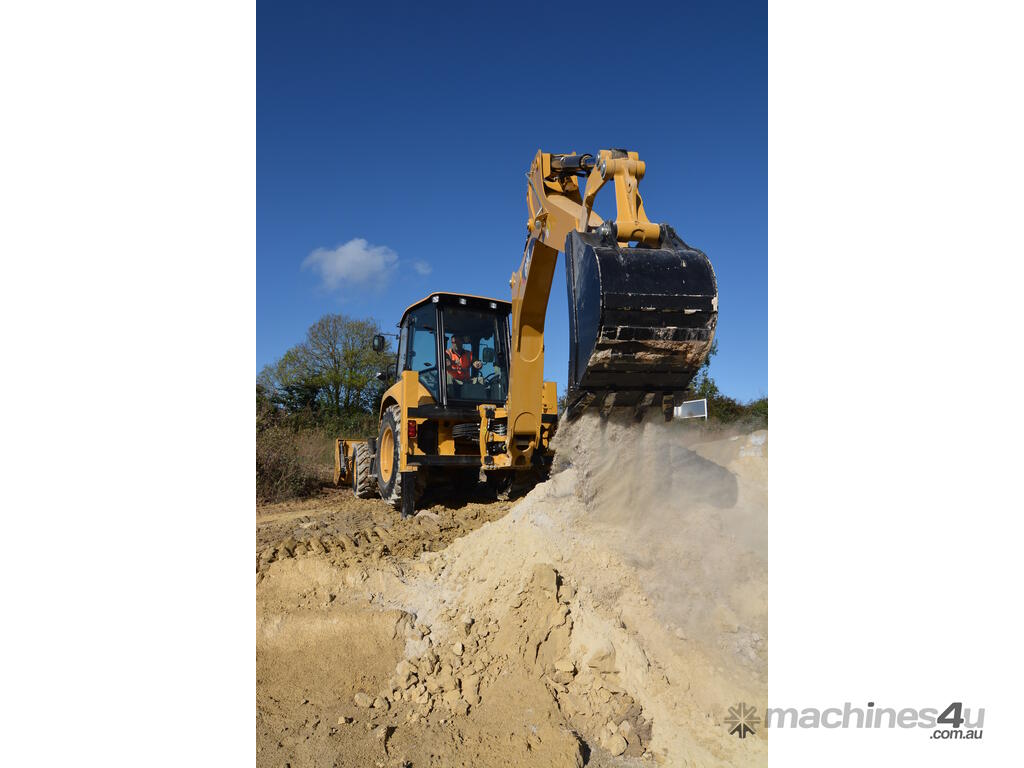

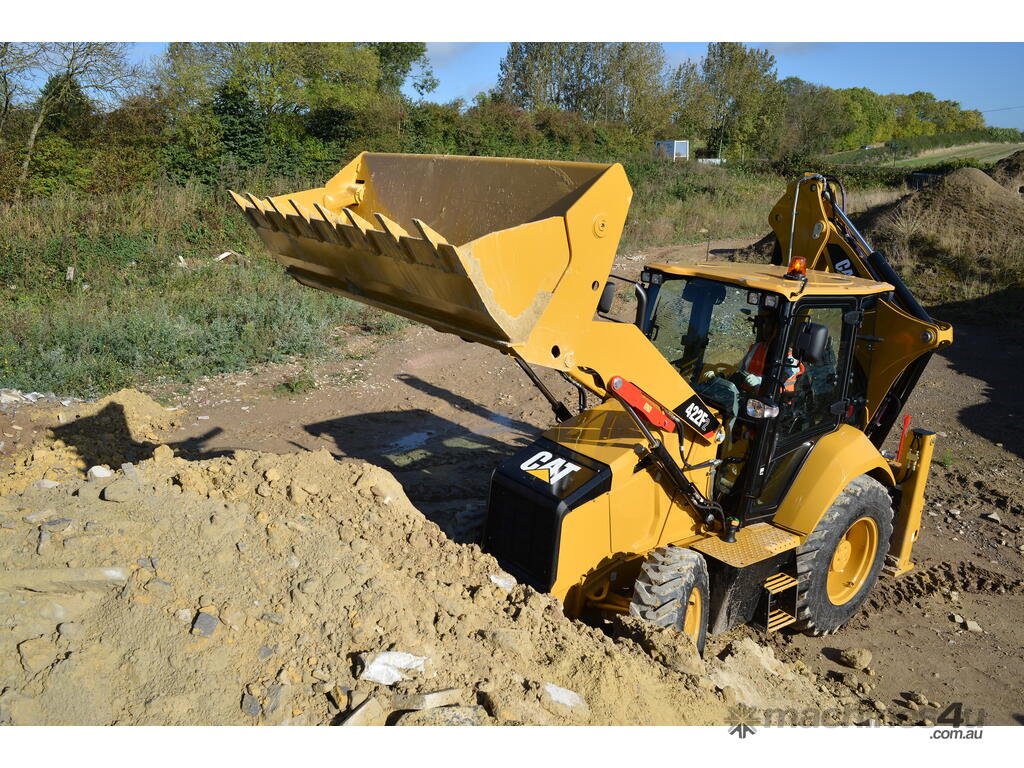

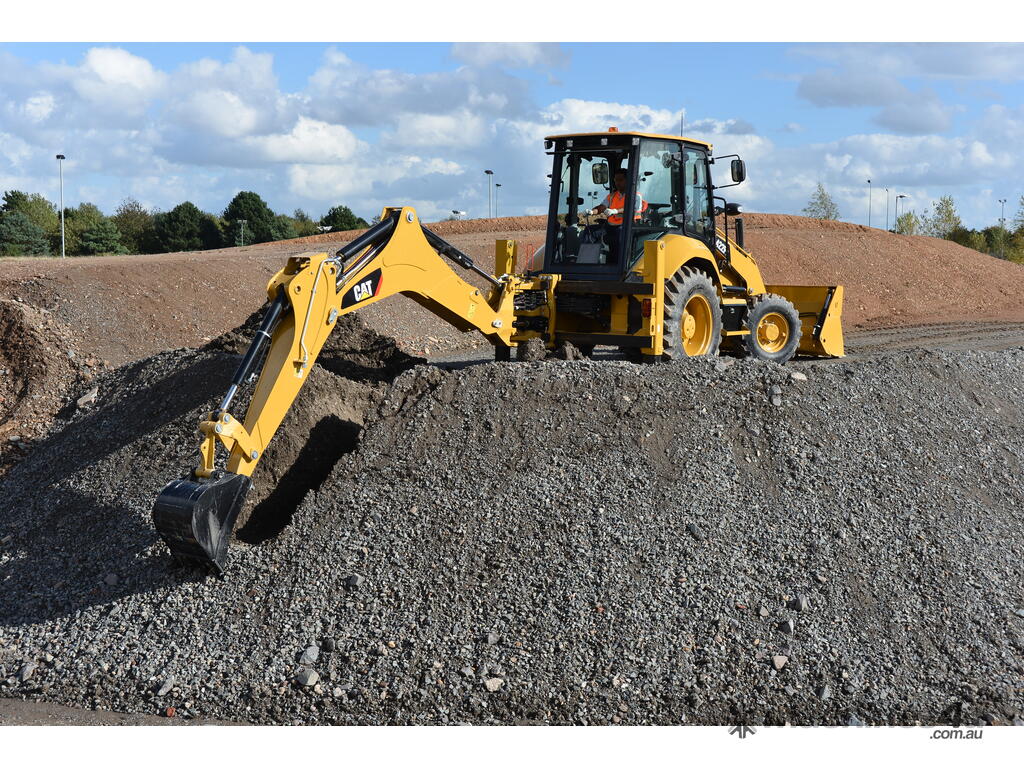

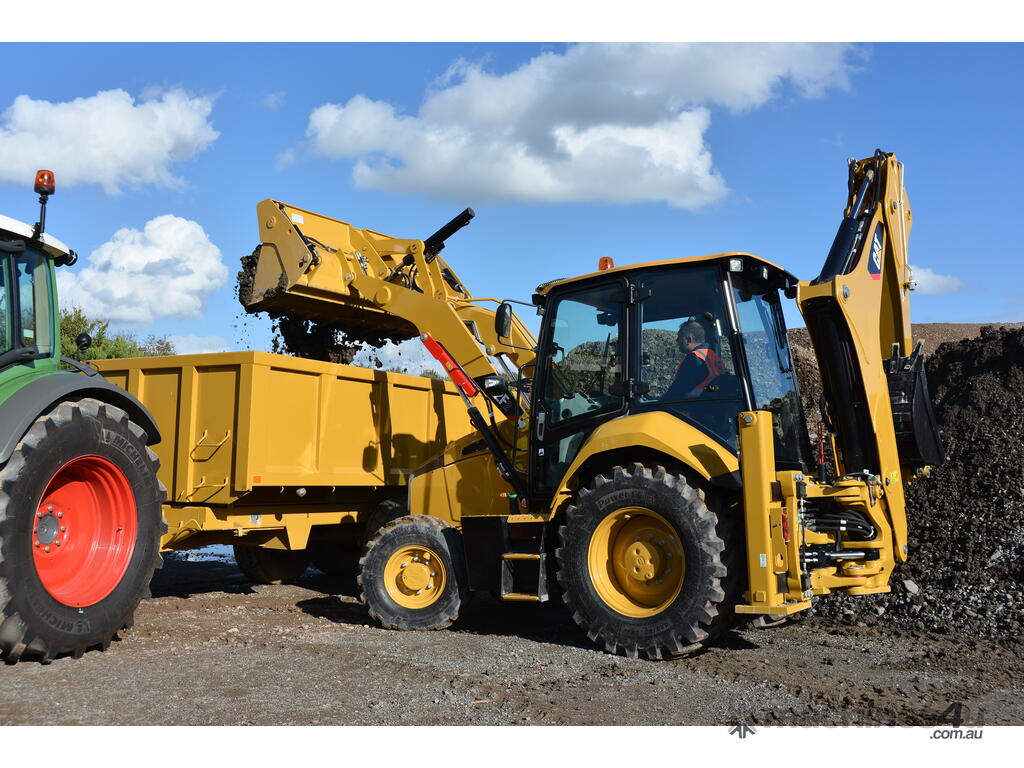

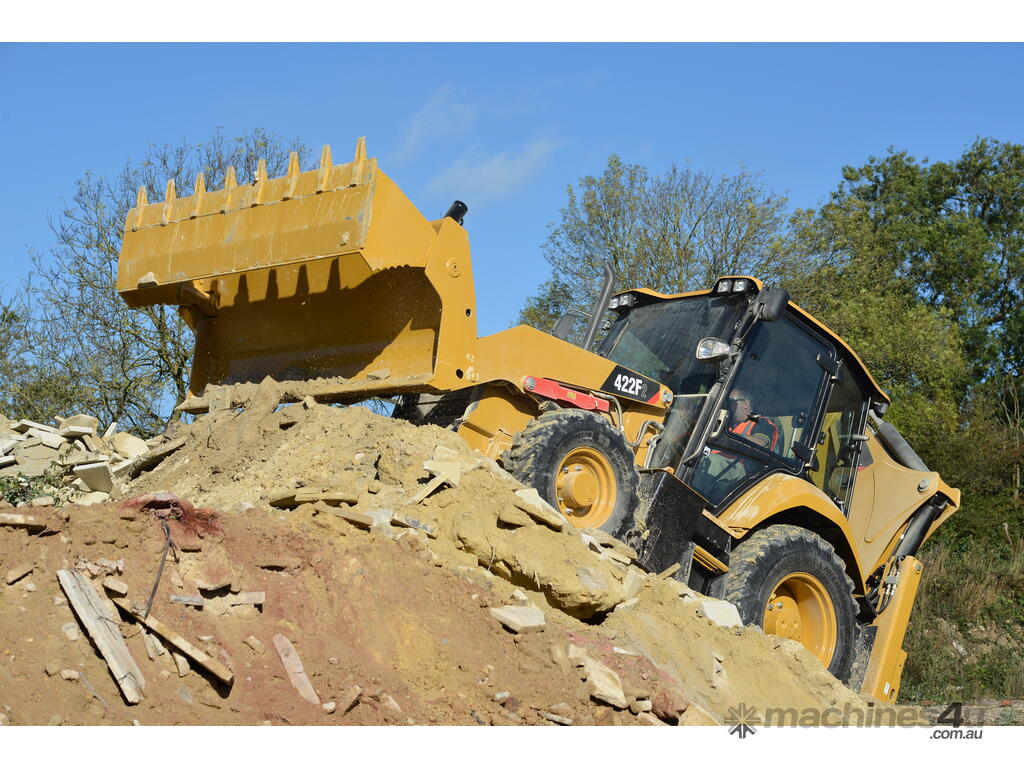

CATERPILLAR® 422F2 BACKHOE LOADER

OVERVIEW
Caterpillar has a well proven history in the construction equipment industry and has been producing the highest quality machines for 90 years, making progress possible and driving positive and sustainable change on every continent. For 30 years Caterpillar has produced the British built backhoe loader. From the A Series to this new F2 Series we have done our best to produce a machine that is designed with the operator in mind, providing reliability, power and a quality operator environment. We have combined 30 years of passion, expertise and experience to create the latest Backhoe Loader offering from Caterpillar, the F2.

ENGINE
UNITS: US METRIC
Power - Net - 52.9 kW

ENGINE - EU STAGE II STANDARD OFFERING*
Bore - 105.0 mm
Displacement - 4.4 l
Maximum Torque - 1,400 rpm - 288.0 N·m
Model - 3054C 56.5 kW Naturally Aspirated
Net Power - 2,200 rpm - 80/1269/EEC - 52.9 kW
Net Power - 2,200 rpm - ISO 9249 - 52.9 kW
*Meets Stage II/Tier 2 equivalent emission standards.
Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 - 56.5 kW
Stroke - 127.0 mm
Torque Rise - 1,400 rpm - Net - 27%

WEIGHTS
Operating Weight - Nominal - 7529.0 kg
Operating Weight - Maximum - 11000.0 kg


CAB
Cab, Standard
Cab ROPS and FOPS are standard. ROPS (Rollover Protective Structure) offered by Caterpillar for this machine meets ROPS criteria ISO 3471:1994 and FOPS (Falling Objects Protective Structure) criteria ISO 3449:1992.
Beacon Socket (×2)
Cab Heater
Cab Internal Light
Cup Holders (×2)
Differential Lock Button on Loader Control
Removable Floor Mat
Front and Rear Side Opening Windows
Front Headlights (May vary depending on region)
Full Width Perforated Sun Visor
Fully Adjustable Halogen Work Lights (×8)
Cab, Fully Glazed
Gauge Cluster
Horn, Front
Horn, Rear
Instrument Panel Vandal Guard
Internal Power Socket (×1)
Rear Tail Lights (LED)
Left and Right Opening Doors
Left Hand Storage Console
Safety Lock, Hydraulics
Safety Lock, Transmission
Seat, Fabric
Self Cancelling Directional Indicator
Steering Wheel Column, Tilt Adjustment
Window Wipers, Rear
Window Wipers, Front

TIRES/STEERING/BRAKES
100% Differential Lock
Hydraulic Boosted Brakes (dual pedals)
Tires 26 inch

ENGINE/TRANSMISSION
Battery 750 CCA, Maintenance Free (standard)
Engine 56.5 kW (77 hp) Cat 3054C DINA
Jump Start Connector
Transmission Neutralizer
Transmission, 4-Speed Manual
