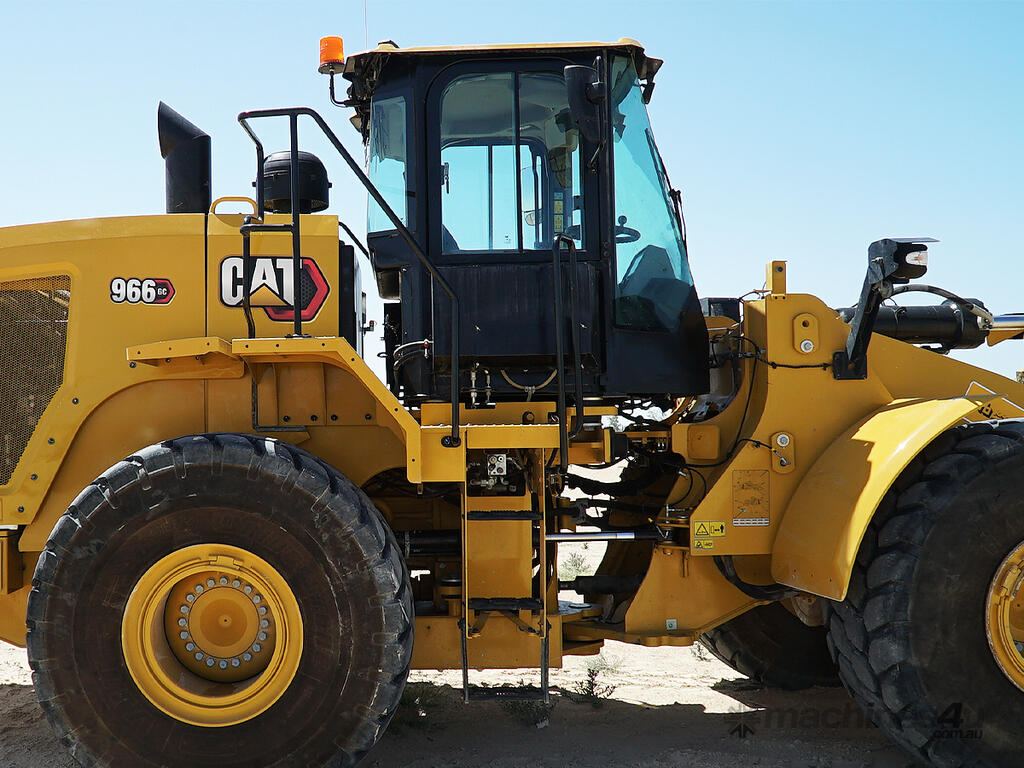

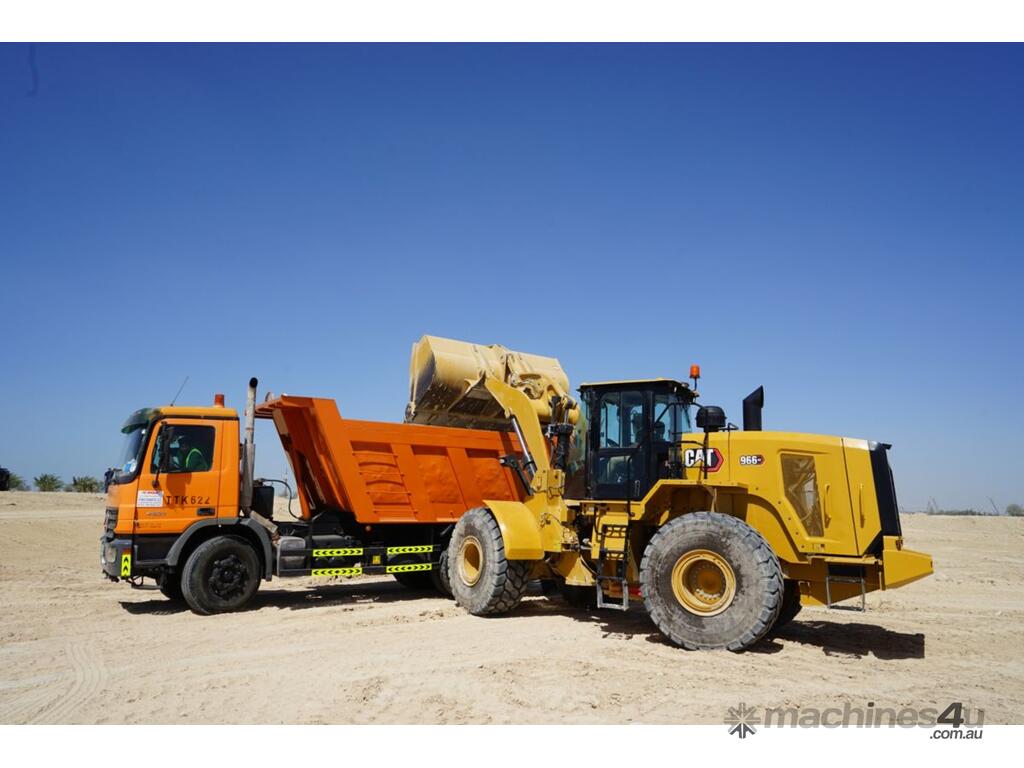

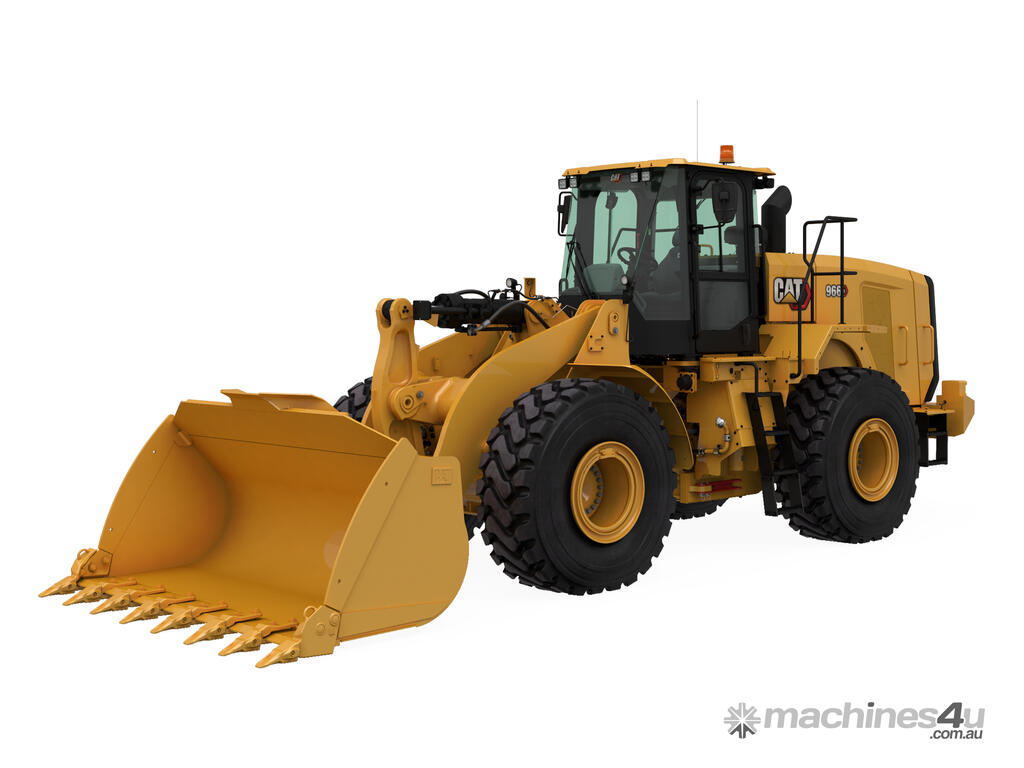

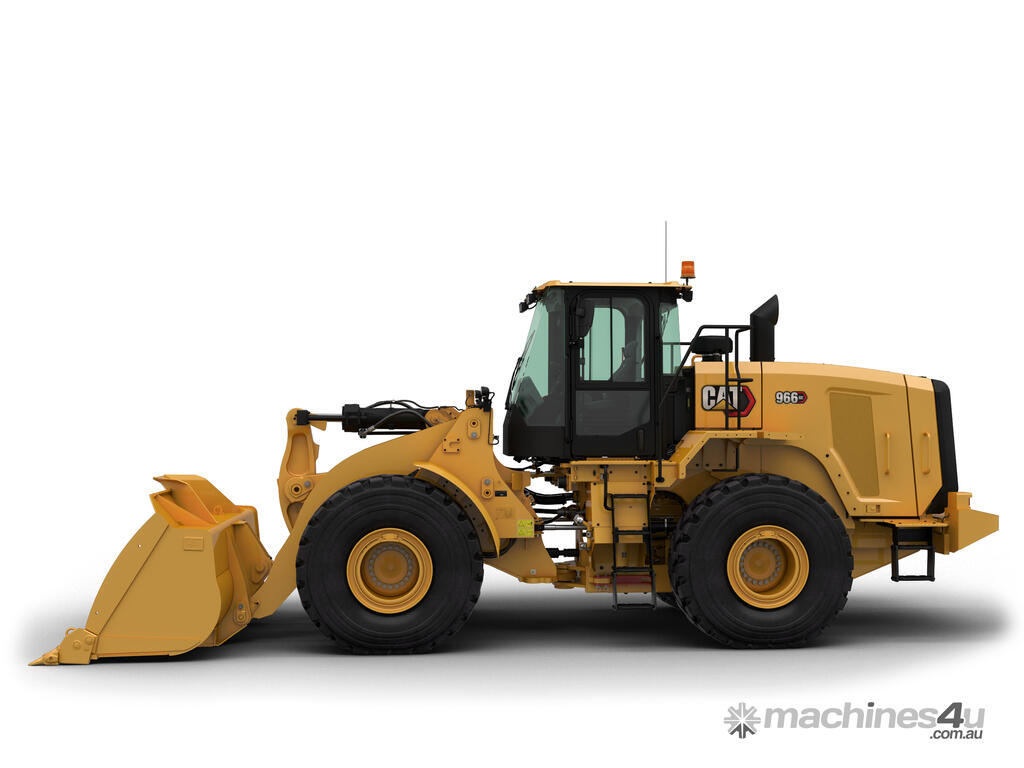

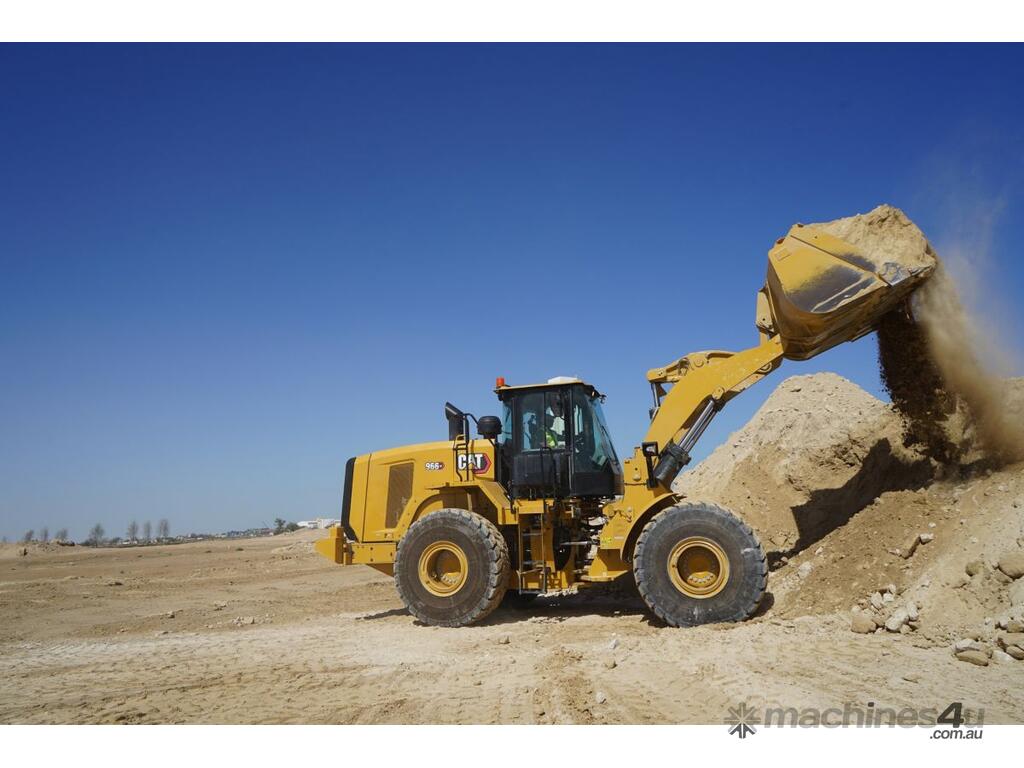

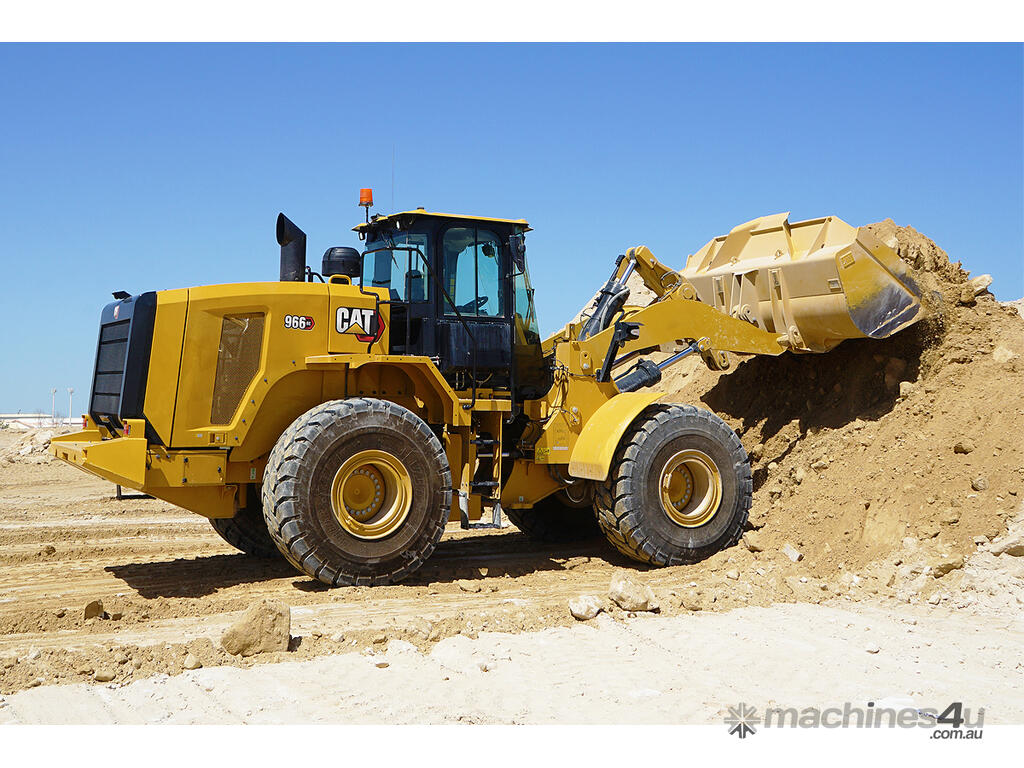

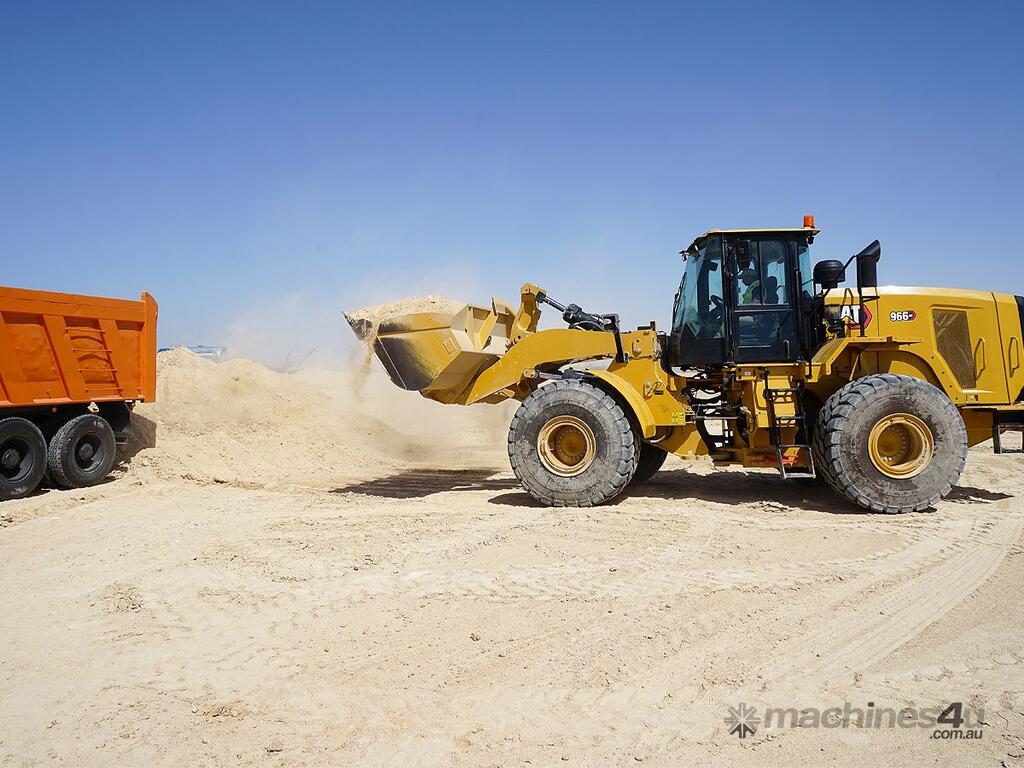

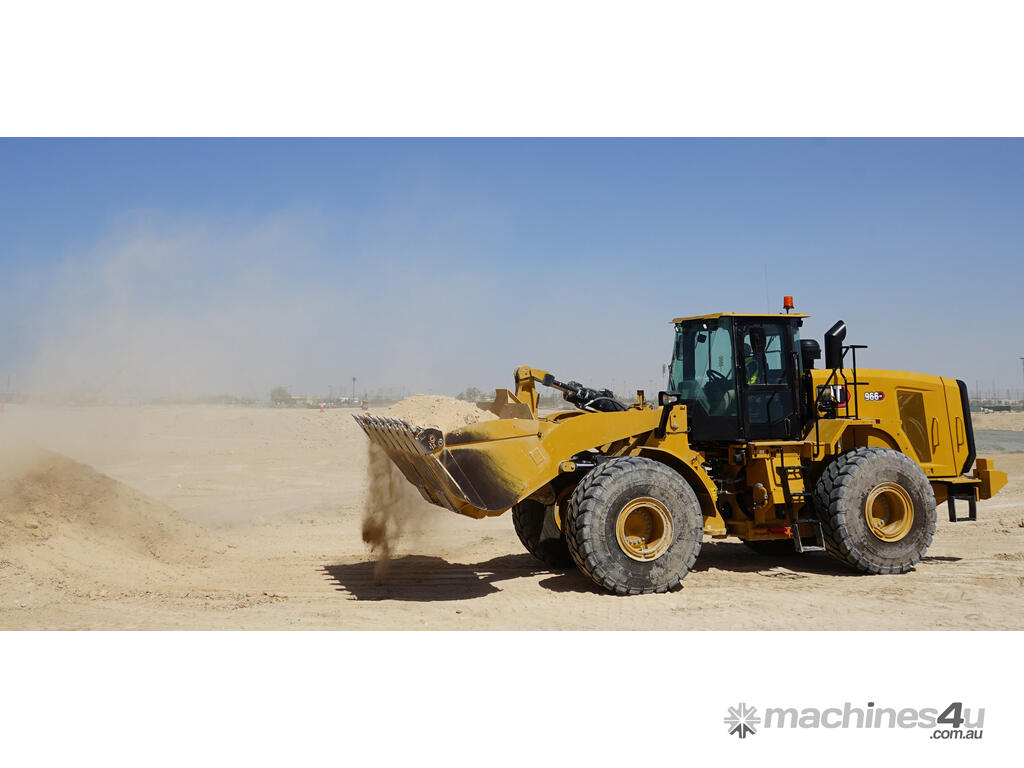

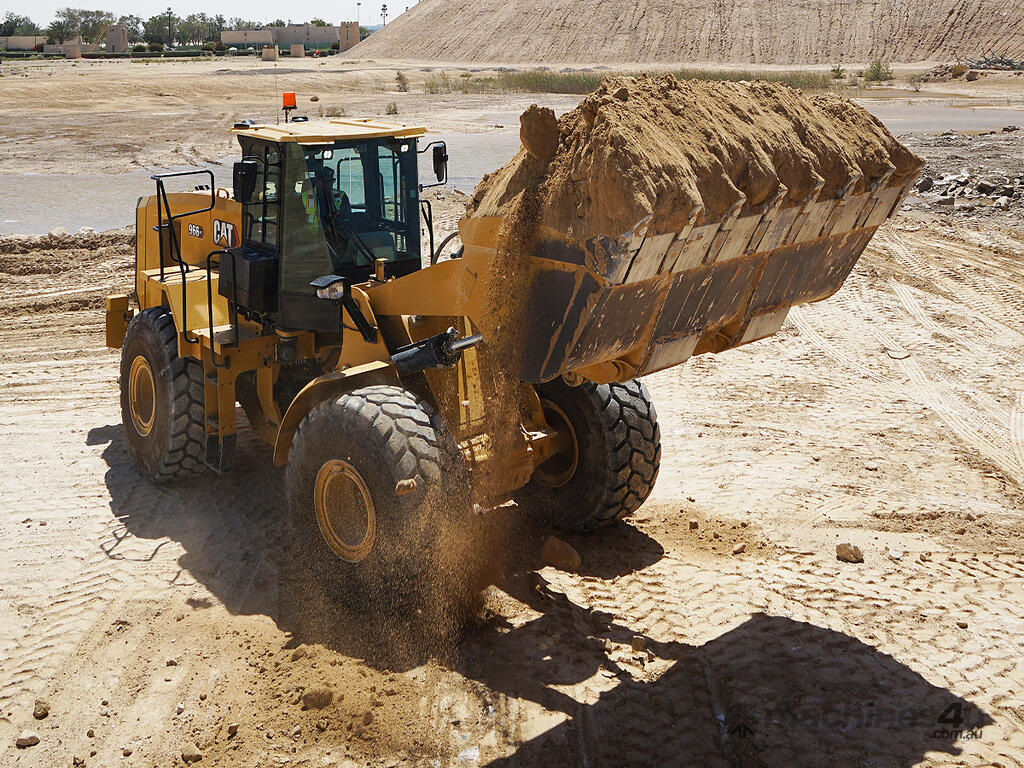

CATERPILLAR 966 GC WHEEL LOADER

The new Cat® 966 GC Wheel Loader is easy to own and operate. It offers low fuel consumption with an on-demand fan, load-sensing hydraulics, intuitive controls and performance series buckets. This machine is built to be just the right machine for a broad range of applications. Great machine performance combined with the low owning and operating costs makes the 966 GC the right choice for your business.

WEIGHTS
Operating Weight 21577 kg

PROVEN RELIABILITY
• Cat C9.3B engine offers high power density with a combination of proven and improved electronic, fuel, and air systems.
• Engine meets China Nonroad Stage III and Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
• Thorough component choice, design and in-machine validation processes result in excellent reliability and uptime.
• Advansys™ GET system features stronger adapters; tips with a new shape to better protect the adapter and an integrated retainer.

ACHIEVE GREATER PRODUCTIVITY
• The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. This results in low fuel consumption and exceptional production capabilities.
• Cat designed, electronically controlled, automatic powershift heavy duty planetary transmission features shift protection and single clutch gear shifting for efficiency, durability, and smooth gear changes.
• Optional Fusion™ quick-coupler and third hydraulic function can make the machine a versatile tool carrier for buckets, grapples or forks.

SUPERIOR FUEL EFFICIENCY
• Engine Idle Management System (EIMS) reduces idle RPM and fuel consumption.
• Variable speed fan adjusts to meet the varying cooling requirements of the machine resulting in a reduced average fan speed and lowered fuel consumption, noise levels, and radiator plugging.
• Load sensing hydraulics produce flow and pressure for the implement system upon demand and only in amounts necessary to perform the needed work functions.

EASY, COMFORTABLE OPERATOR ENVIRONMENT
• The spacious cab features easy, intuitive controls and excellent visibility which provides a comfortable working environment for efficient operation.
• A comfortable cloth covered suspension (mechanical) seat is standard, an optional air suspended seat is available.
• Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with kick-down switches.
• Unmatched viewing area with a wide, flat, and distortion-free front windshield.
• The glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
• Sliding side windows on both sides allow natural ventilation and easy communication to ground staff.
• The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
• Air conditioning and heating systems are standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.
• Optional windshield guard.

SAFETY FEATURES
• Ladders are standard on both sides of the machine; the main cab access features a 15-degree angle to easily access the operator environment.
• Steps are equipped with hand and/or guardrails to safely access the cab and maintenance points of the machine.
• The main cab door opens to the front and provides wide access to the operator environment.
• Front and back wipers ensure that a clear view is maintained.
• External rearview mirrors with integrated spot mirrors are standard.
• A rear vision camera is standard to enhance visibility behind the machine.

REDUCED MAINTENANCE TIME AND COSTS
• Grouped service points and sight gauges allow for easy daily maintenance.
• Convenient access to left, right, and rear of engine compartment provides excellent serviceability.
• Electrical service center, along with additional key serviceability features, help make servicing and in-field component exchange quick, easy, and efficient.
• A rear swing-up grill gives easy cleaning access to the cooling cores.
• Hinged wheel guards are easy to remove/re-install providing wide access to all maintenance points and to the engine compartment.
• Optional power train bottom guard protects the machine against damage to reduced downtime.
• Optional Cat Autolube system provides full lube system monitoring and diagnostic test visibility. One-button control, including fault flash function.
• Caterpillar design and manufacturing techniques assure outstanding service life.

CAT PRODUCTION MEASUREMENT KIT – OPTIONAL*
• On-the-go weighing** for precise load targets with proven accuracy, flexible installation, and easy calibration and setup.
• Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
• Increases productivity, weighing while lifting with no interruptions in loading cycle.
• High efficiency: load to exact specification, load more trucks faster, and move more material for more revenue.
• Improve efficiency with less rework; save time, labor, fuel, and costs.
• Simple installation.

*Not available in all markets
**Not legal for trade

966 GC STANDARD EQUIPMENT

OPERATOR ENVIRONMENT
Air conditioning (HVAC) with 10 vents and filter unit located outside of cab
Bucket/work tool function lockout
Switch, transmission neutralizer lockout
Cab, pressurized and sound suppressed
Camera, rearview
Coat hook
Computerized monitoring system
Cup holders and personal tray on right console and behind seat
Heater and defroster
Horn
Mirrors, rearview external
Pilot hydraulic controls, lift and tilt function; two (2) single axis levers or joystick
12V power port (10A)
Radio ready
ROPS/FOPS structure
Seat, Cat Comfort (cloth), mechanical suspension
Steering column, adjustable angle
Window, sliding (left and right sides)
Wipers/washers (front and rear)

POWER TRAIN
Brakes, full hydraulic enclosed wet-disc
Cat C9.3B equivalent to Tier 3
EIMS (Engine Idle Management System)
Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
Filter, fuel primary/secondary/tertiary
Filters, engine air, primary/secondary
Fuel priming pump (electric)
Fuel/water separator
Muffler, sound suppressed
Radiator, unit core (9.5 fpi) with ATAAC
Torque converter
Transmission, automatic, power shift (4F/4R), kick-down function, overspeed protection
LINKAGE
Lift and bucket return-to-dig kickouts (electro?magnetic), mechanical adjustment
Z-bar, cast tilt lever

HYDRAULICS
Dedicated brake and fan piston pump
Dedicated load sensing steering pump
Load sensing implement system pilot operated
S O·SSM oil sampling valves

ELECTRICAL
Alarm, back-up/main disconnect switch
Alternator (115-amp, brush type)
Batteries, maintenance free (2×1,125 CCA)
Ignition key; start/stop
Lighting system: 4 halogen work lights, cab mounted
Lighting system: 2 halogen work lights, loader tower mounted
Starter, electric (heavy duty)
Starting and charging system, 24V

ADDITIONAL EQUIPMENT
Counterweight, 700 kg (1,545 lb)
Fenders (front and rear) steel
Grill, airborne debris
Hitch, drawbar with pin
Hood, non-metallic on steel structure
Doors, service access (locking)
L3 bias or radial tires
Product Link™ ready

966 GC OPTIONAL EQUIPMENT

OPERATOR ENVIRONMENT
Radio
Seat, air suspended
Steering, secondary, electrical

POWER TRAIN
Fan, reversing automatic and manual control

LINKAGE
Fusion quick coupler control

HYDRAULICS
Quick coupler control
Ride control
3rd function with additional dedicated single axis lever

ELECTRICAL
Lighting system: 8 halogen work lights, cab mounted
Lighting system: 4 LED work lights, cab mounted
Lights: warning beacon
Roading lights with high/low beam and F and R turn signals

ADDITIONAL EQUIPMENT
Autolube system
Cold weather starting basic (ether starting aid)
Cold weather starting full (HD batteries 2×1,400 CCA, ether system, jacket water heater, cold weather fluids)
Fender extensions or roading
L5 traction tires
Power train guard
Precleaner, turbine
Toolbox
Windshield guard
