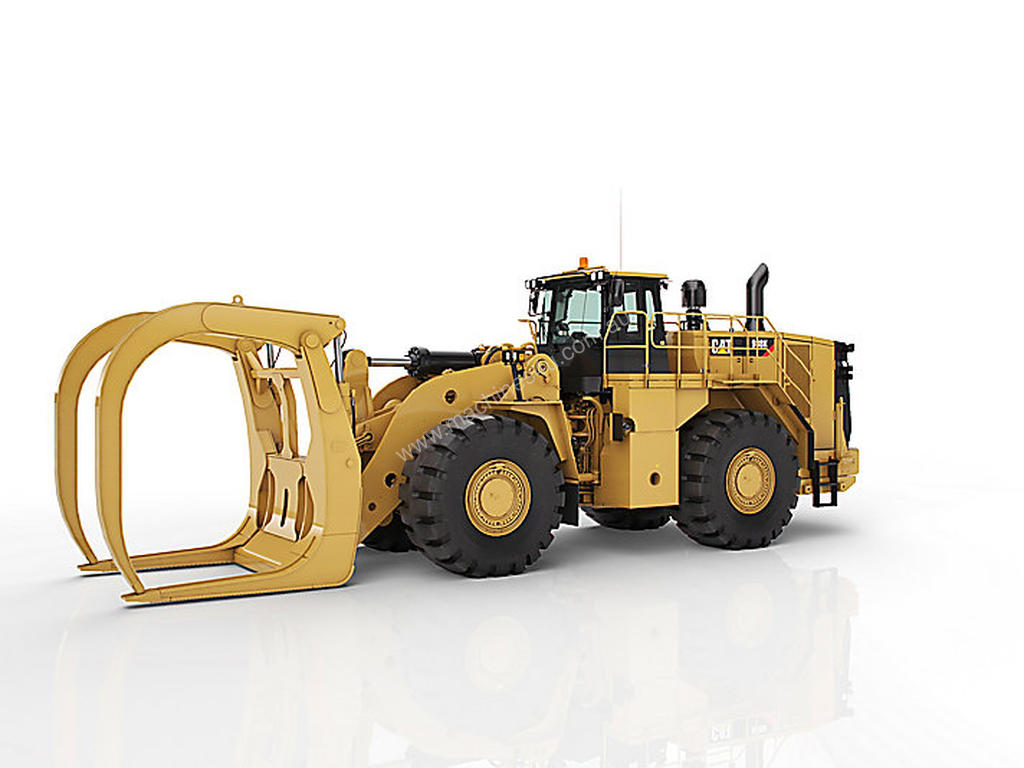

CATERPILLAR 988K MILLYARD ARRANGEMENT WHEEL LOADER

OVERVIEW
Introduced in 1963, the 988 has been the industry leader for 50 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 988K continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency. The 988K Millyard Arrangement is designed to meet the demands of millyard applications. The features of the 988K Millyard work together to provide a durable and reliable machine to meet the needs of the modern millyard.


OPERATING SPECIFICATIONS
Operating Weight - 63600.0 kg


ELECTRICAL
Alarm, back-up
Alternator, single 150 amp
Batteries, dry
Converter, 10/15 amp, 24V to 12V
Lighting system (halogen, work lights, access and service platform lighting)
Starting and charging system, 24V
Starter emergency start receptacle
Starter lockout in bumper
Transmission lockout in bumper

OPERATOR ENVIRONMENT
Graphical Information Display, displays real time operating information, performs calibrations and customizes operator settings
Air conditioner
Cat Detect Vision, rear vision camera system
Cab, sound suppressed and pressurized, integrated rollover protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12-volt 5-amp) and power port
Controls, lift and tilt function
Heater, defroster
Horn, electric
Instrumentation, gauges: - Coolant temperature - Engine hour meter - Hydraulic oil temperature - Power train oil temperature
Light, cab, dome
Lunchbox, beverage holders
Mirrors, rearview (externally mounted)
Rimpull Control System
Seat, Cat Comfort (cloth), air suspension, six-way adjustable
Seat belt, retractable, 76 mm (3 in) wide
STIC Control System
UV glass
Transmission gear indicator
Vital Information Management System (VIMS) with Graphical Information Display: External Data Port, Customizable Operator Profiles, Cycle Timer, Integrated Payload Control System
Wet-Arm wipers/washers (front and rear): - Intermittent front and rear wipers
Lights, directional

POWER TRAIN
Swing out radiator system with 6 fpi radiator cores
Auto-reversing fan with adjustable controls and manual cycle
Hinged, perforated side doors
Brakes, oil-cooled, multi-disc, service/secondary
Case drain screens
Crankcase guard
Electro hydraulic parking brake
Engine, C18 MEUI diesel, turbocharged/aftercooled
Ground level engine shutoff
Turbine precleaner, engine air intake
Radiator, Next Generation Modular (NGMR)
Starting aid, ether, automatic
Throttle lock, electronic
Torque converter, Impeller Clutch (ICTC) with Lock up clutch (LUC), Rimpull Control System
Transmission, planetary powershift, 4F/3R electronic control

OTHER
Automatic bucket lift kickout/positioner
Base machine price includes a rim allowance
Hydraulically driven demand fan
Couplings, Cat O-ring face seals
Doors, service access (locking)
Ecology drains for engine, radiator, hydraulic tank
Fuel tank, 731 L (188 gal)
Hitch, drawbar with pin
Hoses, Cat XT™
Hydraulic, steering and brake filtration/screening system
Cat Clean Emission Module
Oil sampling valves
Premixed 50% concentration of extended life coolant with freeze protection to -34° C (-29° F)
Rear access to cab and service platform
Steering, load sensing
Toe kicks
Vandalism protection caplocks

988K MILLYARD ARRANGEMENT OPTIONAL EQUIPMENT
POWER TRAIN
-50° C (-58° F) antifreeze
Engine oil change system, high speed, Wiggins
Engine block heater 120V or 240V
High ambient cooling - software

OPERATOR ENVIRONMENT
Cab precleaner
AM/FM/CD/MP3 radio
Satellite Sirius radio with bluetooth
LED warning strobe
CB radio ready
Window pull down visor

MISCELLANEOUS ATTACHMENTS
Front and rear roading fenders
Fast fill fuel system (Shaw-Aero)
