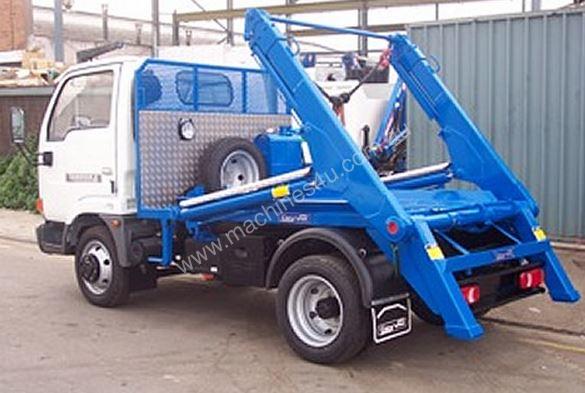

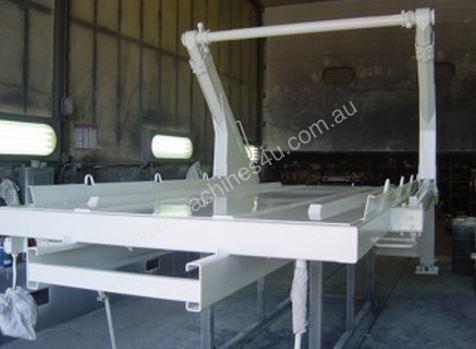

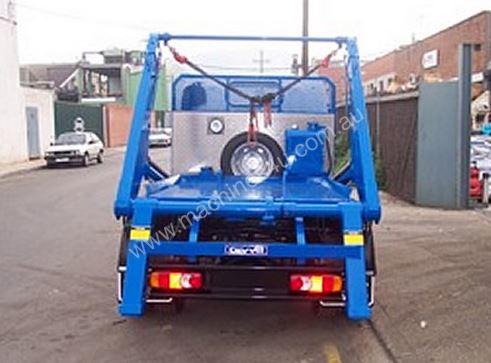

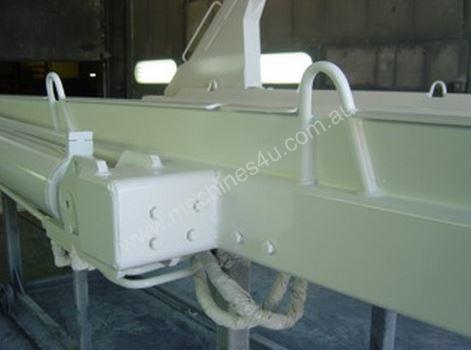

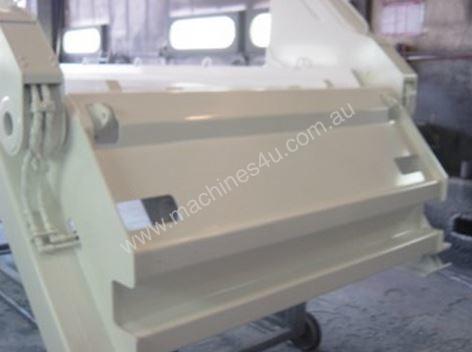

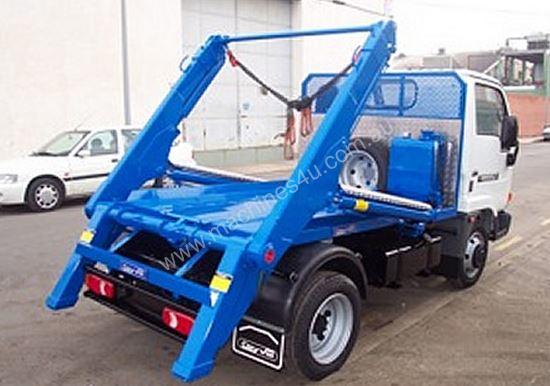

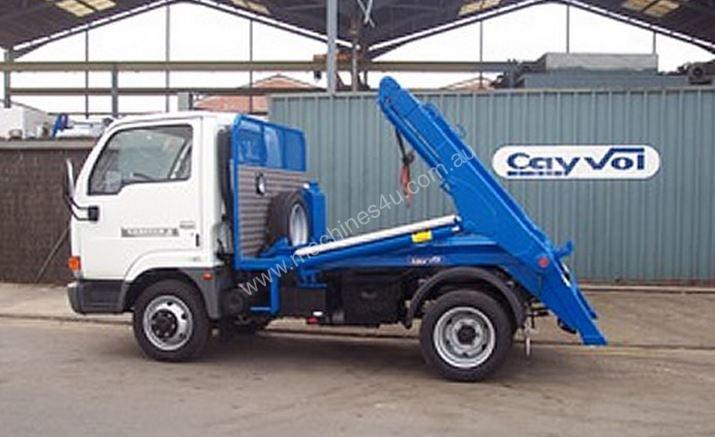

CAYVOL - JWS 03 Skip Loader

Weights and capacities *
System weight...................................................... 800 kg
Nominal container.......................................... 1.6 a 2 m³
Angular displacement of the container(BTI) ............ 19º

Load capacity:

LENGTH GROUND TRENCH
1755 3000 kg 1740 kg
2355 2130 kg 1270 kg
Without consider vehicle stability.
Data not valid for the MIXTO type.

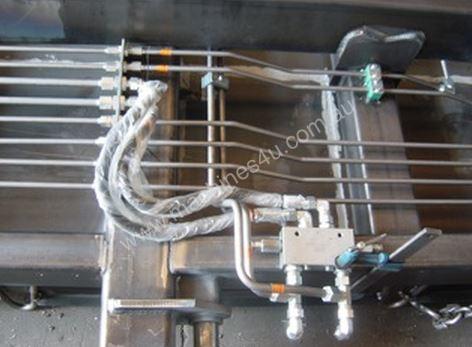

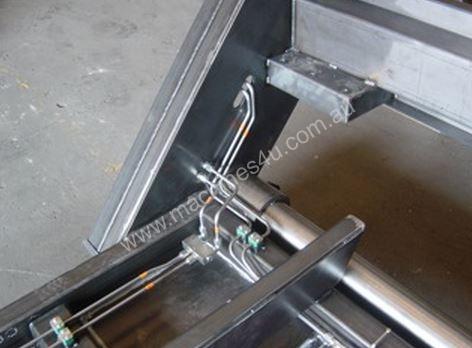

Hydraulic system:
Oil flow required (at 1000 r.p.m.)......................... 20l/min
Maximum operating pressure ....................... 250 kg/cm²

Oil flow required is not referred to the pump size, but to the recommended flow at valve block entrance.

Capacity:
Oil tank capacity ..................................................... 35 l

Working times: (values at 1000 r.p.m.)
a) Tip time ................................................................. 32 s
b) Load time ............................................................. 22 s

Vehicle:
G.V.W. .....................................................3500 a 6000 kg.
Wheelbase .........................................SECOND VEHÍCLE
Approximate values. Subject to axle load calculation.

(*) DATA REFERRED TO THE DEVICE WITHOUT INSTALLATION
DIMENSIONS QUOTED WITHOUT COMMITMENT.
