CAYVOL - JWS 10 Skip Loader

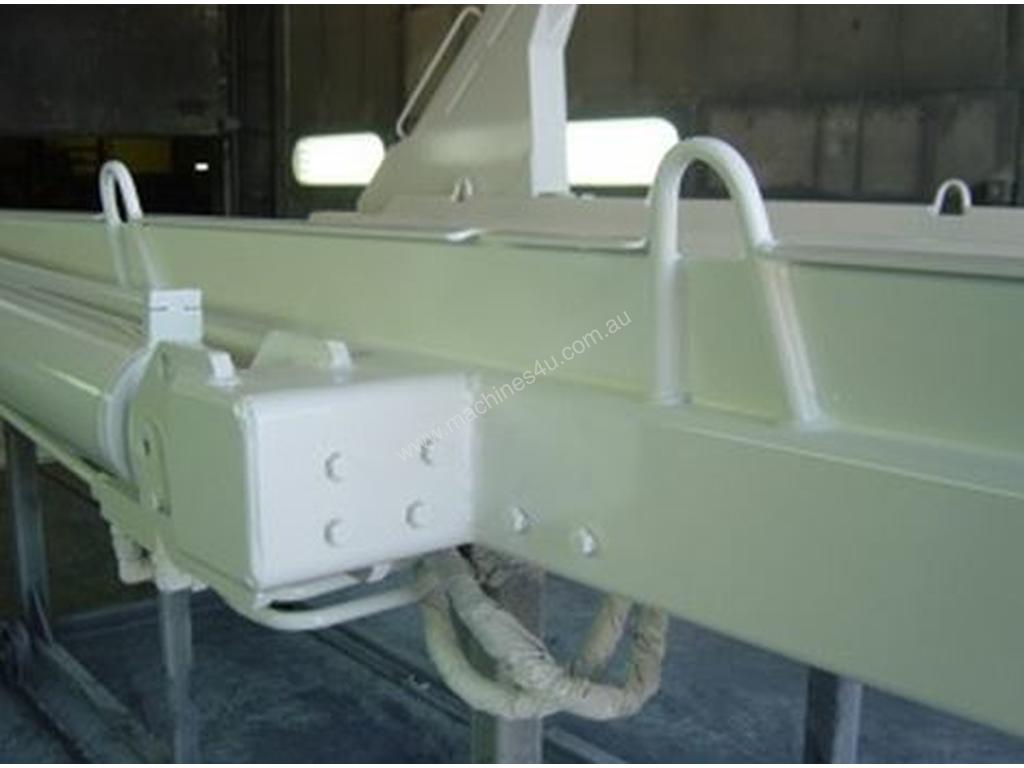

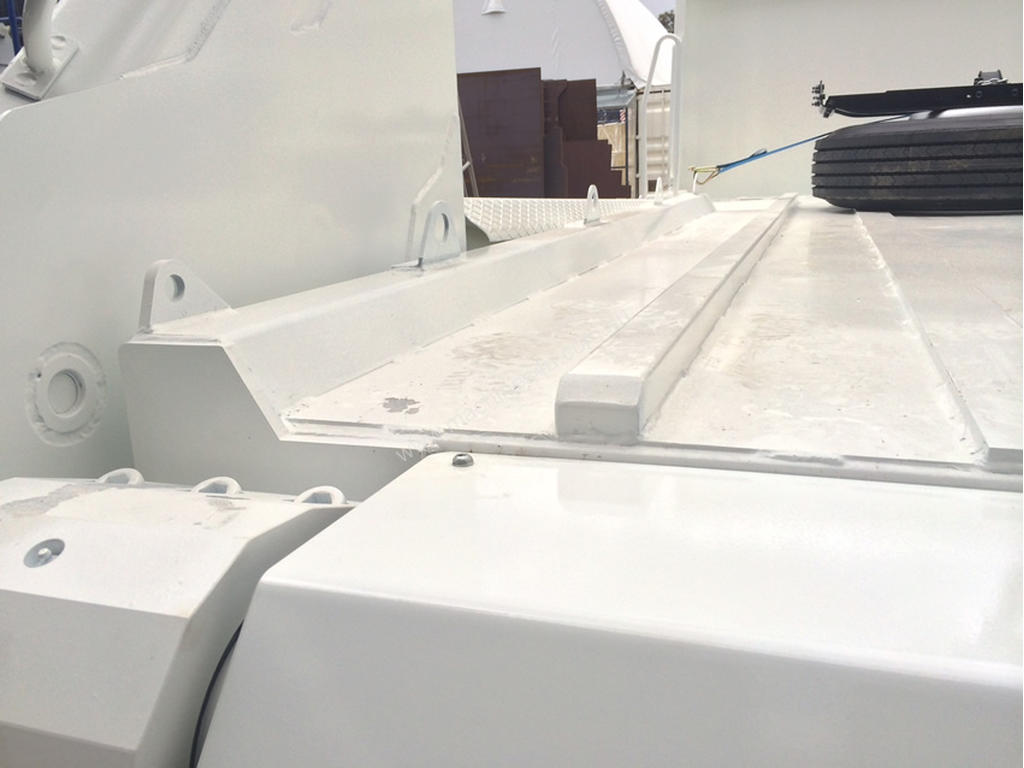

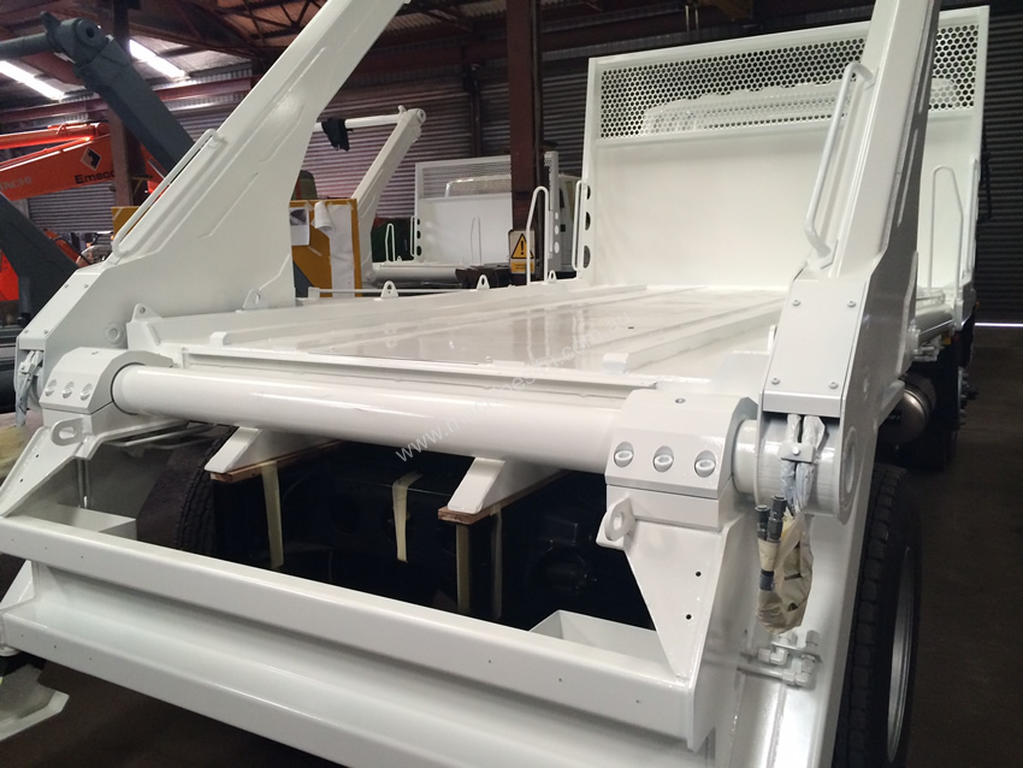

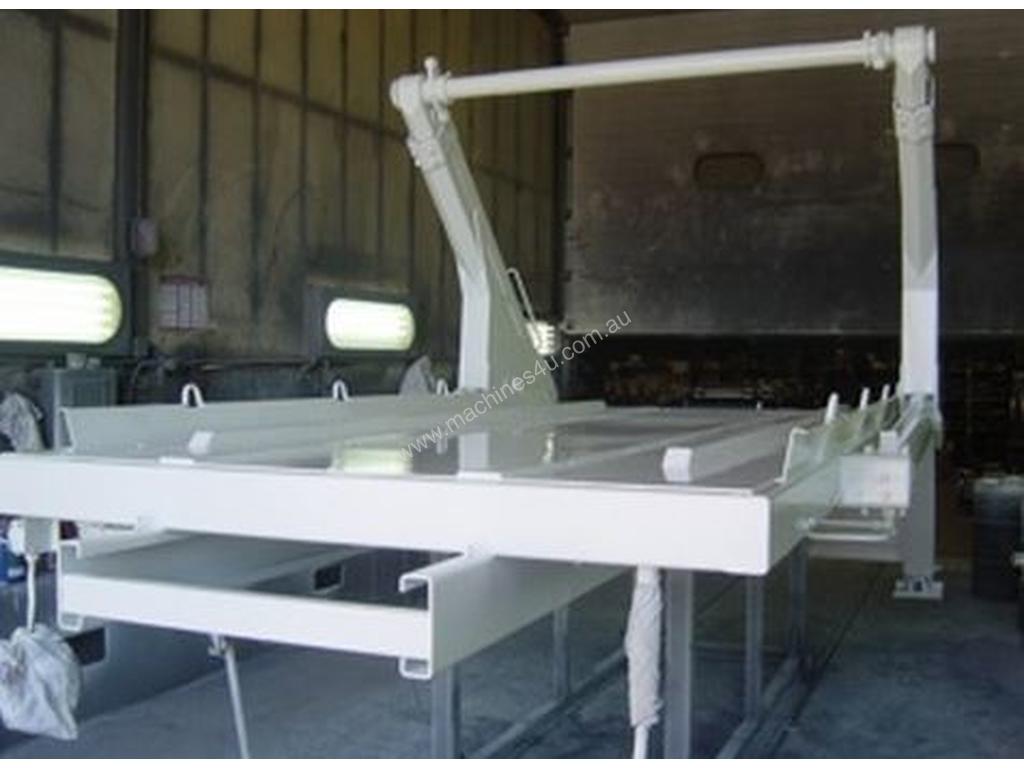

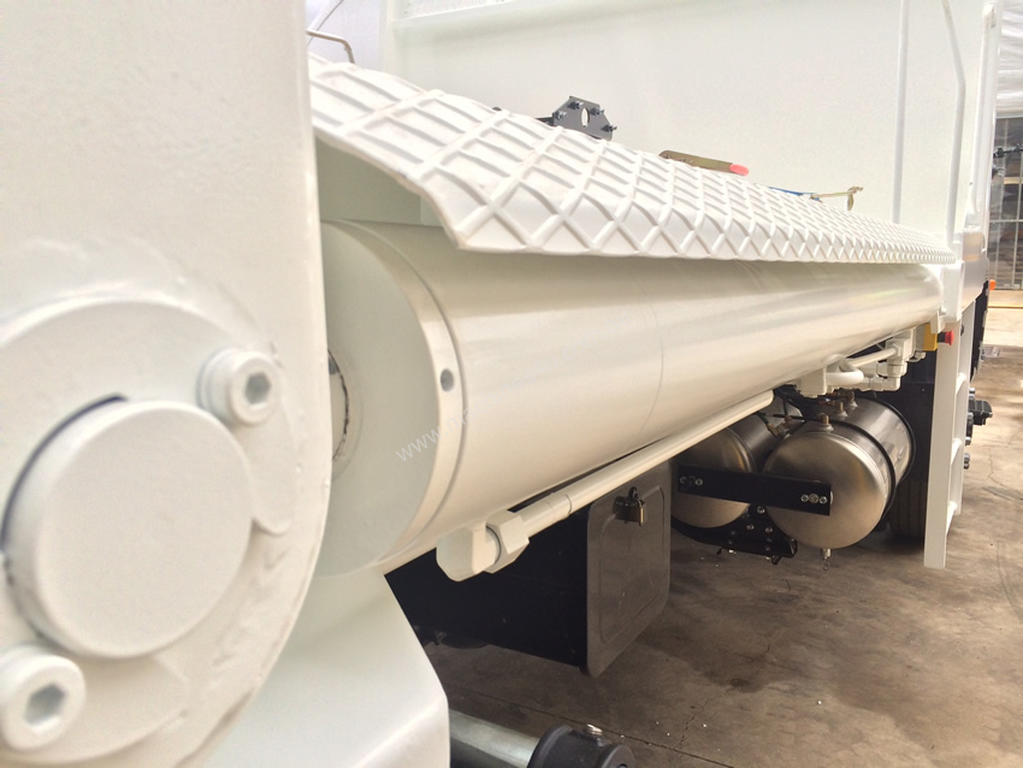

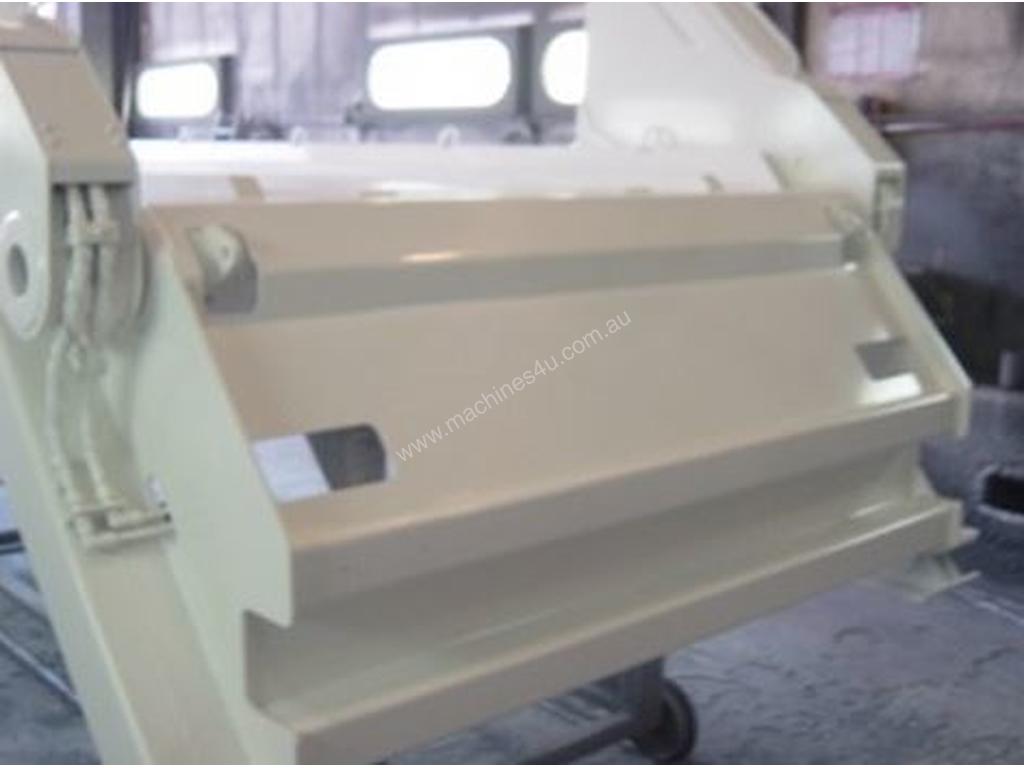

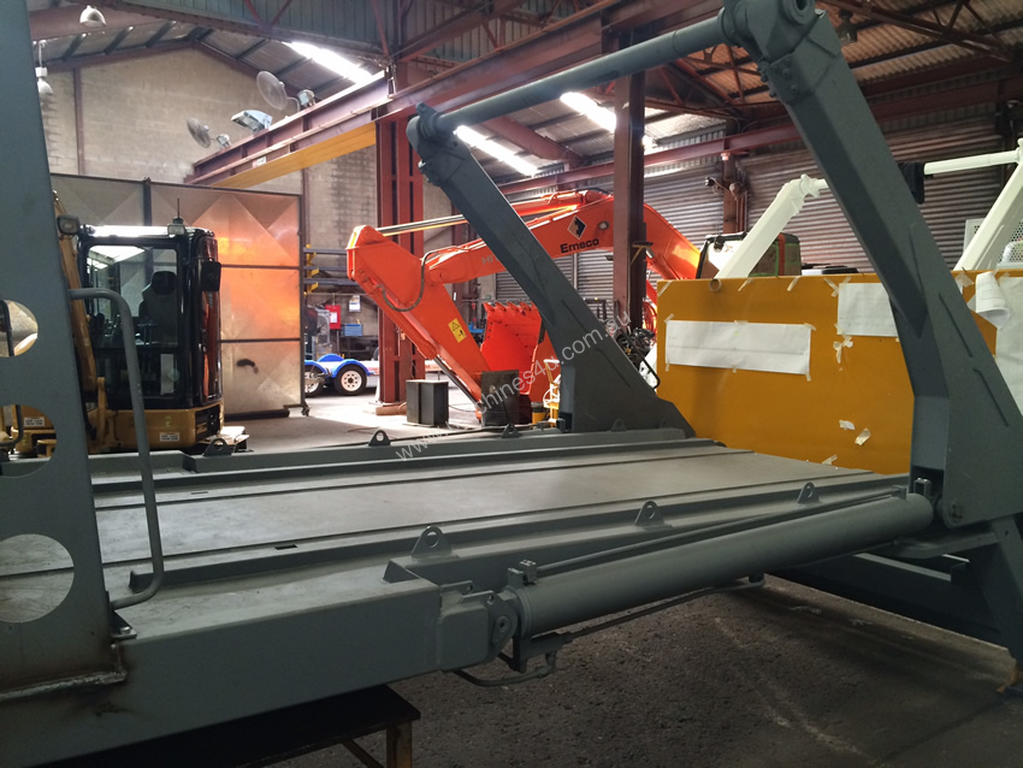

Jaws Skip Loaders are designed and manufactured skip-truck equipment by CAYVOL Grup . The range is made up of units under strict compliance with EC regulations, with a lifting capacity from 3 to 18 tons. All are equipped with hydraulic telescopic arms of hexagonal design and manufacturing and independently activated rear support feet.

Likewise standard equipment includes pneumatically activated DIN type balancing hook(s). They are equipped with standard pneumatic controls inside the cabin and hydraulic ones outside for their correct manipulation.

The entire skip loader range is developed using cutting edge systems and computer design programmes and high quality steel with high elasticity limits, that way obtaining reliability and durability at the same time as light weight.


Weights and capacities *
System weight...................................................... 1720 kg
Nominal container.......................................... 3 a 5 m³


Load capacity:

LENGTH GROUND TRENCH
2600mm 8000 kg 6250 kg
3800mm 4620 kg 4150 kg


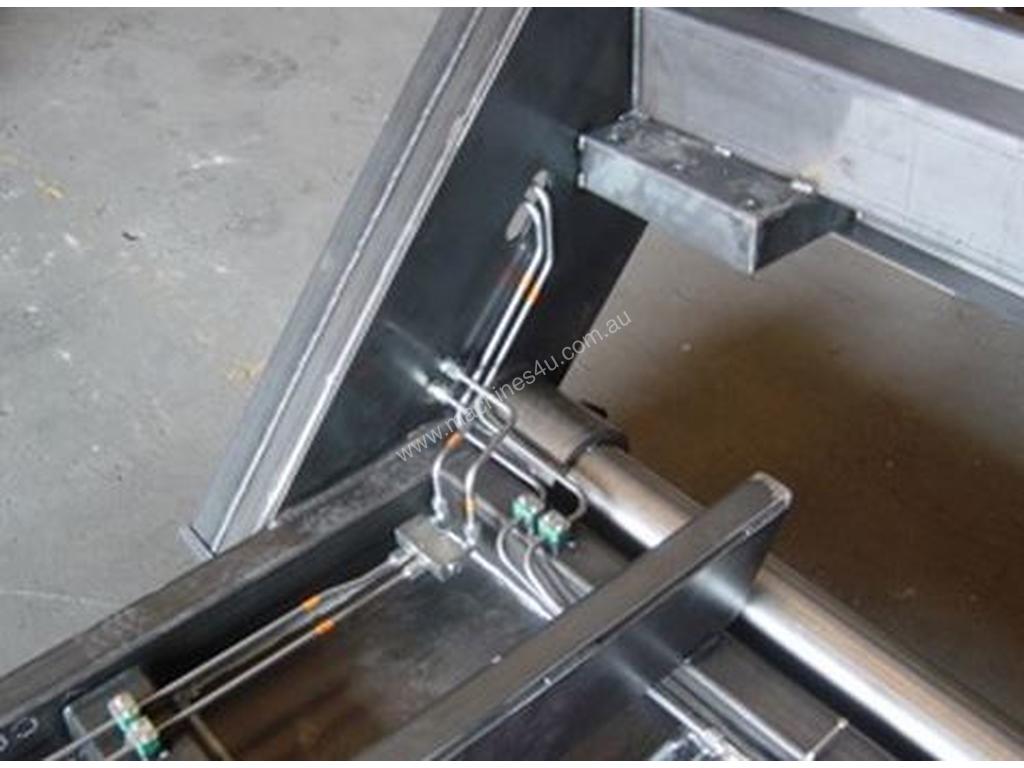

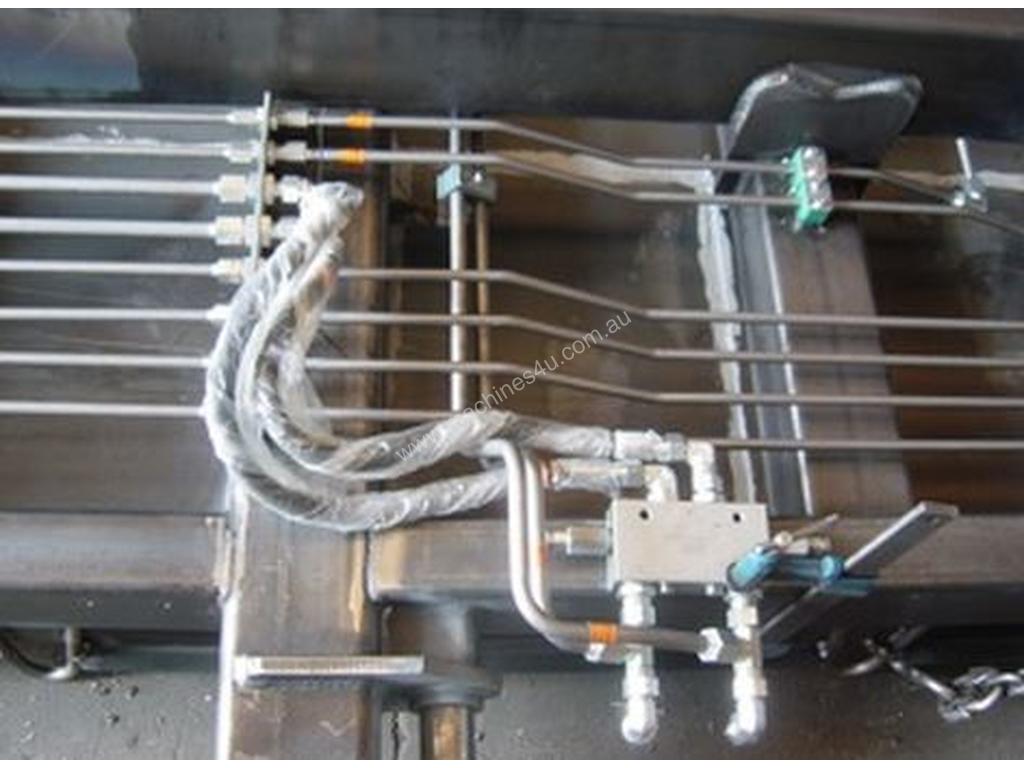

Hydraulic system:
Oil flow required (at 1000 r.p.m.)......................... 40l/min
Maximum operating pressure ....................... 300 kg/cm²

Capacity:
Oil tank capacity ..................................................... 50 l

Working times: (values at 1000 r.p.m.)
a) Tip time ................................................................. 34 s
b) Load time ............................................................. 25 s

Vehicle:
G.V.W. .....................................................8000-12000 kg.
Wheelbase ...............................................3000 - 3200mm

Approximate values. Subject to axle load calculation.

Oil flow required is not referred to the pump size, but to the recommended flow at valve block entrance.

Without consider vehicle stability. Data not valid for the MIXTO type.

(*) DATA REFERRED TO THE DEVICE WITHOUT INSTALLATION
DIMENSIONS QUOTED WITHOUT COMMITMENT.
