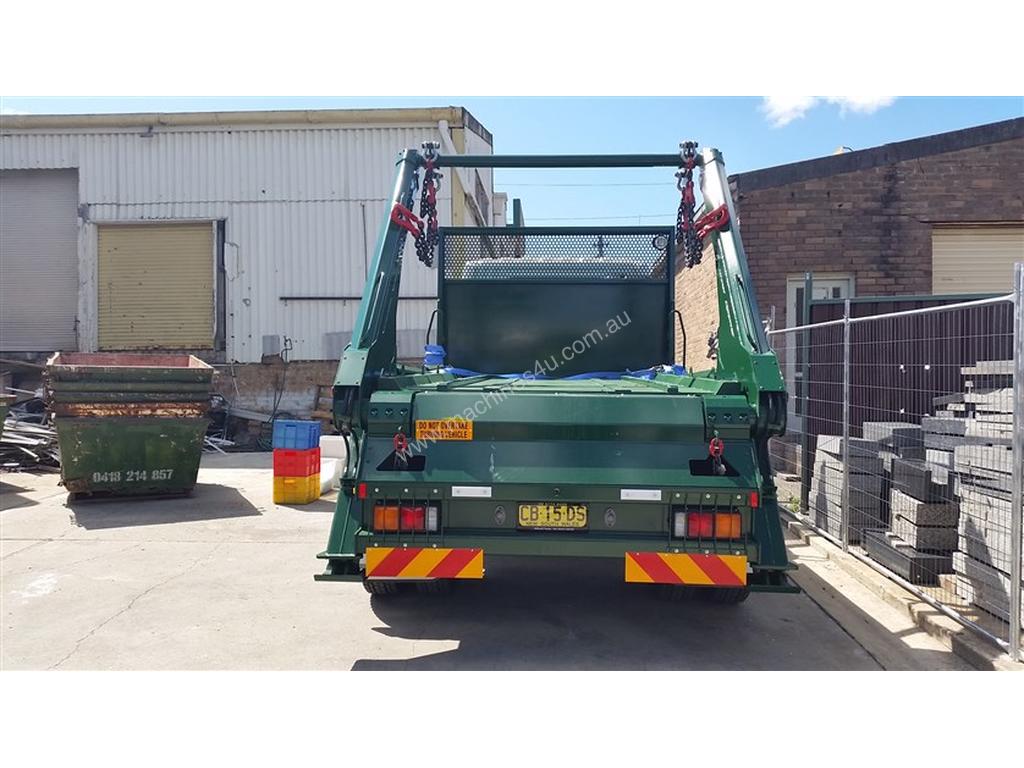

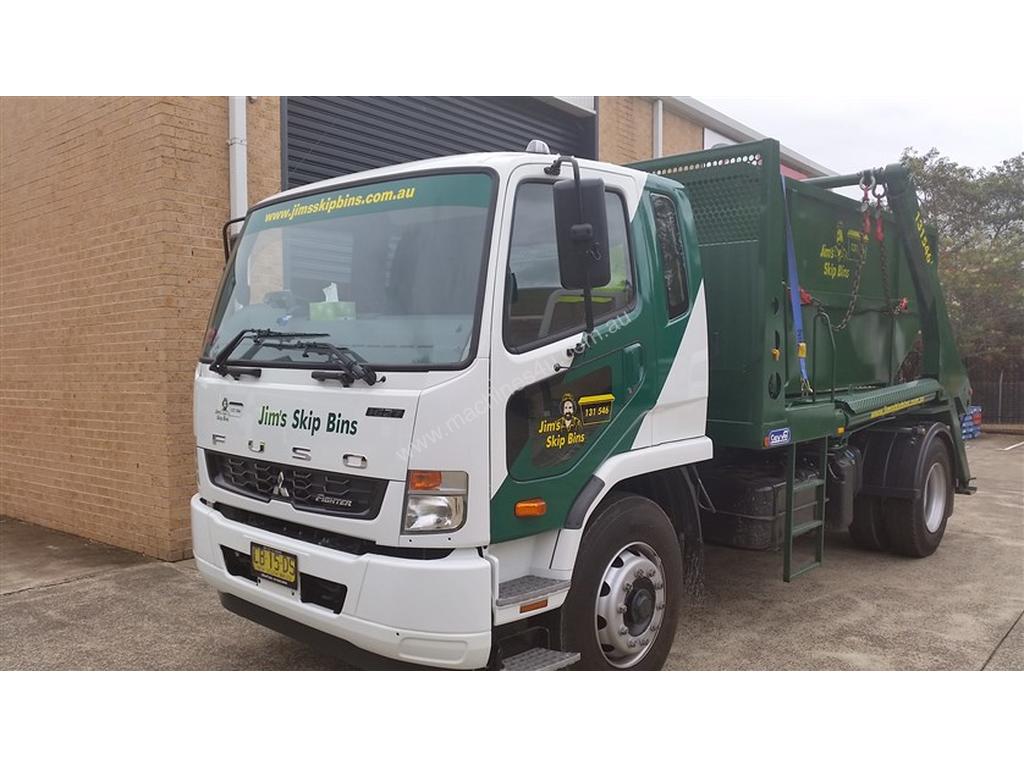

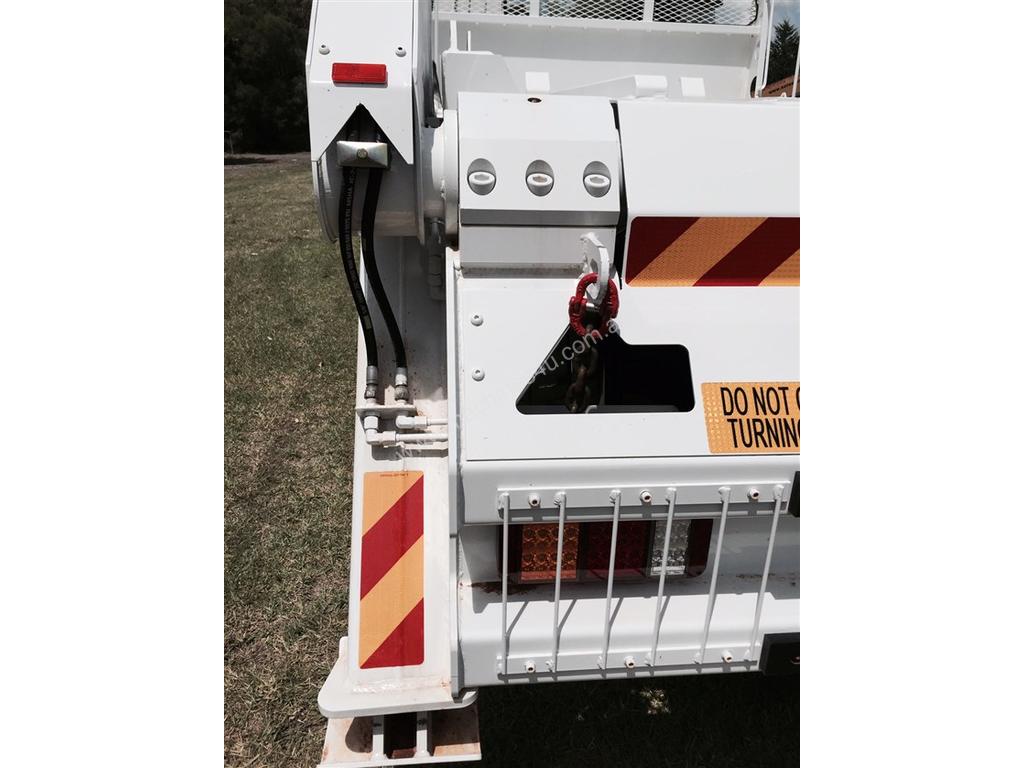

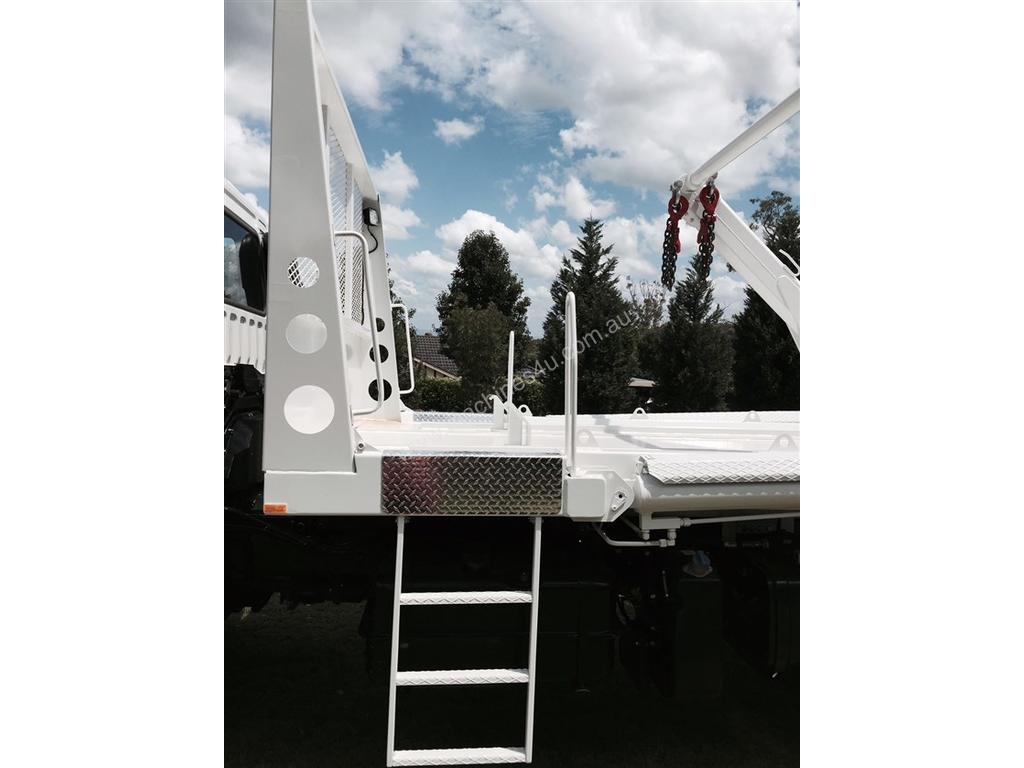

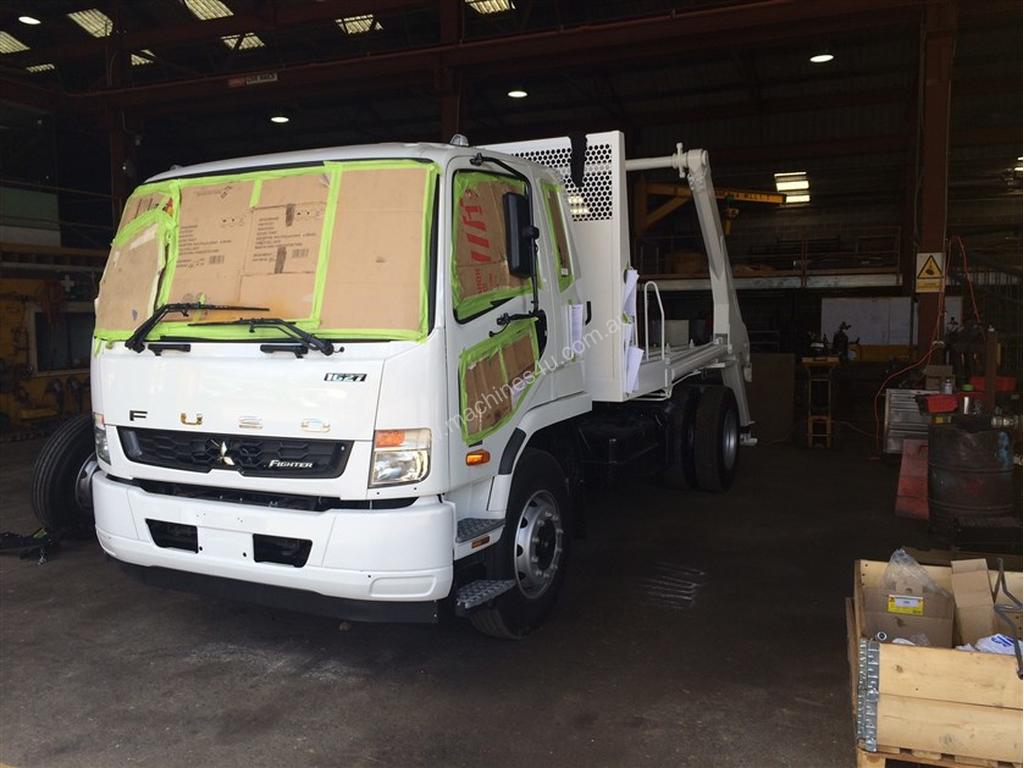

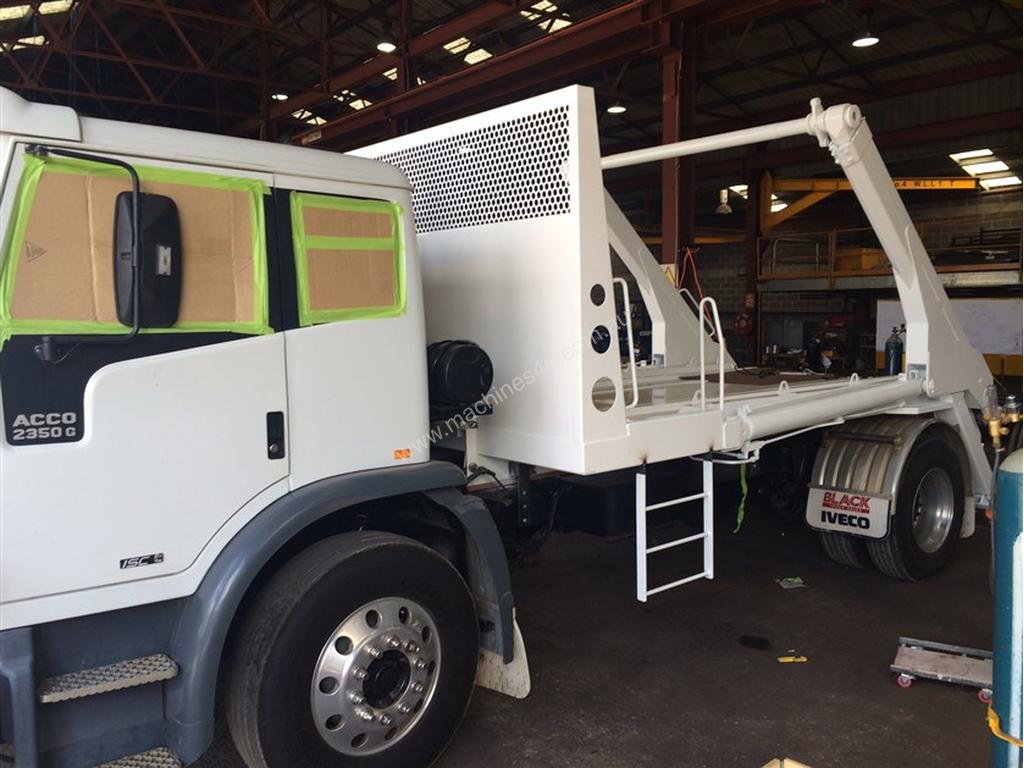

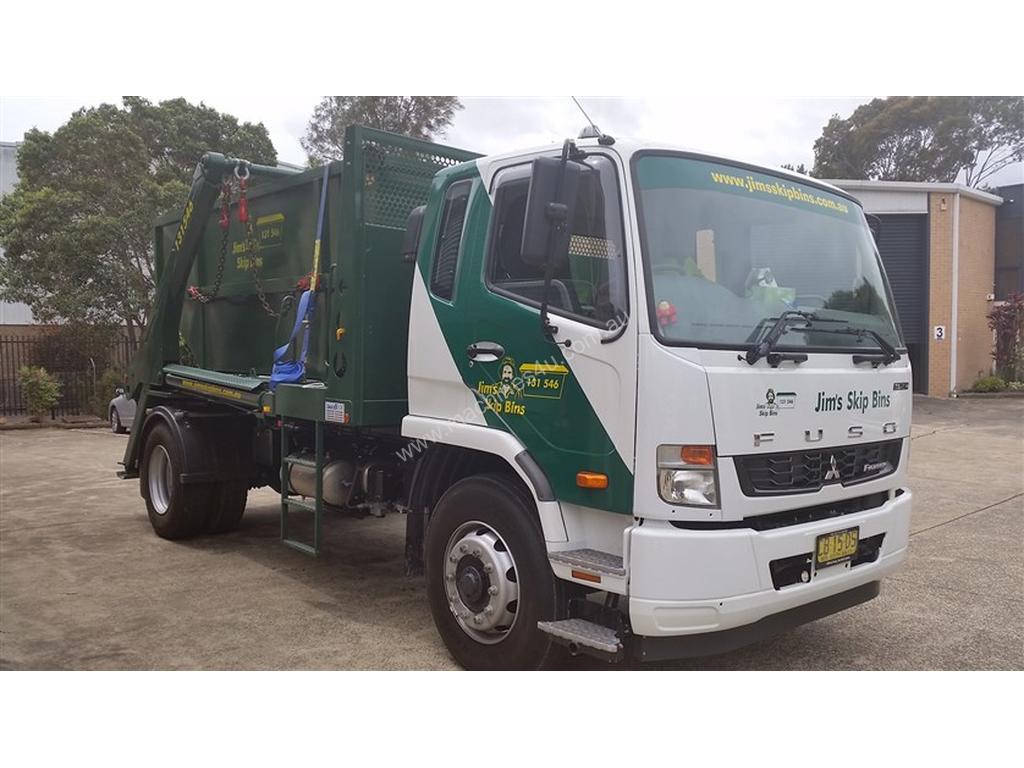

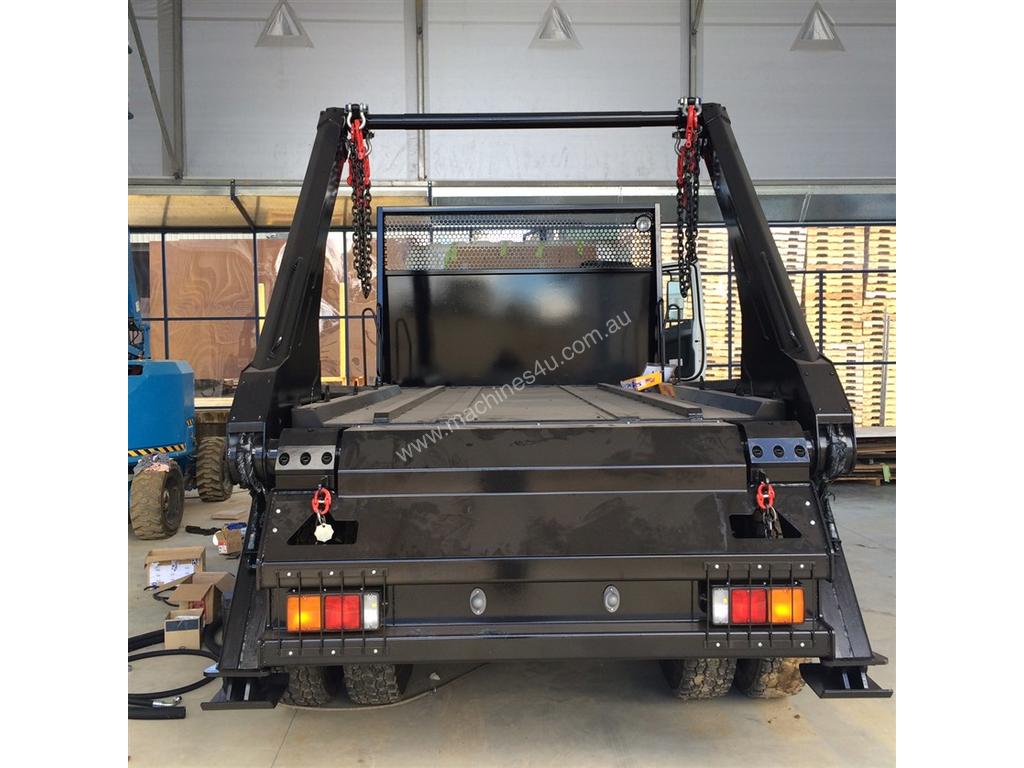

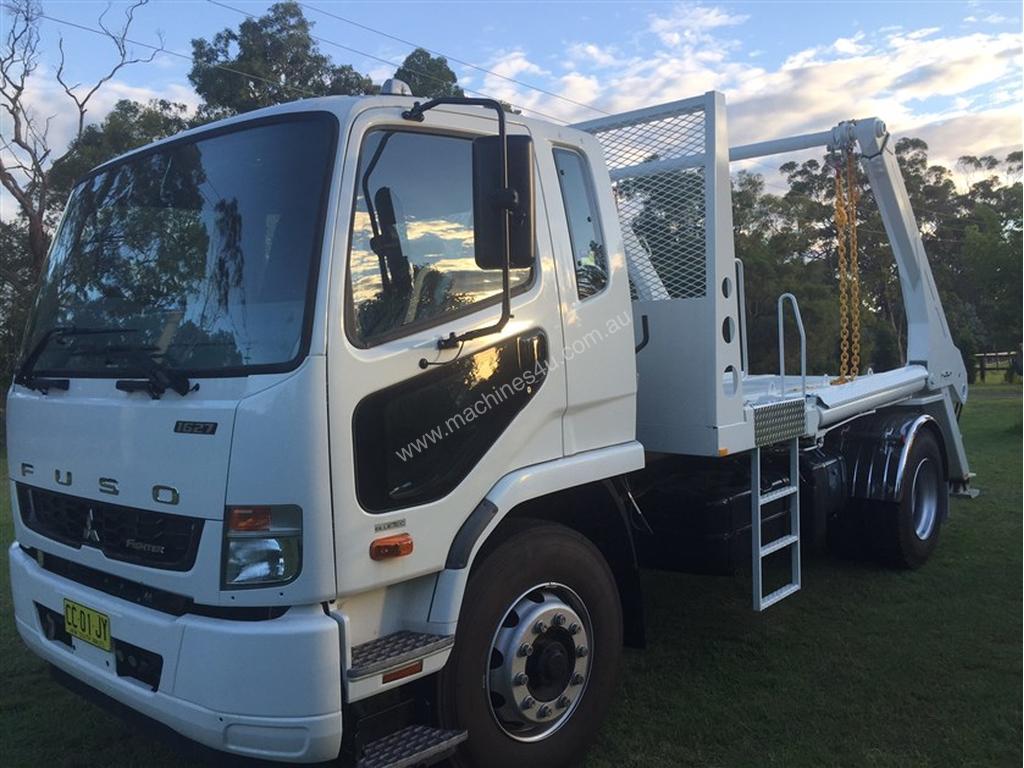

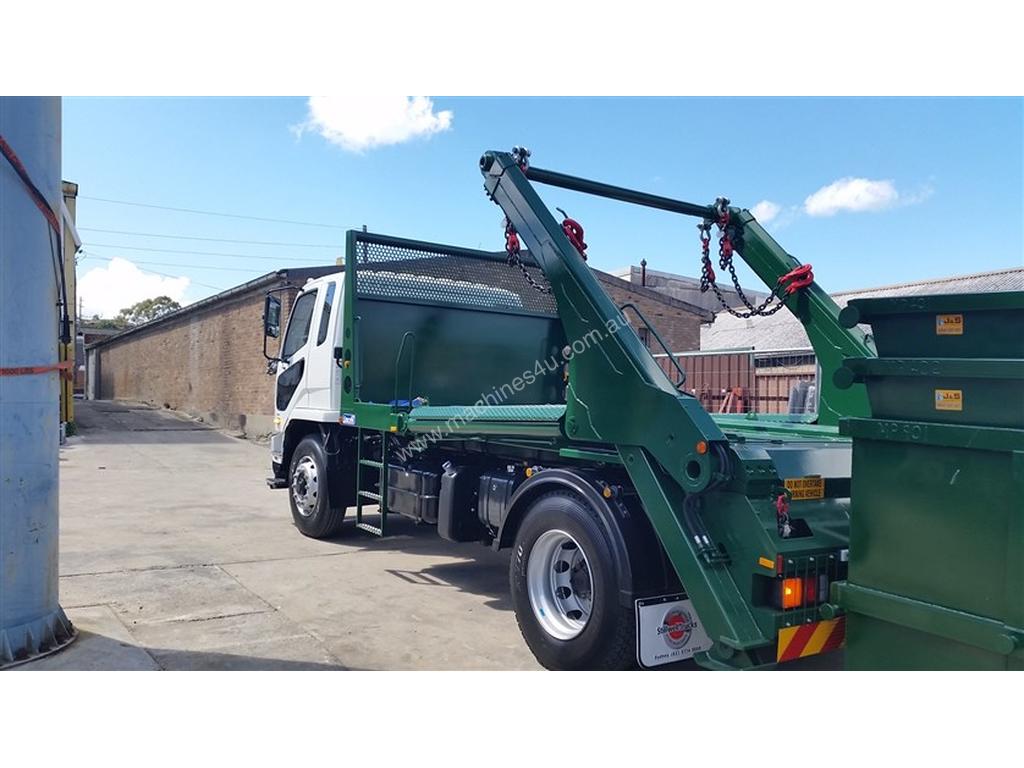

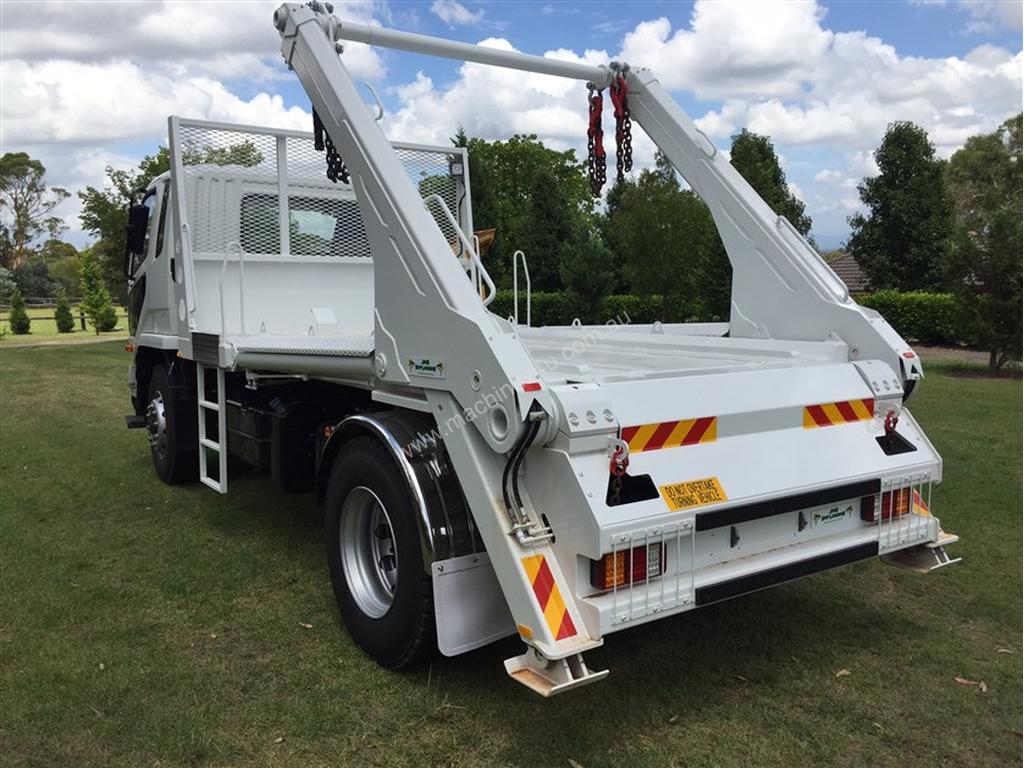

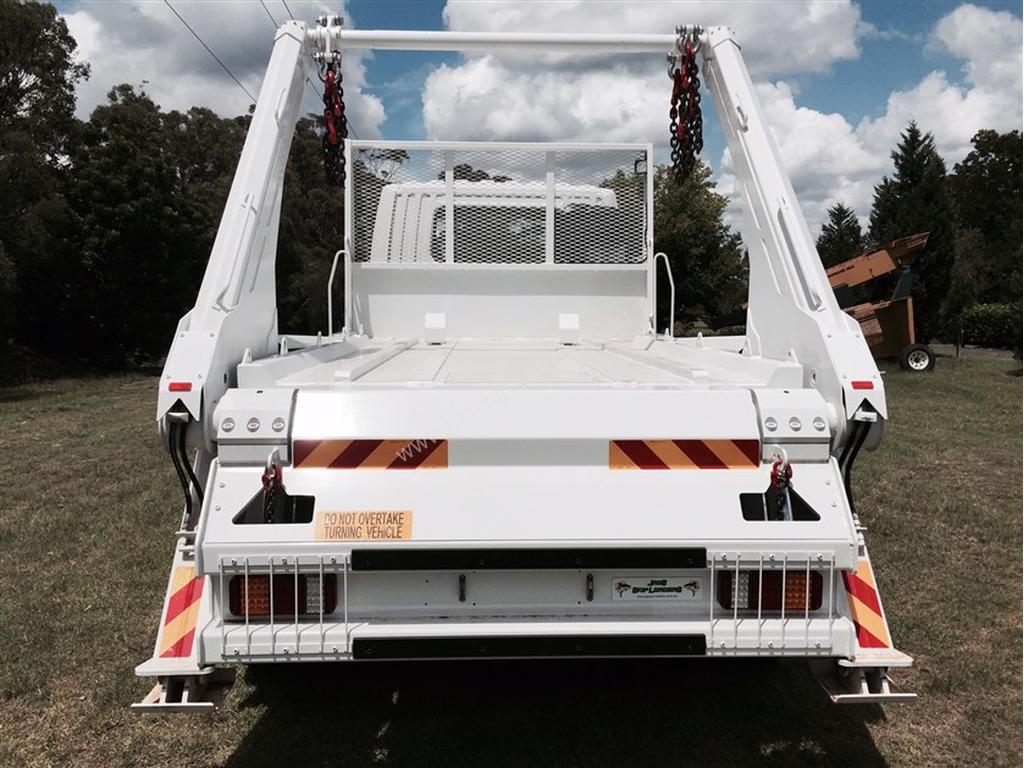

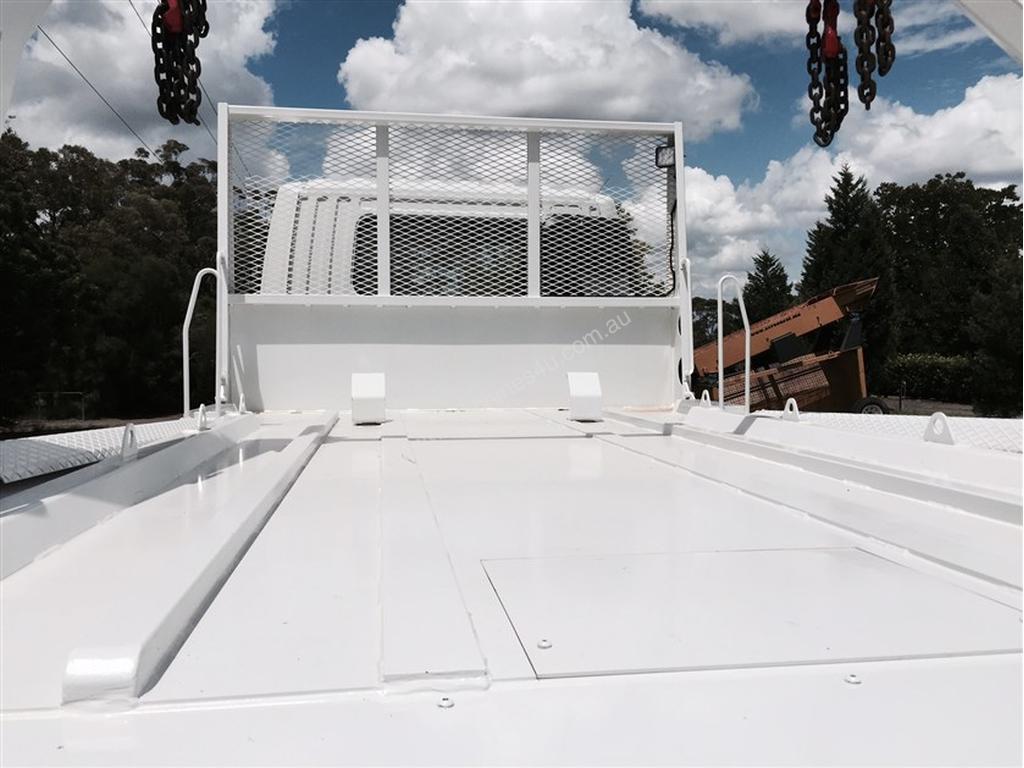

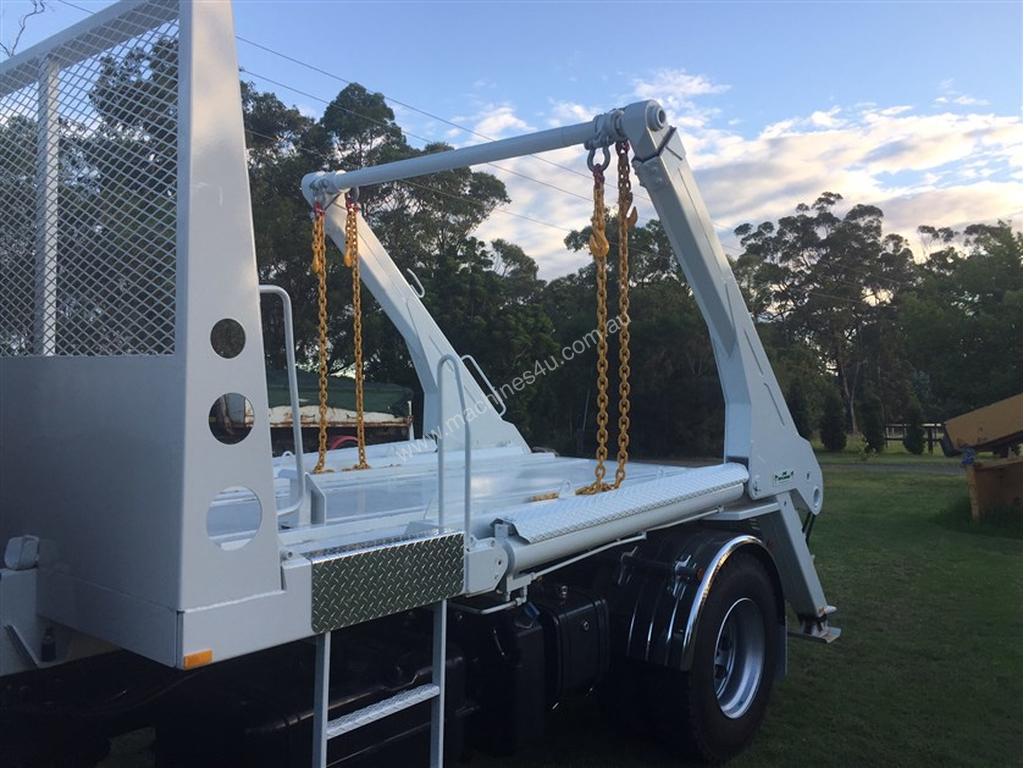

CAYVOL - JWS 130 Skip Loader

Name: CAYVOL - JWS 130 Skip Loader
Brand: cayvol
SKU: 239711
Price: 54900 AUD
Availability: InStock

GLENORIE, NSW

Priced From
$54,900 AUD($60,390 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$187.15
Per Week

3.18% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Skip Bin Trucks

Make:

CAYVOL

Model:

JWS 130

Year:

Not specified

Type of Sale:

Quoted to Customer Spec

Member Since: May 2012

Silver Member

Listings: 50

Description

JWS 130 (Short Arm Specs)

Weights and capacities *
System weight...................................................... 2180 kg
Nominal container.......................................... 4 a 12 m³

Load capacity:

LENGTH/GROUNd/TRENCH
2220mm/13000kg/7840 kg
3420mm/8950kg/6220 kg

Hydraulic system:
Oil flow required (at 1000 r.p.m.)......................... 60l/min
Maximum operating pressure ....................... 280 kg/cm²

Capacity:
Oil tank capacity ..................................................... 75 l

Working times: (values at 1000 r.p.m.)
a) Tip time ................................................................. 38 s
b) Load time ............................................................. 27 s

Vehicle:
G.V.W. .....................................................18000 kg.
Wheelbase ...............................................3900 a 4800mm

Approximate values. Subject to axle load calculation.

Oil flow required is not referred to the pump size, but to the recommended flow at valve block entrance.

Without consider vehicle stability. Data not valid for the MIXTO type.

(*) DATA REFERRED TO THE DEVICE WITHOUT INSTALLATION
DIMENSIONS QUOTED WITHOUT COMMITMENT.
