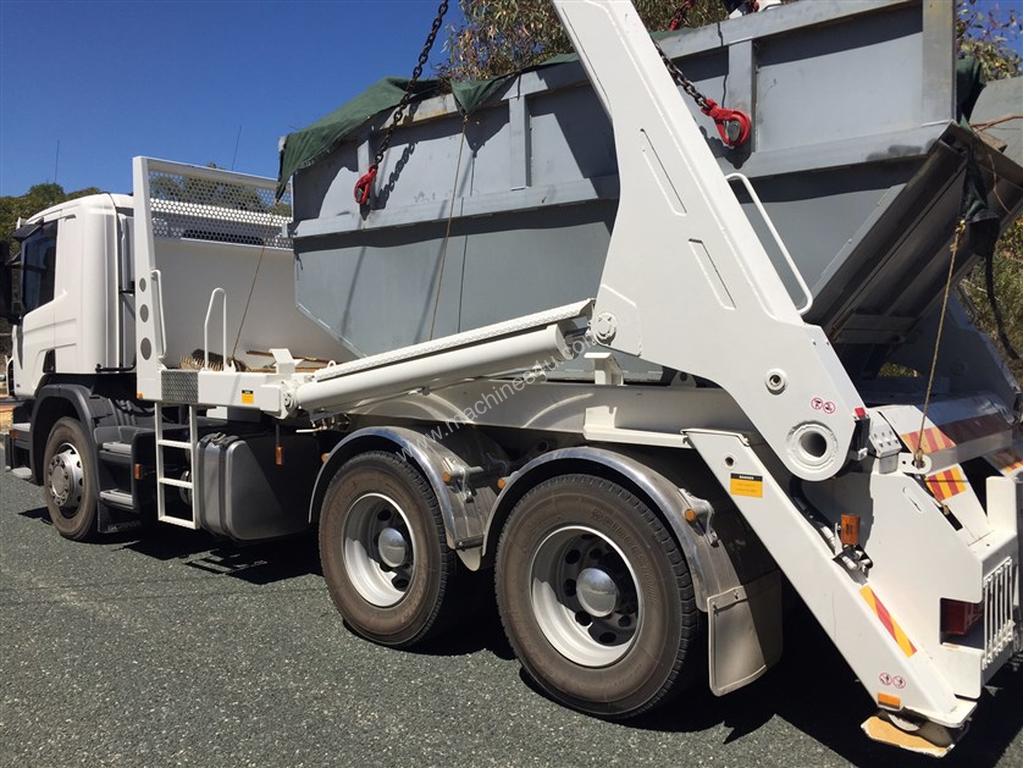

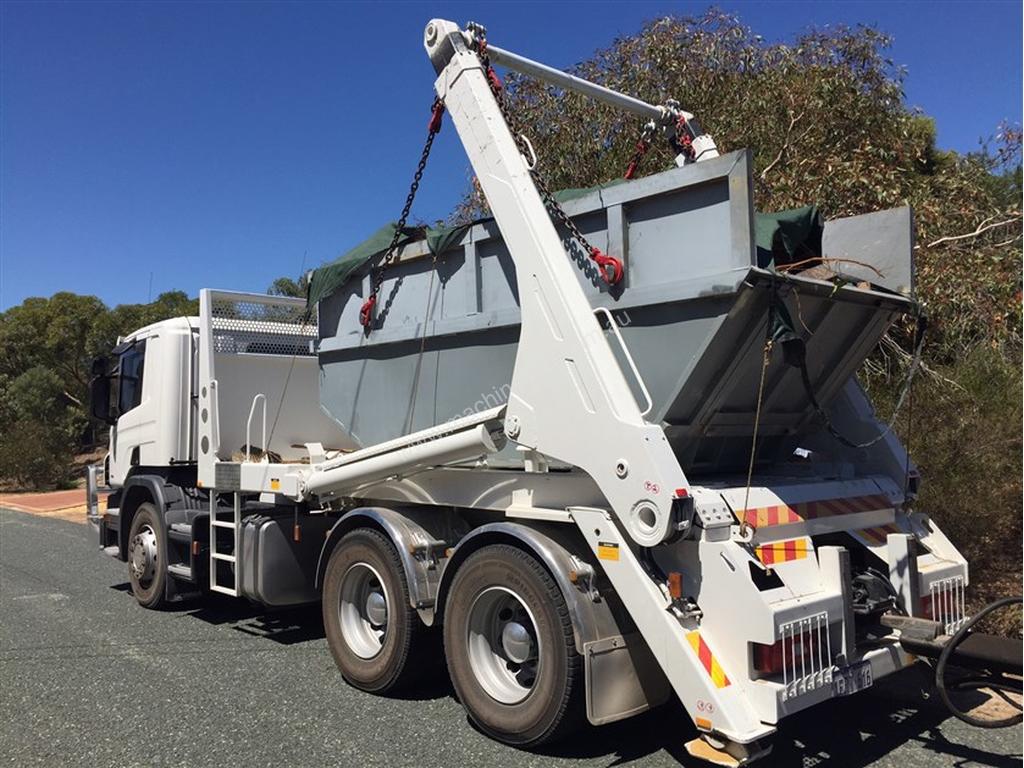

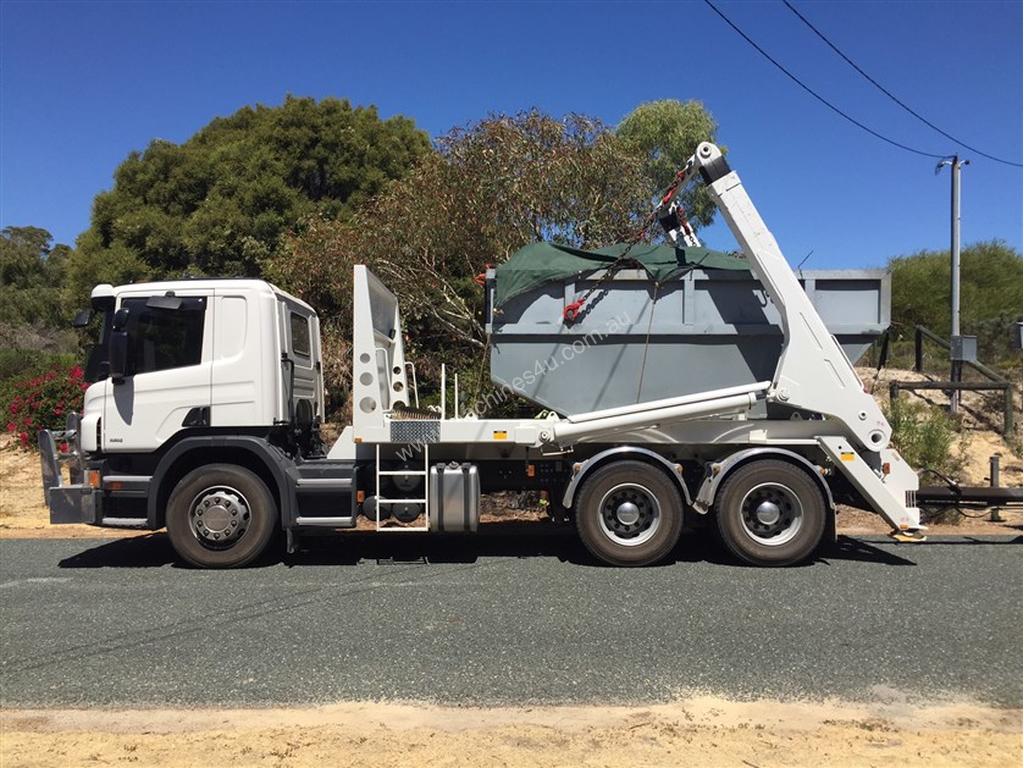

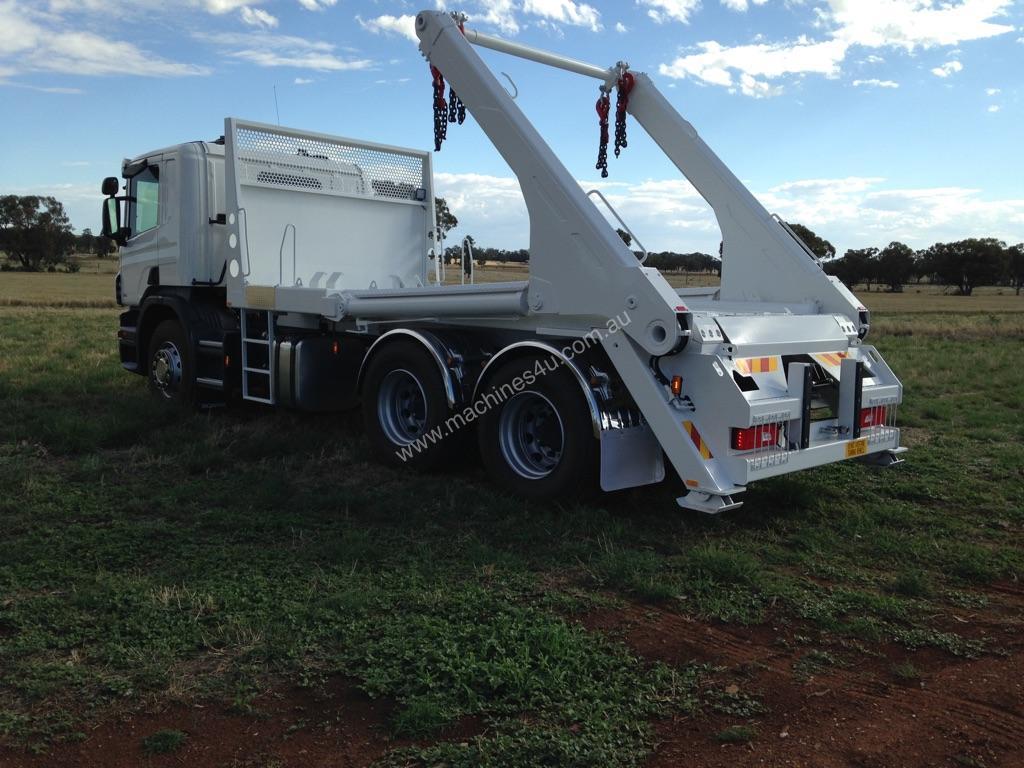

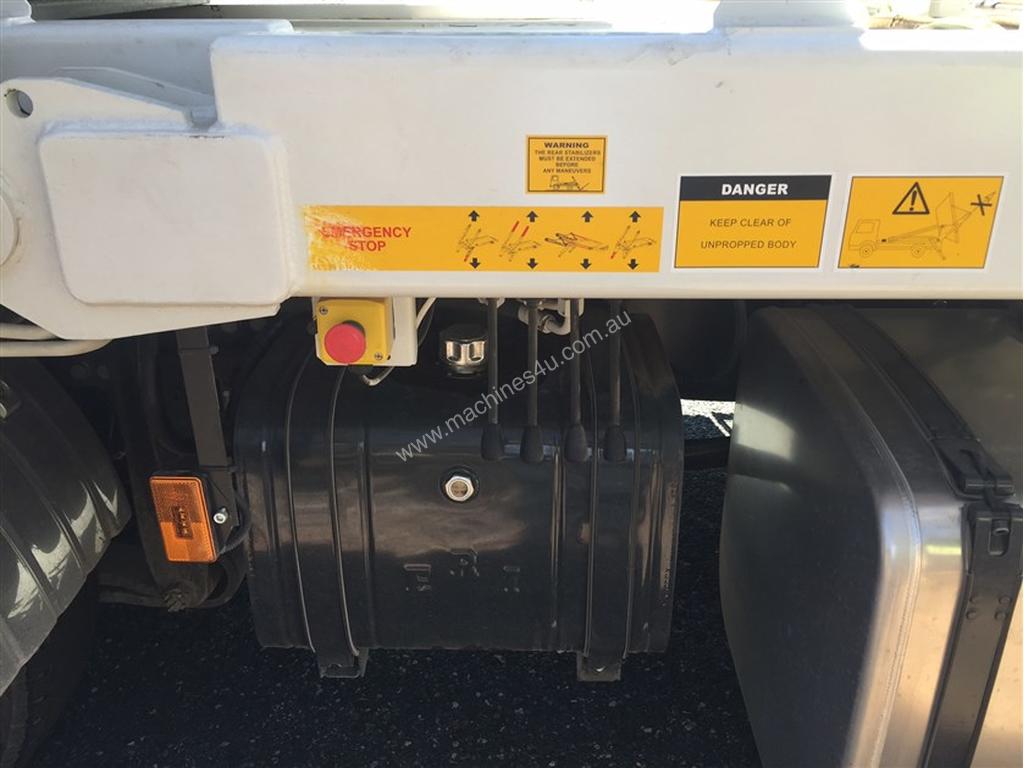

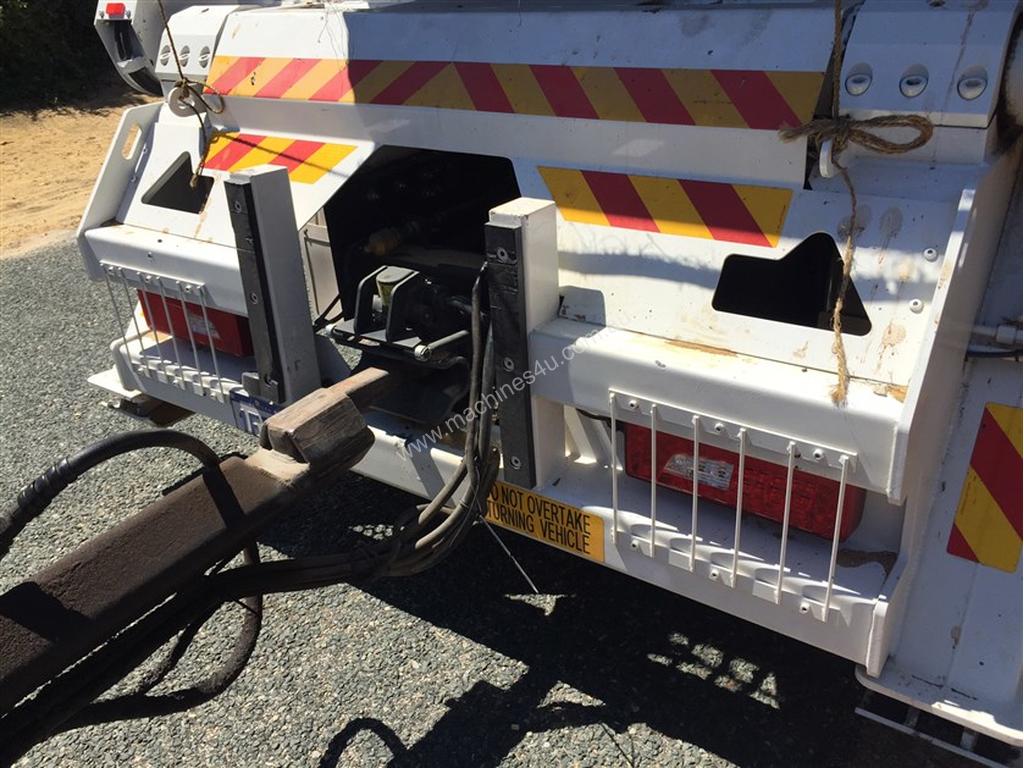

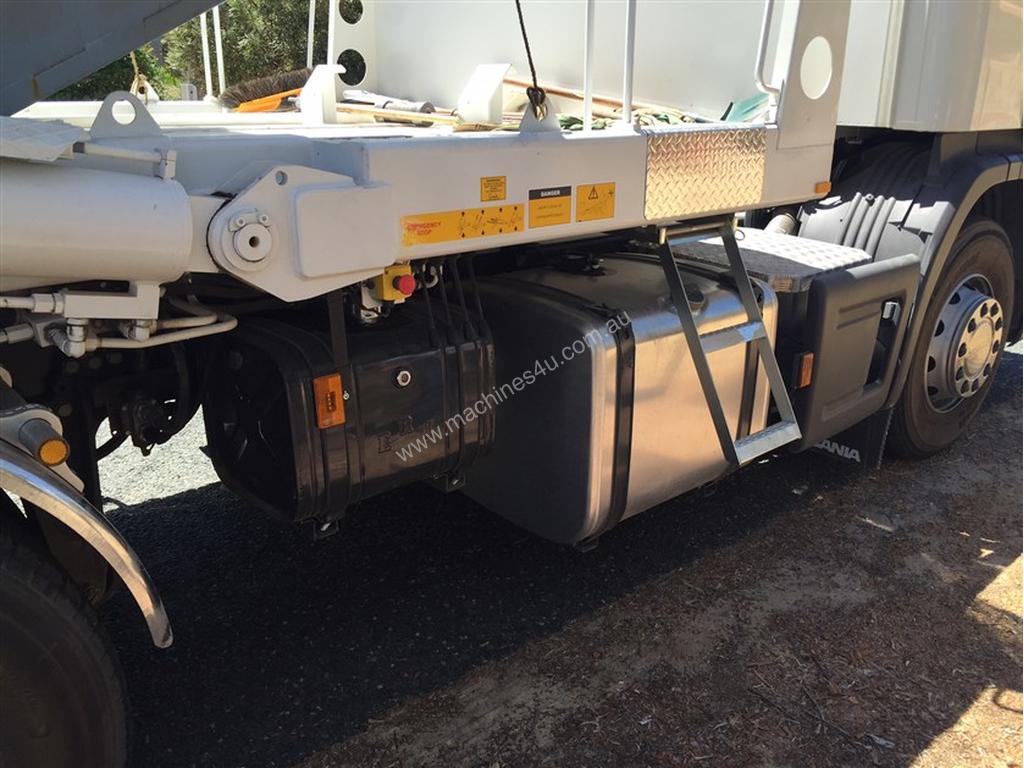

CAYVOL - JWS 160 Skip Loader

JWS 160 (Short Arm Specs)

Weights and capacities *
System weight...................................................... 3680 kg
Nominal container.......................................... 5 a 12 m³


Load capacity:

LENGTH GROUND TRENCH
2600mm 16000 kg 11850 kg
3800mm 10200 kg 9200 kg


Hydraulic system:
Oil flow required (at 1000 r.p.m.)......................... 60l/min
Maximum operating pressure ....................... 300 kg/cm²

Capacity:
Oil tank capacity ..................................................... 75 l

Working times: (values at 1000 r.p.m.)
a) Tip time ................................................................. 52 s
b) Load time ............................................................. 42 s

Vehicle:
G.V.W. .....................................................20000 kg.
Wheelbase ...............................................3900 a 5200mm

Approximate values. Subject to axle load calculation.

Oil flow required is not referred to the pump size, but to the recommended flow at valve block entrance.

Without consider vehicle stability. Data not valid for the MIXTO type.

(*) DATA REFERRED TO THE DEVICE WITHOUT INSTALLATION
DIMENSIONS QUOTED WITHOUT COMMITMENT.


JWS 16 ( LONG Arm Specs)

Weights and capacities *
System weight...................................................... 3870 kg
Nominal container.......................................... 5 a 12 m³

Load capacity:

LENGTH/GROUND/TRENCH
3000mm/16000kg/11200 kg
4400mm/9600kg/7850 kg
Hydraulic system:
Oil flow required (at 1000 r.p.m.)......................... 60l/min
Maximum operating pressure ....................... 300 kg/cm²

Capacity:
Oil tank capacity ..................................................... 75 l

Working times: (values at 1000 r.p.m.)
a) Tip time ................................................................. 52 s
b) Load time ............................................................. 42 s

Vehicle:
G.V.W. .....................................................20000 kg.
Wheelbase ...............................................3900 a 5200mm

Approximate values. Subject to axle load calculation.

Oil flow required is not referred to the pump size, but to the recommended flow at valve block entrance.
