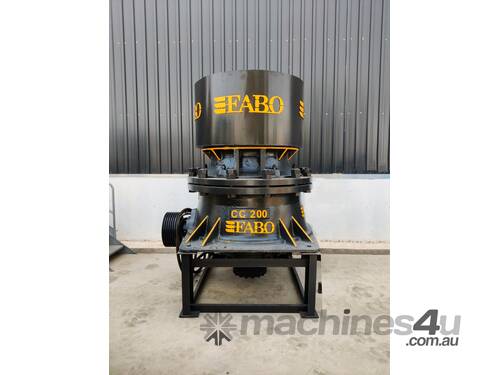

CC-200 SERIES 200-250 TPH CONE CRUSHER

*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

Cone crusher product group is designed especially for the hardest material, cone crushers are one of the best choices for crushing river gravel, basalt and granite, along with abrasive materials in the mining industry. The working principle of cone crushers is to break the material by compression, by squeezing it between its walls, which are completely covered with resistant mantle and a bowl liner. It has longer life than other crushers thanks to its long life wear parts.

Model: FABO CC200
Capacity: 200-250 t/h
Max. Feed opening:
EC 185 mm
C 145 mm
MC 115 mm
M 90 mm
MF 75 mm
F 50 mm
EF 35 mm
Motor: 132 kW
Head diameter: 1100 mm
Dimensions (width * height): 2520* 2540 mm
Countershaft Speed-rpm: 750-1200
Weight: 11230 kg

* Hydroset Control
* Automatic Load Protection
* Practical discharge
* High capacity cubic production
* High-performance contactless labyrinth
* High productivity, low energy production and lower wear costs, long service life and high product yield with desired fine powders.
