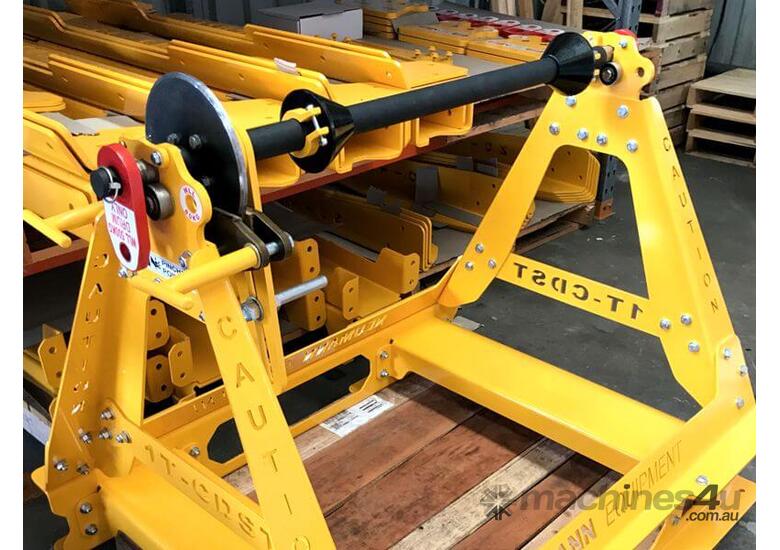

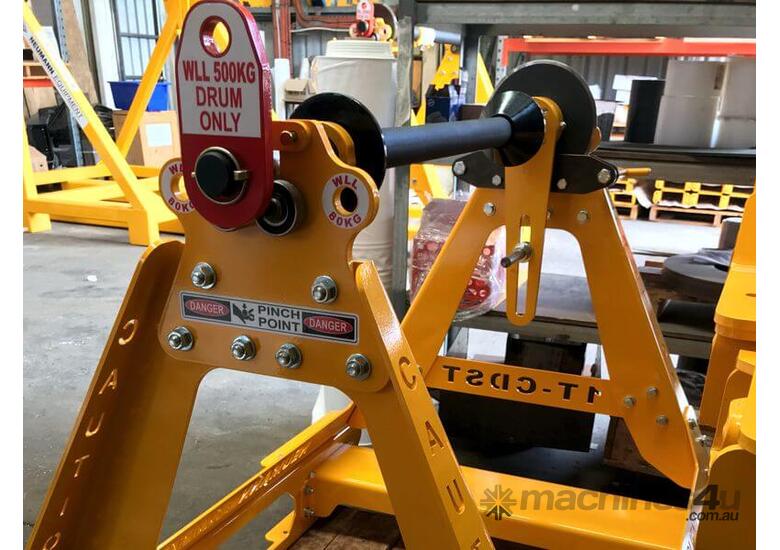

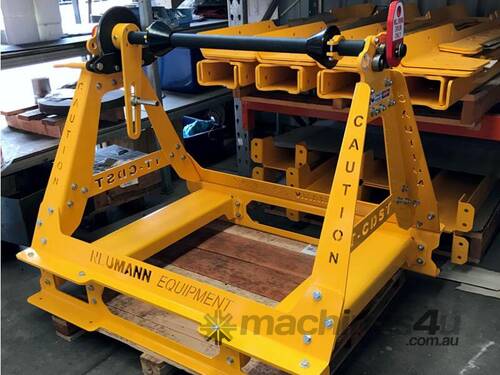

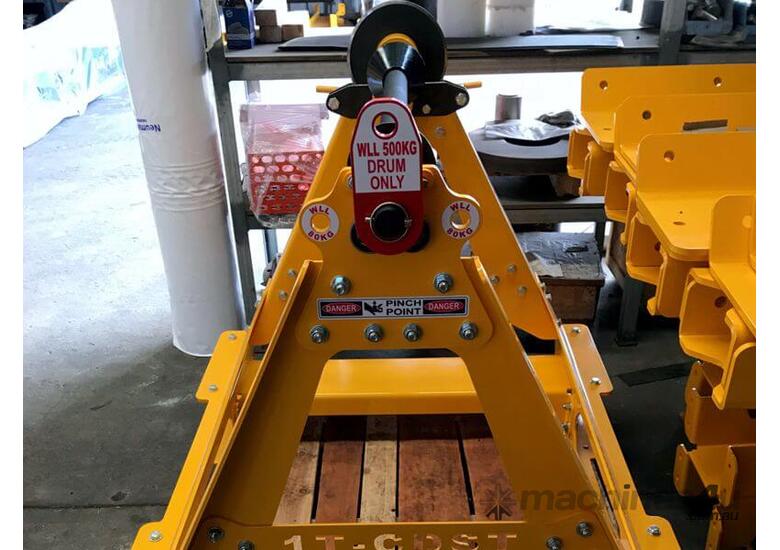

This cable drum stand has a maximum spindle capacity of 1,000kg. It suits cable drums core size 46mm, maximum drum width of 900mm and a maximum drum diameter of 1,300mm.
The 1,000kg cable drum stand can be fully disassembled for storage or ease of transportation. It is available both assembled or as a flat pack. We also offer an optional bolt-on forked assembly and brake assembly.
Our cable drum stand designs are verified using Finite Element Analysis (FEA), manufactured and tested to meet industry standards. They are Built Tough and Designed to Last!
Standard Inclusions:
•A light bolt-together design that is easy to assemble, store and transport.
•Heavy-duty steel construction.
•All components are grit blasted and primed with two-pack epoxy primer and finished with heavy-duty two-pack epoxy polyamine coatings.
•Rated lifting lugs on the spindle to facilitated drum replacement.
•Rated lifting points on the frame to allow the drum stand to be positioned on site (Unloaded).
•Tapered spindle cones to allow various drum core diameters.
•Spindle clamps to lock various size drum widths in place.
•Mounting holes are incorporated in the base to allow the frame to fastened to a structure.
Available Options:
•Optional forklift compatible base.
•Optional manually adjusted friction brake.
•Available assembled or flat-pack.
Type (Bolted or Fabricated): Bolted
Maximum Capacity: 1,000 kg
Suits Drum Widths: 600-900 mm
Maximum Drum Diameter: 1,300 mm
Spindle Shaft Diameter: 45mm
Suits Drum Core Sizes: 46-120 mm
Frame Width: 1,300 mm
Frame Length: 1,066 mm
Height to Centre Line of Shaft: 744 mm
Weight (standard unit only): 78 kg
Weight (optional forked base): 58 kg
Weight (optional brake): 12.5 kg
