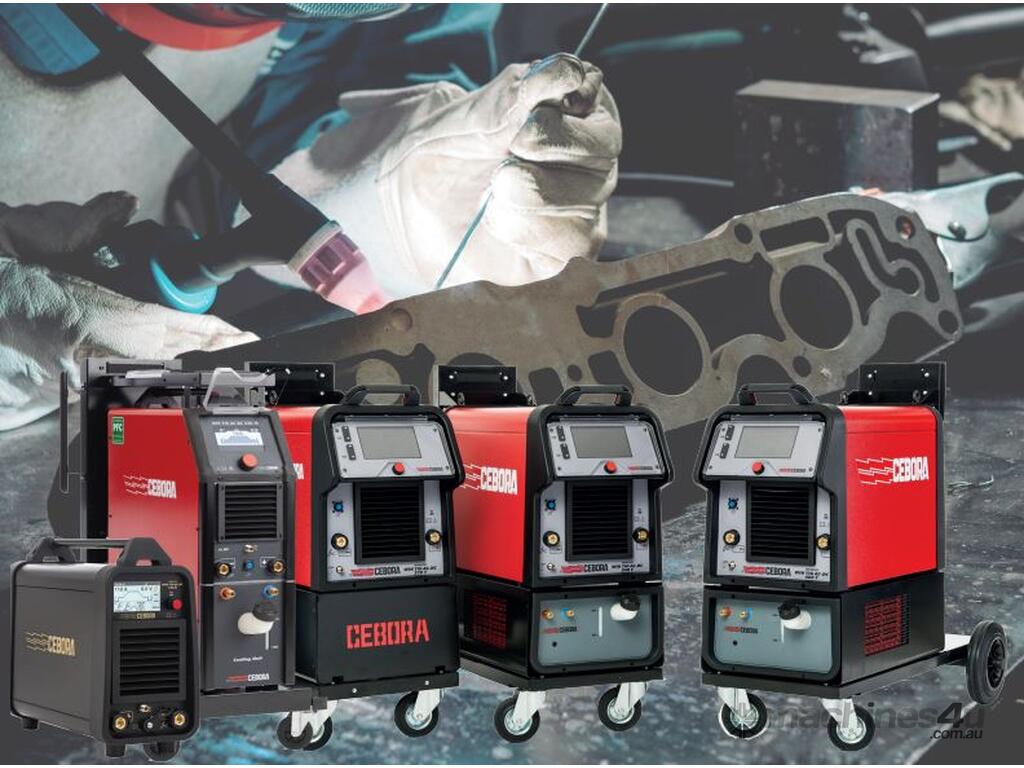

CEBORA WIN TIG AC-DC 340T

INVERTER THREE-PHASE COMPACT POWER SOURCE FOR MMA AND TIG AC-DC WELDING. HIGH-FREQUENCY IGNITION

***BENEFITS***
• User-friendly LCD touchscreen Display
• Equipped with XP, APC and DC TIG functions
• TIG AC, MIX AC+DC and Synergic Waveform functions
• Remote control and data backup
• Compliant with Industry 4.0
• AC Frequency is now adjustable from 50 to 200 Hz


***FEATURES***

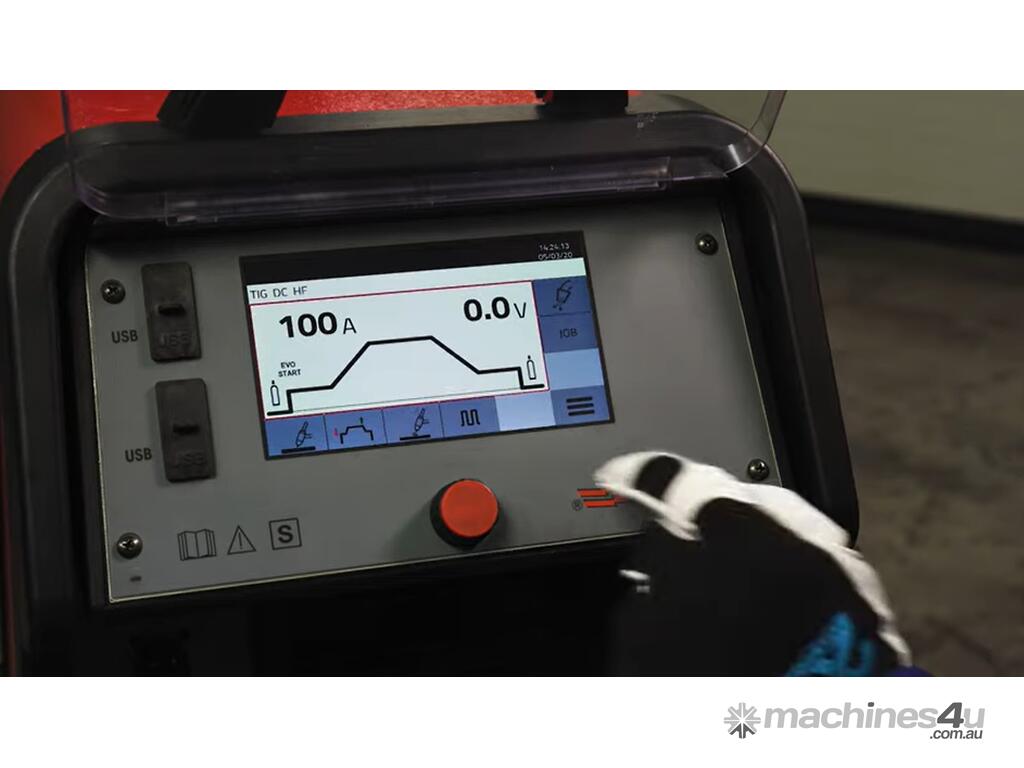

• 7” LCD touchscreen Display.

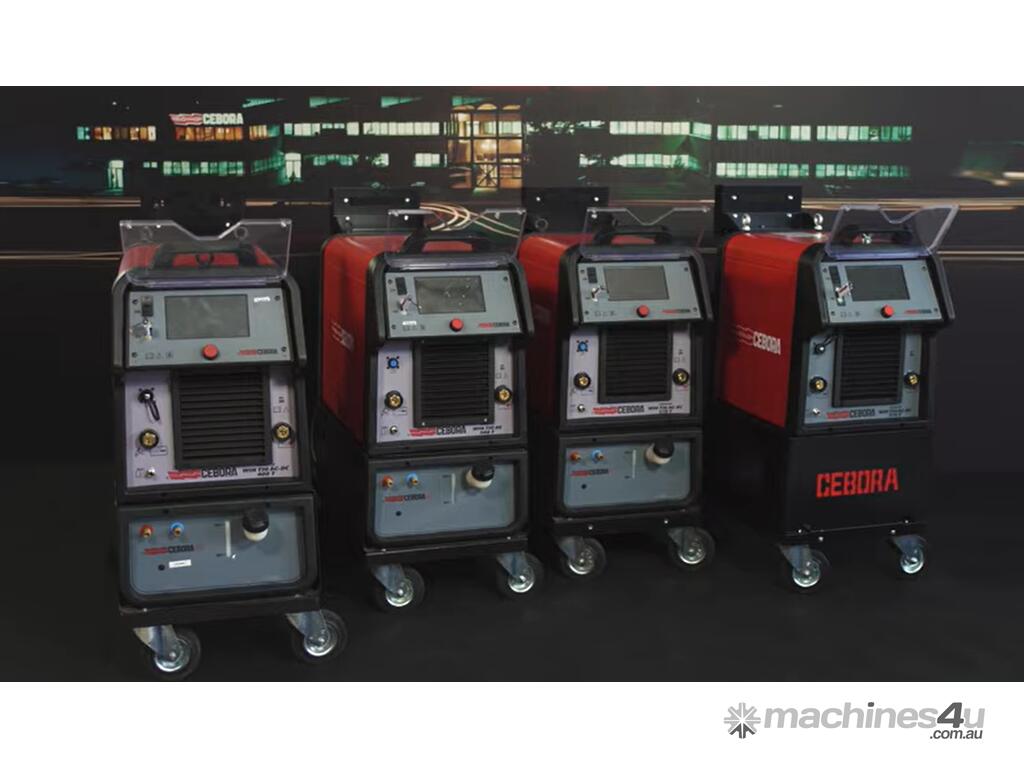

• Equipped with transportation trolley and cooling unit.
• EVO LIFT function allows the user to place the electrode in the exact position avoiding the piece oxidation and the heat control.
• EVO START function to optimise edge junction.
• APC TIG (Active Power Control) welding process which guarantees a deeper penetration, a more stable arch, prevents the electrodes from getting stuck to the piece, and allows the arc to adapt to the welding conditions with the torch movement.
• intermittence Pause Time Welding function which makes welding clearer with a time regulation in a second cents range.
• Pulse function to be adjusted up to 2,5 kHz.
• eXtra Pulse (XP) function: a very high frequence pulse that works on small thicknesses where the transferred heat must be minimal.
• Possibility to match a low pulse frequence to the XP process in order to improve the penetration and the welding speed on small-medium thicknesses.
• JOB function which makes it possible to save up to 99 welding programs.
• Minimum DC current equal to 3A.
• Advanced users: optional software package for advanced user management [Art. 809]
• Quality control: optional software package for the quality control [Art. 273]
• Production mode: optional software package for production management [Art. 817]
• In AC TIG mode, it is possible to independently adjust the width and duration of the penetration and cleaning of half-waves.

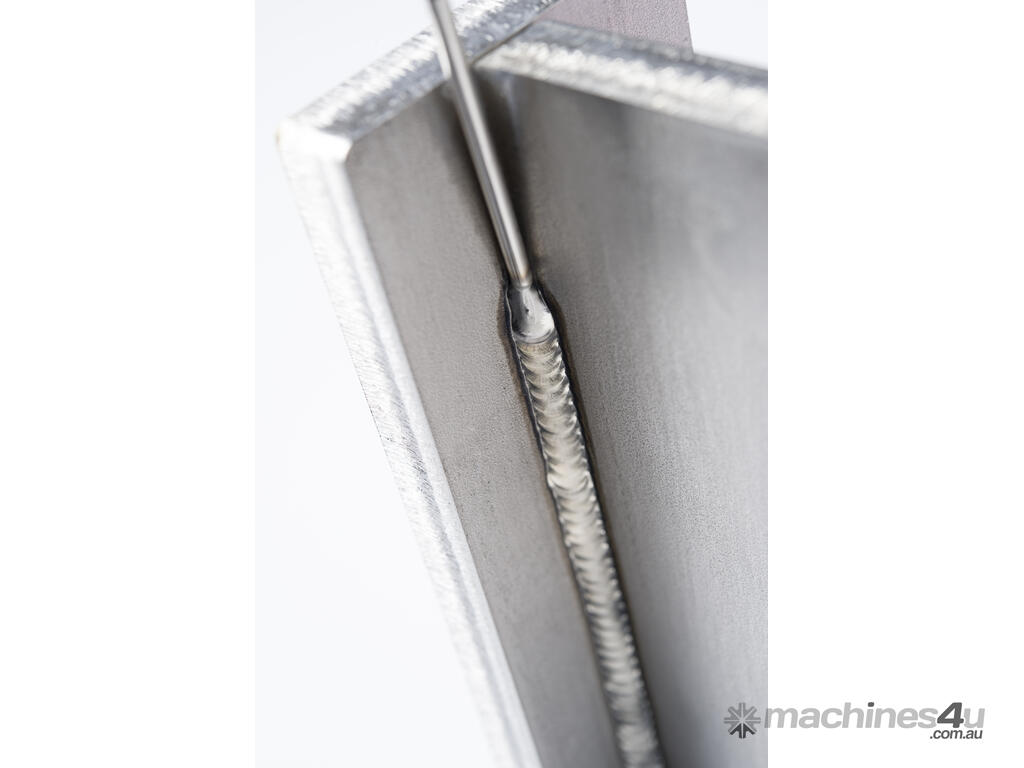

• AC+DC TIG process for aluminium welding and its alloys.
• AC frequency from 50 to 200 Hz.
• In AC mode, the possibility of selecting several combinations of the three waveforms (square, triangular, sine-wave).
• AC MMA welding process suitable for welding electrodes on magnetised sheet metal prevents the "magnetic blow" in the welding of iron boxes and it is usually employed in maintenance work.
• VRD function: reduces the vacuum voltage ensuring the use of the welding machine in environments with high electrical risk thus offering maximum safety to the operator.
• Compliant with Industry 4.0 the new hardware structure implements a web server (through the Ethernet LAN port or, with an external kit, via Wi-Fi) that allows the operator to carry out all those activities that require the collection and processing of data, welding parameters configuration, diagnostics and remote assistance.

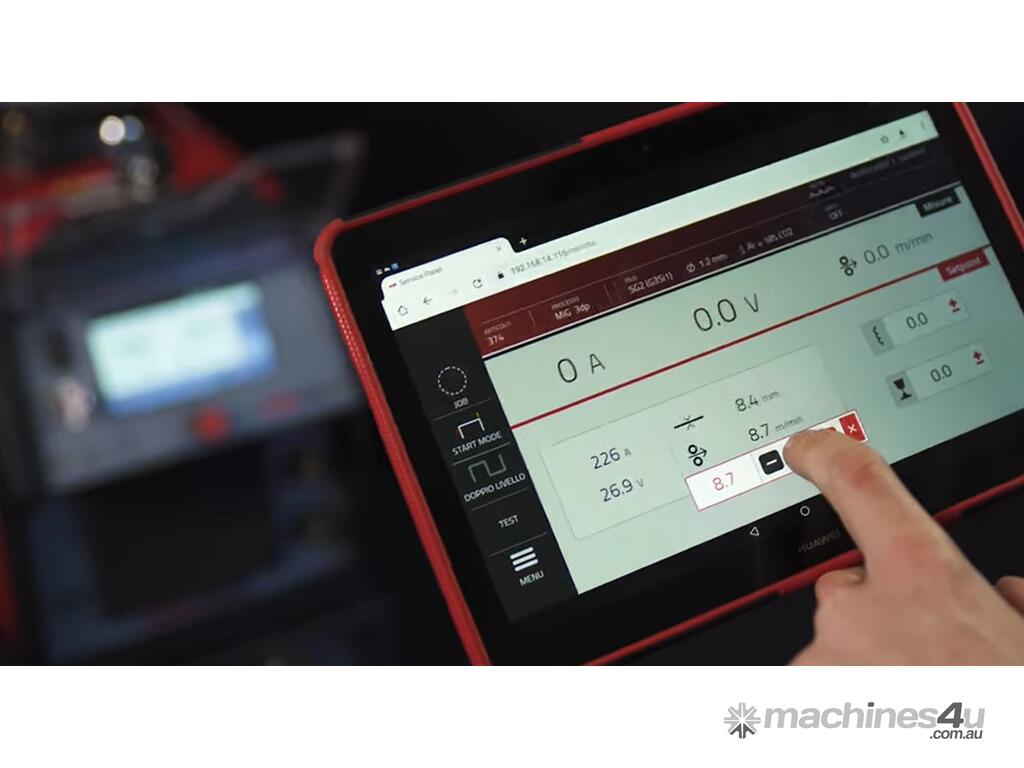

• Remote control mode from personal computer, tablet or smartphone.

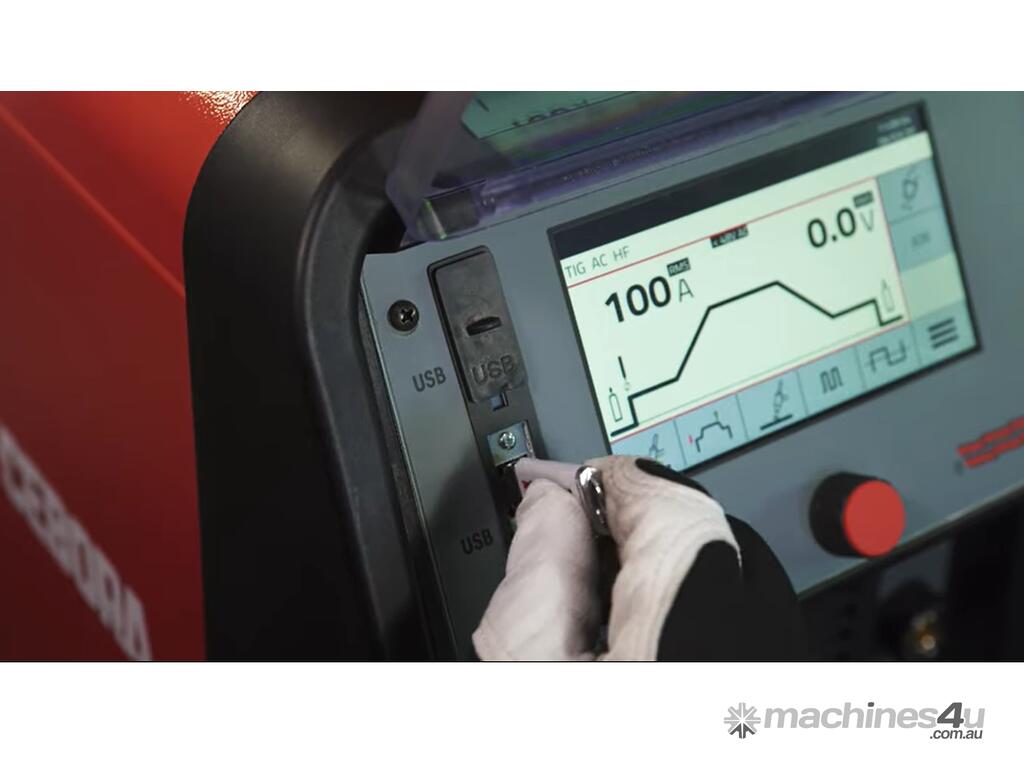

• 2 USB ports for download and software update.
• Equipped with digital ammeter/voltmeter with 1% accuracy and thermal protection devices.

***FOR MORE INFORMATION SEE THE PDF ATTACHED***
