CENTAURO & ALFA /ALFA 2 CNC for door/windows

State of the art and excellently manufactured machine for the door industry.

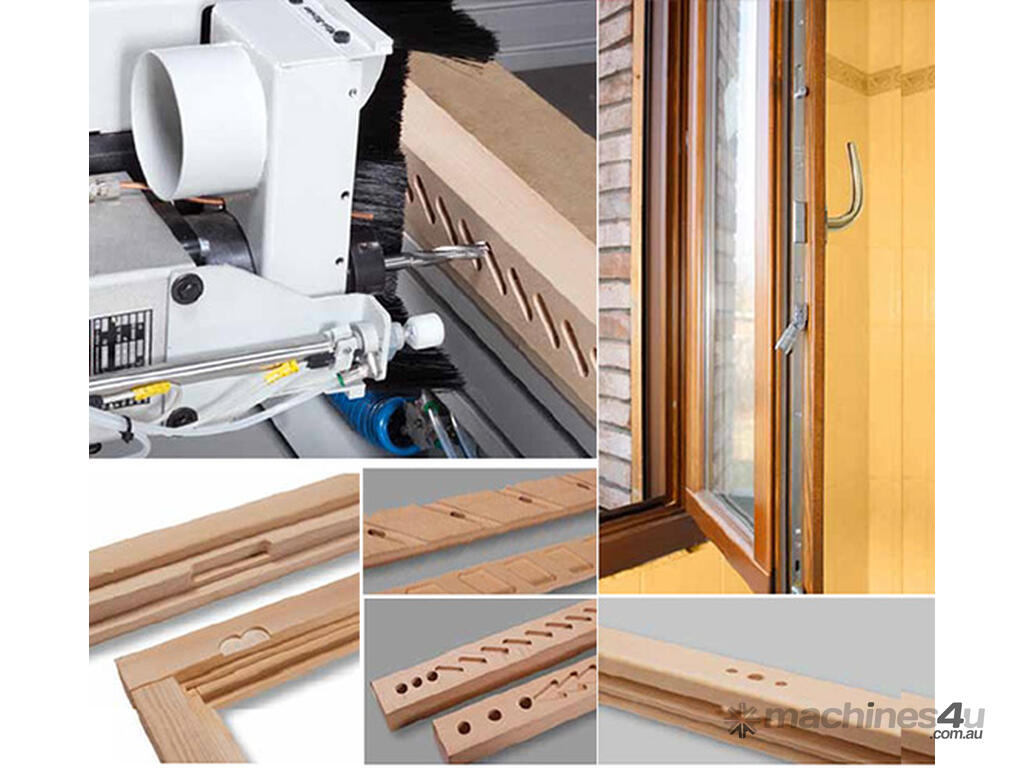

Milling,drilling locks , hinges and hinge insertion, dovetails. stair stringers can all be performed on this machine.
This machine is availabale with a wide number of options so please give us a call to discuss.
All at a very affordable price.

Axis output X-Y-Z (milling unit) mm 2800/180(400*) - 150
ER32 collet for milling cutter 16-15 mm ø nr. 1
X-Y-Z axis speed mt/mm 35 / 7,5 / 7,5
Max. working table dimensions mm 3000 x 618
Retractable rear stops nr. 2
Front clamps nr. 3
Side stops (1 RH - 1 LH) nr. 2
Front table extensions for piece support nr. 2
Router motor power kW. 3,3 (5,6*)
Additional router motor speed g./min 0 - 18000
Inclination of router head ° 0° / 90° (- 10° +90°*)
Drilling unit motor power kW 0,75*
Drilling unit motor speed g./min 4500*
Inclination of drilling unit ° -10°/+90°*
Electronic control Power 1000 Touch Screen 10”
Operating pressure bar 6 (Lit/min. 300)
Dust estraction outlets nr. 1 ø 80 mm. 2 ø 100 mm.
Net weight Kg 1300
