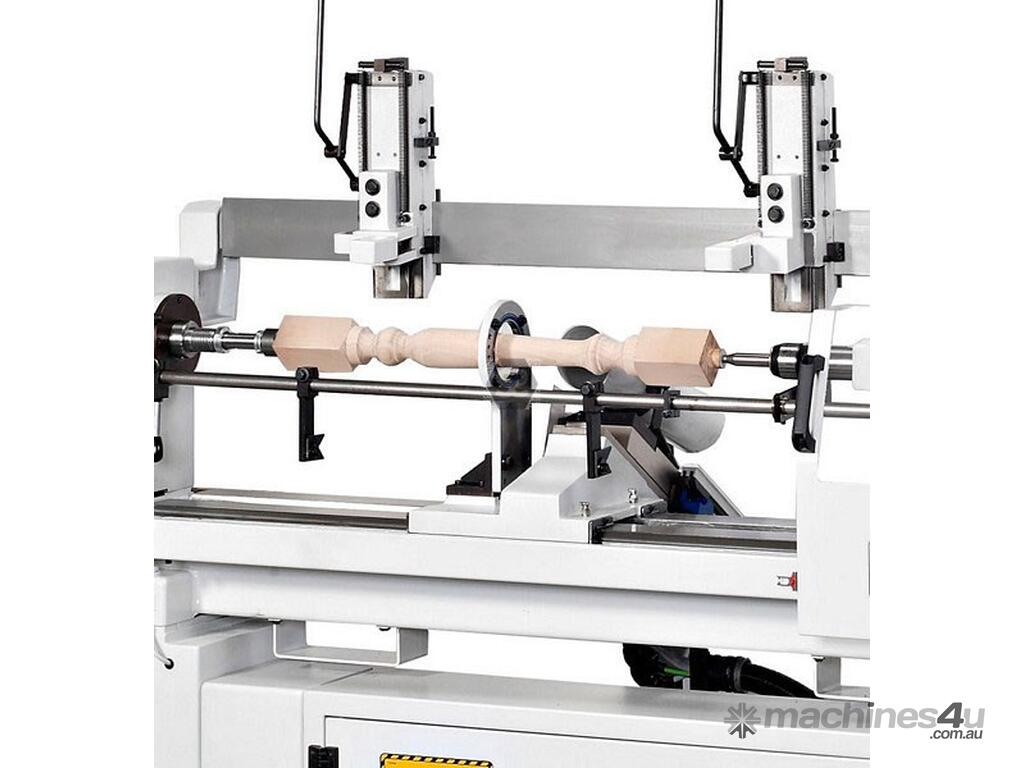

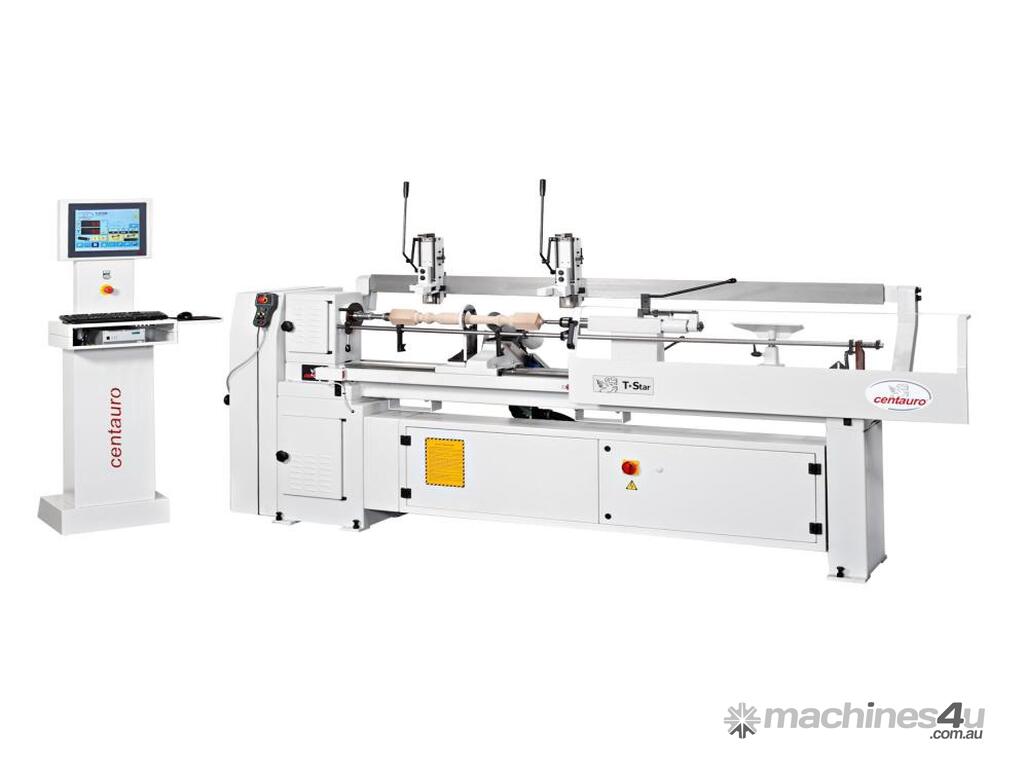

CENTAURO T STAR Semi Auto woodlathe

As far back as 1946, Centauro SpA was the first in Italy to produce band saws with a steel base.
Immediately the Centauro brand, due to the undoubted quality of the product and the wide range of models offered
in steel and cast iron , spread widely on the national market and subsequently on an international level. Since 1970
Centauro production has been enriched with a new series of lathes both in manual version and with hydraulic
copier. Technological innovation then led to the further introduction of electronic and numerical control lathes.
Starting from 1990 new lines of machines, such as trimming saws, numerical control cells for shaped cuts, mortising
machines and mortising machines in different versions, are expanding the Centauro offer to meet the most varied
needs of the world market which absorbs about 70% of turnover.
Centauro SpA has factories covering an area of 25,000 m2. and employs more than 100 employees.

TECHNICAL SPECIFICATIONS
Max. distance between centres mm 1600 / 2000
Height of centres over bed mm 250
Max turning and milling diameter mm 250 (178)
Max Ø permitted by traveling steady mm 110 (80)
Connection for driving and tailstock centre 3 C.M.
Spindle speed g/min. 650 - 900 - 1100 - 1300 - 1500 - 1800 - 2200 - 3000
X-Y axis speed Mt/min X = 12 / Y = 6
Spindle motor power HP/CV/PS 3 - 4 (2,2 - 3 KW)
Installed power Kw 5,67
Net weight Kg 800
Optional milling unit
Router head motor power kW 1,5 (HP 2)
Router head collect ER 25
Vitesse electro-mandril programmable R.P.M. 0 - 18000
Divisions et pas programmable par CT/CAD ?
