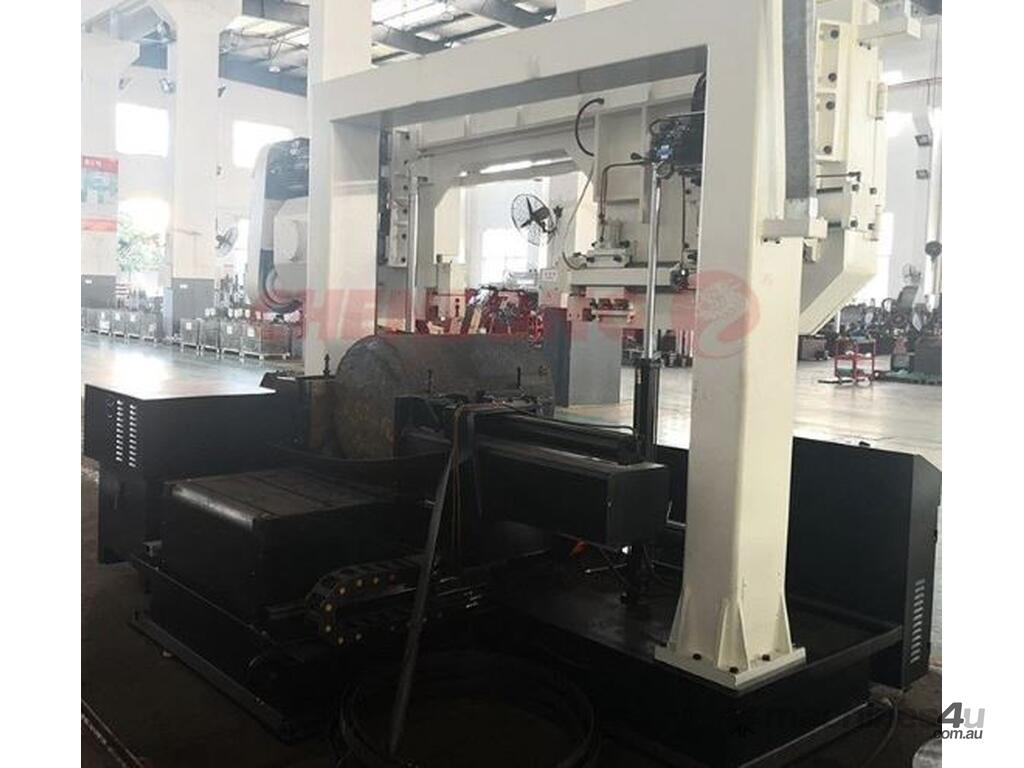

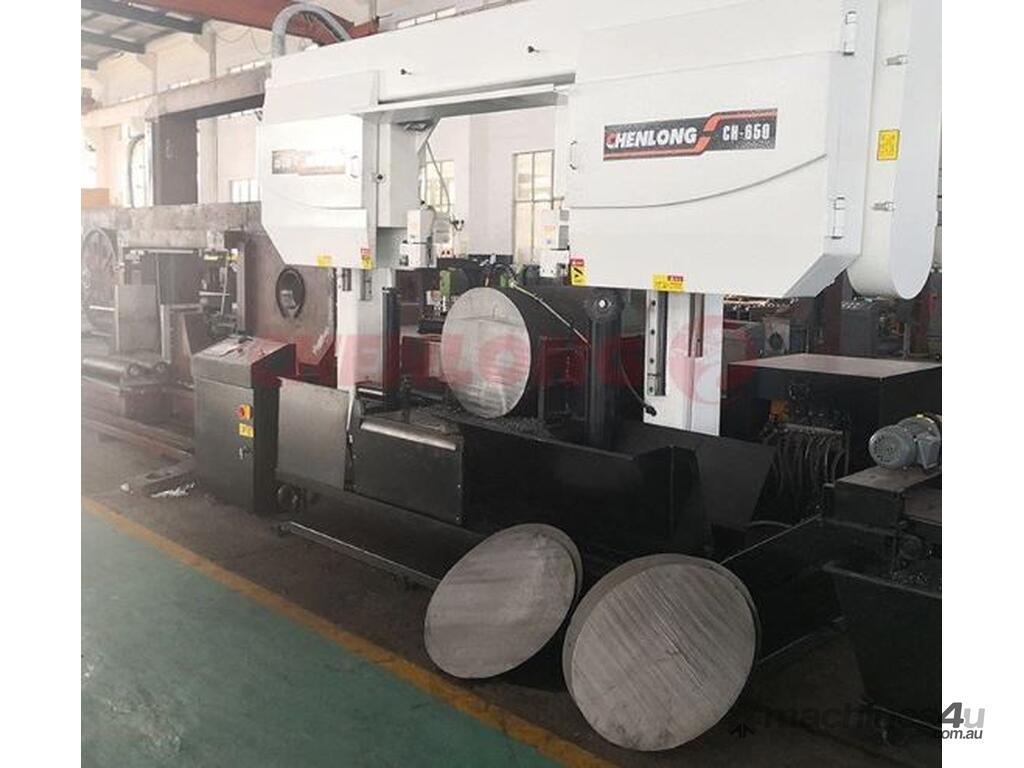

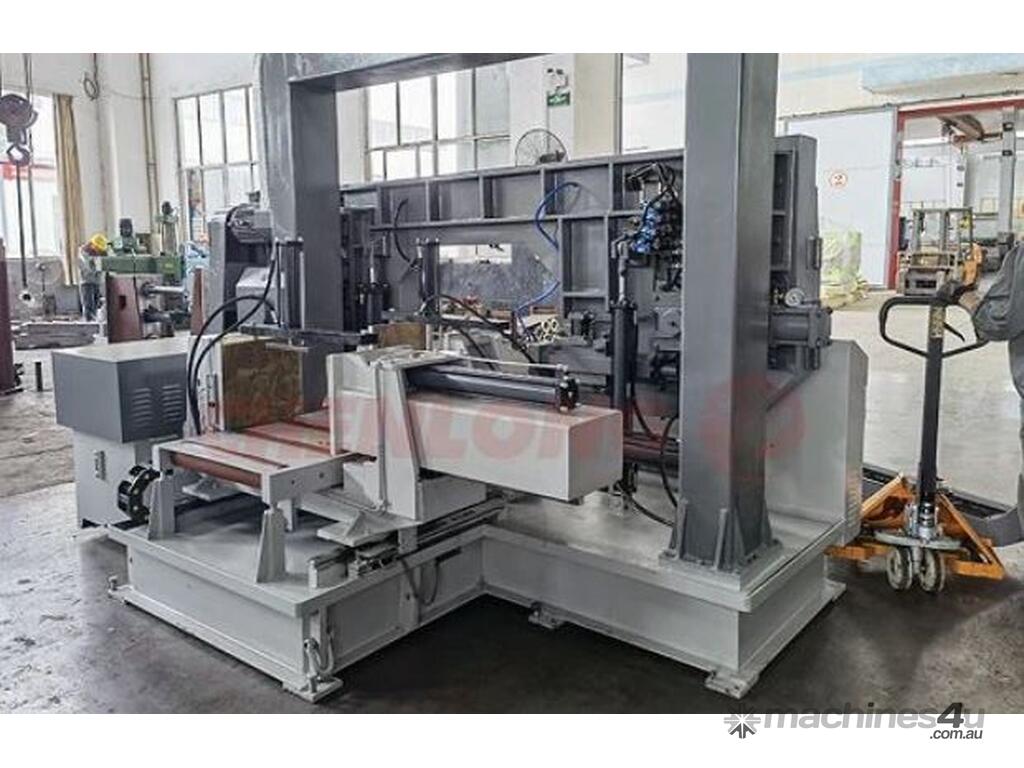

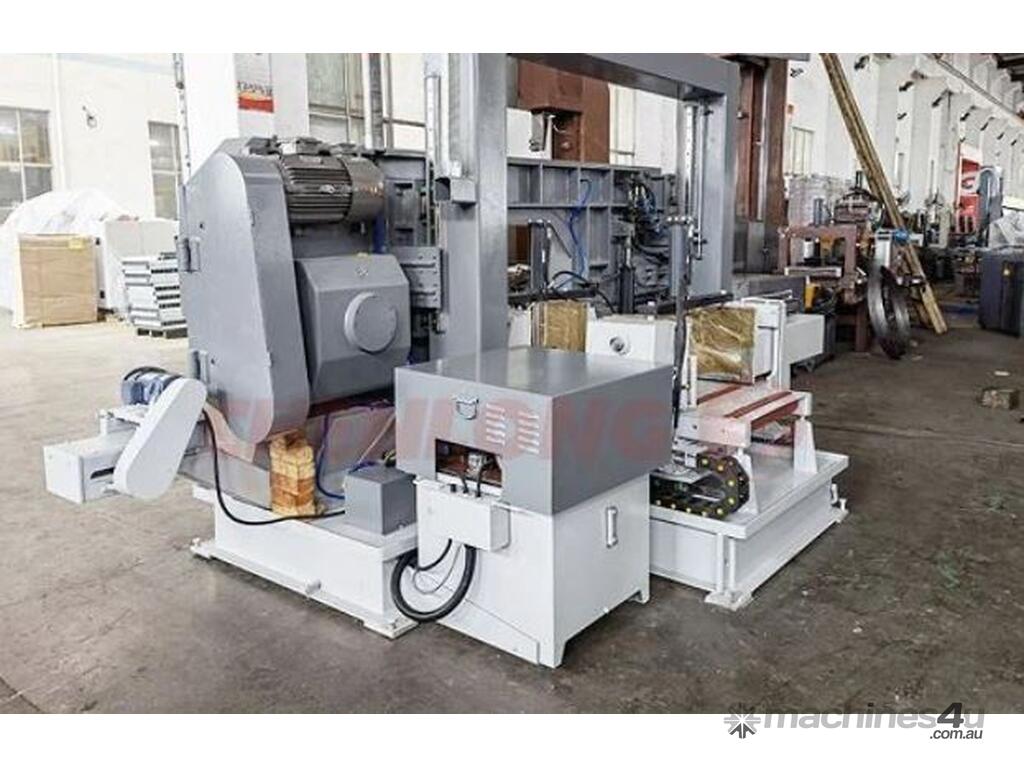

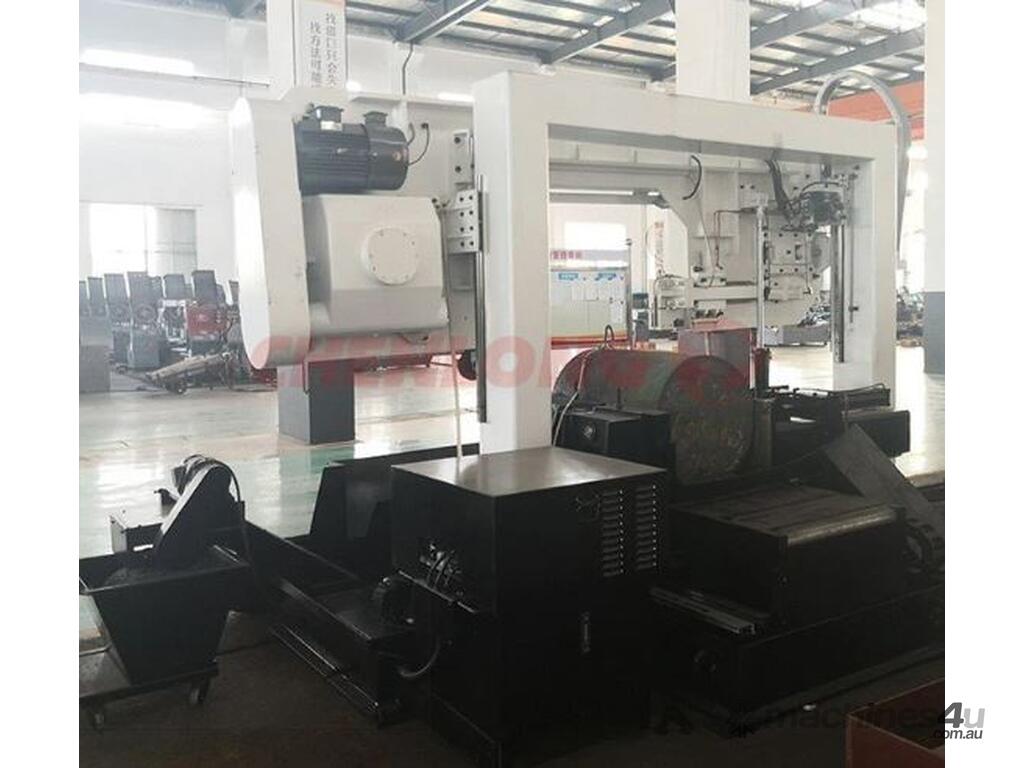

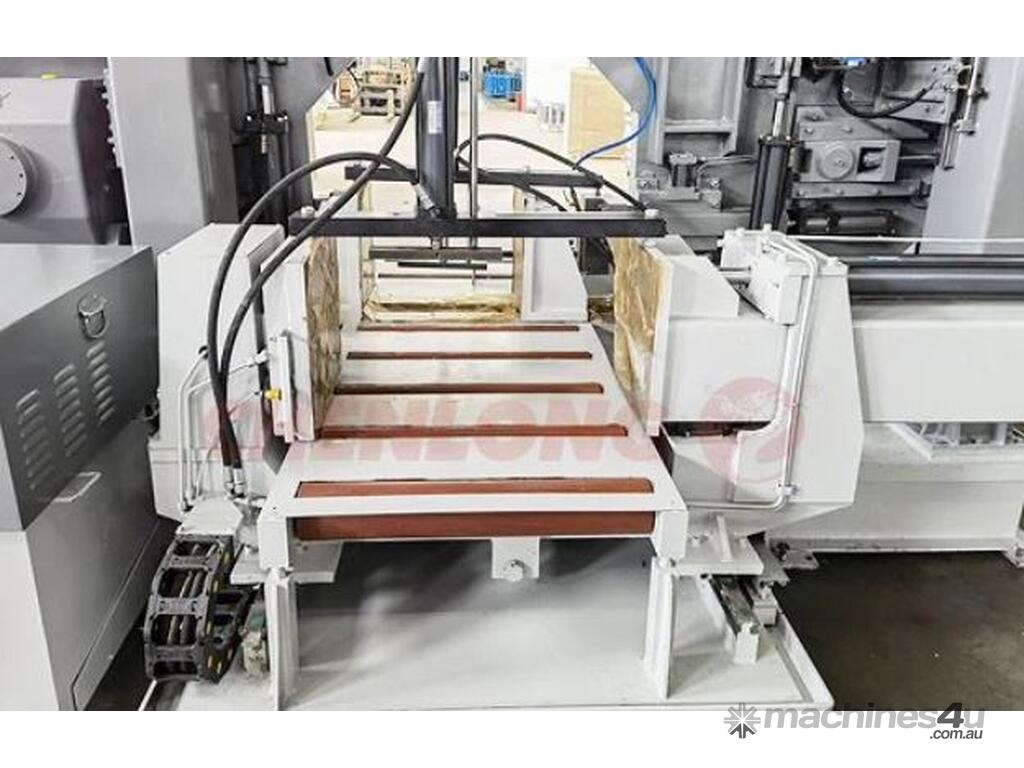

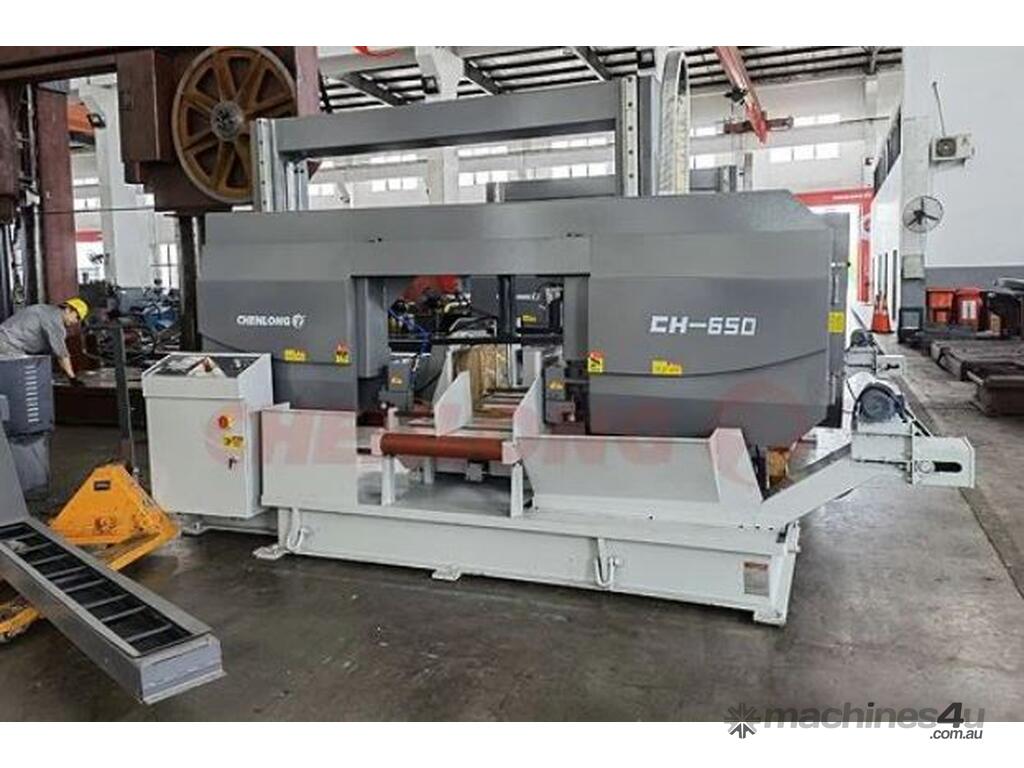

This machine GZ4265 (CH-650) is an ideal machine tool for sawing of small and medium-sized bars, tubes and profiles.
It has the features of high cutting efficiency, energy saving, narrow kerf, material saving, and simple operation.
This automatic feed horizontal band saw machine adopts a gantry type double column structure to ensure the reliability, stability and advancement of the structure.
1. Automatic Feed Horizontal Band Saw Machine GZ4265 (CH-650) Is For Sawing Metal Materials With Maximum Size Of 650mm.
2. Gantry Type Double Column
3. Automatic Feeding
Specifications
-Product Name Automatic Feed Horizontal Band Saw Machine
-Brand CHENLONG
-Model GZ4265 (CH-650)
-Maximum Cutting Size (Round) 650mm
-Maximum Cutting Size (Quadrate) 650×650mm
-Blade Line Speed 20~80 m/min
-Blade Size 54×1.6×7420 mm
-Blade Guides Carbide And Bearing Blade Guides
-Blade Cleaning Wire Brush & Flood Coolant
-Blade Tension Hydraulic
Motors
-Main Motor 7.5kw
-Hydraulic Motor 2.2kw
-Water pump Motor 120w
-Multiple Feeding 500mm×10Times
-Work Vise Control Hydraulic
Machine Size (L×W×H) mm
-2180×4000×2450 (With Chip Conveyor)
-2180×3570×2450 (Without Chip Conveyor)
Standard Equipment:
1. Blade Cleaning Brush.
2. Working Light.
3. Roller Table 1pcs (About 1m )
4. One Piece Of Bi-metal Saw Blade.
5. One Set Of Tools With Tool Box
6. NC Control
7. Bundle Cutting Device
8. Inverter Control Blade Line Speed
9. Hydraulic Blade Tension
Optional Equipment:
1. Extra Common Roller Table
2. Automatic Chip conveyor
