CHENLONG - Fully Automatic Miter Cutting Band Saw Machine CH-300SA

This machine is mainly used for sawing small and medium-sized round pipes, square steel pipes, profiles, etc. In addition to 0° sawing, it also can do 0-45° angle sawing.
The feeding adopts hydraulic automatic feeding, automatic length fixing, Plc programmable control, touch screen operation, and grating ruler detects the sawing length.
It has the advantages of narrow sawing gap, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.

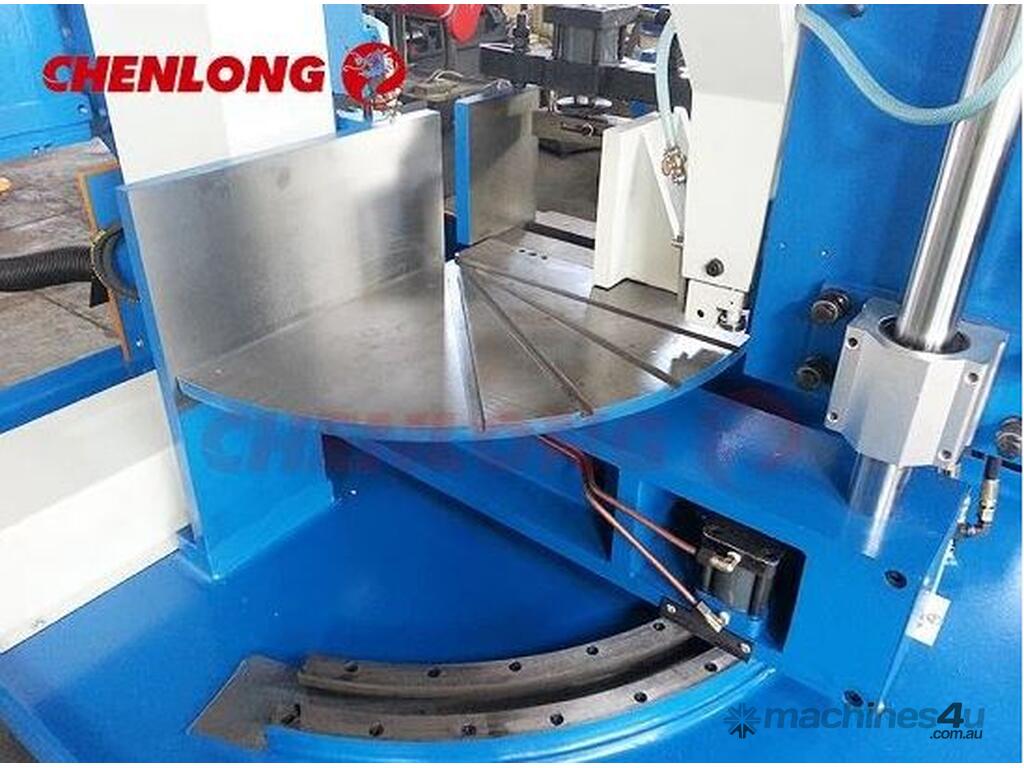

1. Angle Horizontal Metal Band Saw Machine CH-300SA Is A Double Column Type Fully Automatic Machine, Angle Cutting Range Is 0~45 Degree.
2. Angle Turning Is Automatically Controlled.
3. Automatic Feeding And Cutting.

Specifications
-Product Name Angle Horizontal Metal Band Saw Machine
-Brand CHENLONG
-Model CH-300SA
-Maximum Cutting Size (0°Round) 300mm
-Maximum Cutting Size (0°Quadrate) 300×350mm
-Maximum Cutting Size (45°Round) 230mm
-Maximum Cutting Size (45°Quadrate) 300×180mm
-Blade Line Speed 20~80 m/min
-Blade Size 34×1.1×4550 mm
-Blade Guides Carbide And Bearing Blade Guides
-Blade Cleaning Wire Brush & Flood Coolant
-Blade Tension Manual

Motors
-Main Motor 3kw
-Hydraulic Motor 0.75kw
-Water pump Motor 60w
-Work Vise Control Hydraulic+Screw
-Machine Size(L×W×H)mm 2250×2460×1920

Standard Equipment:
1. Blade Cleaning Brush.
2. Working Light.
3. Roller Table 1pc(2m)
4. One Piece Of Bi-metal Saw Blade.
5. One Set Of Tools With Tool Box

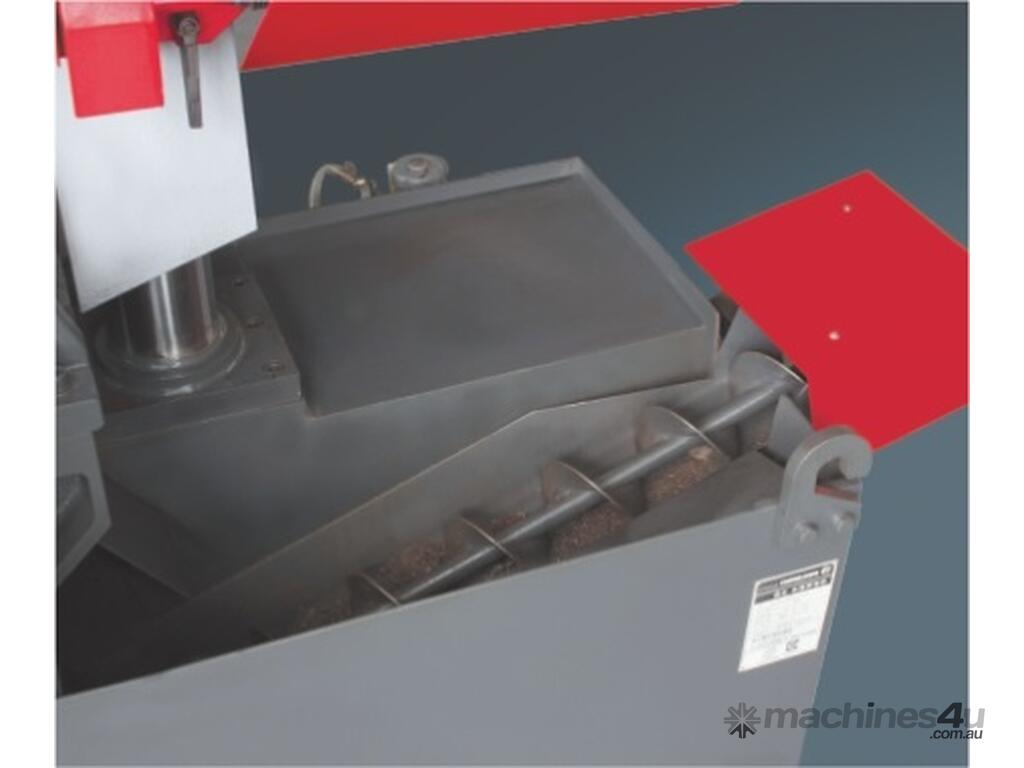

6. Automatic Chip Conveyor
7. Bundle Cutting Device
8. Inverter
9. NC control

Optional Equipment:
1. Extra Common Roller Table
