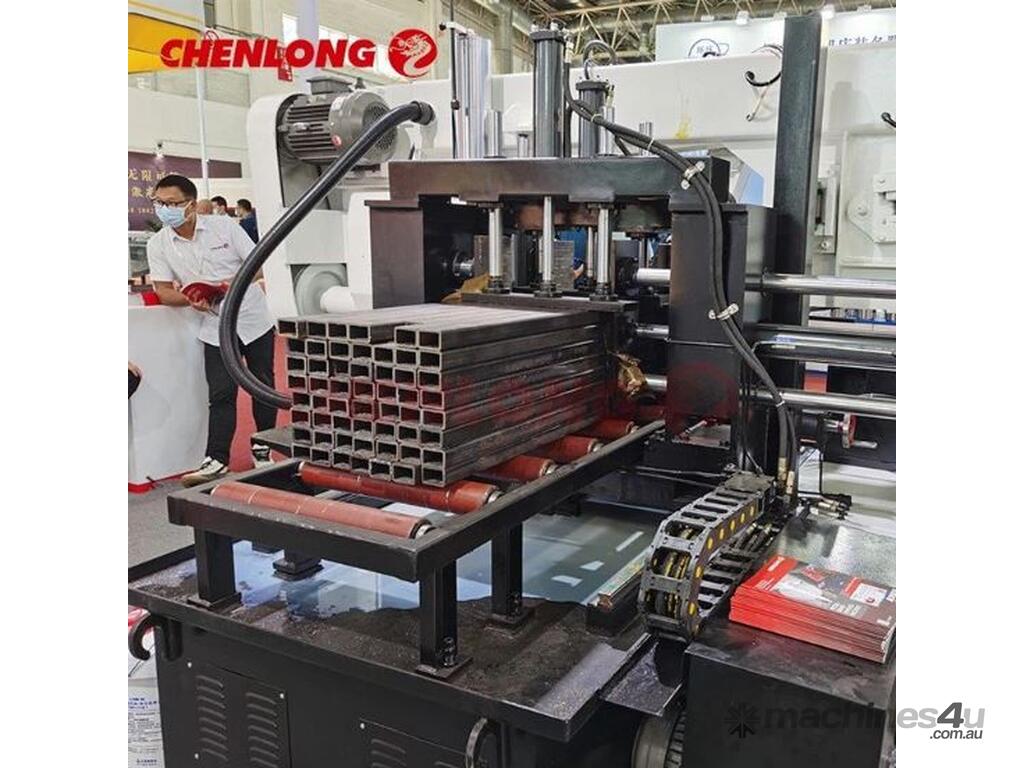

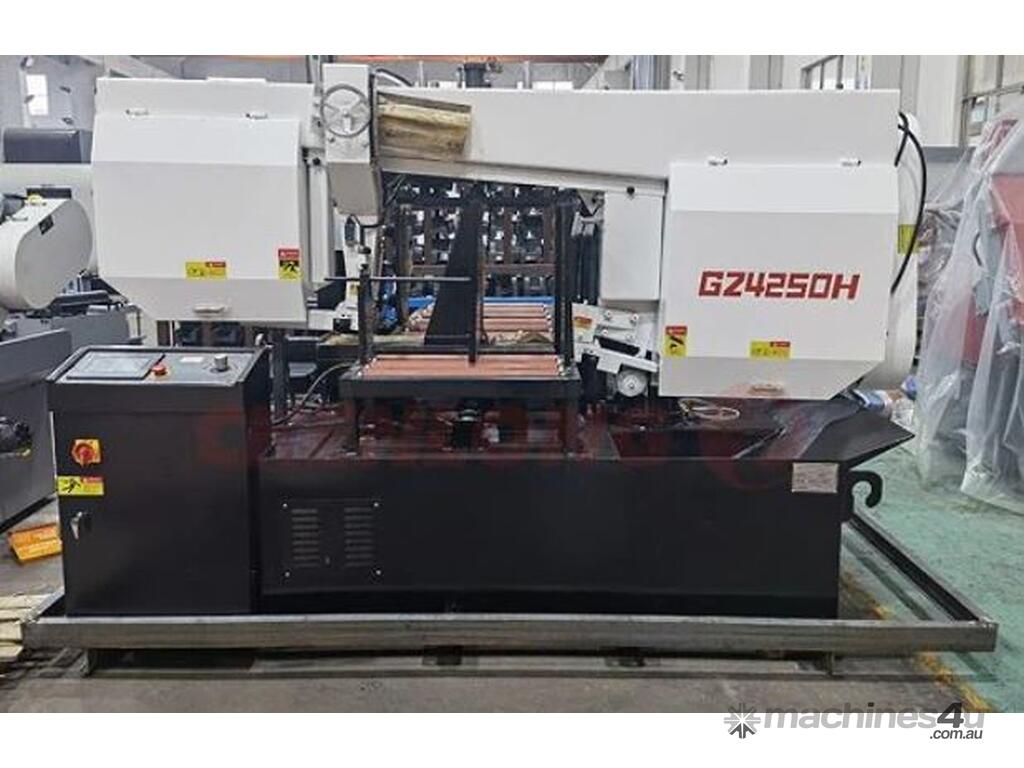

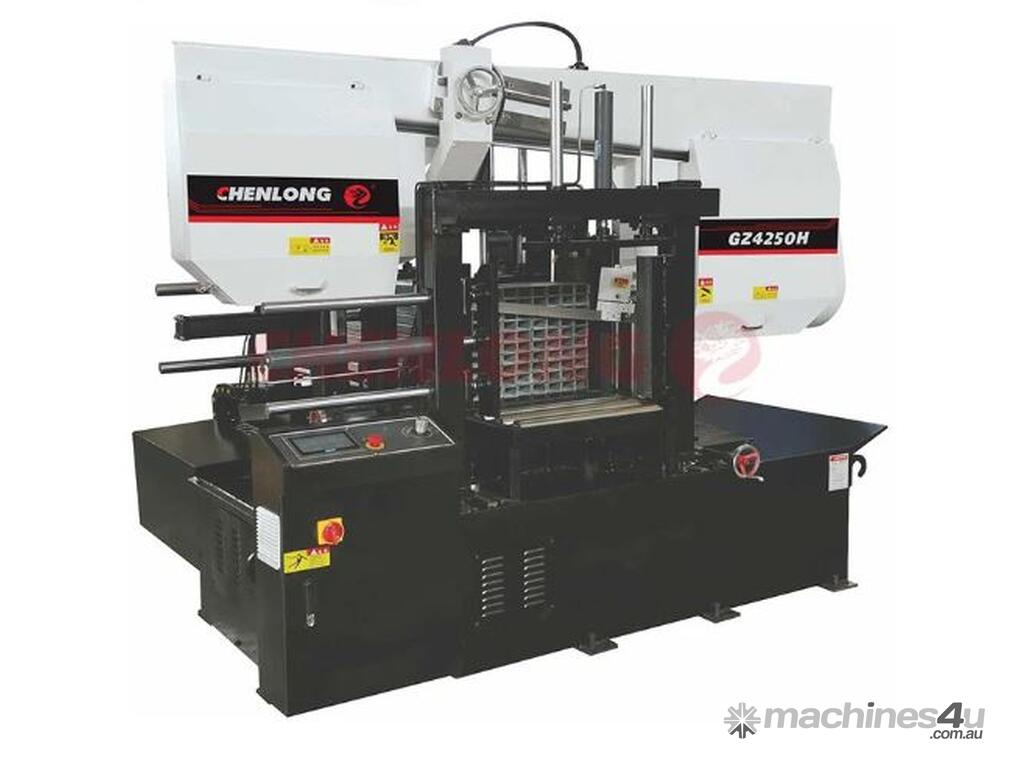

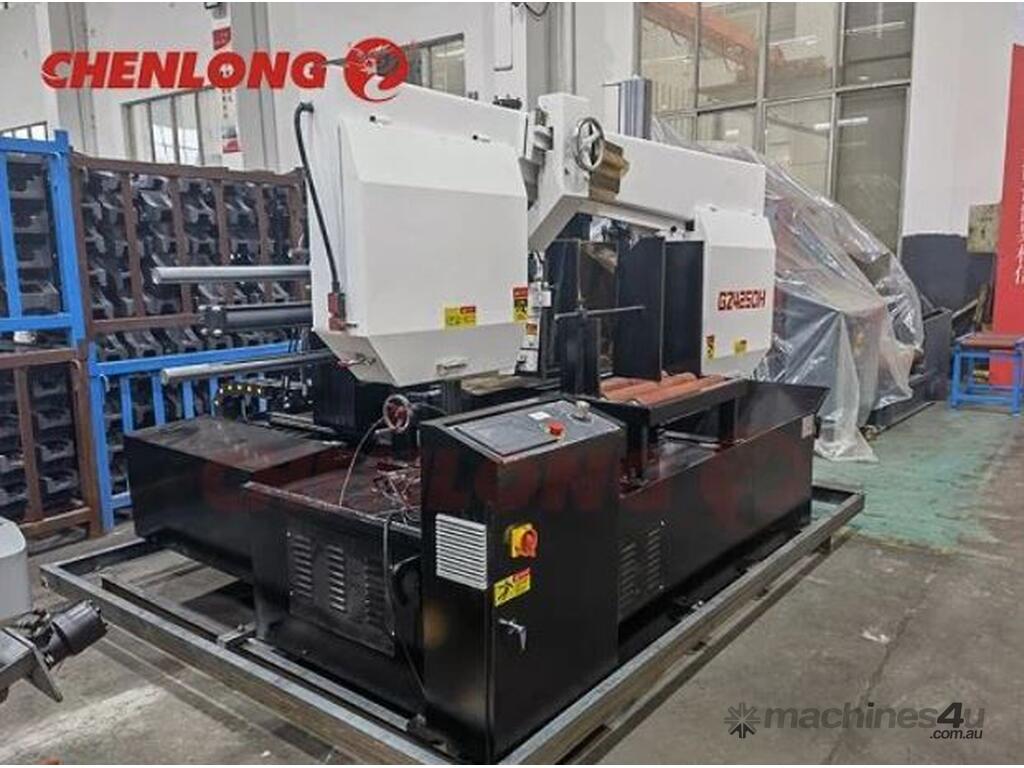

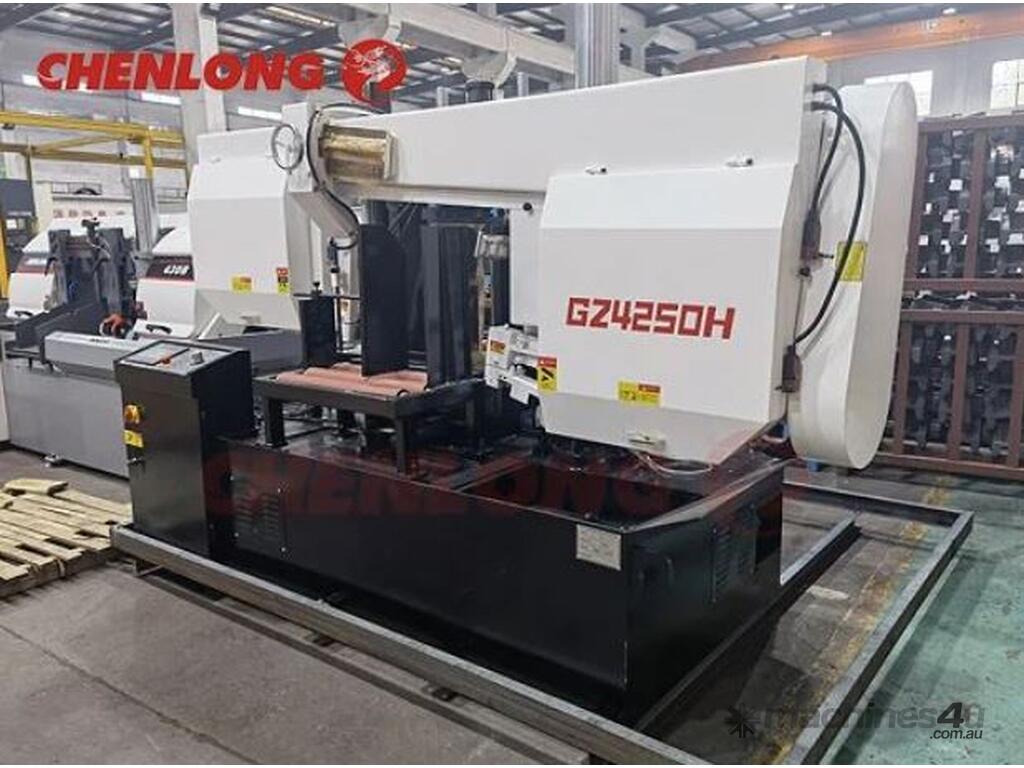

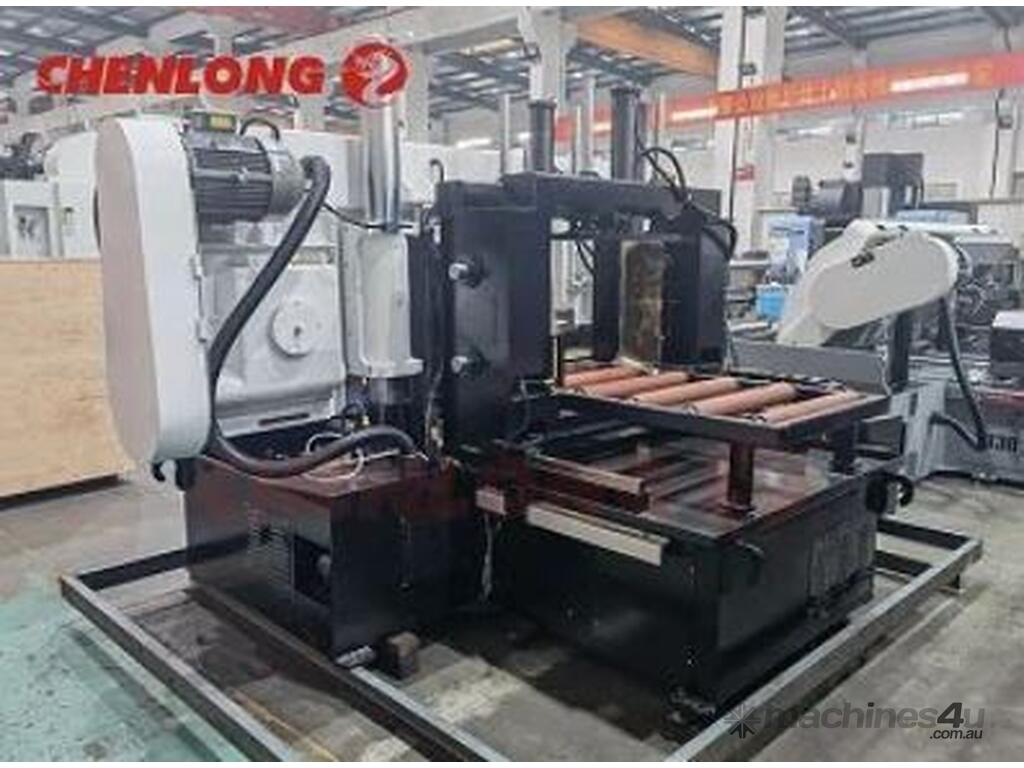

CHENLONG – Semi-Automatic Band Saw Machine GZ-4250H

Automatic Horizontal Band Saw Machine GZ4250H is mainly suitable for sawing profiles, bundled materials, etc. it has the advantages of narrow sawing gap, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.

-Automatic Horizontal Band Saw Machine Is Specially Suitable For Sawing Pipes In Bundle.
-The Bundle Cutting Size Could Be 500×500mm
-Profiles Are Also Suitable

The speed of the driving wheel is adjusted by the belt pulley. By changing the belt position at the belt pulley, 4 different blade line speeds can be obtained to meet the sawing of different materials

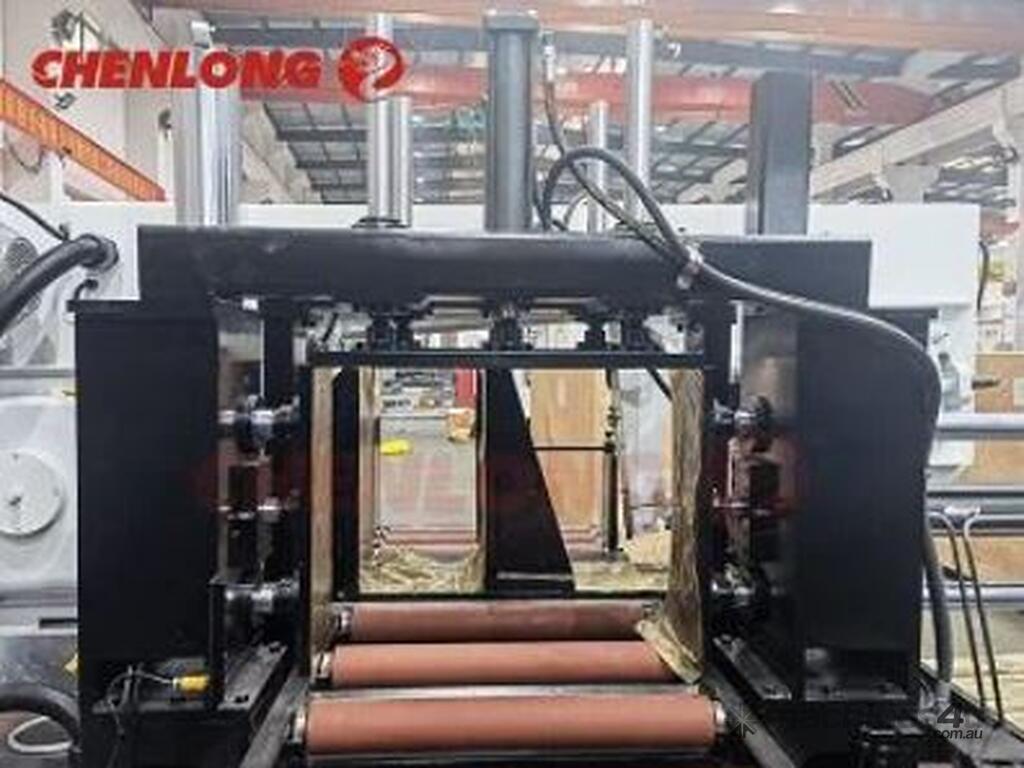

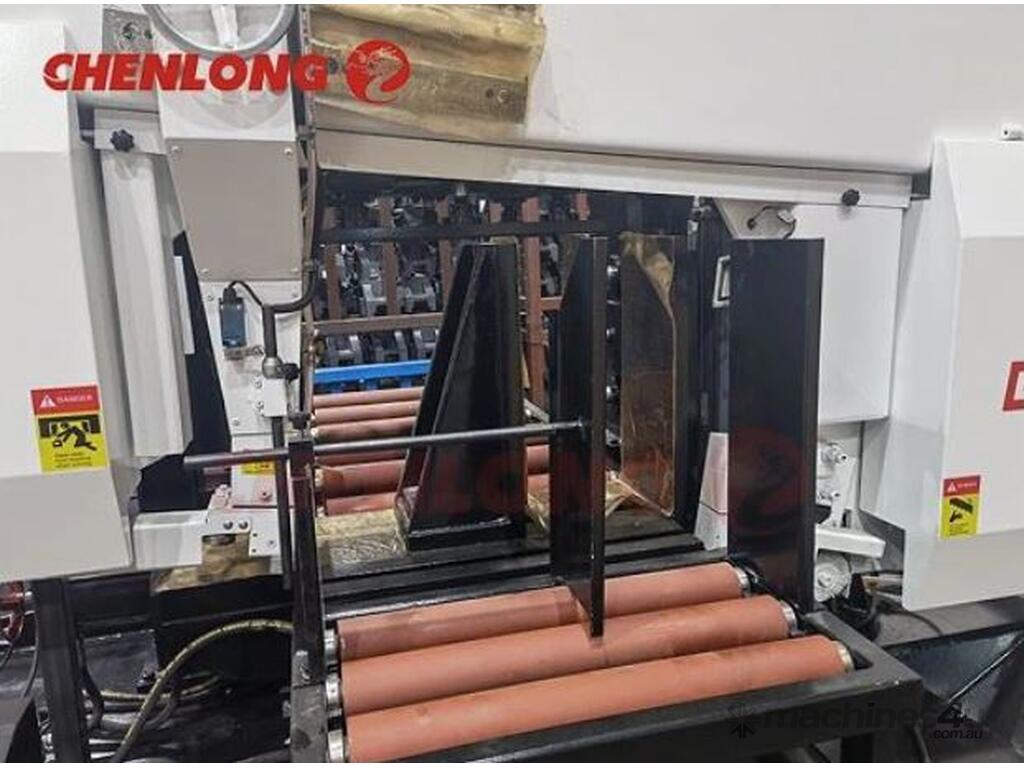

The clamping of the automatic horizontal band saw machine GZ4250H adopts hydraulic vise clamping. A set of hydraulic vise is designed behind the saw blade. The oil cylinder adopts the structure of the screw cylinder. Move the movable vise to be 20mm away from the workpiece, and then the movable vise can be driven by the hydraulic cylinder to clamp the workpiece.

The third clamping device (optional)

Product Name Automatic Horizontal Band Saw Machine
-Brand CHENLONG
-Model GZ4250H
-Maximum Cutting Size (Round) 500mm
-Maximum Cutting Size (Quadrate) 500×500mm
-Blade Line Speed 40/55/70/90 m/min
-Blade Size 41×1.3×5700 mm
-Blade Guides Carbide And Bearing Blade Guides
-Blade Cleaning Wire Brush & Flood Coolant
-Blade Tension Manual

Motors
-Main Motor 5.5kw
-Hydraulic Motor 1.5kw
-Water Pump Motor 120w
-Multiple Feeding 500mm×10Times
-Work Vise Control Hydraulic
-Machine Size(L×W×H) 2650×2225×1950

Standard Equipment:
1. Blade Cleaning Brush.
2. Working Light.
3. Roller Table 1pcs (About 60cm )
4. One Piece Of Bi-metal Saw Blade.
5. One Set Of Tools With Tool Box
6. NC Control
7. Bundle Cutting Device

Optional Equipment:
1. Extra Common Roller Table
2. The Third Clamping Device
