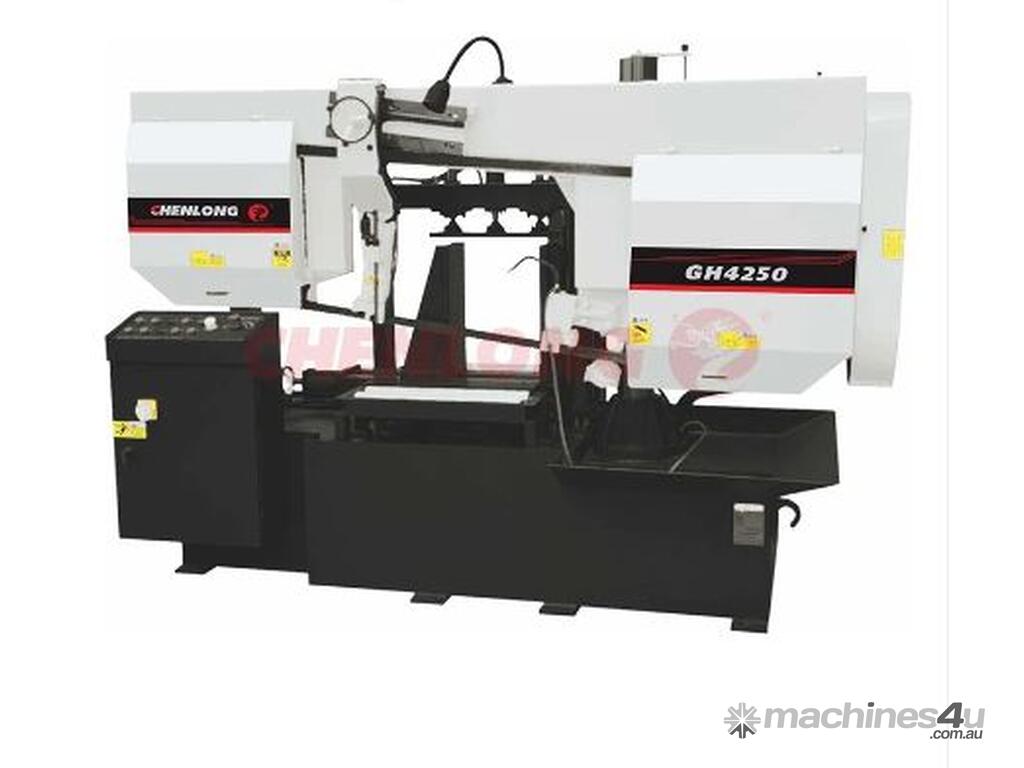

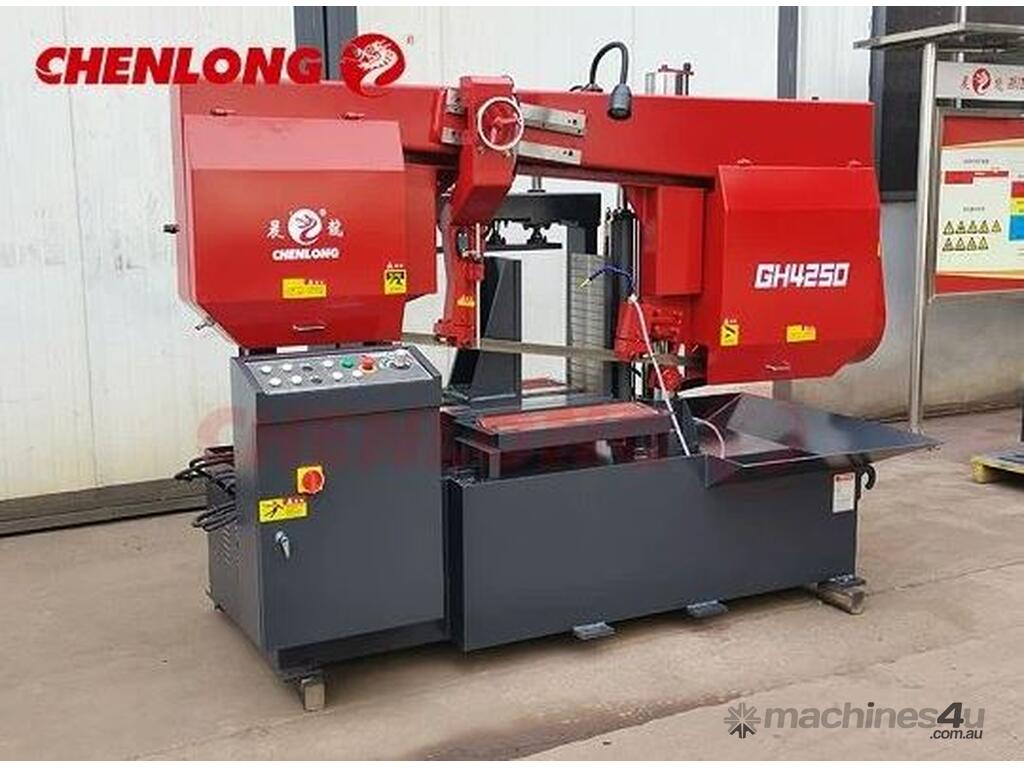

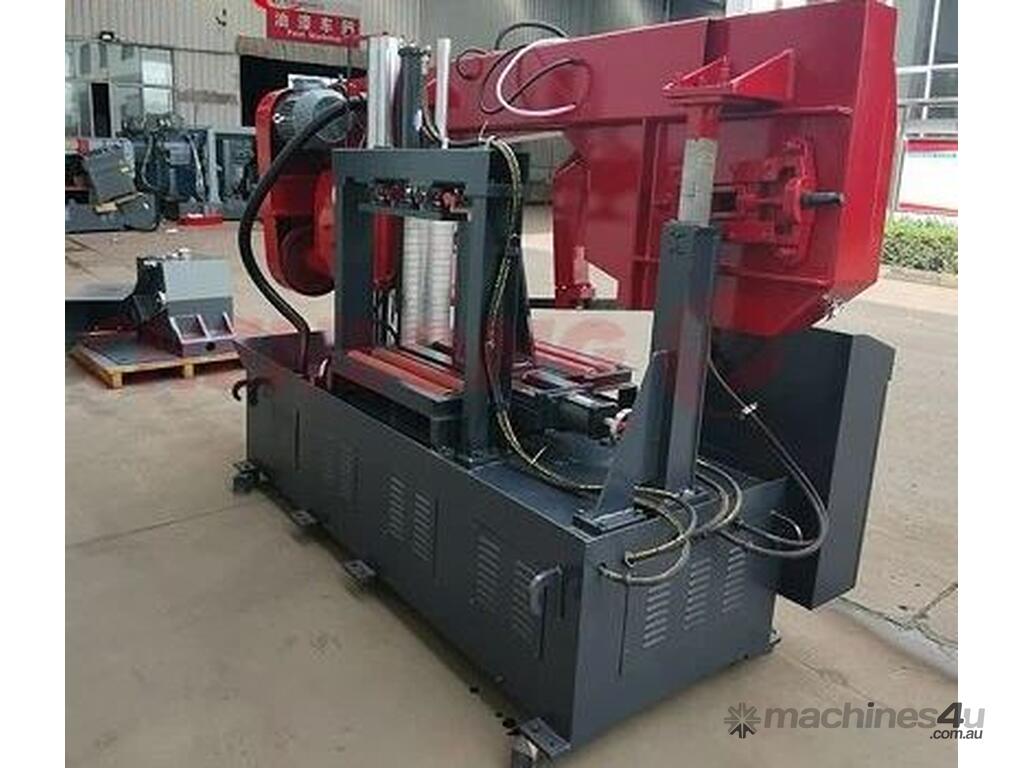

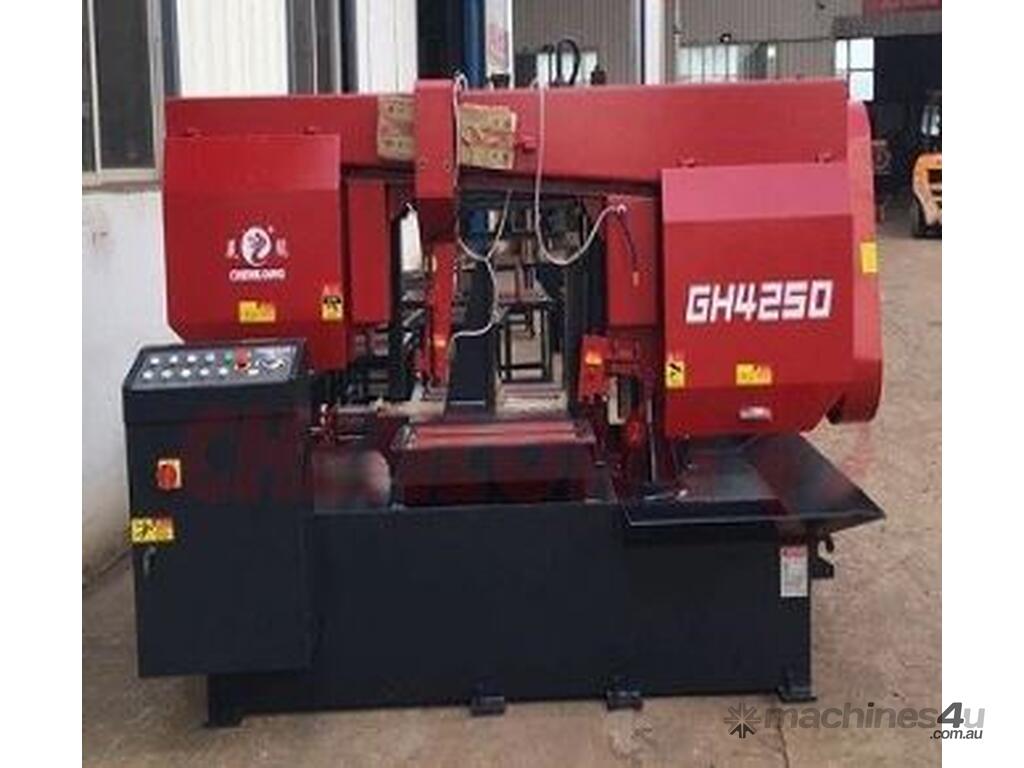

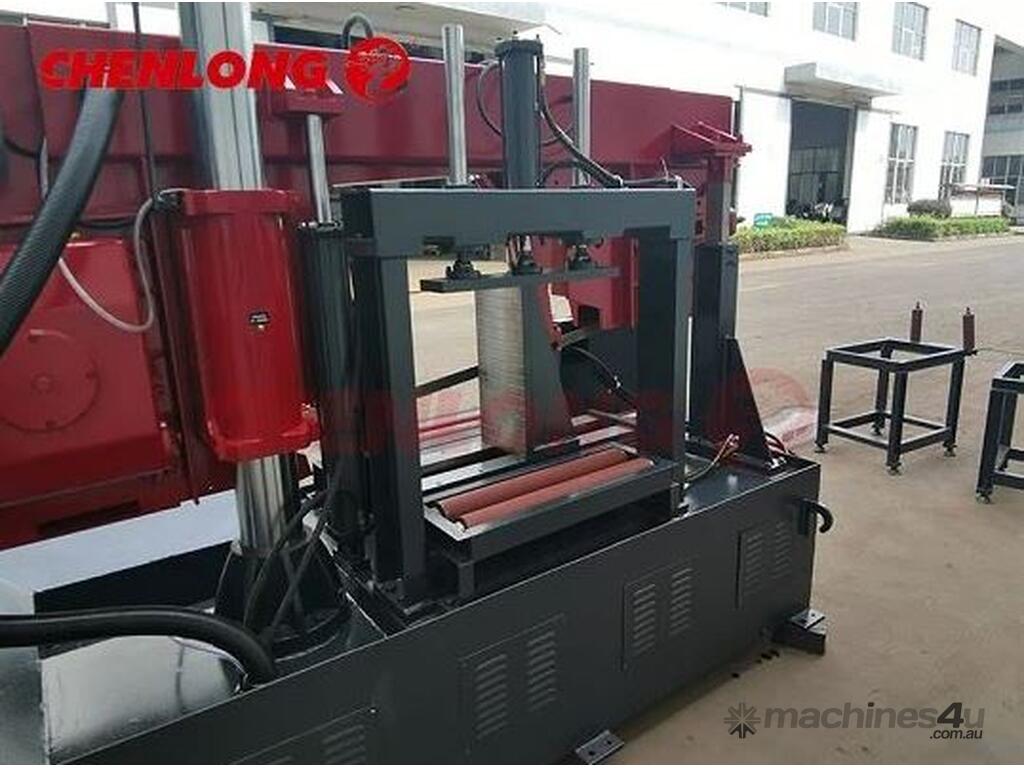

CHENLONG – Semi-Automatic Industrial Horizontal Band Saw Machine GH-4250

1. Horizontal Metal Cutting Band Saw Machine Is A Semi-Automatic Band Sawing Machine.
2. Specially Suitable For Sawing Profiles.
3. Maximum Cutting Size Of 500×500mm

Product Name Horizontal Metal Cutting Band Saw Machine
-Brand CHENLONG
-Model GH4250
-Maximum Cutting Size (Round) 500mm
-Maximum Cutting Size (Quadrate) 500×500mm
-Blade Line Speed 40/55/70/90 m/min
-Blade Size 41×1.3×5700 mm
-Blade Guides Carbide And Bearing Blade Guides
-Blade Cleaning Wire Brush & Flood Coolant
-Blade Tension Manual

Motors
-Main Motor 5.5kw
-Hydraulic Motor 0.75kw
-Water pump Motor 120w
-Work Vise Control Hydraulic
-Machine Size(L×W×H)mm 2850×1200×1850

Standard Equipment:
1. Blade Cleaning Brush.
2. Working Light.
3. Power Roller Table 1pc (1m)
4. One Piece Of Bi-metal Saw Blade.
5. One Set Of Tools With Tool Box

Optional Equipment:
1. Extra Common Roller Table
2. Automatic Chip Conveyor
3. Inverter
4. Laser Projector
5. Hydraulic Blade Tension
