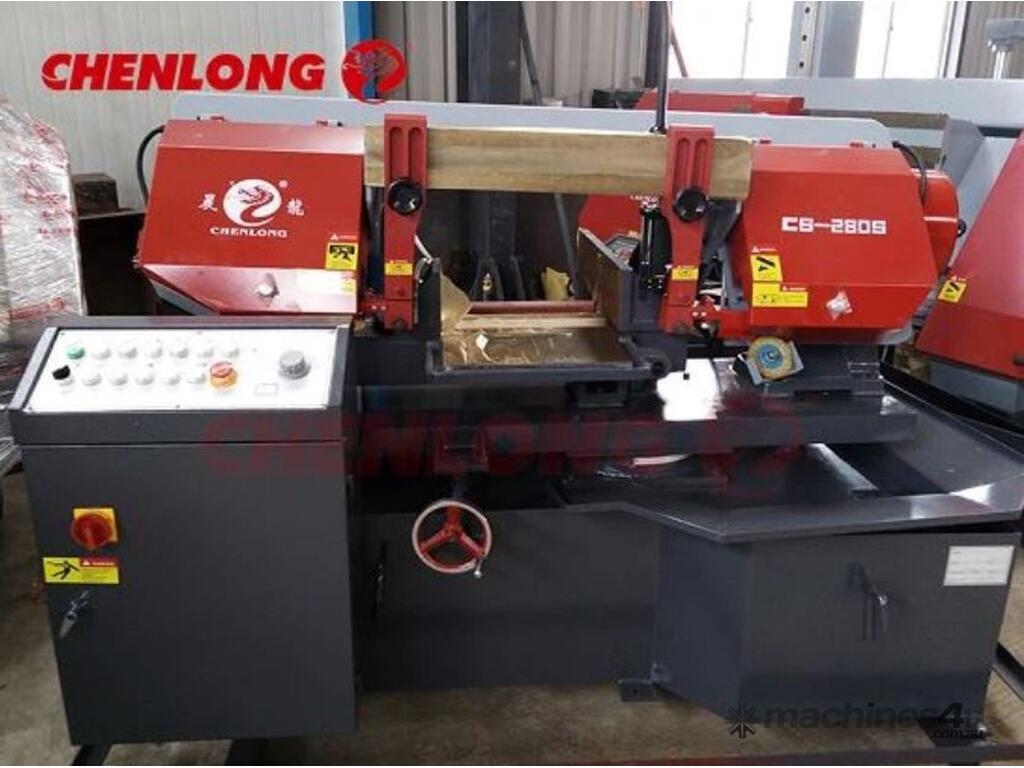

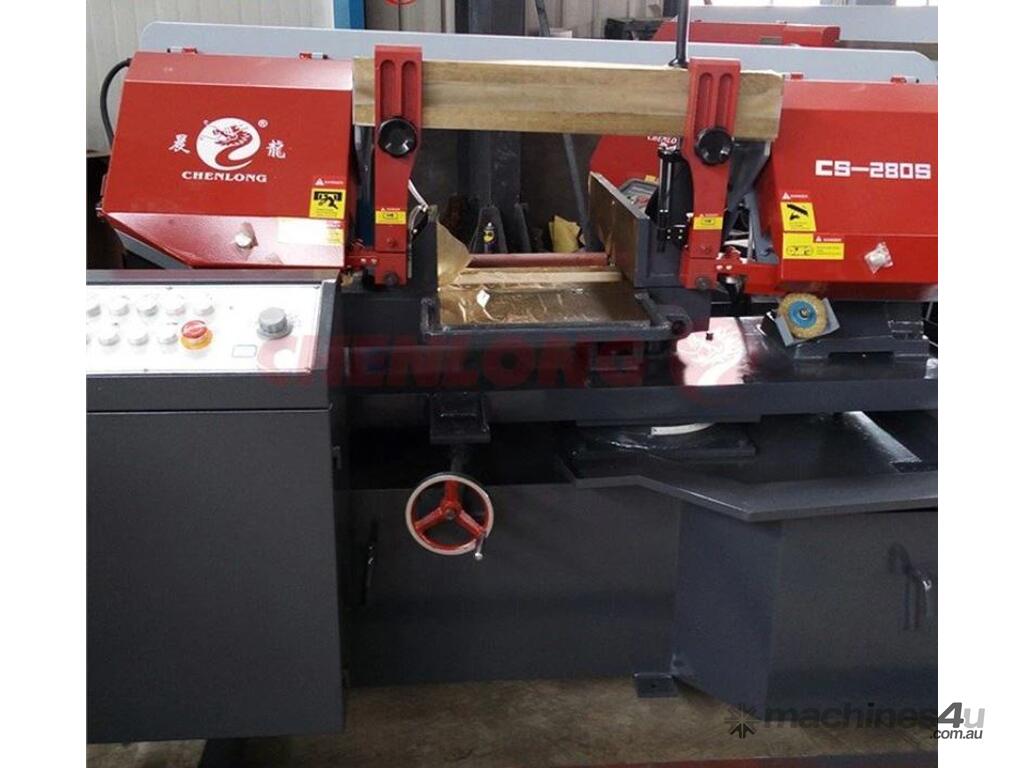

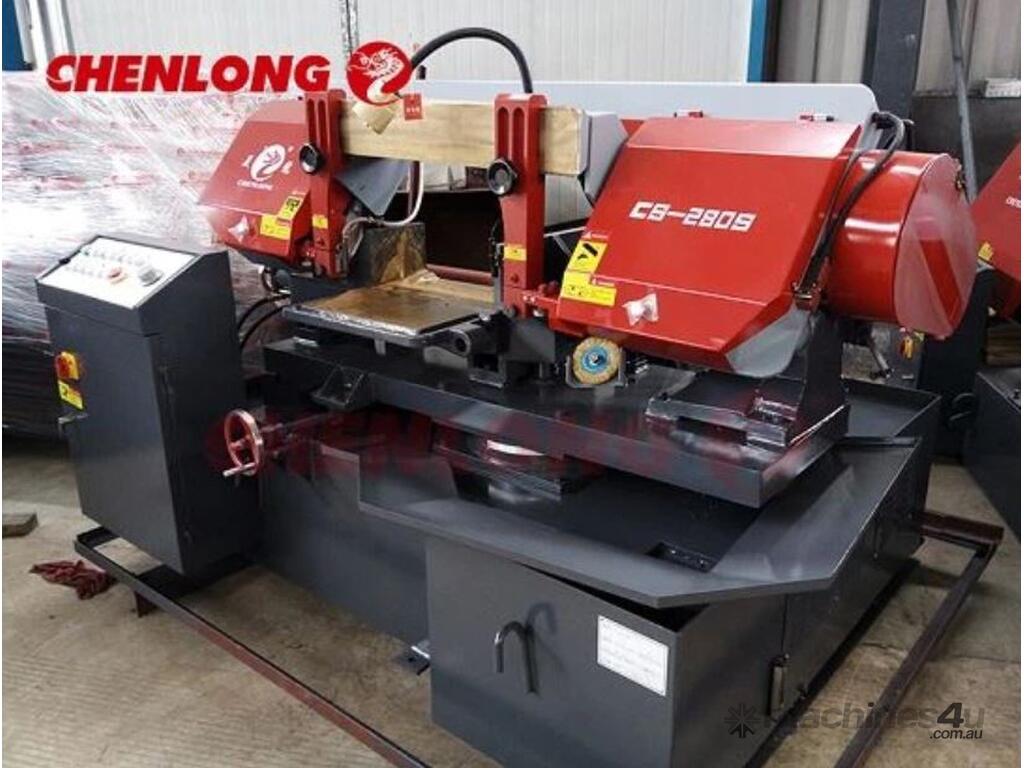

CHENLONG - Semi Automatic Miter Cutting Band Saw Machine CH-280S

This band sawing machine is a semi automatic band sawing machine, which is mainly used for sawing small and medium-sized profiles. The angle rotation is manual controlled.

-Miter Cutting Band Sawing Machine CS-280S Is A Semi-Automatic Angle Cutting Machine, Cutting Range Is 0~45 Degree.
-5 Shifts Of Blade Line Speed.
-It Is Mainly Used For Angle Processing Of Profiles

Product Name Miter Cutting Band Sawing Machine
-Brand CHENLONG
-Model CS-280S
-Maximum Cutting Size (0°Round) 280mm
-Maximum Cutting Size (0°Quadrate) 400×200mm
-Maximum Cutting Size (45°Round) 280mm
-Maximum Cutting Size (45°Quadrate) 220×200mm
-Blade Line Speed 25/35/45/60/80 m/min
-Blade Size 34×1.1×3860 mm
-Blade Guides Carbide And Bearing Blade Guides
-Blade Cleaning Wire Brush & Flood Coolant
-Blade Tension Manual

Motors
-Main Motor 3kw
-Hydraulic Motor 0.75kw
-Water pump Motor 60w
-Work Vise Control Hydraulic
-Machine Size(L×W×H)mm 2020×1520×1300

Standard Equipment:
1. Blade Cleaning Brush.
2. Working Light.
3. Roller Table 1pc(about 80cm)
4. One Piece Of Bi-metal Saw Blade.
5. One Set Of Tools With Tool Box

Optional Equipment:
- Extra Common Roller Table

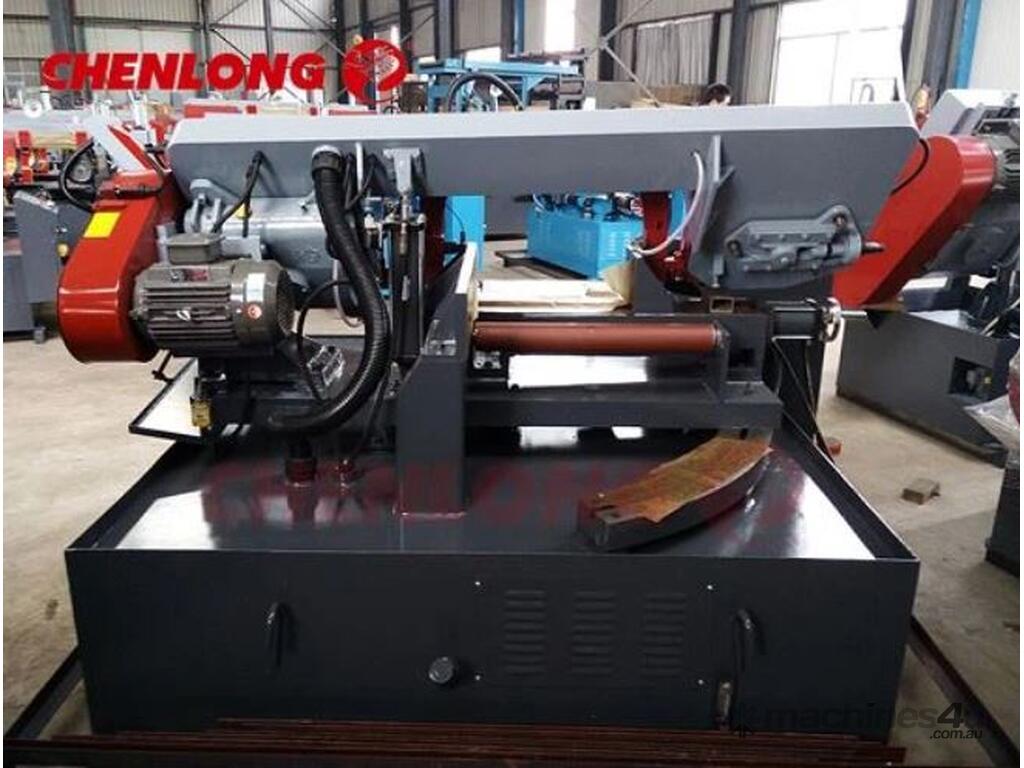

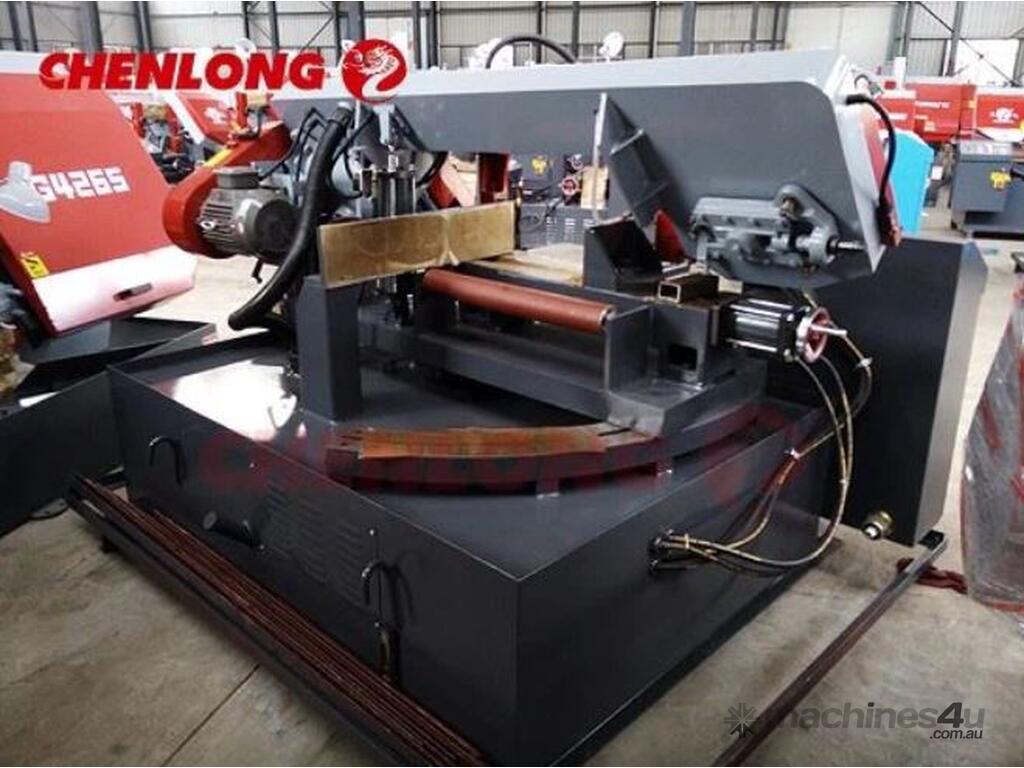

* The base of the miter cutting band sawing machine is a steel plate structure, and a rotating shaft is installed on the base. When the sawing angle is required, the saw frame can be rotated around the rotating shaft within the range of 0 to 45º. The rotation of the angle is driven by a manual screw, and the scale is manually aligned.

* Saw fame lifting is pivot type, the saw frame moves up and down around the rotating shaft driven by the oil cylinder, and the bottom of the oil cylinder adopts a hinge type to avoid over-positioning and affect the stability of the saw frame lifting and lowering.

* This miter cutting band sawing machine is designed with a separate electrical control cabinet. all electrical components are installed in the electrical cabinet. To ensure safety, interlocks are provided between each action. Specifically: If the vise is not clamped, and the main drive cannot work; During the sawing process,the vise must not be loosened; All actions are controlled by relay lines and button operation.
