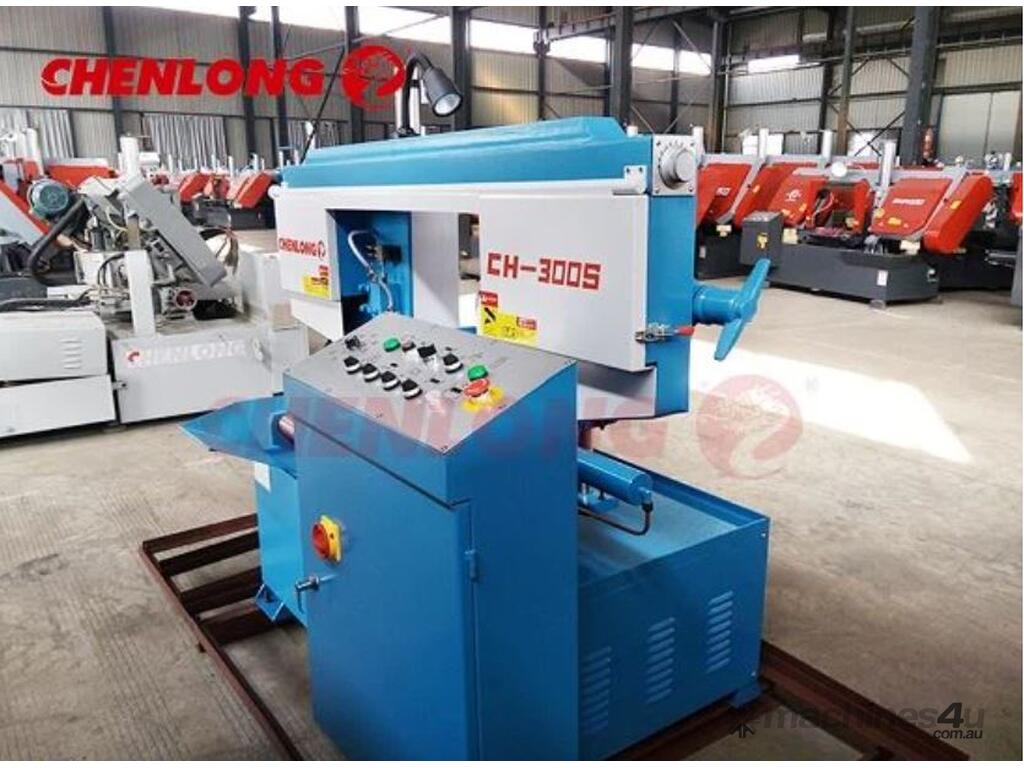

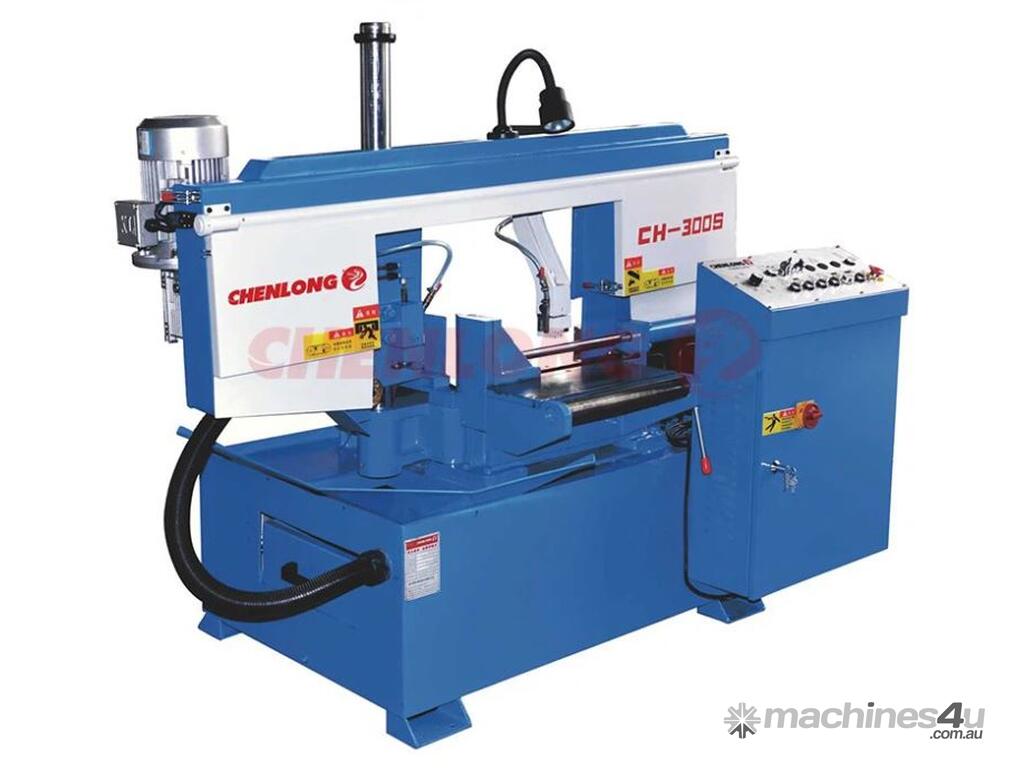

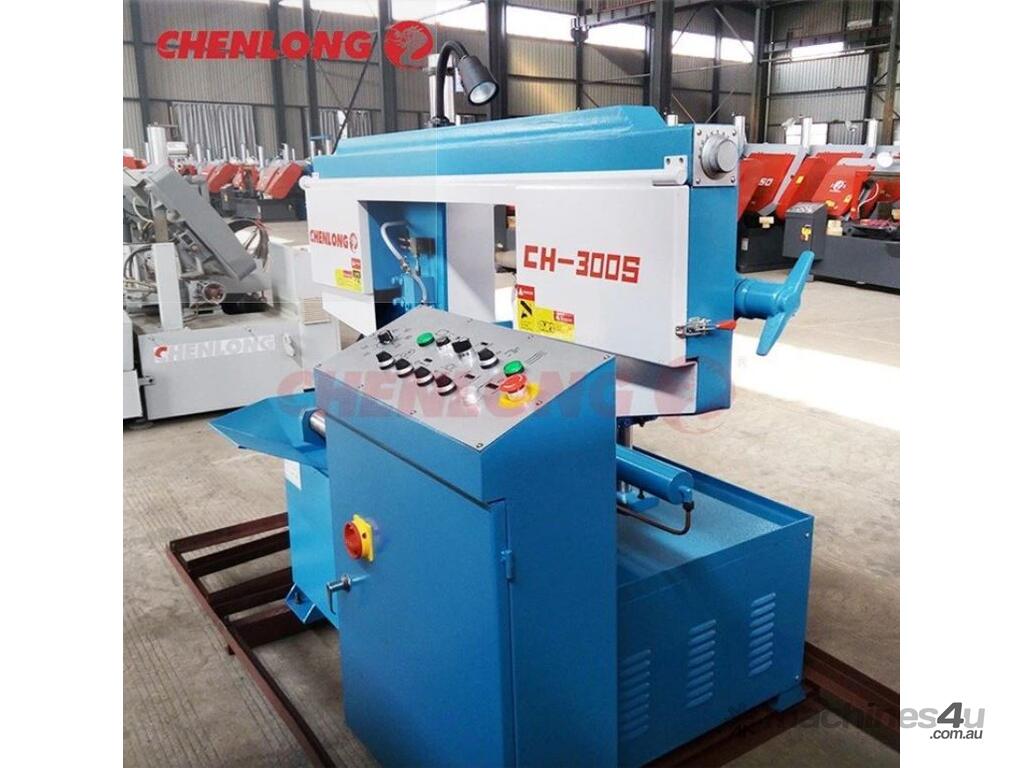

CHENLONG - Semi-Automatic Miter Cutting Band Saw Machine CH-300S

This machine is mainly used for sawing small and medium-sized round pipes, square steel pipes, etc. In addition to the 0° sawing function, the miter cutting band saw machine also has the 0-60° angle sawing function, which is convenient for the angle sawing of profiles. The angle rotation method is manually controlled.

1. Miter Cutting Band Saw Machine CH-300S

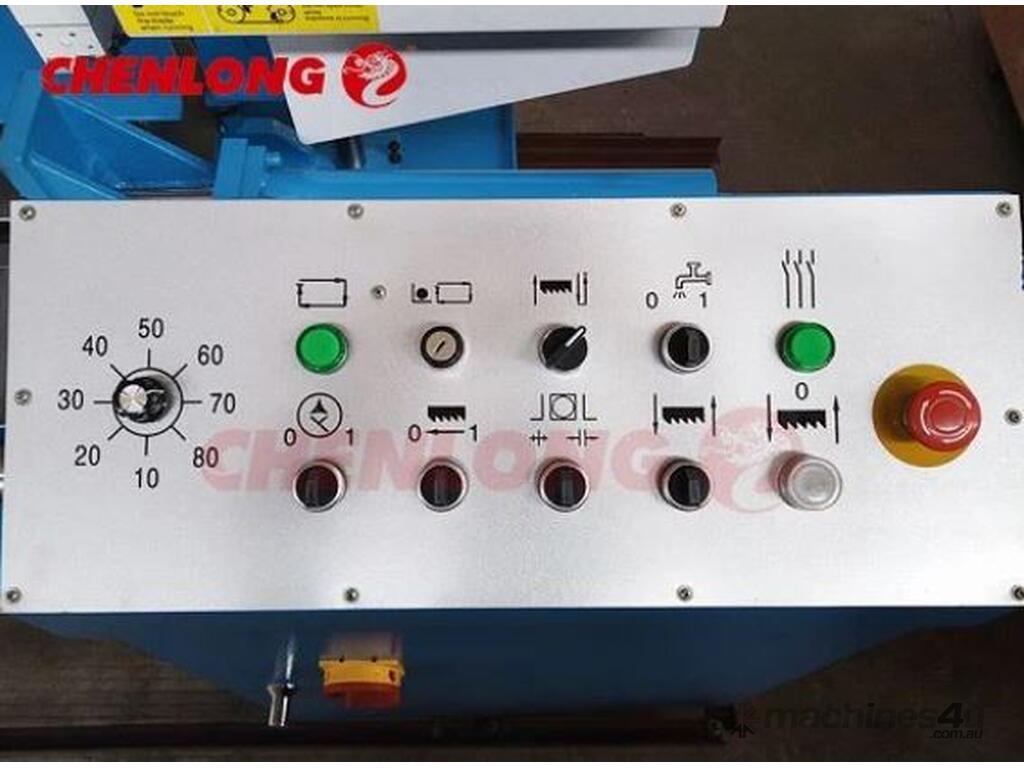

2. Inverter Control Blade Line Speed
3. Full Stroke Clamping Cylinder

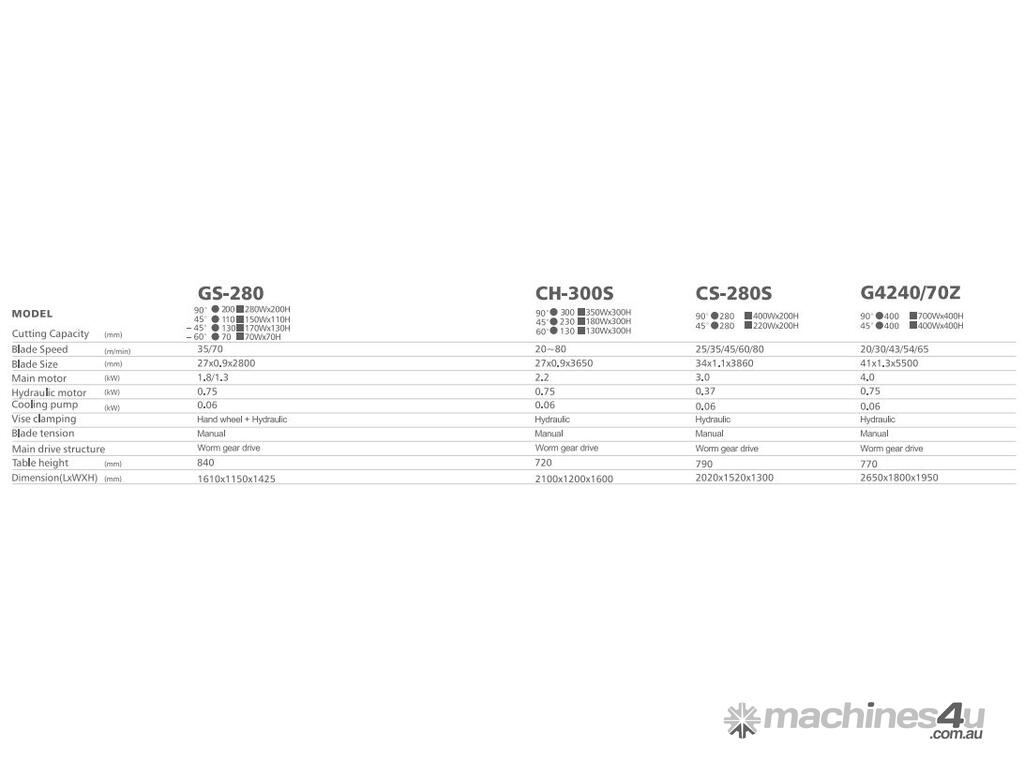

Product Name Miter Cutting Band Saw Machine
-Brand CHENLONG
-Model CH-300S
-Maximum Cutting Size (0°Round) 300mm
-Maximum Cutting Size (0°Quadrate) 350×300mm
-Maximum Cutting Size (45°Round) 230mm
-Maximum Cutting Size (45°Quadrate) 180×300mm
-Maximum Cutting Size (60°Round) 130mm
-Maximum Cutting Size (60°Quadrate) 130×300mm
-Blade Line Speed 20~80 m/min
-Blade Size 27×0.9×3650 mm
-Blade Guides Carbide And Bearing Blade Guides
-Blade Cleaning Wire Brush & Flood Coolant
-Blade Tension Manual

Motors

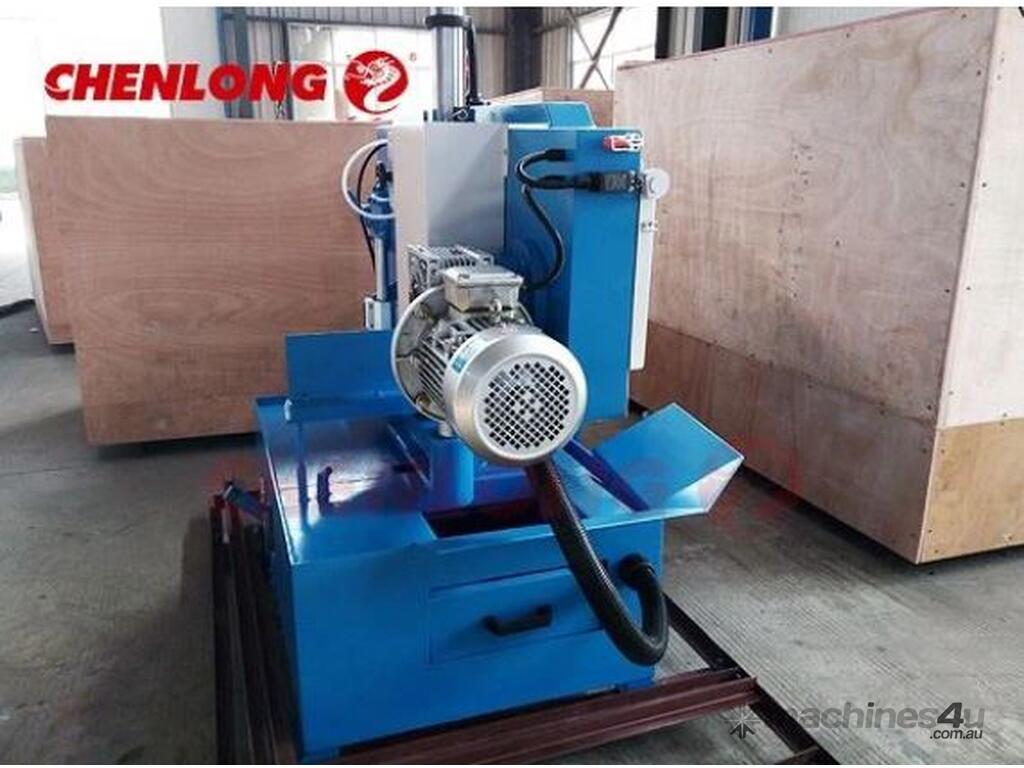

-Main Motor 2.2kw
-Hydraulic Motor 0.75kw
-Water pump Motor 60w
-Work Vise Control Hydraulic
-Machine Size(L×W×H)mm 2100×1230×1690

Standard Equipment:
1. Blade Cleaning Brush.
2. Working Light.
3. Roller Table 1pc(about 80cm)
4. One Piece Of Bi-metal Saw Blade.
5. One Set Of Tools With Tool Box
6. Inverter

Optional Equipment:
1. Extra Common Roller Table

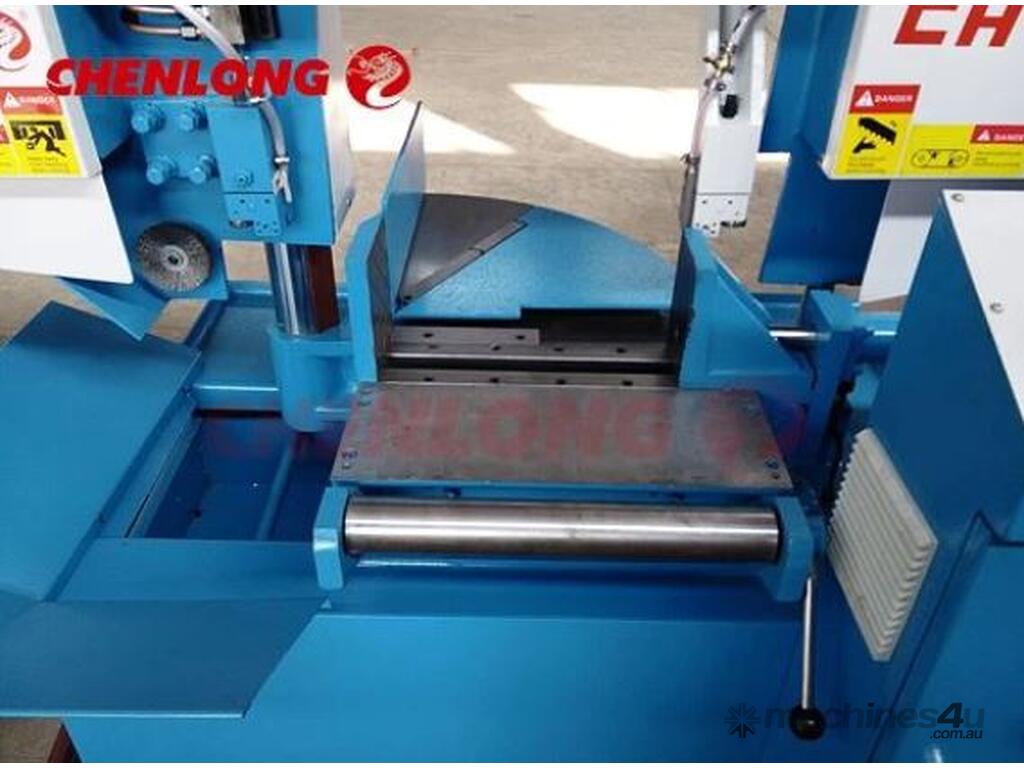

* Vise Clamping Device: The workpiece is clamped by a hydraulic vise. The maximum opening of the vise is 370mm. The oil cylinder adopts a full-stroke oil cylinder, and the clamping stroke of the oil cylinder is 360mm. The workpiece must be clamped when sawing.

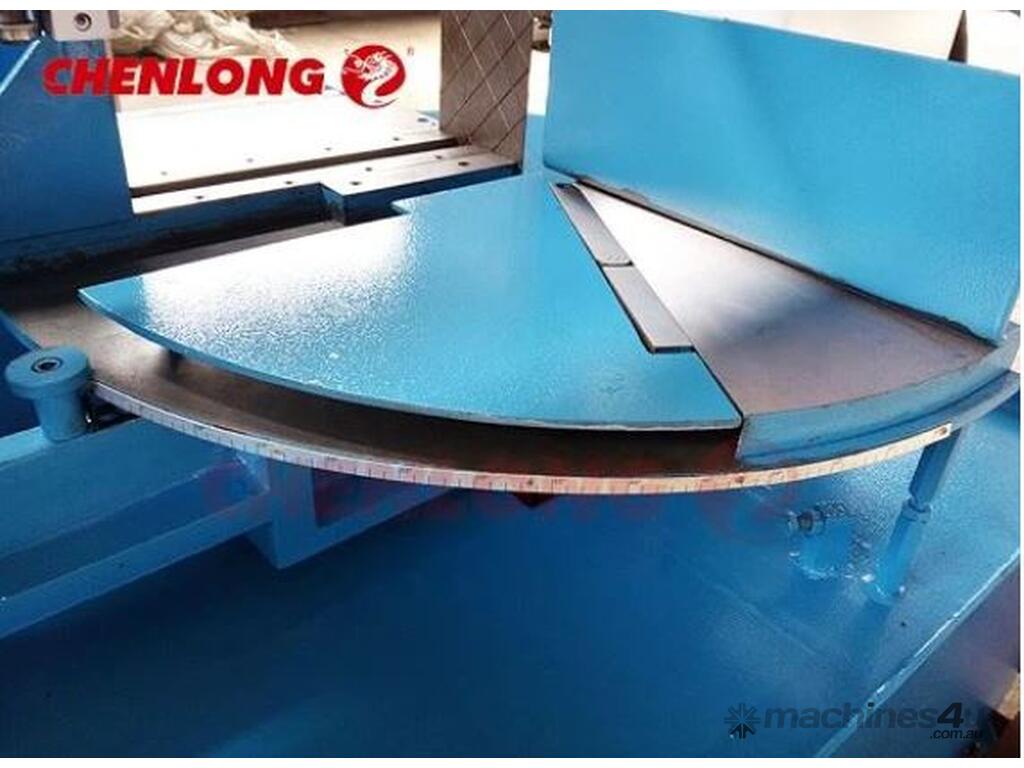

* Angle Rotation Device: The rotation of the miter cutting band saw machine is manually controlled. The angle is measured through the alignment method of the scale line. The rotating seat rotates around the center of rotation under manual push. When reaching the specified angle and aligning with the scale line, manually lock the rotating seat with screws to prevent the angle deviation caused by displacement during sawing.
