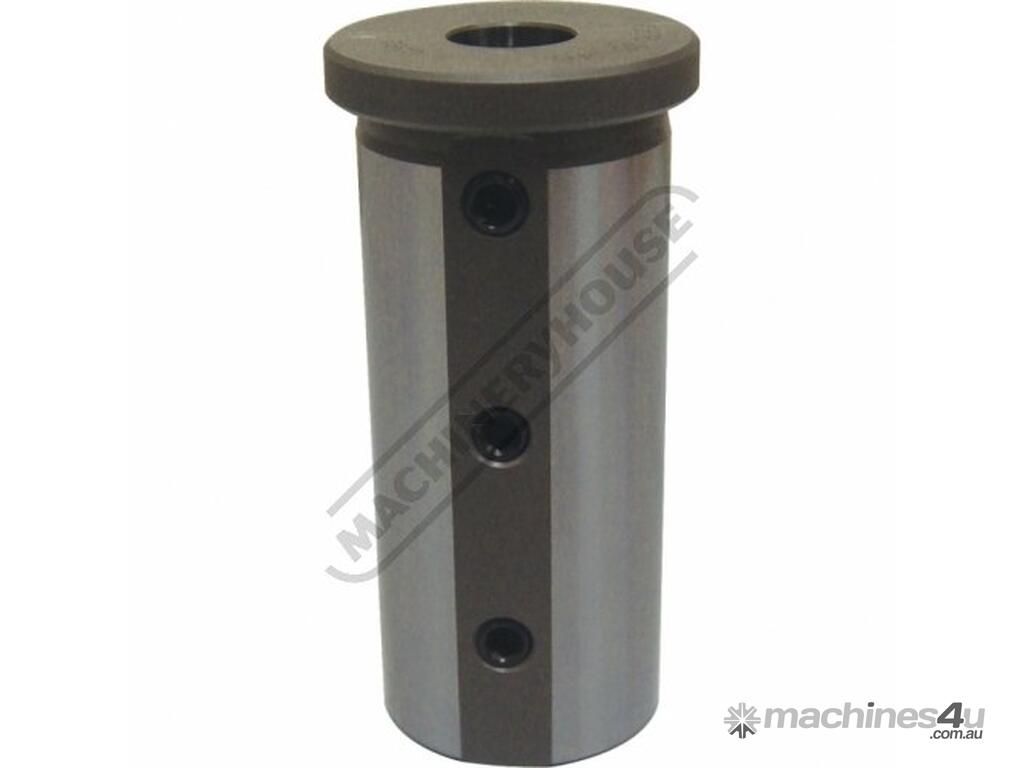

CHR 16-40 Boring Sleeve - Straight Suits CNC Lathes Ø40mm x Ø16mm

TOOLMASTER CHR 16-40 Boring Sleeve - Straight Suits CNC Lathes Ø40mm x Ø16mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D826

Used in the turrets of CNC lathes to hold boring bars and other cutting tools.
Universal design allows these sleeves to be fitted to all CNC machines with turrets

Features:
Precision ground
Clamping Flat for clamping the sleeve into the turret
Recessed grub screws to clamp the item


Specifications:
ORDER CODE: D826
MODEL: CHR 16-40
Type: Set Screws
OD (mm): 40
ID (mm): 16mm
L (mm): 96
L1 (mm): ~
