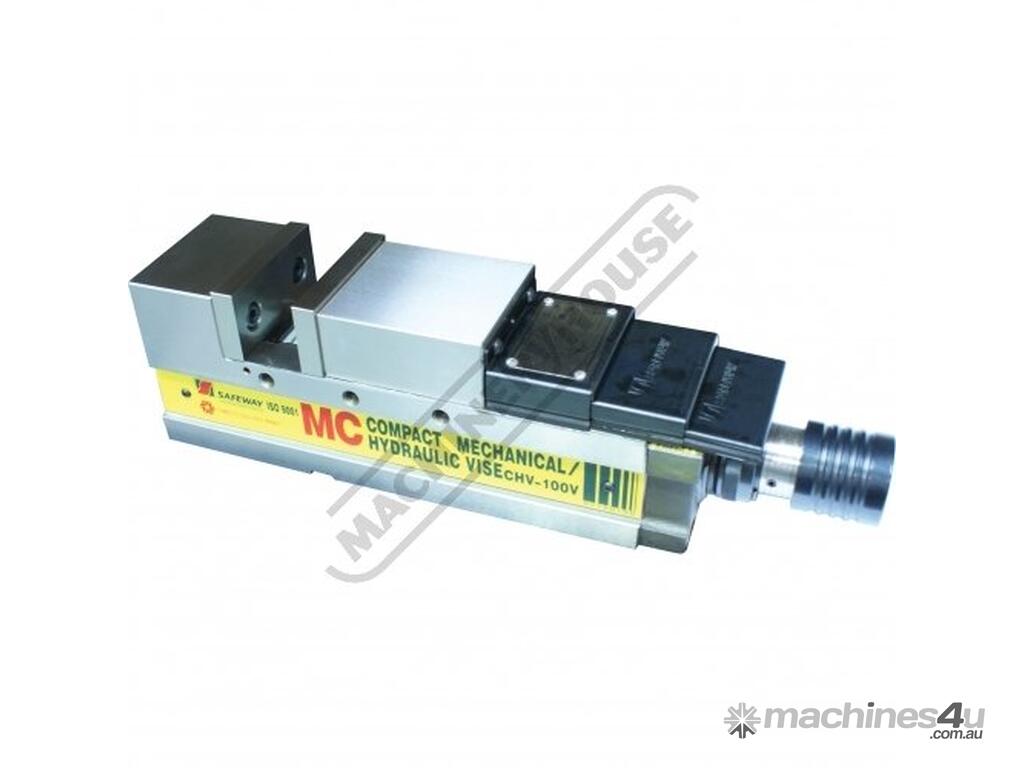

CHV-100V Safeway Compact Hydraulic Vice 100mm Jaw Width 125mm Jaw Opening

SAFEWAY CHV-100V Safeway Compact Hydraulic Vice 100mm Jaw Width 125mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V320

Safeway Precision 100mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space.

Features:
Precision ground on all surfaces
Flame-hardened bed to HRC 45

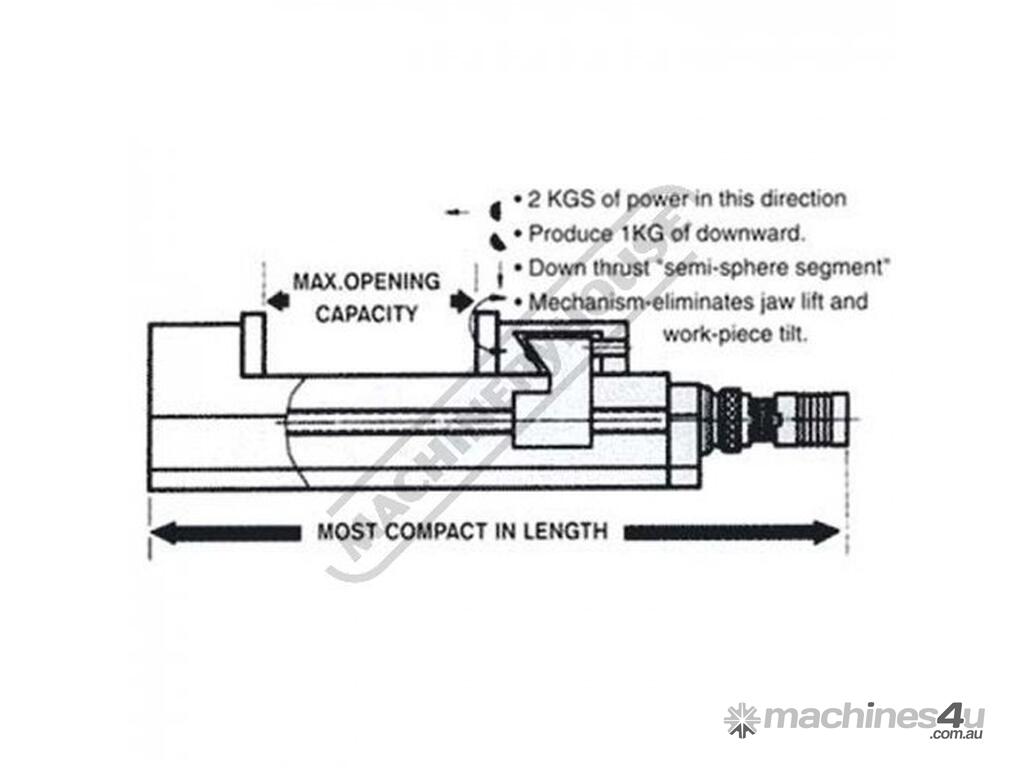

Semi-sphere to eliminate jaw lift
swarf covers over leadscrew
Toleranced for use as matched pairs


Specifications:
ORDER CODE: V320
MODEL: CHV-100V
Jaw Width (mm): 100
D - Jaw Width (mm): 101
J - Jaw Opening (mm): 125
J1 - Jaw Opening with Optional Jaws (mm): 125 - 190
J2 - Jaw Opening with Optional Jaws (mm): 125 - 230
J3 - Jaw Opening with Optional Jaws (mm): 125 - 320
K - Jaw Height (mm): 48
Pressure (kgf): 3500
A (mm): 475
B (mm): 340
C (mm): 135
E (mm): 130
F (mm): 133
G (mm): 65
H (mm): 15
I (mm): 105
L (mm): 22
M (mm): 125
N (mm): 16
P (mm): 14
X (mm): 45
Y (mm): 85
Nett Weight (kg): 24
