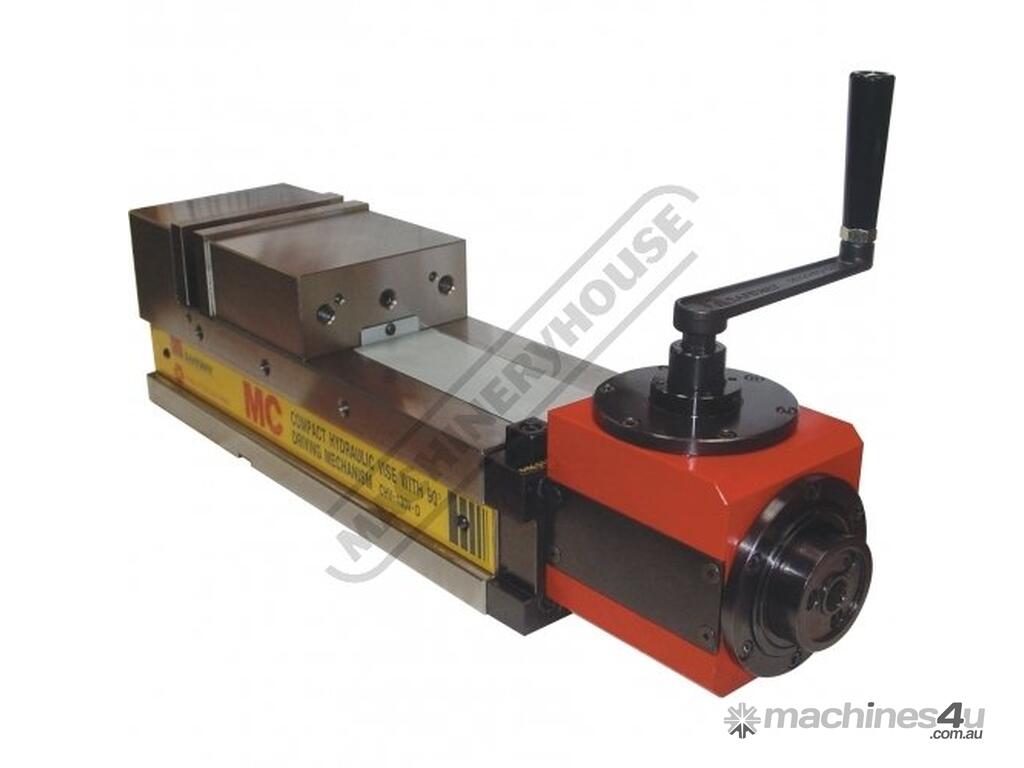

CHV-130V-D Safeway Compact Hydraulic Vice - Angle Drive 130mm Jaw Width 180mm Jaw Opening

SAFEWAY CHV-130V-D Safeway Compact Hydraulic Vice - Angle Drive 130mm Jaw Width 180mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V321D

Drive can be operated from either the top of the vice or from the end.

Features:
Precision ground on all surfaces
Flame-hardened bed to HRC 45
Semi-sphere to eliminate jaw lift
swarf covers over leadscrew
Toleranced for use as matched pairs
Full hydraulic function is maintained


Specifications:
ORDER CODE: V321D
MODEL: CHV-130V-D
Jaw Width (mm): 130
D - Jaw Width (mm): 131
J - Jaw Opening (mm): 180
J1 - Jaw Opening with Optional Jaws (mm): ~
J2 - Jaw Opening with Optional Jaws (mm): ~
J3 - Jaw Opening with Optional Jaws (mm): ~
K - Jaw Height (mm): 55
Pressure (kgf): 4500
A (mm): 577
B (mm): 405
C (mm): 172
E (mm): 147
F (mm): 150
G (mm): 70
H (mm): 15
I (mm): 115
L (mm): 22
M (mm): 125
N (mm): 18
P (mm): 14
X (mm): 65
Y (mm): 95
Nett Weight (kg): 37
