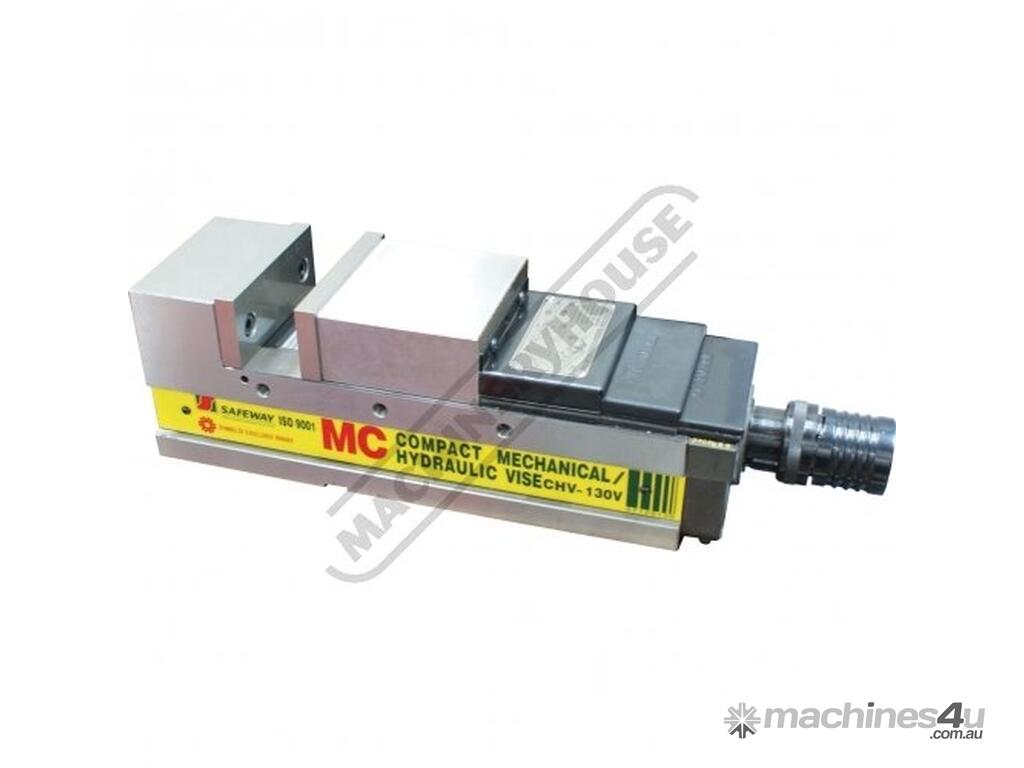

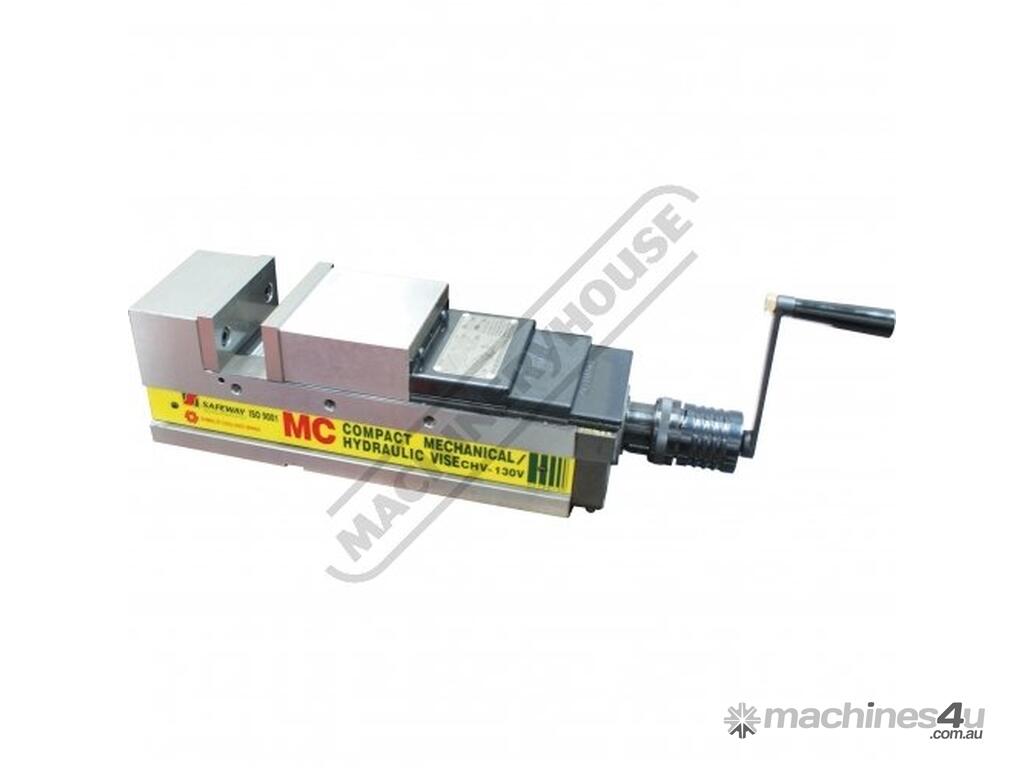

CHV-130V Safeway Compact Hydraulic Vice 130mm Jaw Width 180mm Jaw Opening

SAFEWAY CHV-130V Safeway Compact Hydraulic Vice 130mm Jaw Width 180mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V321

Safeway Precision 130mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space.

Features:
Precision ground on all surfaces
Flame-hardened bed to HRC 45

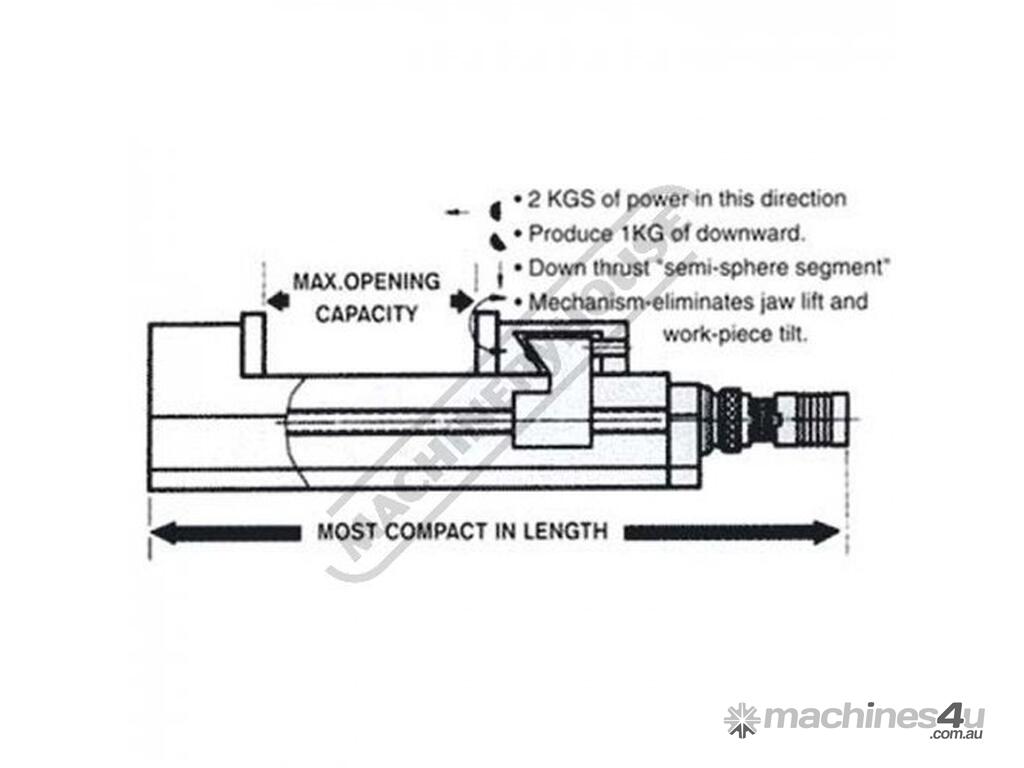

Semi-sphere to eliminate jaw lift
swarf covers over leadscrew
Toleranced for use as matched pairs


Specifications:
ORDER CODE: V321
MODEL: CHV-130V
Jaw Width (mm): 130
D - Jaw Width (mm): 131
J - Jaw Opening (mm): 180
J1 - Jaw Opening with Optional Jaws (mm): 180 - 240
J2 - Jaw Opening with Optional Jaws (mm): 180 - 290
J3 - Jaw Opening with Optional Jaws (mm): 180 - 380
K - Jaw Height (mm): 52
Pressure (kgf): 4500
A (mm): 540
B (mm): 405
C (mm): 135
E (mm): 147
F (mm): 150
G (mm): 70
H (mm): 15
I (mm): 115
L (mm): 22
M (mm): 125
N (mm): 18
P (mm): 14
X (mm): 65
Y (mm): 95
Nett Weight (kg): 37
