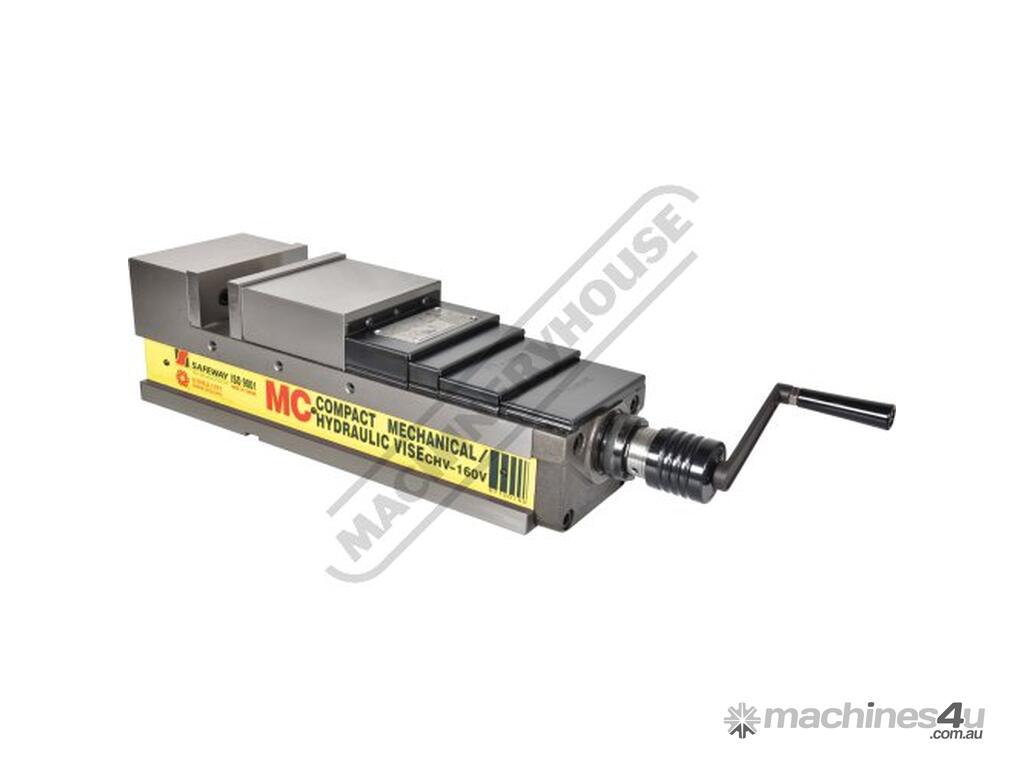

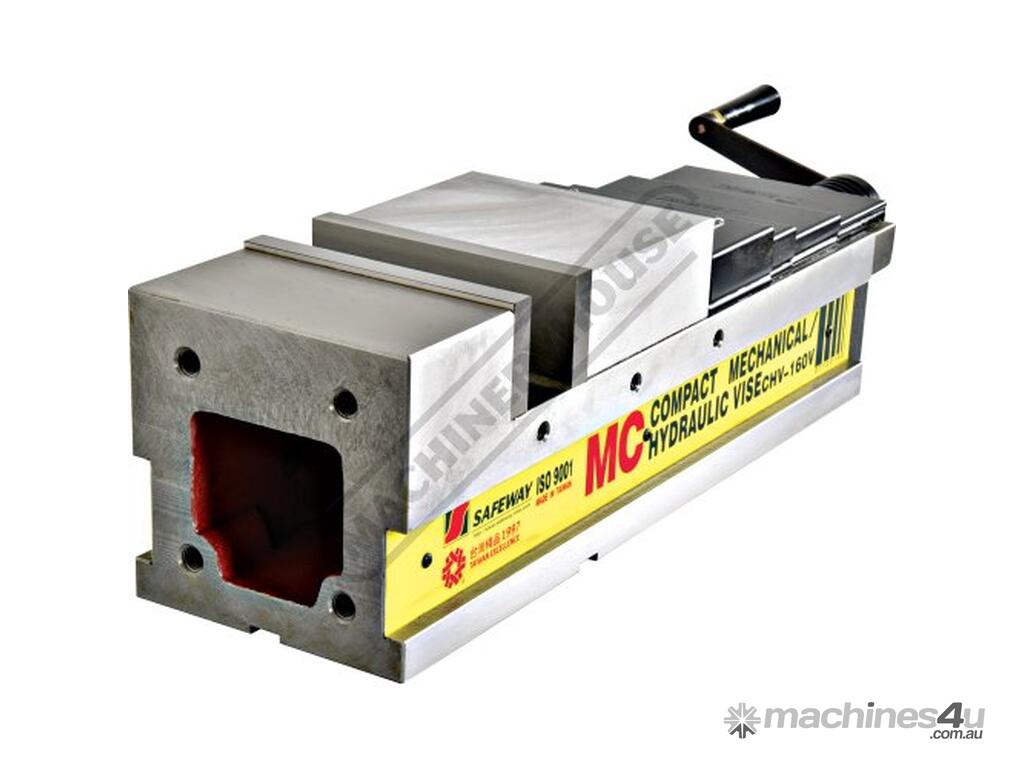

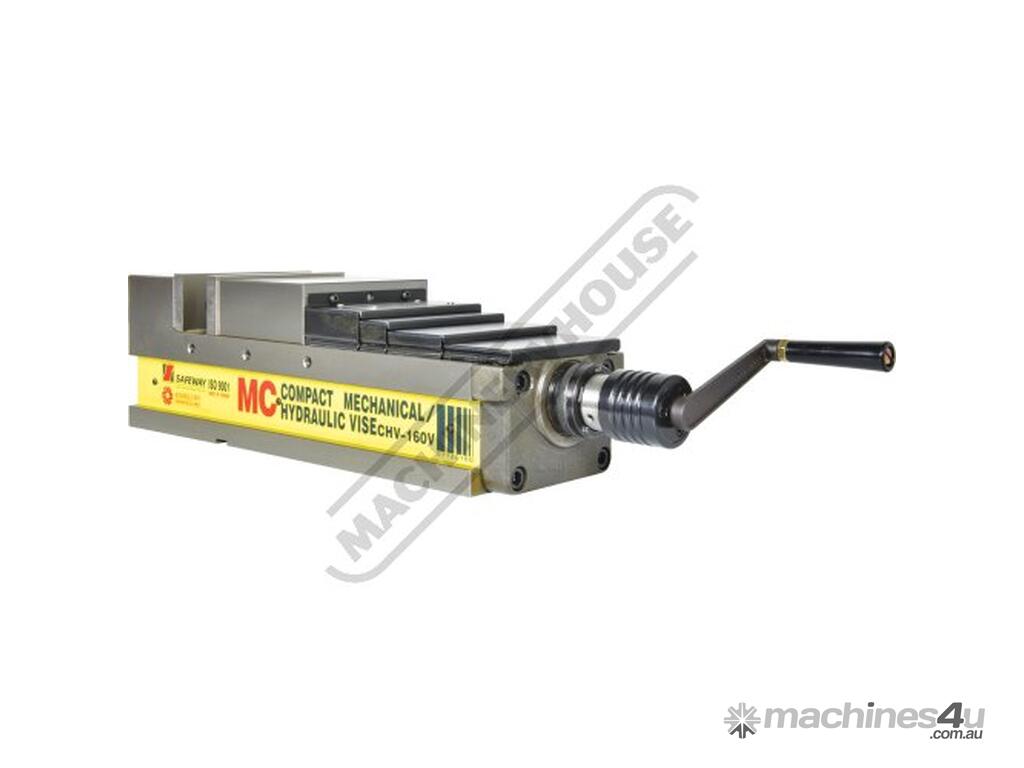

CHV-160V Safeway Compact Hydraulic Vice 160mm Jaw Width 240mm Jaw Opening

SAFEWAY CHV-160V Safeway Compact Hydraulic Vice 160mm Jaw Width 240mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V322

Safeway Precision 160mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space.

Features:
Precision ground on all surfaces
Flame-hardened bed to HRC 45

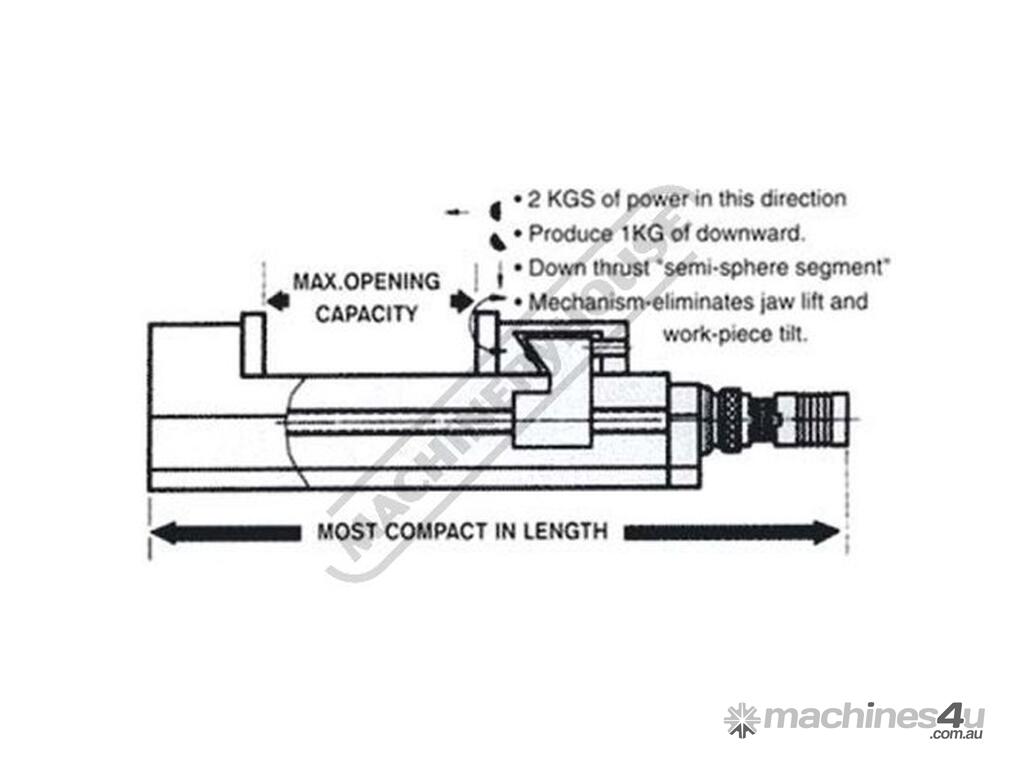

Semi-sphere to eliminate jaw lift
swarf covers over leadscrew
Toleranced for use as matched pairs


Specifications:
ORDER CODE: V322
MODEL: CHV-160V
Jaw Width (mm): 160
D - Jaw Width (mm): 161
J - Jaw Opening (mm): 240
J1 - Jaw Opening with Optional Jaws (mm): 240 - 320
J2 - Jaw Opening with Optional Jaws (mm): 240 - 360
J3 - Jaw Opening with Optional Jaws (mm): 240 - 470
K - Jaw Height (mm): 58
Pressure (kgf): 5500
A (mm): 630
B (mm): 495
C (mm): 135
E (mm): 160
F (mm): 163
G (mm): 85
H (mm): 15
I (mm): 130
L (mm): 22
M (mm): 125
N (mm): 18
P (mm): 14
X (mm): 65
Y (mm): 105
Nett Weight (kg): 58
