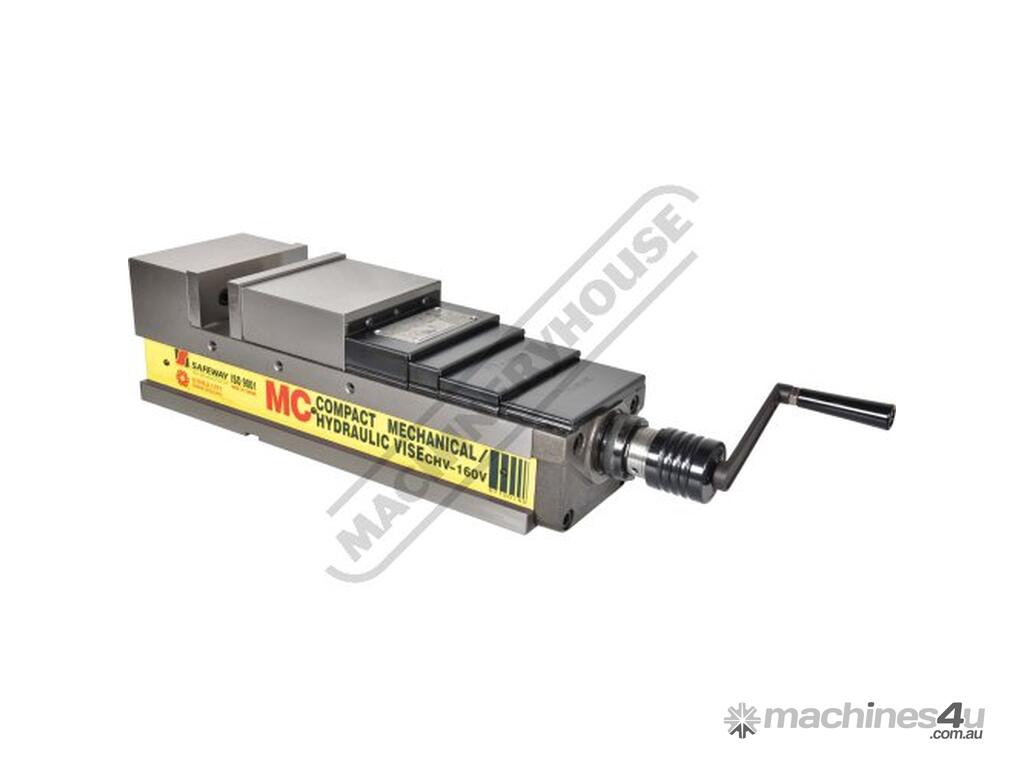

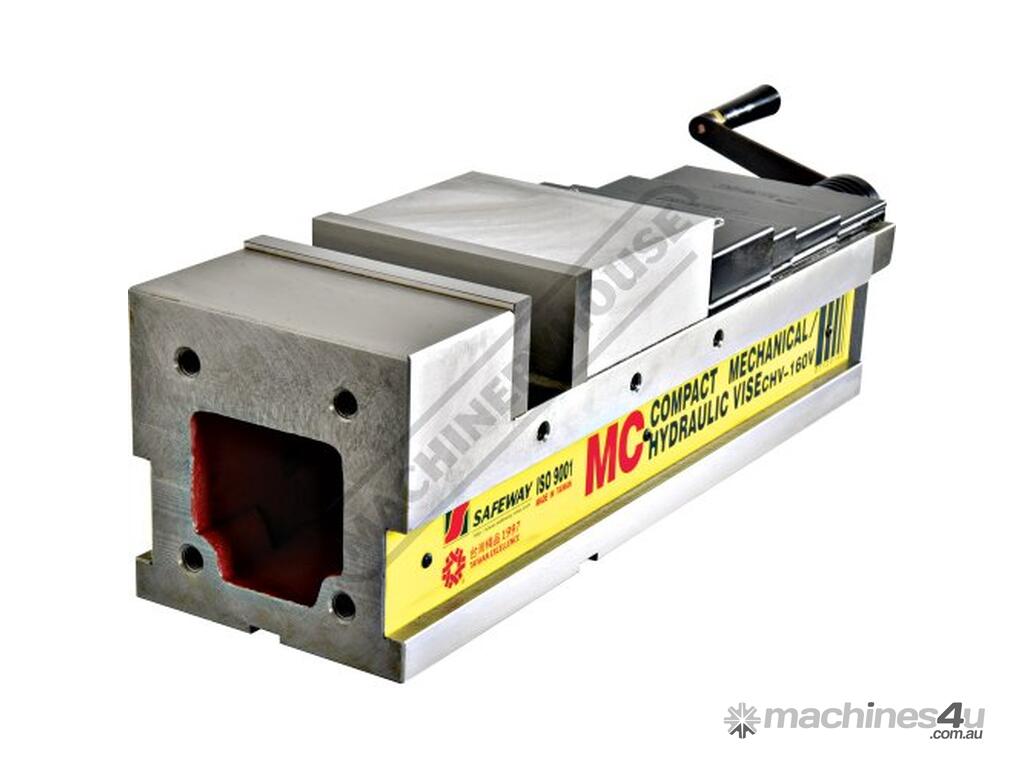

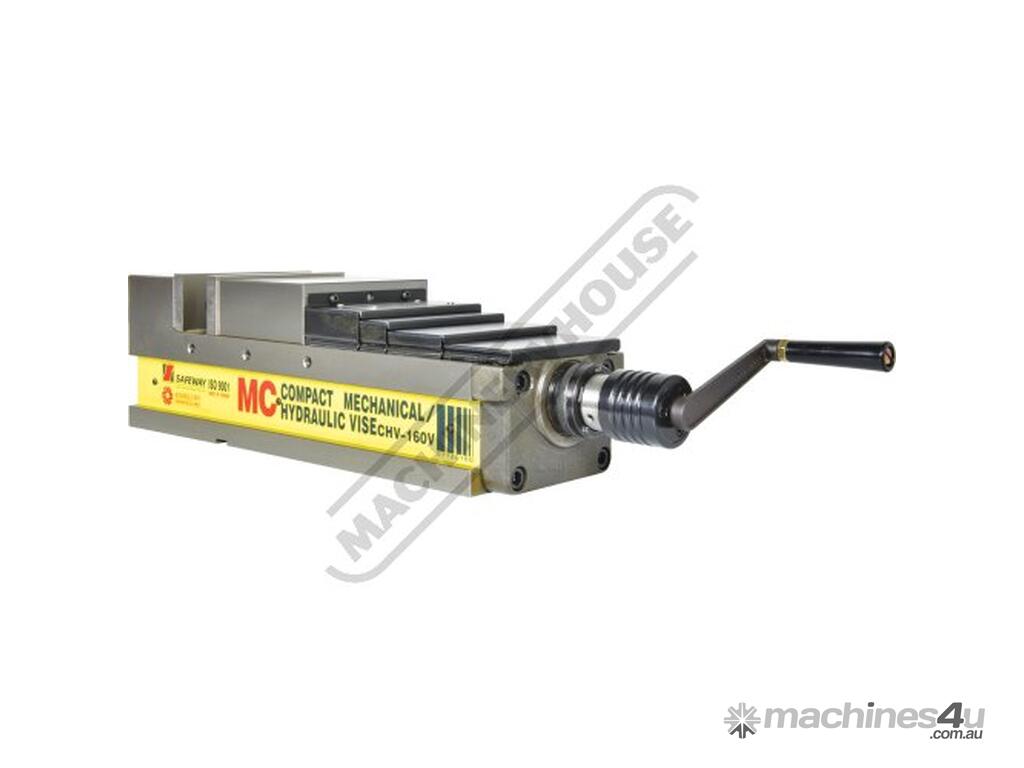

CHV-200V Safeway Compact Hydraulic Vice 200mm Jaw Width 280mm Jaw Opening

SAFEWAY CHV-200V Safeway Compact Hydraulic Vice 200mm Jaw Width 280mm Jaw Opening
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: V323

Safeway Precision 200mm Compact Hydraulic Vice for use where precise work holding is required is a restricted space.

Features:
Precision ground on all surfaces
Flame-hardened bed to HRC 45

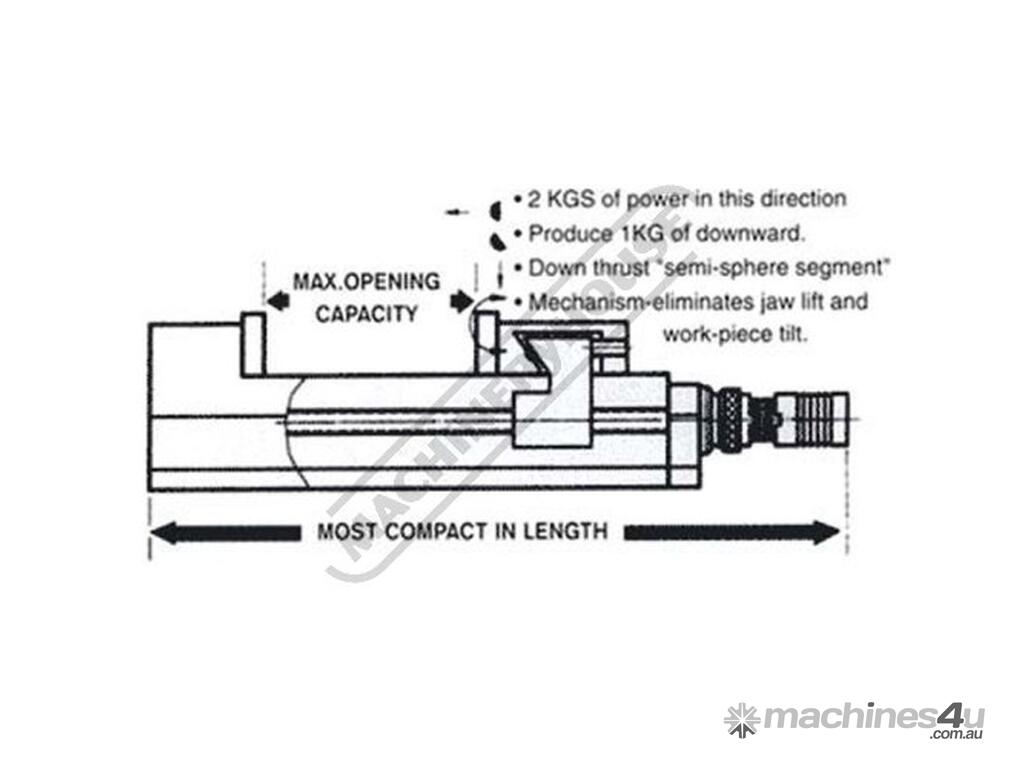

Semi-sphere to eliminate jaw lift
Swarf covers over leadscrew
Toleranced for use as matched pairs


Specifications:
ORDER CODE: V323
MODEL: CHV-200V
Jaw Width (mm): 200
D - Jaw Width (mm): 201
J - Jaw Opening (mm): 280
J1 - Jaw Opening with Optional Jaws (mm): 280 - 360
J2 - Jaw Opening with Optional Jaws (mm): 280 - 420
J3 - Jaw Opening with Optional Jaws (mm): 280 - 540
K - Jaw Height (mm): 63
Pressure (kgf): 7000
A (mm): 705
B (mm): 570
C (mm): 135
E (mm): 170
F (mm): 173
G (mm): 90
H (mm): 18
I (mm): 150
L (mm): 22
M (mm): 125
N (mm): 18
P (mm): 14
X (mm): 82
Y (mm): 110
Nett Weight (kg): 80
