CL-100A Centre Lathe Ø660 x 3000mm Turning Capacity - Ø105mm Spindle Bore BONUS TOOLKIT: Turning & P

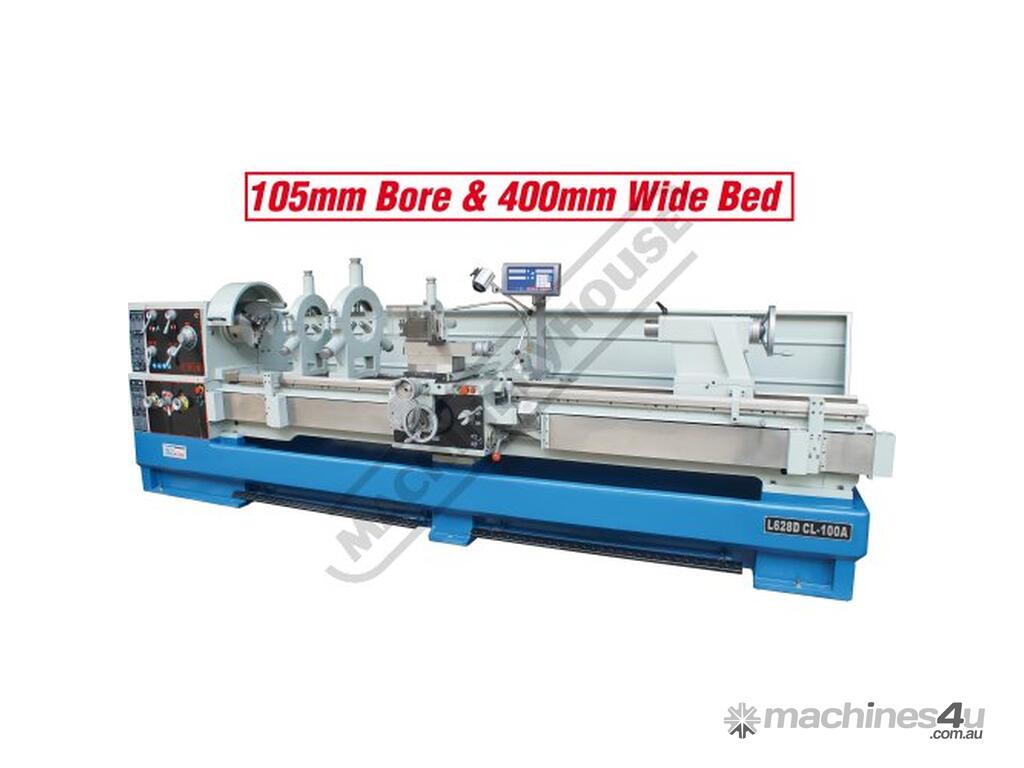

HAFCO-METALMASTER CL-100A Centre Lathe Ø660 x 3000mm Turning Capacity - Ø105mm Spindle Bore BONUS TOOLKIT: Turning & Parting Kit & 5MT Live Centre
Also Includes Digital Readout System, Quick Change Toolpost & Taper Turning Attachment
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L628D

Features:
2 Axis digital readout system
Taper turning attachment fitted to saddle
Triple bearings supporting headstock spindle
Spindle clutch to allow operator to switch between forward & reverse without shutting motor down
Quick change toolpost with additional holders
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
Multiple discs forward and reversing clutch system
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Foot operated spindle brake with safety cut out switch
X & Z axis rapid traverse selection lever incorporated on the saddle 4.5m/min
400mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 900mm
Adjustable micro saddle length stop for repetition work
Cross slide handle disengages when auto feed is used
Saddle hand wheel disengages when auto feed is used
Adjustable clutch for auto feeds protects machine from overloading during machining
Chuck guard fitted with safety micro switch
Micro switch on side access door
Powered longitudinal and cross feeds
Metric / imperial calibrated feed dials
Coolant system with flexible hose enabling flow control & direction
Oil sight glass for head stock and gearbox & apron
Lubrication pump on saddle oiling slides
Low voltage halogen work light
D1-8 camlock spindle for quick chuck removal
16 spindle speeds 25-1600rpm
Large 105mm spindle bore
7.5kW / 10HP 415V main motor

Includes:
- BONUS TOOLKIT: Turning & Parting Kit & 5MT Live Centre
- 2 Axis digital readout system
- Taper turning attachment
- Leadscrew covers
- 315mm 3-jaw chuck with reverse jaws & 100mm bore
- 400mm 4-jaw chuck
- Face plate
- Ø20 - Ø190mm fixed steady with roller bearings
- Ø190 - Ø380mm fixed steady with roller bearings
- Travelling steady
- Dead centres
- Thread chasing dial
- Foot brake
- Coolant system
- Work light
- Rear splash guard
- Spindle reducing bush



Specifications:
ORDER CODE: L628D
MODEL: CL-100A
Swing Over Bed (mm): 660
Distance Between Centres (mm): 3000
Spindle Bore (mm): 105
Swing In Gap (mm): 900
Swing Over Cross-slide (mm): 440
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Yes
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: Yes
Coolant System: Yes
Tool Height To Suit (mm): 25
Centre Height (mm): 330
Spindle Nose Size or Type: D1-8 Camlock
Bed Width (mm): 400
Headstock Spindle Taper (MT): 7
Tailstock Taper (MT): 5
Cross Slide Travel (mm): 368
Compound Slide Travel (mm): 230
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.044 - 1.48
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.022 - 0.74
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 54 (0.45 - 120)
Imperial Thread Steps & TPI (No. / TPI): 54 (7/16 - 80)
3 Jaw Chuck Diameter (mm): 315 (100mm bore)
4 Jaw Chuck Diameter (mm): 400
Spindle Steps / Speeds (No. / rpm): 16 (25 - 1600)
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 3700


To Purchase Online Please Visit The Machineryhouse & Search For 'L628D'
