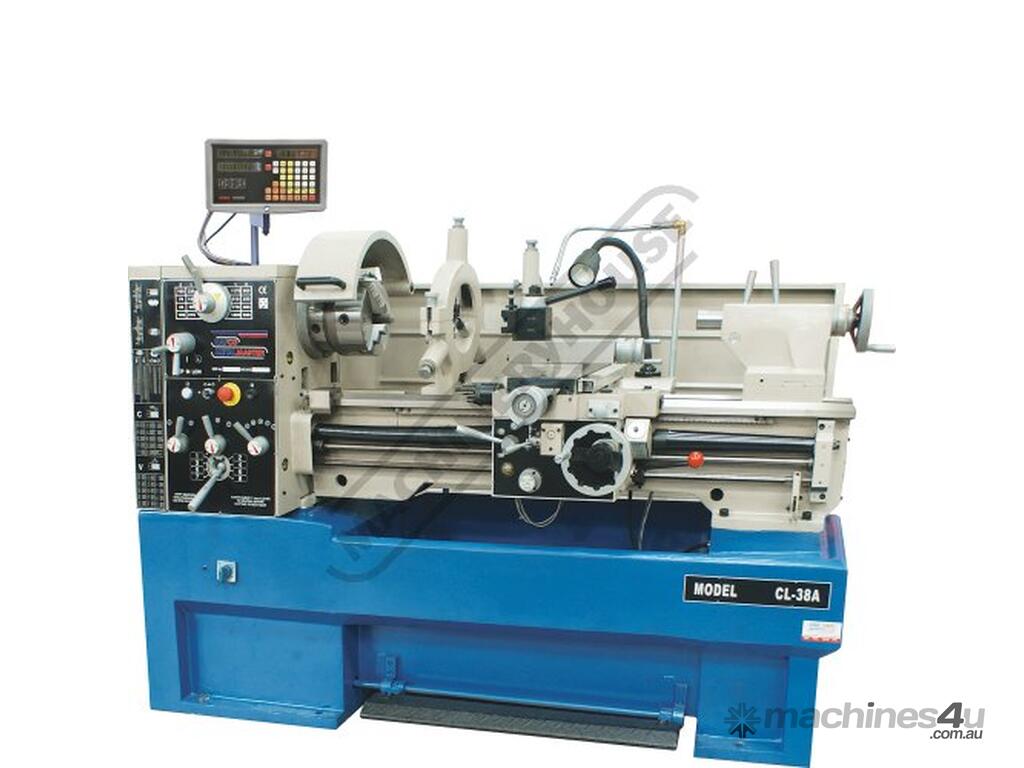

CL-38A Centre Lathe Ø410 x 1000mm Turning Capacity - Ø52mm Spindle Bore Includes Digital Readout Sys

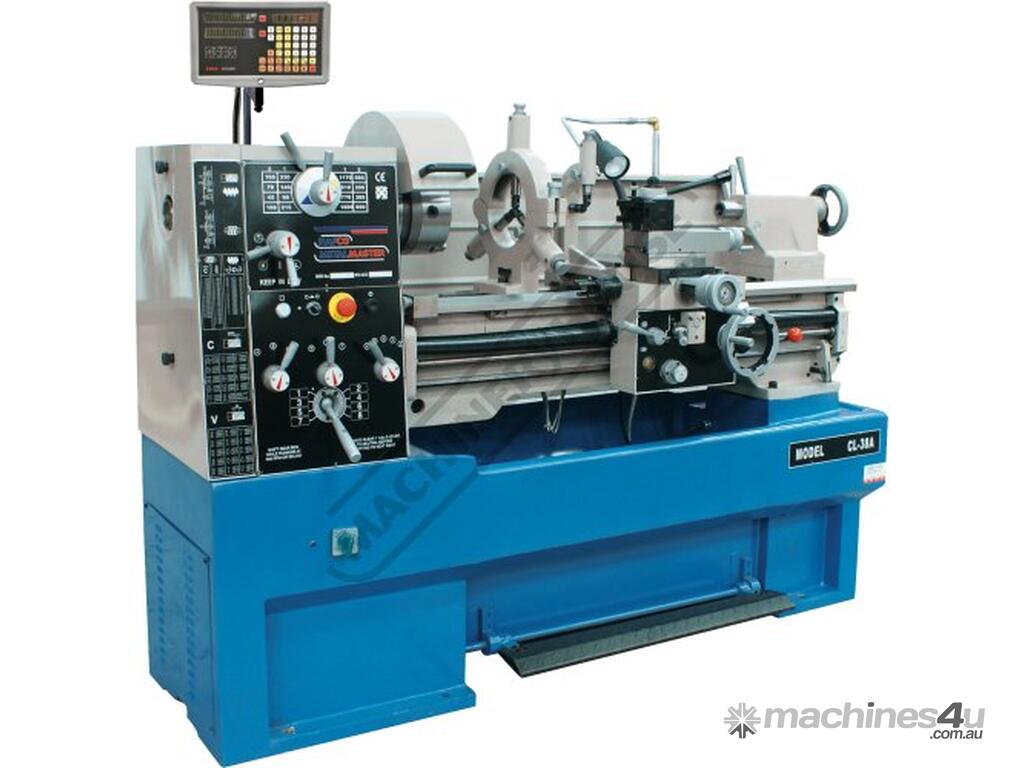

HAFCO-METALMASTER CL-38A Centre Lathe Ø410 x 1000mm Turning Capacity - Ø52mm Spindle Bore Includes Digital Readout System & Quick Change Toolpost
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L191D

Features:

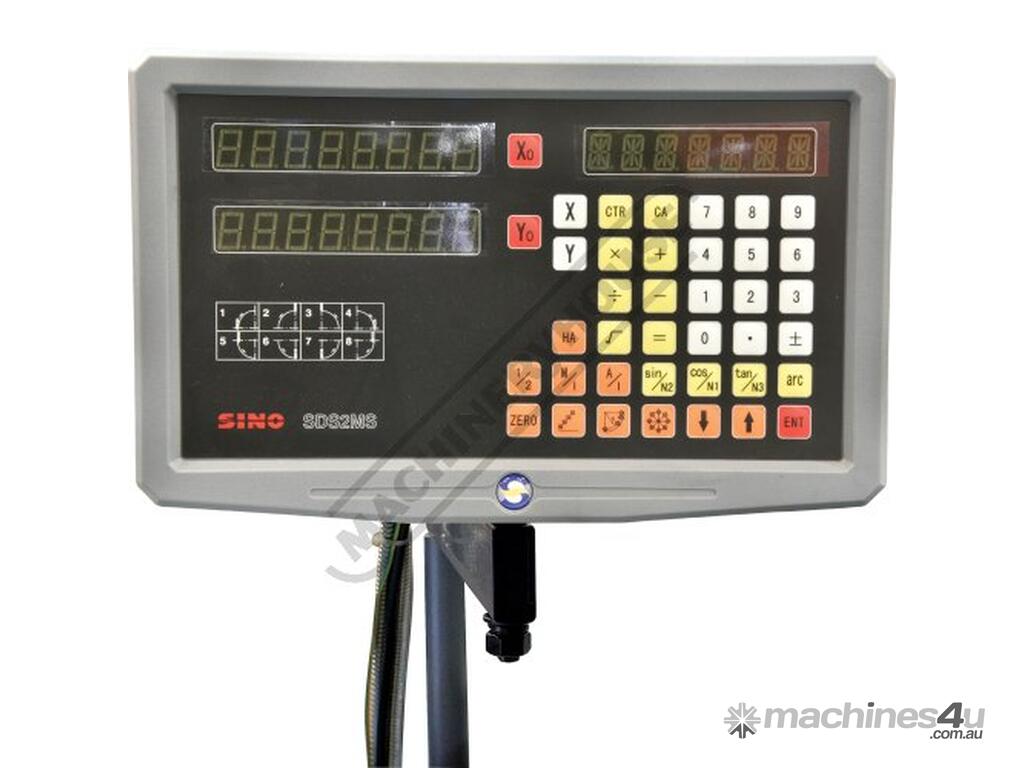

2 axis digital readout system

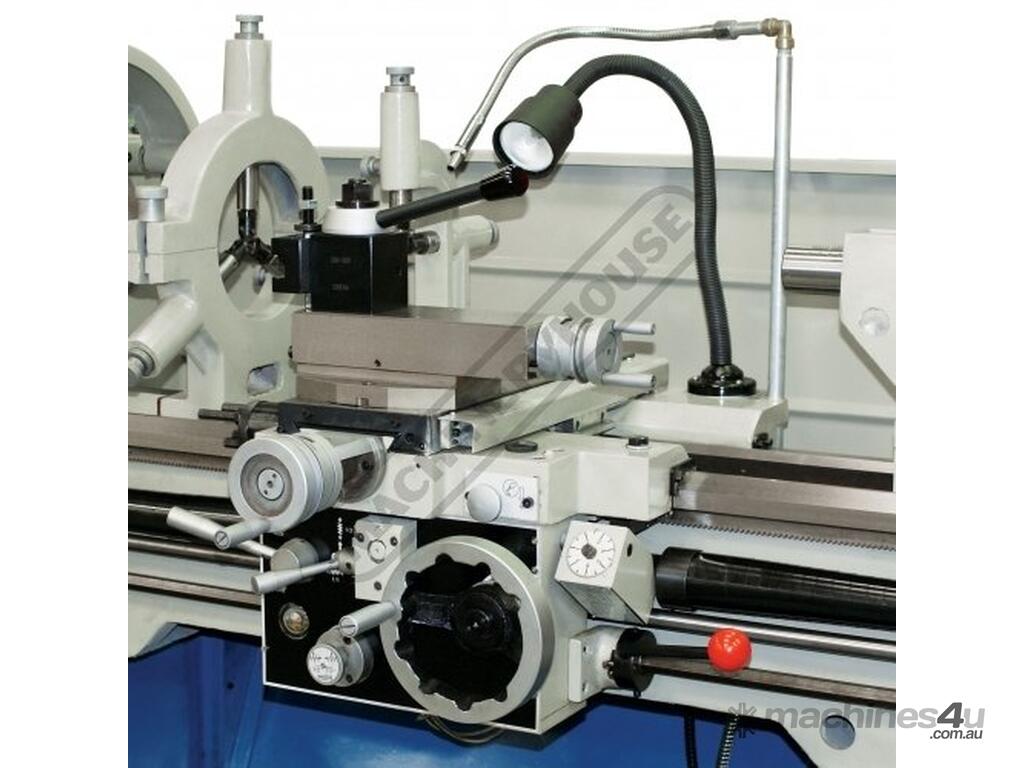

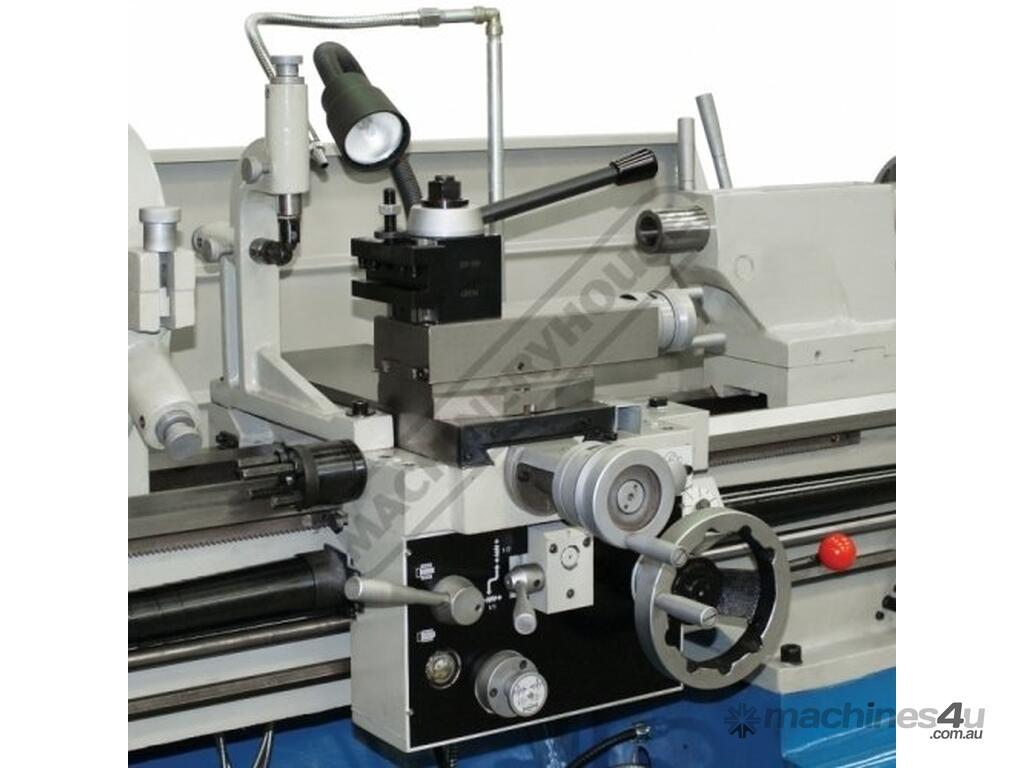

Quick change toolpost
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
One piece cast iron base increases rigidity
Overload protection on drive motor and coolant system

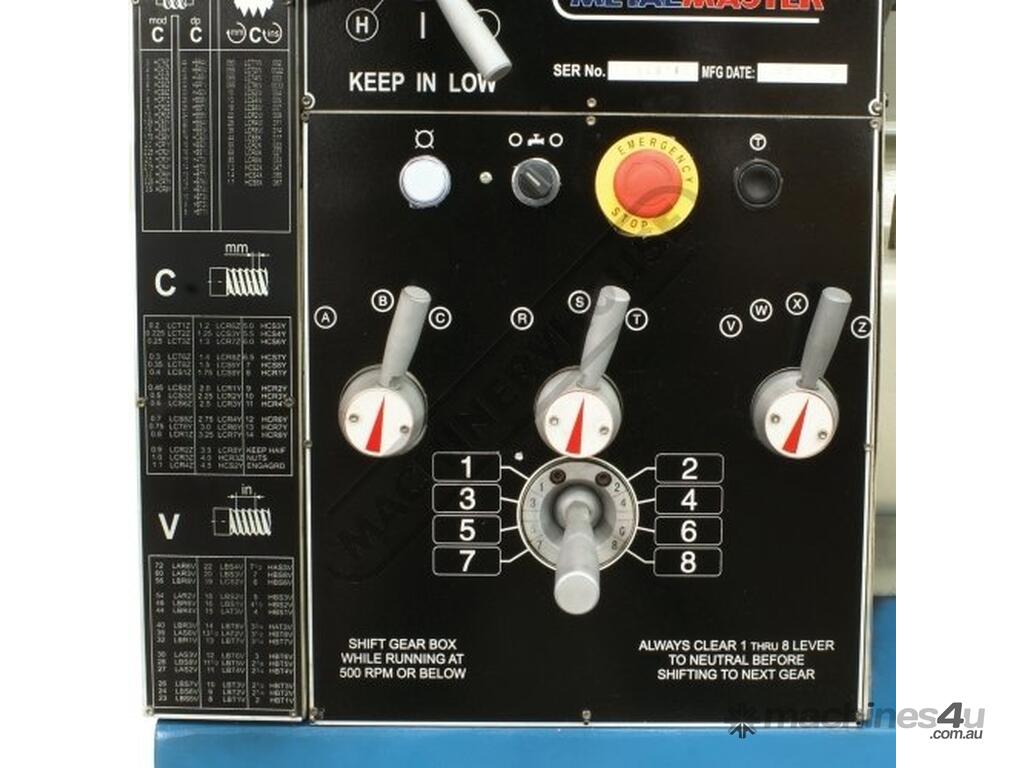

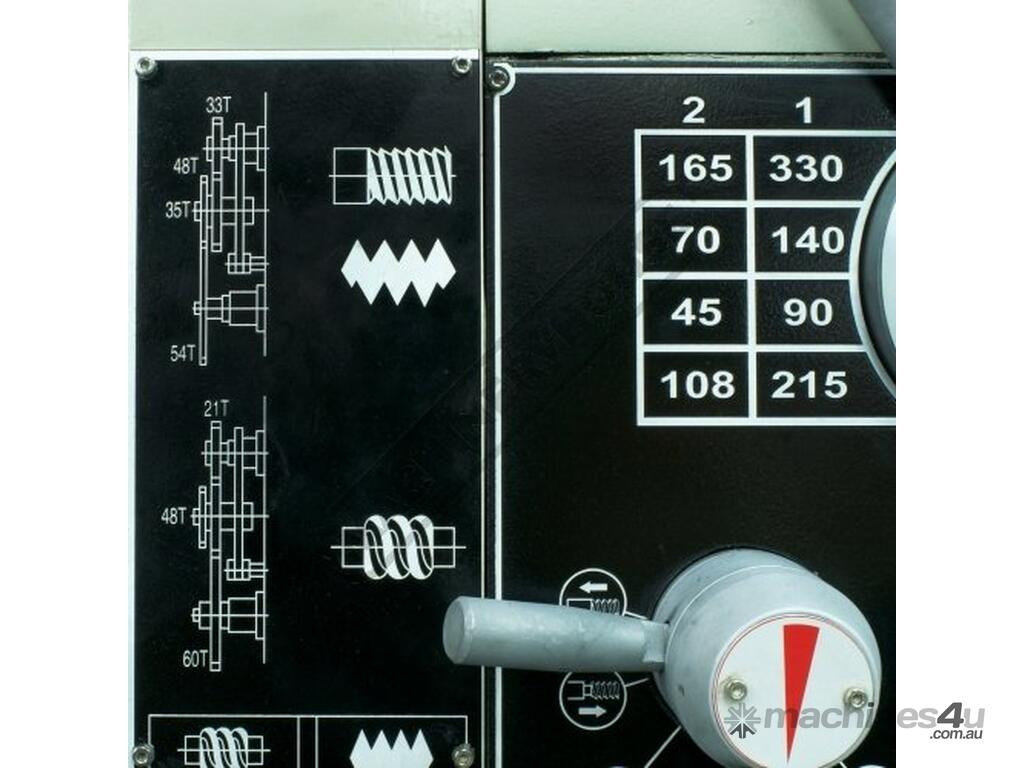

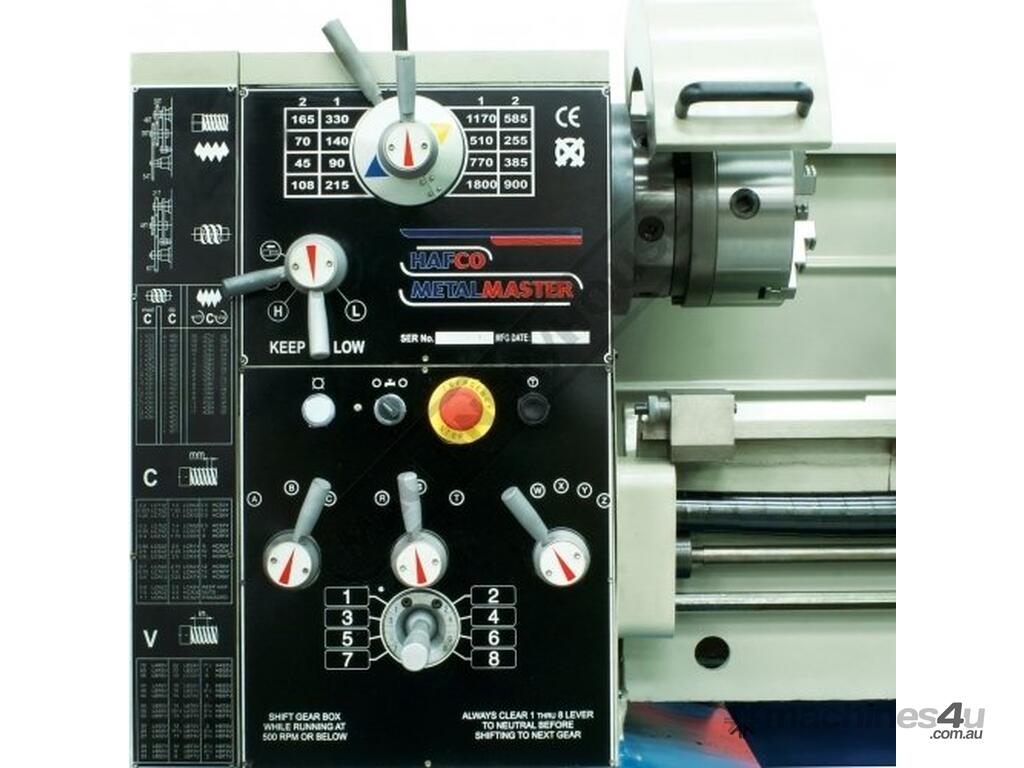

Universal enclosed gearbox incorporating metric & imperial thread capabilities

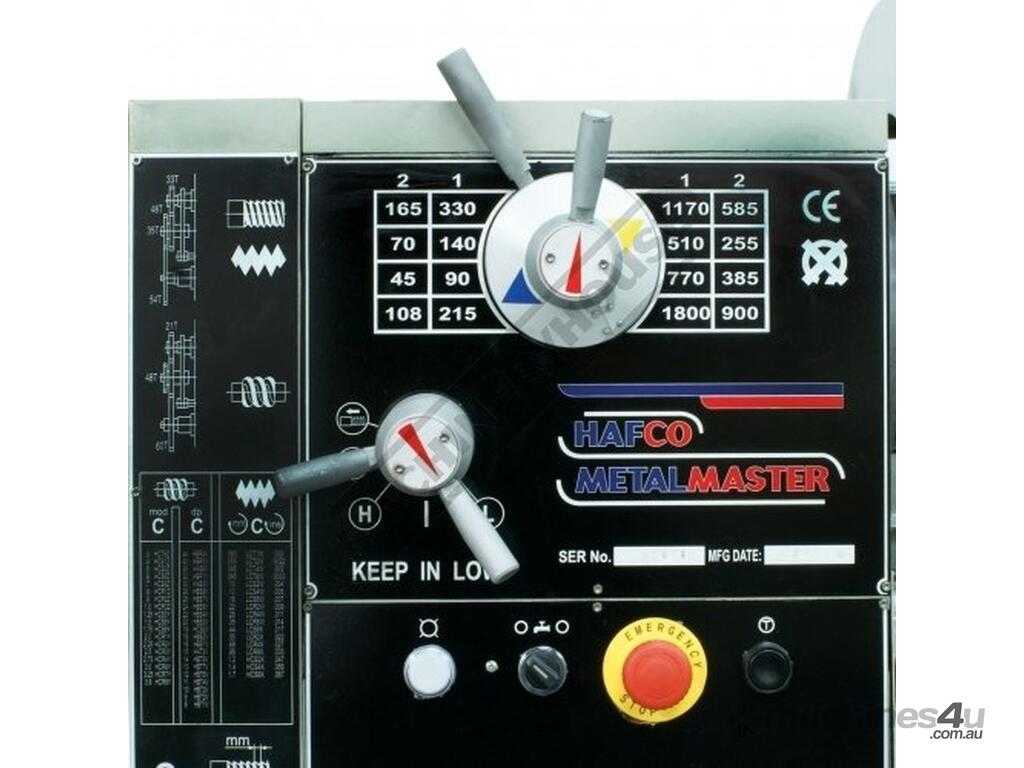

Inching button incorporated on the control panel for convenient spindle speed selection

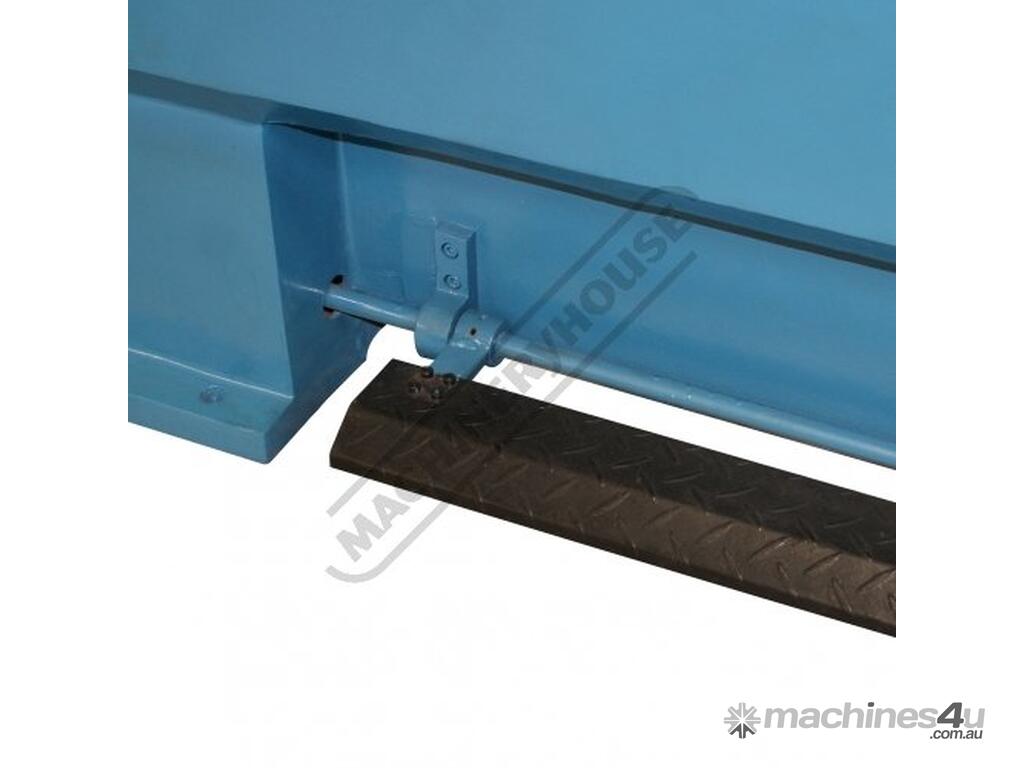

Foot operated spindle brake with safety cut out switch

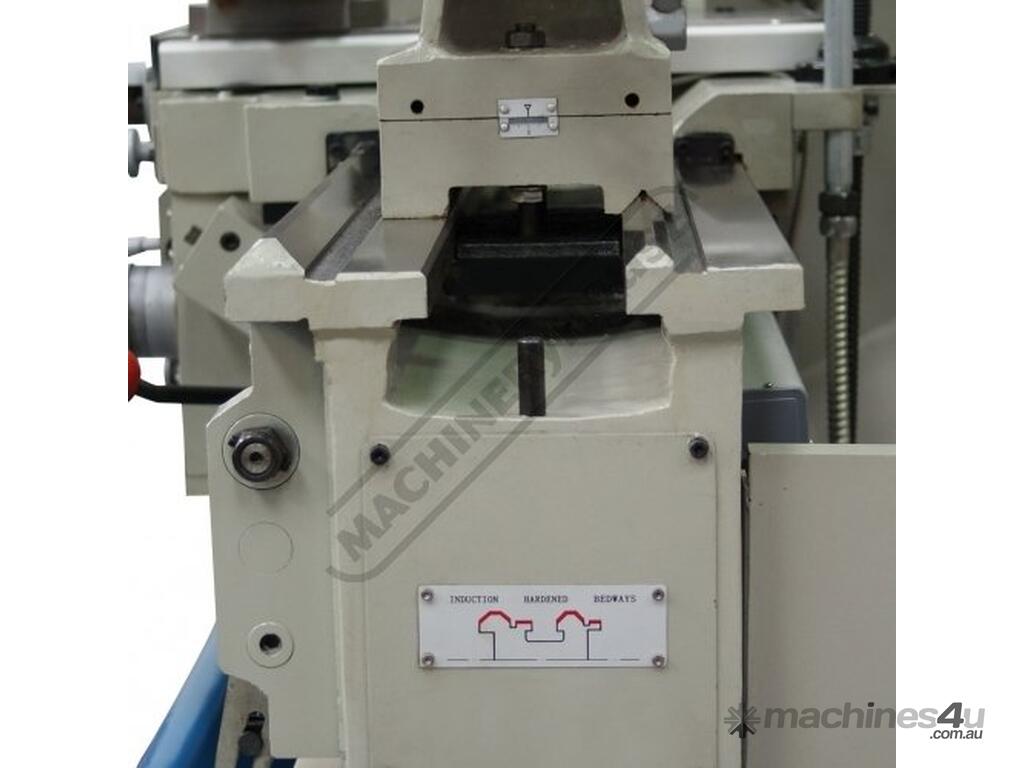

250mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 580mm

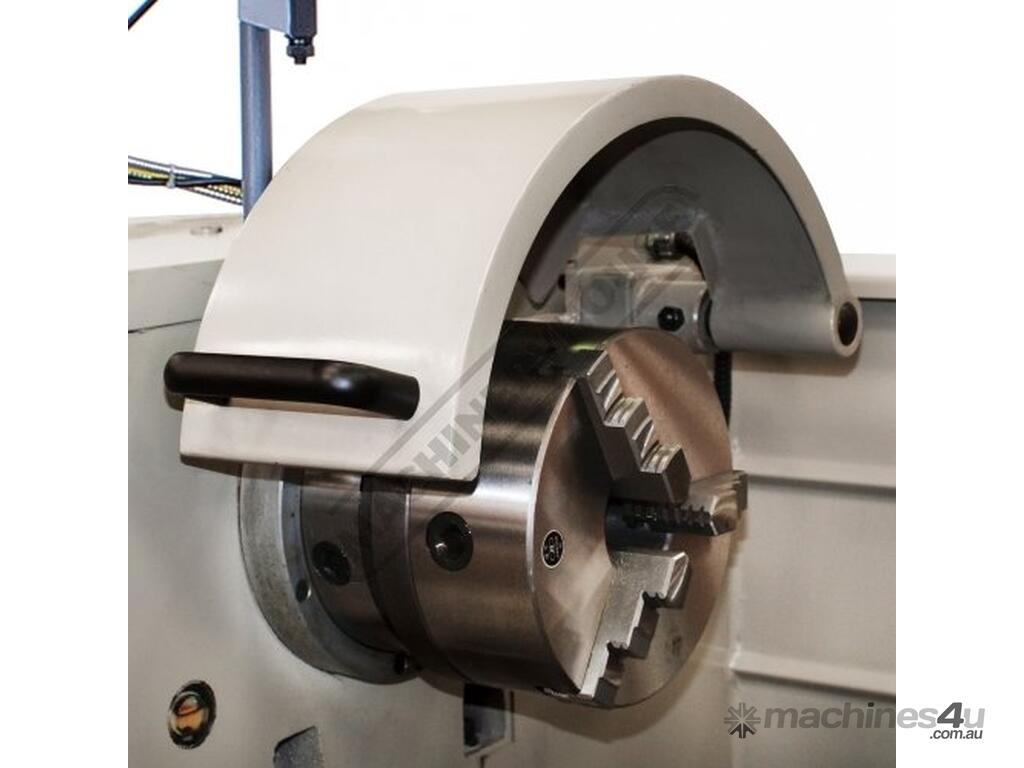

Chuck guard fitted with safety micro switch
Powered longitudinal and cross feeds

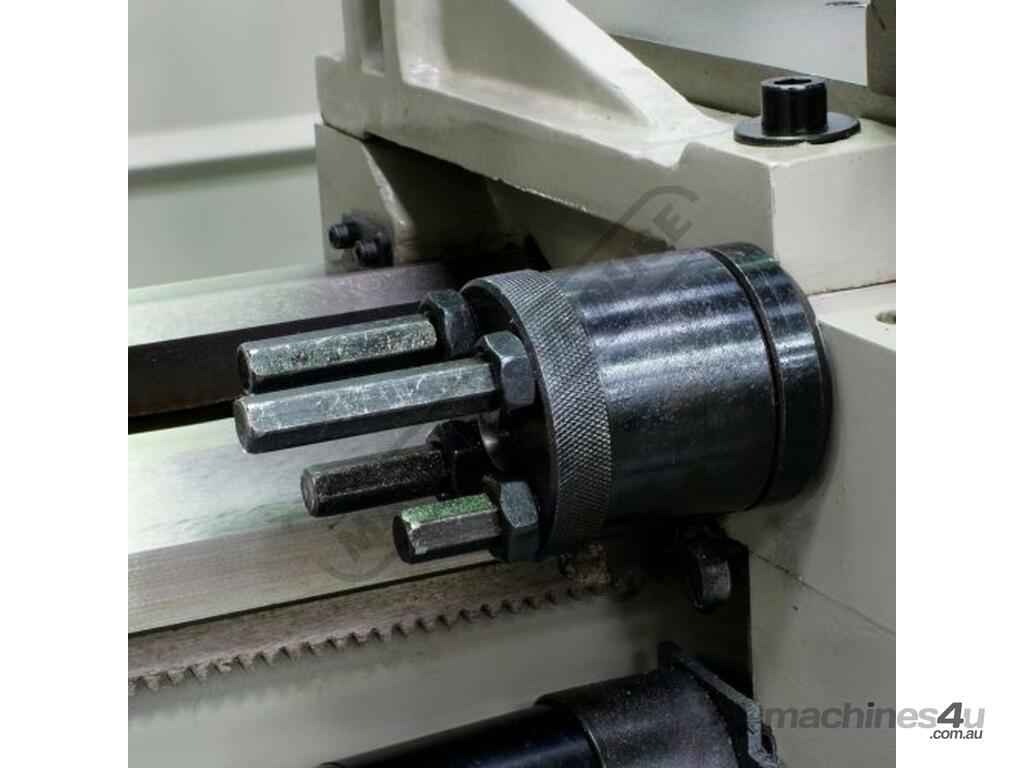

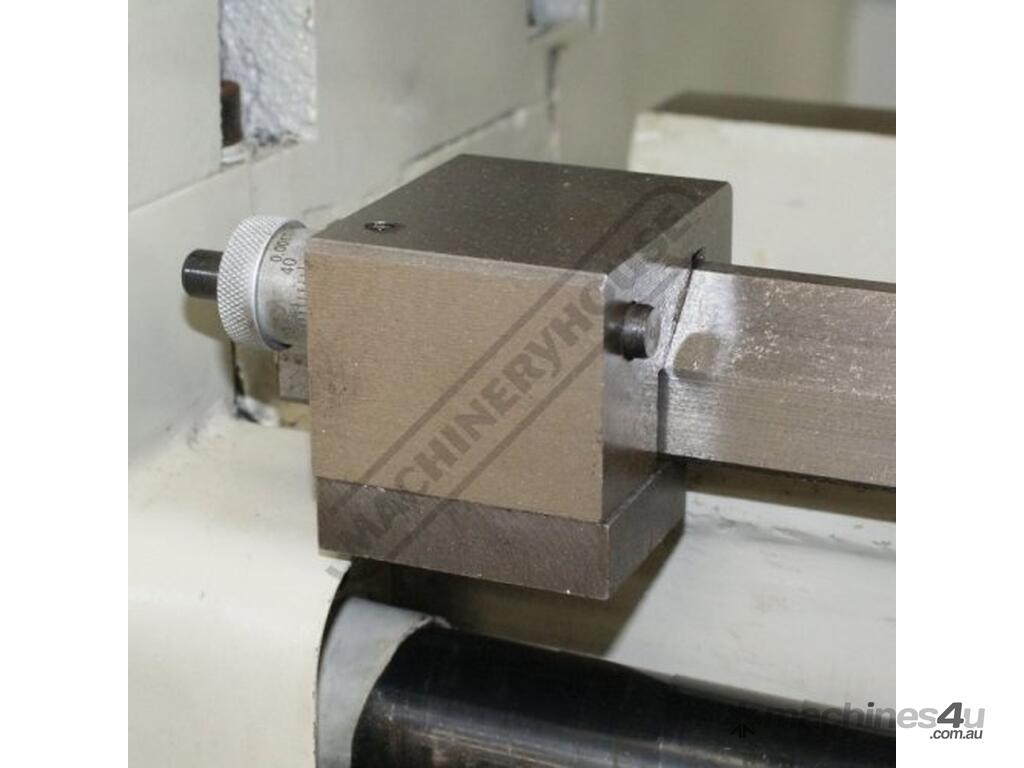

Adjustable 6 position length-stop on bed-way for accurate repetitive operation
Dual calibrated dials incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock and gearbox
Low voltage halogen work light

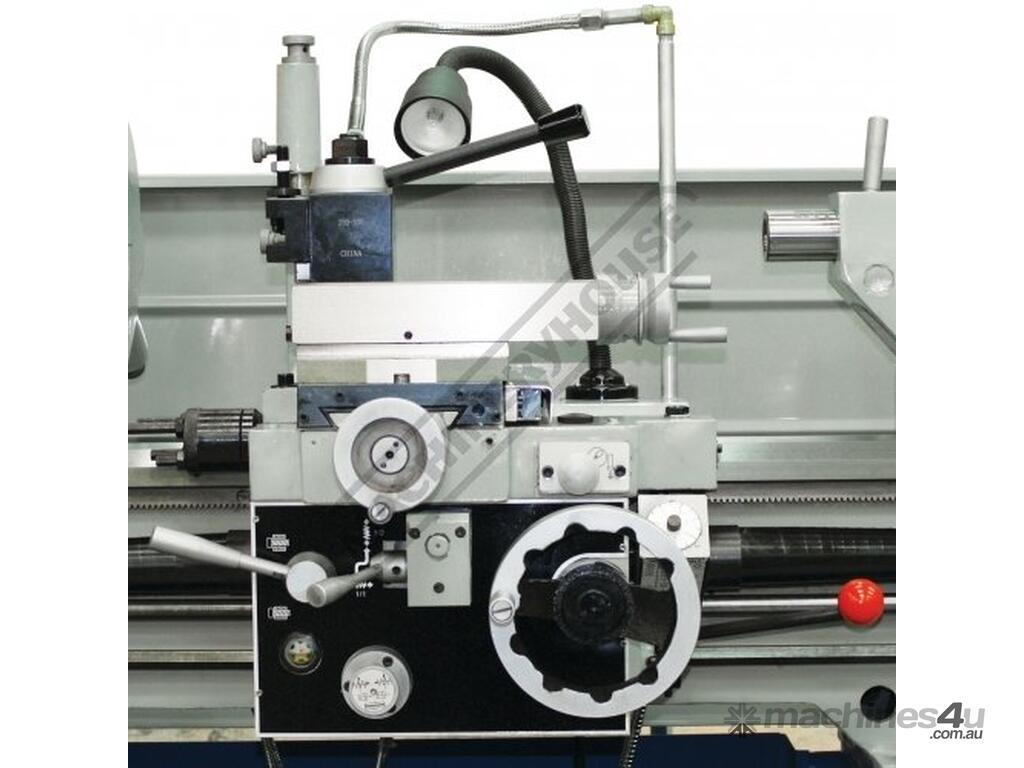

Lubrication pump on saddle oiling slides
D1-6 camlock spindle for quick chuck removal
Large 52mm spindle bore
2 speed 4.5hp 415V motor

Includes:
- 2 Axis digital readout system
- Quick change toolpost

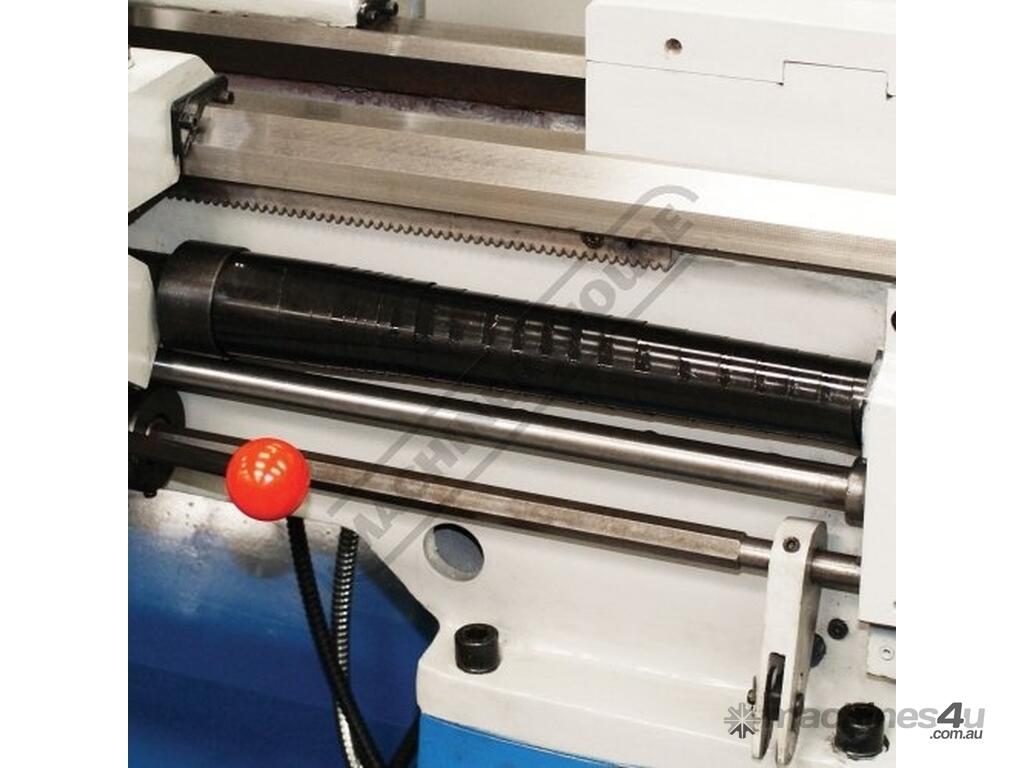

- Concertina leadscrew covers
- 200mm 3-jaw chuck with reverse jaws
- 250mm 4-jaw chuck
- Face plate
- Fixed steady with roller bearings
- Travelling steady with roller bearings
- Dead centres
- Thread chasing dial
- Foot brake
- Coolant system
- Work light
- Rear splash guard
- Spindle reducing bush



Specifications:
ORDER CODE: L191D
MODEL: CL-38A
Swing Over Bed (mm): 410
Distance Between Centres (mm): 1000
Spindle Bore (mm): 52
Swing In Gap (mm): 580
Swing Over Cross-slide (mm): 255
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Yes
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: ~
Coolant System: Yes
Tool Height To Suit (mm): 20
Centre Height (mm): 205
Spindle Nose Size or Type: D1-6 Camlock
Bed Width (mm): 250
Headstock Spindle Taper (MT): 6
Tailstock Taper (MT): 4
Cross Slide Travel (mm): 210
Compound Slide Travel (mm): 140
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.025 - 0.85
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.05 - 1.7
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~

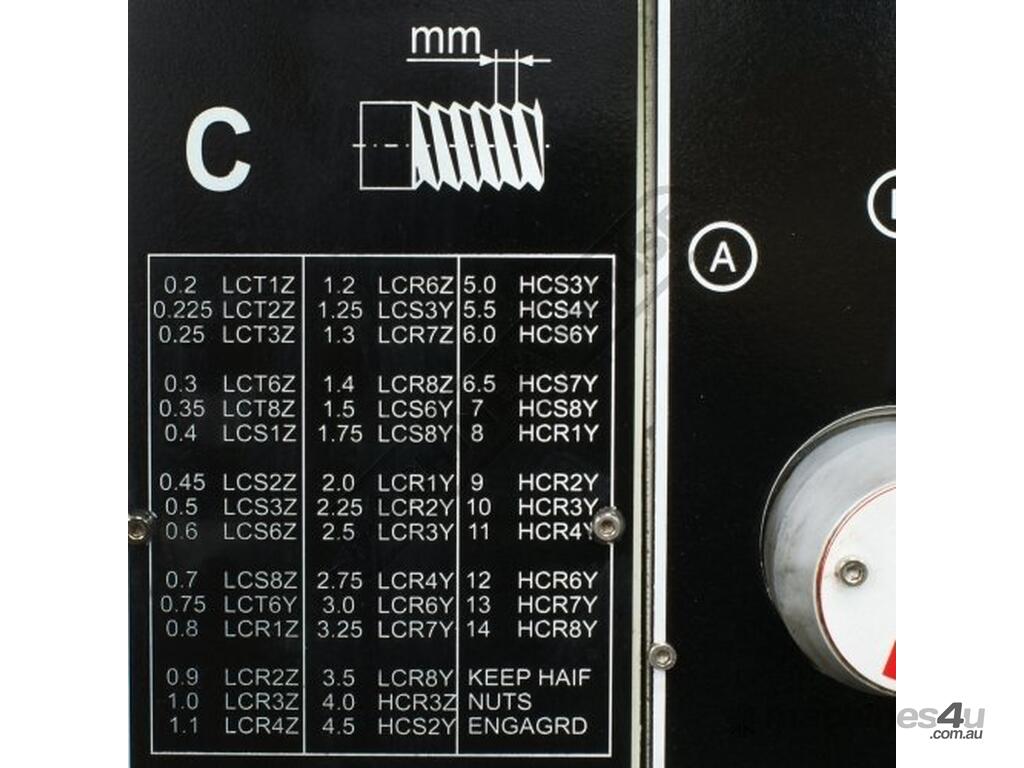

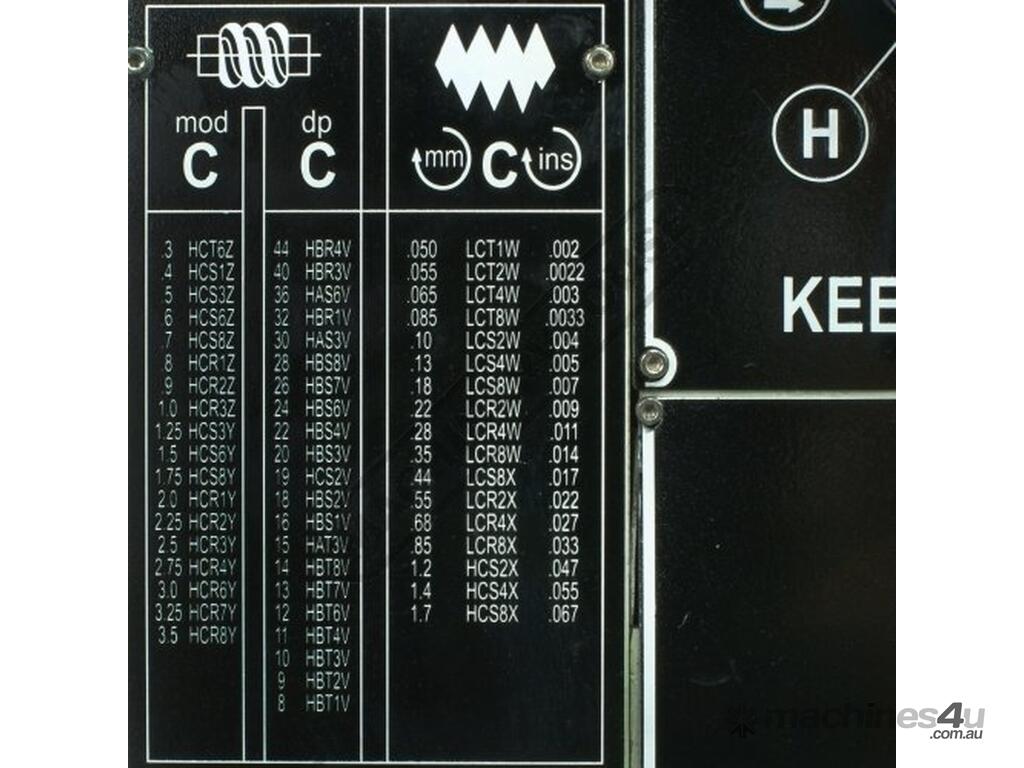

Metric Thread Steps & Pitch (No. / mm): 39 (0.2 - 14)

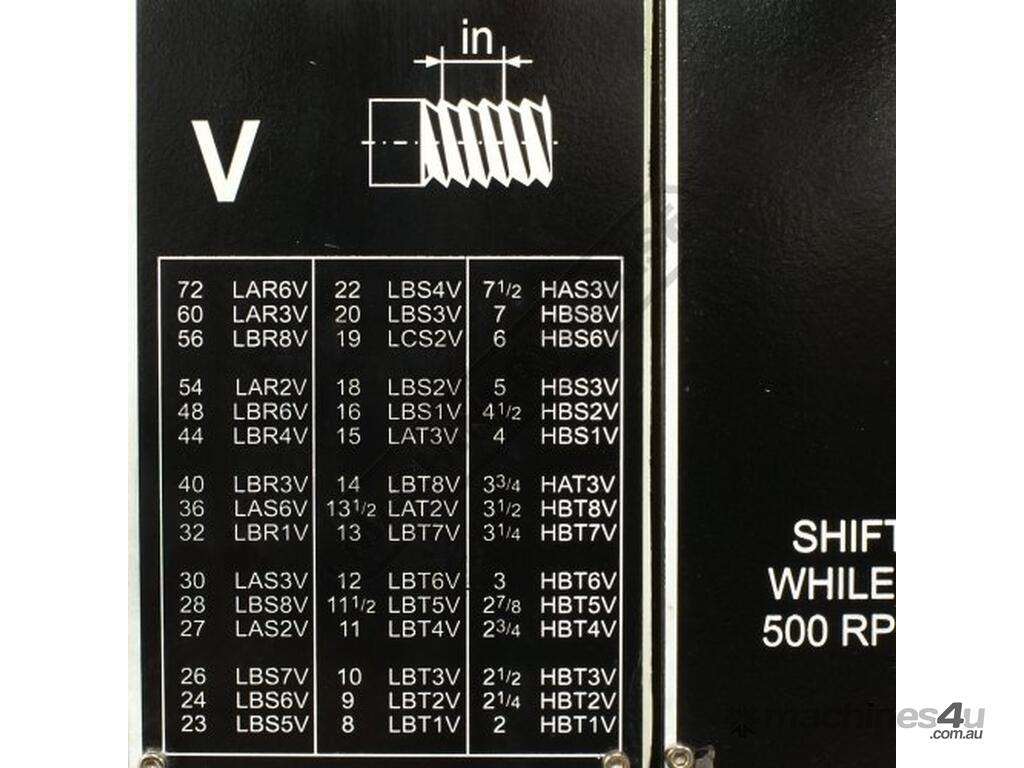

Imperial Thread Steps & TPI (No. / TPI): 45 (2 - 72)
3 Jaw Chuck Diameter (mm): 200
4 Jaw Chuck Diameter (mm): 250
Spindle Steps / Speeds (No. / rpm): 16 (45 - 1800)
Motor Power (kW / hp): 3.3 / 4.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1550
